AN82 – Aluminium

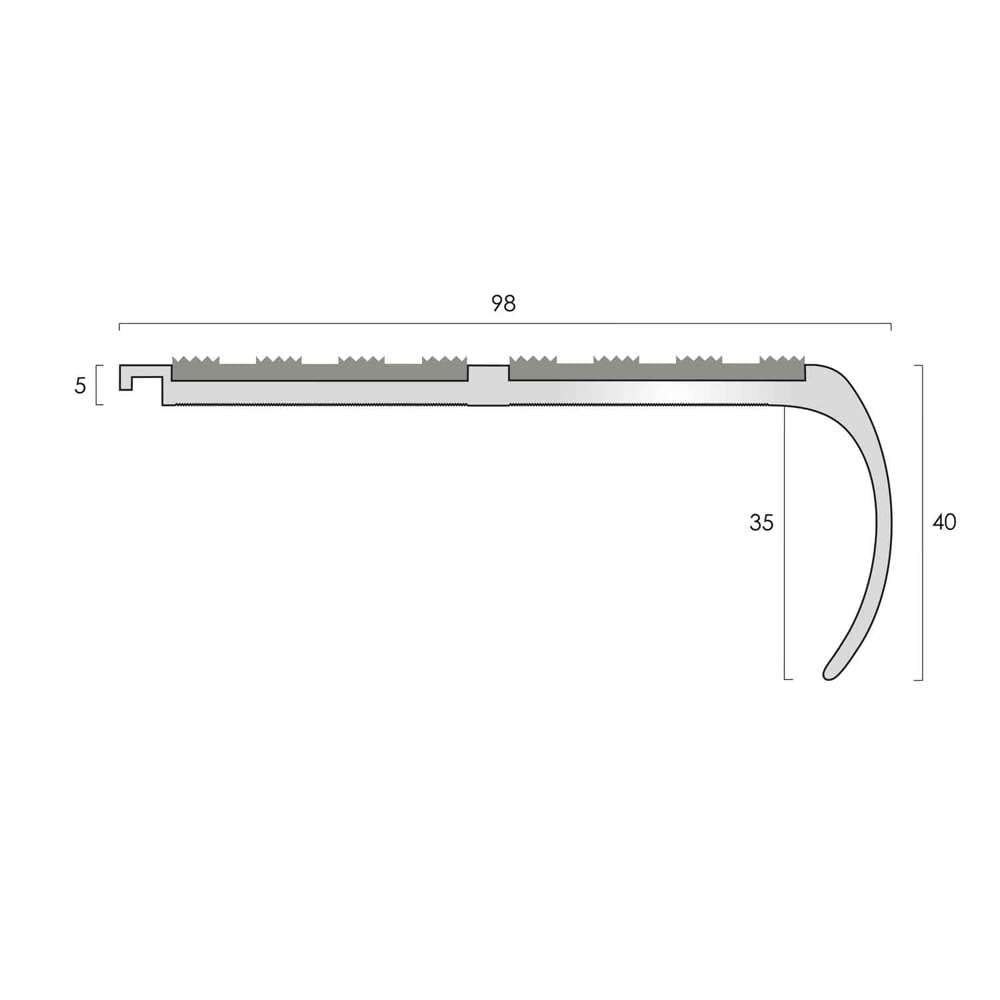

The AN82 is a 5mm gauge, bull-nosed, double-channel aluminium stair nosing that is available in a range of finishes with a variety of infill options and colours.

The AN82 has an interlocking back edge designed to accommodate a ramp extension (ANRE25), a tread extender (ANEXT), or a nap detail (ANE) for use with broadloom carpets.

Order Free Samples

NBS Source

Technical Specification

Mill Aluminium
Polished Aluminium
Satin Aluminium
Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Compatible with profiles ANE Nap Detail, ANRE25 Ramp Detail and ANEXT extension tread. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

3200 mm

Drilling

Drilled for concealing plugs, Undrilled, Drilled with retro fit infill

Light Reflective Value (Finish)

71.65 Find out more

Slip Resistance Values

ATI37.25 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Find out more

Compatible Stair Nosings and Accessories

ANEXT, ANRE25, ANE

Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Compatible with profiles ANE Nap Detail, ANRE25 Ramp Detail and ANEXT extension tread. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

3200 mm

Drilling

Drilled for concealing plugs, Undrilled, Drilled with retro fit infill

Light Reflective Value (Finish)

75.55 Find out more

Slip Resistance Values

ATI37.25 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Find out more

Compatible Stair Nosings and Accessories

ANEXT, ANRE25, ANE

Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Compatible with profiles ANE Nap Detail, ANRE25 Ramp Detail and ANEXT extension tread. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

3200 mm

Drilling

Drilled for concealing plugs, Undrilled, Drilled with retro fit infill

Light Reflective Value (Finish)

65.4 Find out more

Slip Resistance Values

ATI37.25 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Find out more

Compatible Stair Nosings and Accessories

ANEXT, ANRE25, ANE

Finishes

Finish: Mill Aluminium

Mill Aluminium

Finish: Polished Aluminium

Polished Aluminium

Finish: Satin Aluminium

Satin Aluminium

See more products in these finishes
Find Out More

Infill Options

Olympic Grip Insert

Black Olympic Grip Insert

Black

ATI37.25 Aluminium Insert

Mill Aluminium Insert

Mill

Satin Aluminium Insert

Satin

Polished Aluminium Insert

Polished

Castellated PVC Insert

Black Castellated PVC

Black

Granite Castellated PVC

Granite

Peat Castellated PVC

Peat

Spruce Castellated PVC

Spruce

Claret Castellated PVC

Claret

Regency Castellated PVC

Regency

Rustic Castellated PVC

Rustic

Jade Castellated PVC

Jade

Porth Stone Castellated PVC

Porth Stone

Light Grey Castellated PVC

Light Grey

Mid Blue Castellated PVC

Mid Blue

Fawn Castellated PVC

Fawn

Yellow Castellated PVC

Yellow

Polar Grey Castellated PVC

Polar Grey

Nimbus Castellated PVC

Nimbus

Ivory Castellated PVC

Ivory

Poppy Castellated PVC

Poppy

White Castellated PVC

White

Smooth Textured PVC Insert

Black Smooth Textured PVC

Black

Light Grey Smooth Textured PVC

Light Grey

Polar Grey Smooth Textured PVC

Polar Grey

Porth Stone Smooth Textured PVC

Porth Stone
