BN15R – Brass

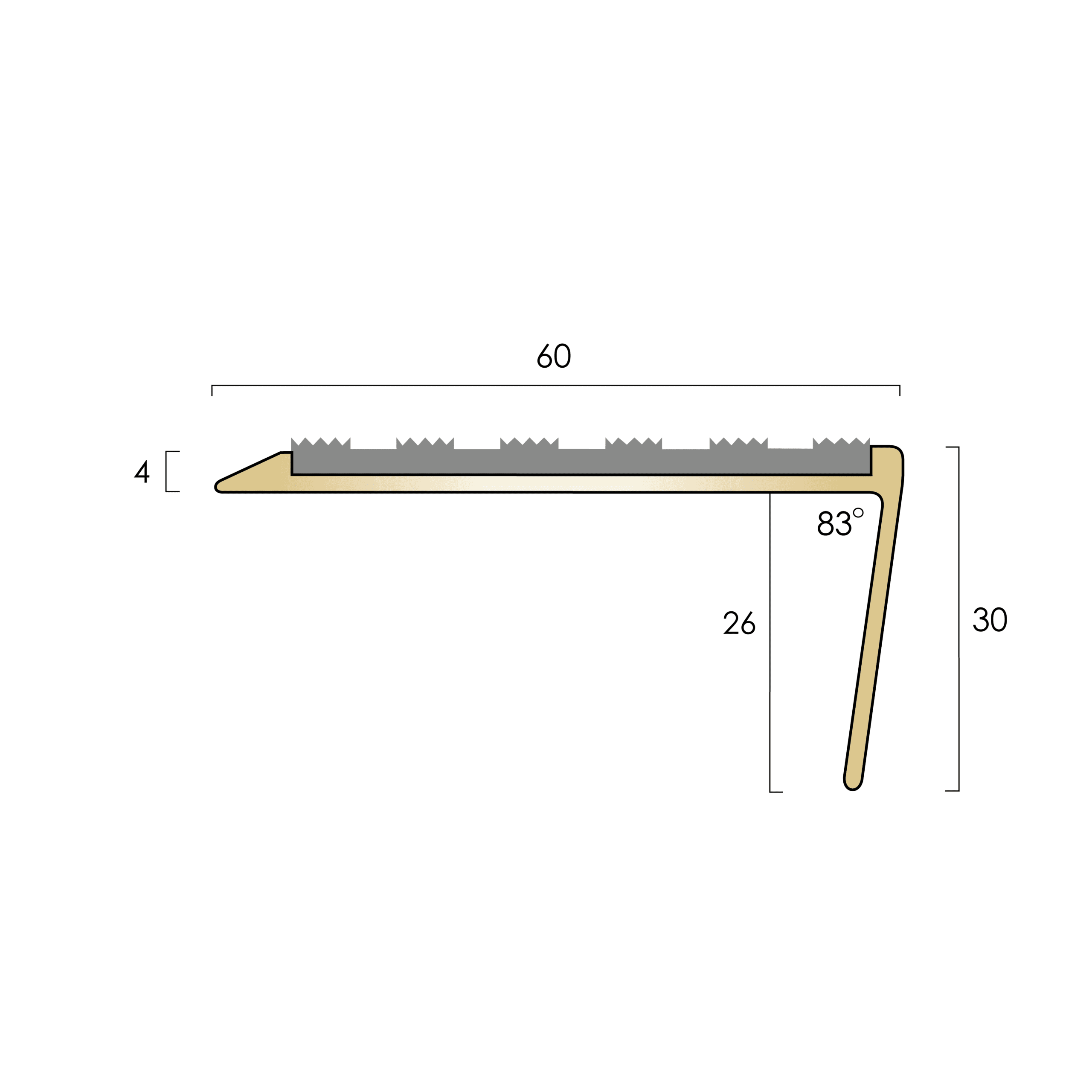

The BN15R is a single channel, raked-back, slimline brass stair nosing fitted with your choice of insert. Stair Nosing Inserts available include Castellated PVC, Smooth Textured PVC, Brass BTI and Olympic Grip.
Designed to be fitted directly to the step or with resilient floor coverings such as LVT, Bolon & Rubber Floor coverings from Nora etc.
This stair nosing is supplied in CAT’s four signature brass finishes and can be supplied drilled or undrilled. Inserts available include Castellated PVC, Smooth Textured PVC, Brass BTI and Olympic Grip.
NBS Source
Technical Specification
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are not foot-traffic resistant and are designed to create an aged, unpolished effect.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
2500 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
29.55 Find out more
Slip Resistance Values
BTI49.5 Brass Insert - SRV Dry: 82 - SRV Wet: 54
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are not foot-traffic resistant and are designed to create an aged, unpolished effect.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
2500 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
9.15 Find out more
Slip Resistance Values
BTI49.5 Brass Insert - SRV Dry: 82 - SRV Wet: 54
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
2500 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
71.45 Find out more
Slip Resistance Values
BTI49.5 Brass Insert - SRV Dry: 82 - SRV Wet: 54
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
2500 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
59.55 Find out more
Slip Resistance Values
BTI49.5 Brass Insert - SRV Dry: 82 - SRV Wet: 54
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Finishes
Antique Brass
Antique Bronze
Polished Brass
Satin Brass
Infill Options
BTI49.5 Brass Insert
Polished
Satin
Antique Brass
Antique Bronze
Castellated PVC Insert
Black
Flint
Granite
Peat
Spruce
Claret
Regency
Rustic
Jade
Porth Stone
Light Grey
Mid Blue
Fawn
Yellow
Polar Grey
Nimbus
Ivory
Poppy
White
Smooth Textured PVC Insert
Black
Light Grey
Polar Grey
Porth Stone
Olympic Grip Insert
Black
