CAT offer a wide range of versatile height adjustable clip in top and base profile combinations. Bases have an interlocking barb design to allow for easy clip-in installation on site, where bases are fitted to the sub-floor prior to the flooring being installed. Tops are installed after the flooring is fitted by clipping into the bases fitted. A comprehensive installation guide is available for more information on fitting the system.
The three clip-in systems we offer; Kliks®, Kliks Slim® & Kliks Spectrum Zip® comprise of various top profiles designed to suit all project needs and installations, whether it is a prestigious hotel or a high-end residential development.
Kliks
The Kliks range is suitable for use in commercial environments and comprises of Ramp Tops, Twin Tops and End Stops in Aluminium, Brass and Stainless Steel with a wide range of finishes to choose from, including Polished Aluminium, Satin and Antique Brass as well as Chrome. Suitable for timber, stone, ceramics and carpet installations.
Kliks top profiles are designed to be installed with our Kliks base profiles, KB1, KB2 and KB3.

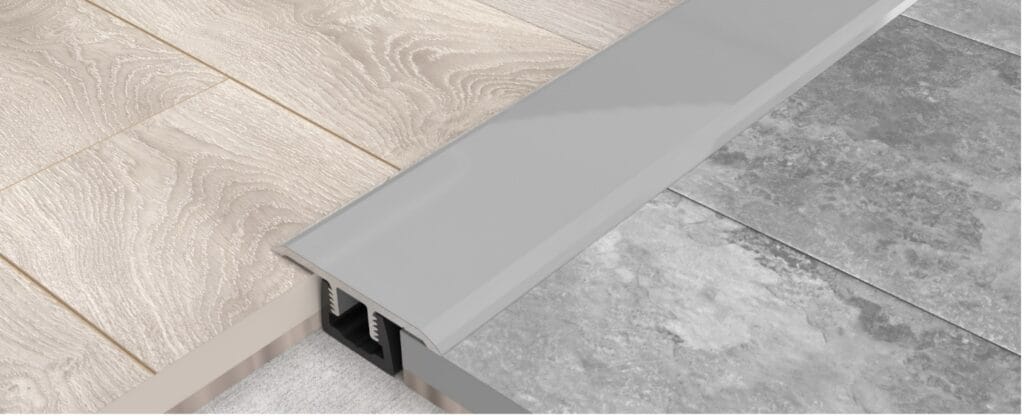

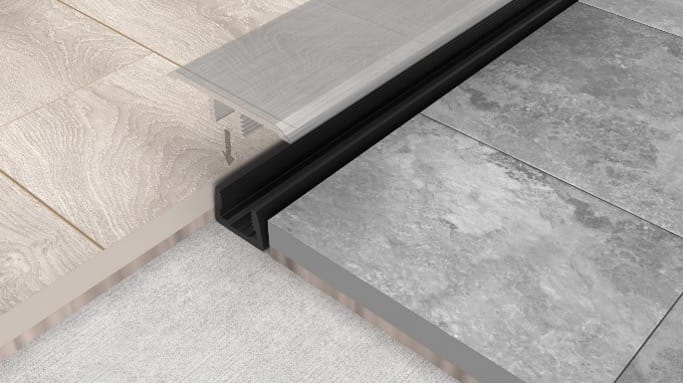

Example Installation: KB2 uPVC base with KK132 (Kliks Twin Top in Satin Aluminium).
Top profiles are installed with chosen base to suit thickness of flooring to be installed. Profiles allow for expansion on the side(s) to suit various installations where expansion is required. Expansion allowance varies for each profile and can be found on product Technical Data Sheets on individual product pages.
The below are a few examples of Top and Base combinations:
Twin Top

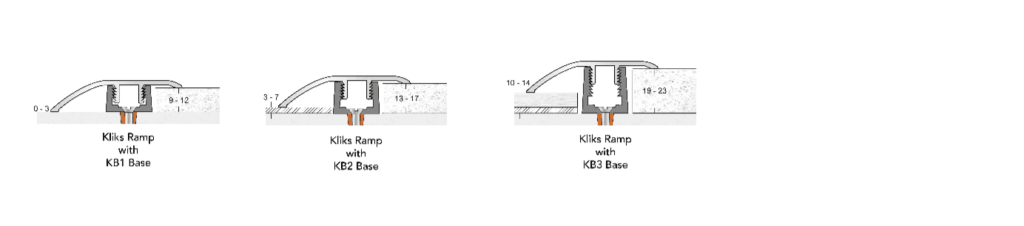

Ramp Top

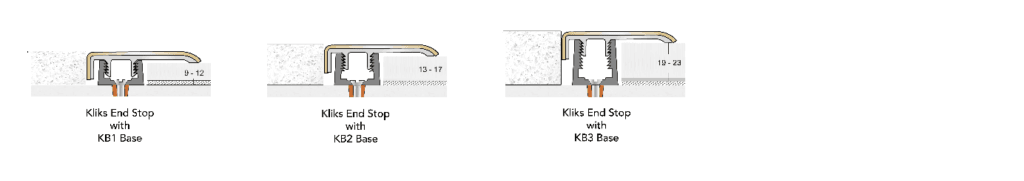

End Stop
Kliks Slim®
Our Kliks Slim range is suitable for use in residential and light commercial environments and comprises of Ramp Tops, Twin Tops and End Stops in Aluminium, Brass and Stainless Steel with a wide range of finishes to choose from, including our unique Designer Home Collection finishes on aluminium, Satin and Antique Brass as well as Chrome. Suitable for timber, stone, ceramics and carpet installations.
Kliks Slim top profiles are designed to be installed with our Kliks Slim base profiles, KKSBP9.5, KKSBP12, KKSBP15 and KKSBP20.

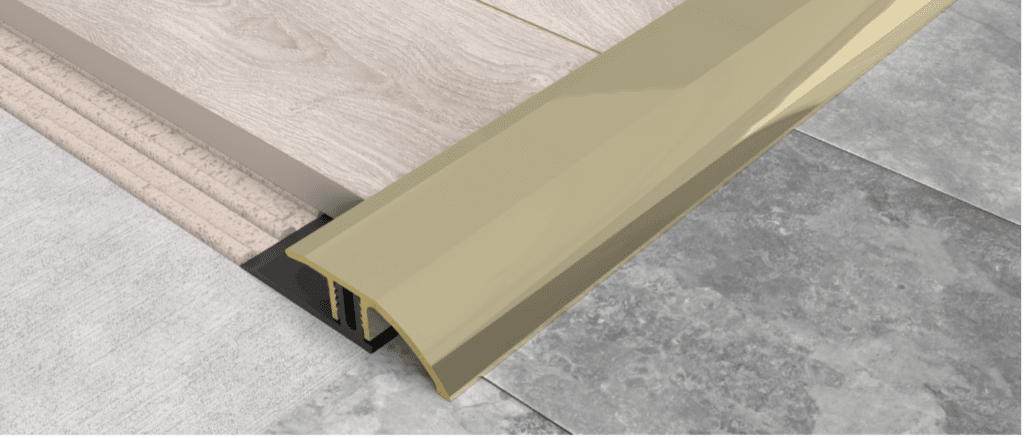

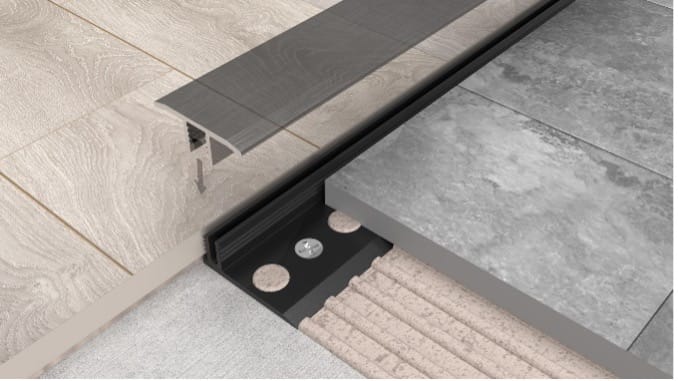

Example Installation: KKSBP12 uPVC base with KKSLTTDHC (Kliks Slim Twin Top Aluminium) in Pewter.
Top profiles are installed with chosen base to suit thickness of flooring to be installed. Profiles allow for expansion on the side(s) to suit various installations where expansion is required. Expansion allowance varies for each profile and can be found on product Technical Data Sheets on individual product pages.
The below are a few examples of Top and Base combinations:

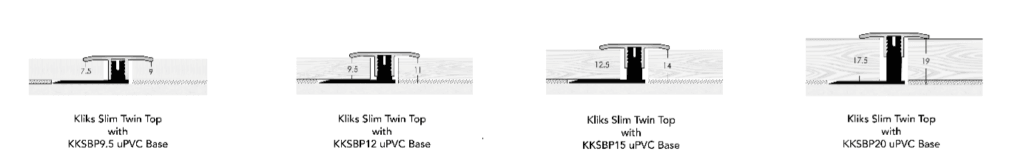

Twin Top

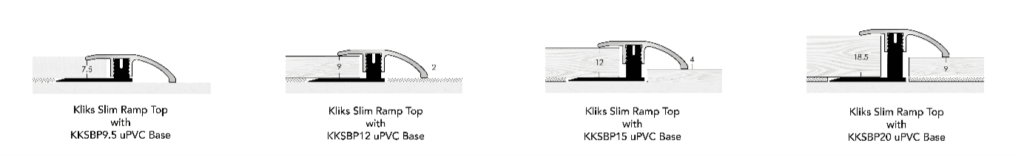

Ramp Top

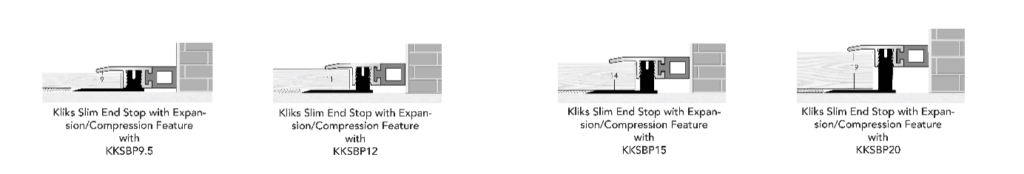

End Stop
Kliks® Spectrum Zip®
The Kliks Spectrum Zip range is suitable for use in commercial and retail environments and comprises of Ramp Tops, Twin Tops and End Stops in uPVC with two colours to choose from. Suitable for timber, stone, ceramics and carpet installations.
Kliks Spectrum Zip top profiles are designed to be installed with our Kliks Spectrum Zip base profiles, KB1, KB2, KB3 and KB4.

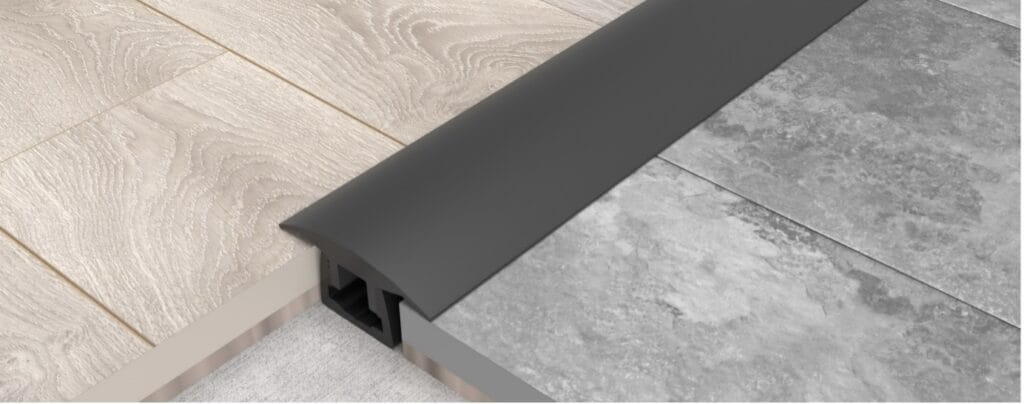

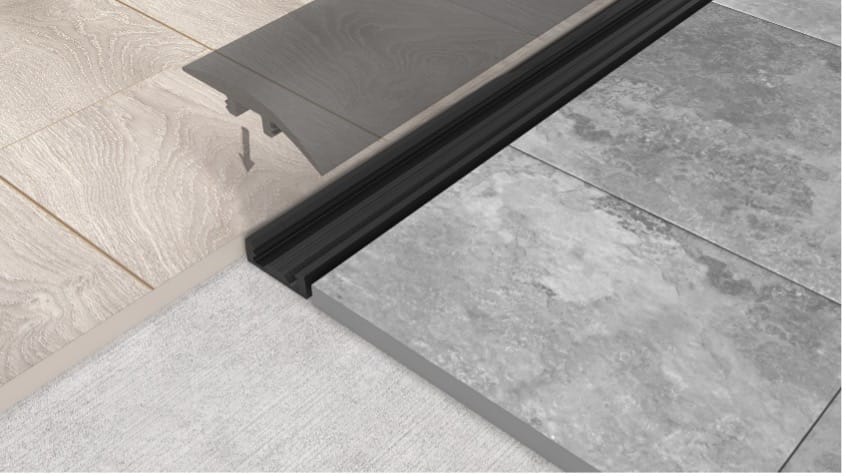

Example Installation: KB4 uPVC base with KSP3 ramp top in Black.
Top profiles are installed with chosen base to suit thickness of flooring to be installed. Kliks Spectrum Zip profiles are suitable for curving on site, when fitted with a KB1 uPVC base, with the following minimum curving radii and tail positions:
The below are a few examples of Top and Base combinations:

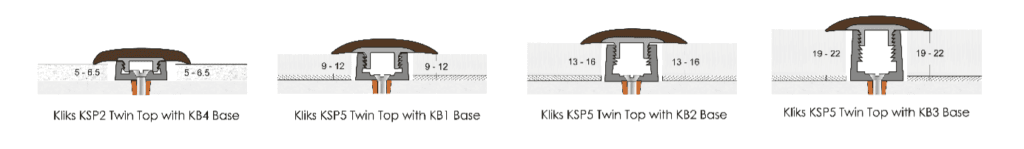

Twin Top

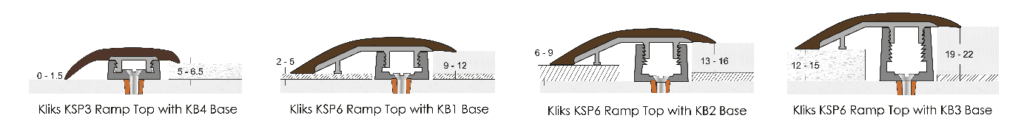

Ramp Top

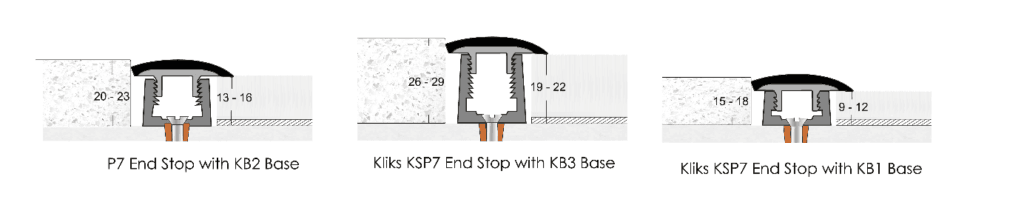

End Stop
