AC100 – Aluminium

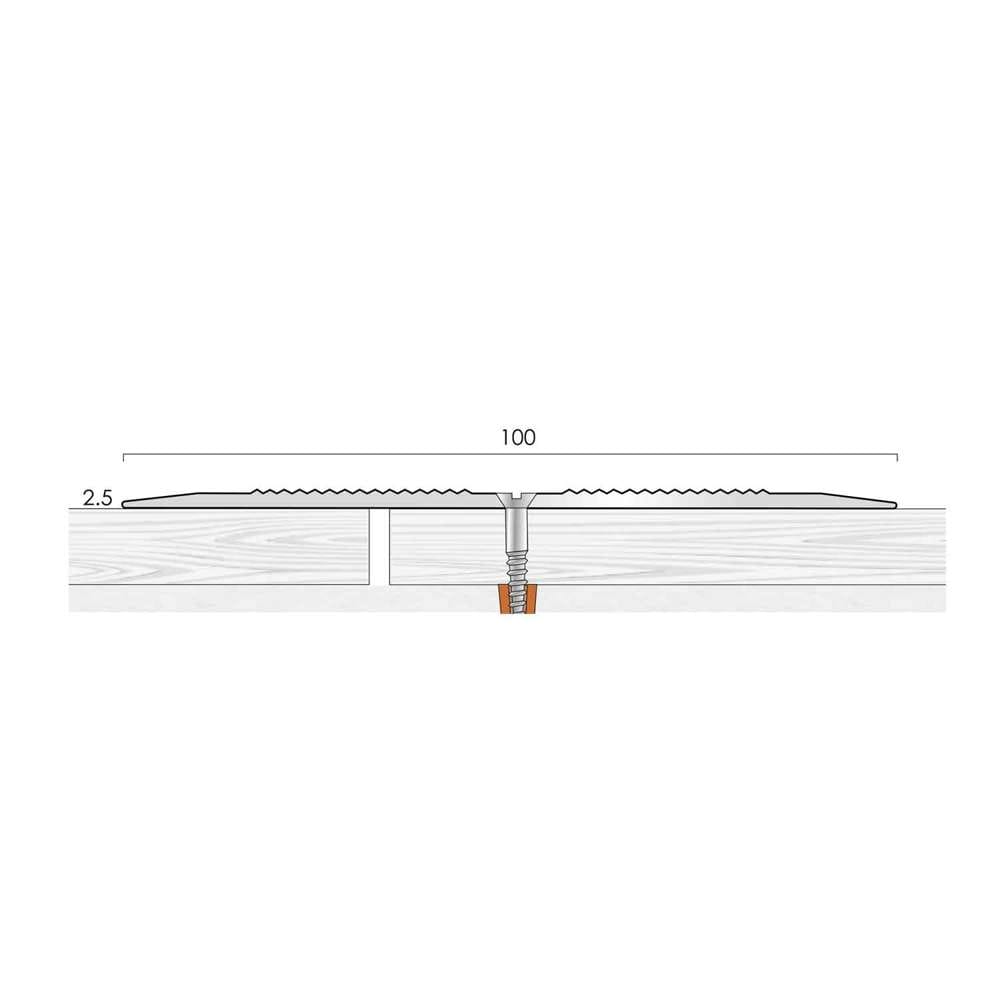

AC100 is a 100mm wide aluminium cover plate designed to bridge two floor coverings whilst allowing for expansion.
AC100 is supplied centre drilled for size 8 screws for a mechanical fixing. Fixings are visible in the finished installation.
Alternatively, the cover plate can be supplied off-centre drilled or undrilled upon request. Fixings are not supplied.
Technical Specification
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
100 mm
Standard Supply
Centre drilled for size 8 screws. Fixings are visible in the finished installation.
Light Reflective Value (Finish)
71.65 Find out more
