AN14 – Aluminium

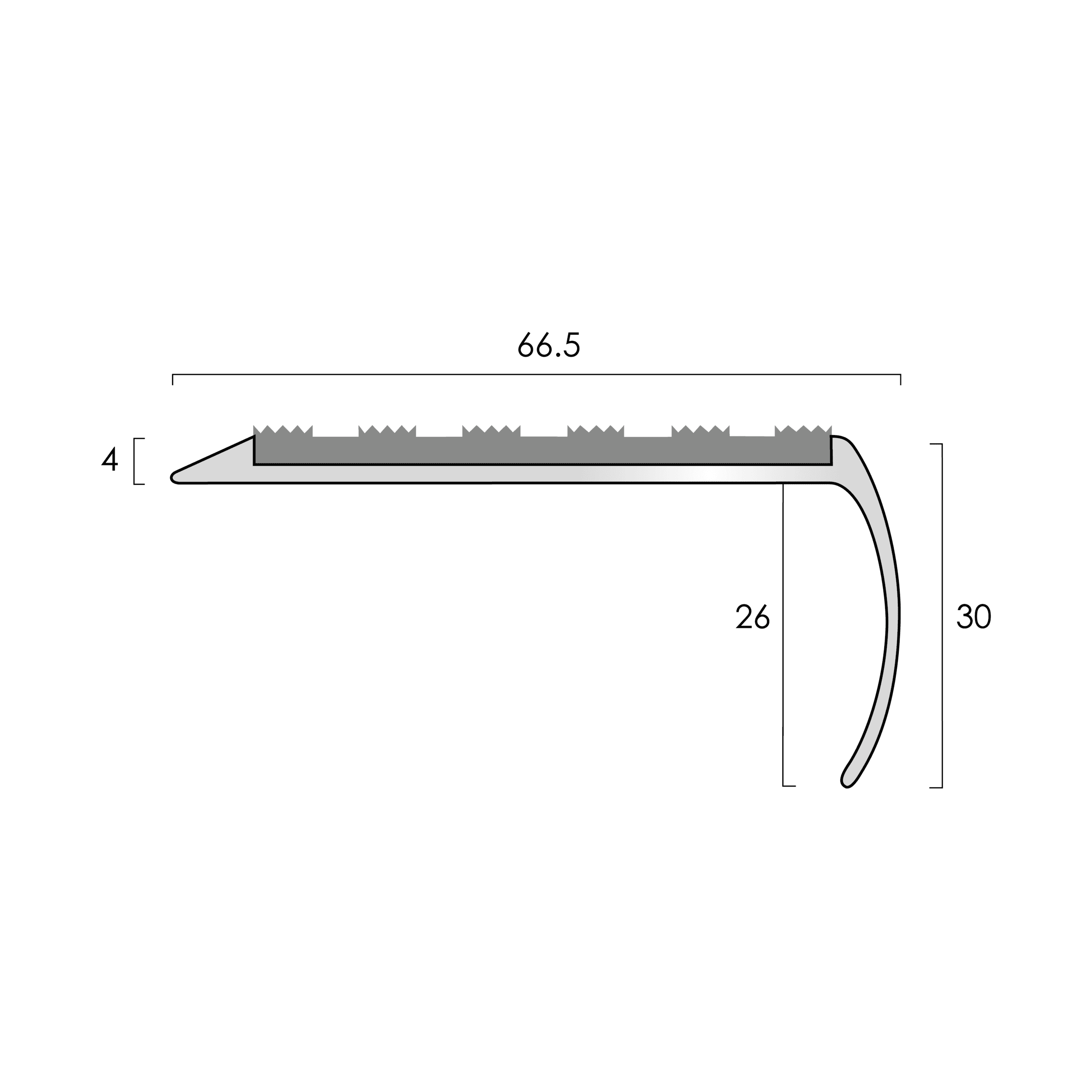

The AN14 is a ramp tread, bull nose, single-channel aluminium stair nosing that is available in a range of finishes with a variety of infill options and colours.
Available infill options include Castellated PVC, Smooth Textured PVC, ATI49.5 Aluminium and Olympic Grip.
NBS Source
Technical Specification
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
75.55 Find out more
Slip Resistance Values
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
65.4 Find out more
Slip Resistance Values
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
71.65 Find out more
Slip Resistance Values
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Infill Options
ATI49.5 Aluminium Insert
Mill
Satin
Polished
Black Anodised
Bronze
Light Bronze
Castellated PVC Insert
Black
Flint
Granite
Peat
Spruce
Claret
Regency
Rustic
Jade
Porth Stone
Light Grey
Mid Blue
Fawn
Yellow
Polar Grey
Nimbus
Ivory
Poppy
White
Gold
Olive
Smooth Textured PVC Insert
Black
Light Grey
Polar Grey
Porth Stone
Olympic Grip Insert
Black
Please select the sample you'd like for this product
