AN59RSL – Aluminium

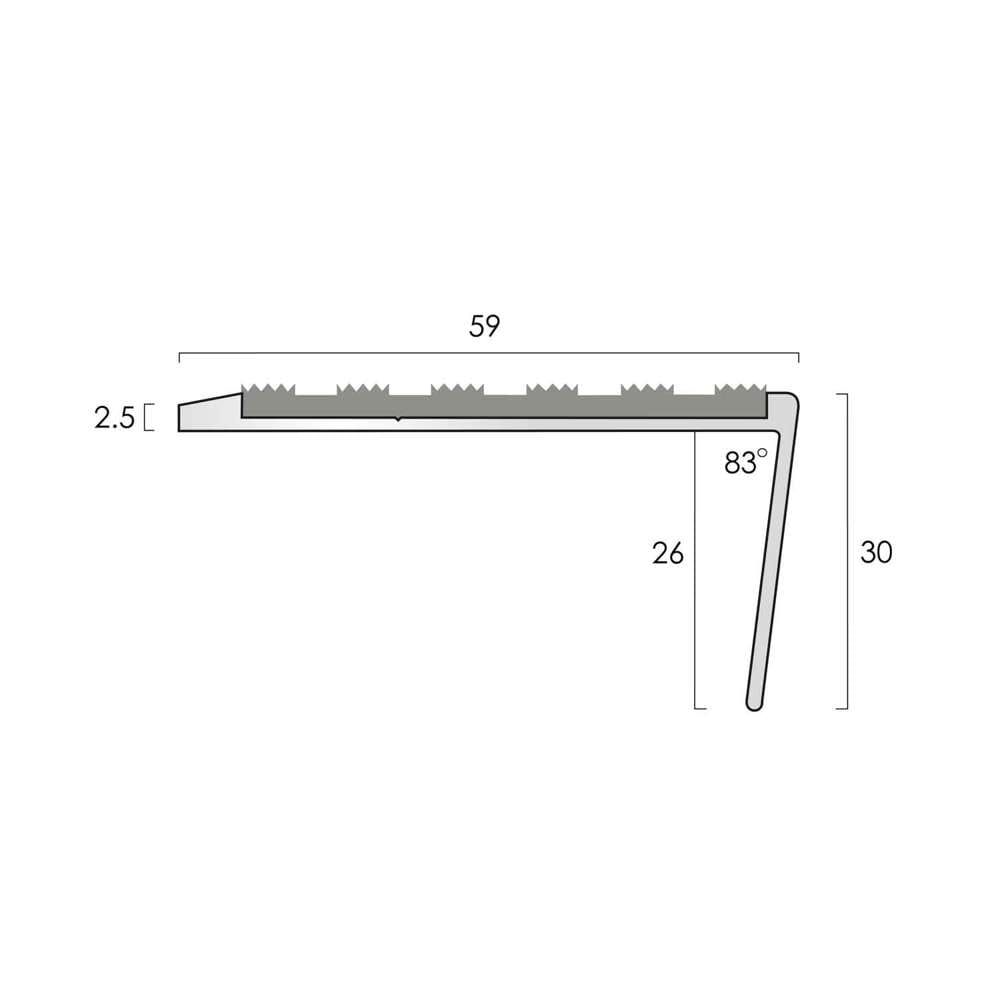

The AN59RSL is a single channel, raked-back, slimline aluminium stair nosing available with a variety of infill options.
Part of our Designer Collection range of stair nosings, AN59RSL is also available in Bronze and Light Bronze finishes, ideal for installations where the iconic look of aged brass is desired, without the higher budget. Matching flooring trims are also available as part of our Designer Home Collection range.
NBS Source
Technical Specification
Suitability
For stairs with low to medium traffic volumes. Heavy foot traffic and impact damage can wear through the finish to reveal the natural aluminium colour beneath.
Application
For abutting to LVT and Vinyl to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
2700 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
4.8 Find out more
Slip Resistance Values
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Suitability
Light to medium foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, offices and apartment buildings.
Application
For abutting to LVT and Vinyl to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
2500 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
27.25 Find out more
Slip Resistance Values
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Suitability
Light to medium foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, offices and apartment buildings.
Application
For abutting to LVT and Vinyl to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
2500 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
10.1 Find out more
Slip Resistance Values
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For abutting to LVT and Vinyl to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
75.55 Find out more
Slip Resistance Values
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For abutting to LVT and Vinyl to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
65.4 Find out more
Slip Resistance Values
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For abutting to LVT and Vinyl to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
71.65 Find out more
Slip Resistance Values
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Finishes

Black Anodised

Light Bronze

Bronze

Polished Aluminium

Satin Aluminium

Mill Aluminium
Infill Options
ATI49.5 Aluminium Insert

Mill

Satin

Polished

Black Anodised

Bronze

Light Bronze
Castellated PVC Insert

Black

Flint

Granite

Peat

Spruce

Claret

Regency

Rustic

Jade

Porth Stone

Light Grey

Mid Blue

Fawn

Yellow

Polar Grey

Nimbus

Ivory

Poppy

White

Gold

Olive
Smooth Textured PVC Insert

Black

Light Grey

Polar Grey

Porth Stone
Olympic Grip Insert

Black
Please select the sample you'd like for this product
