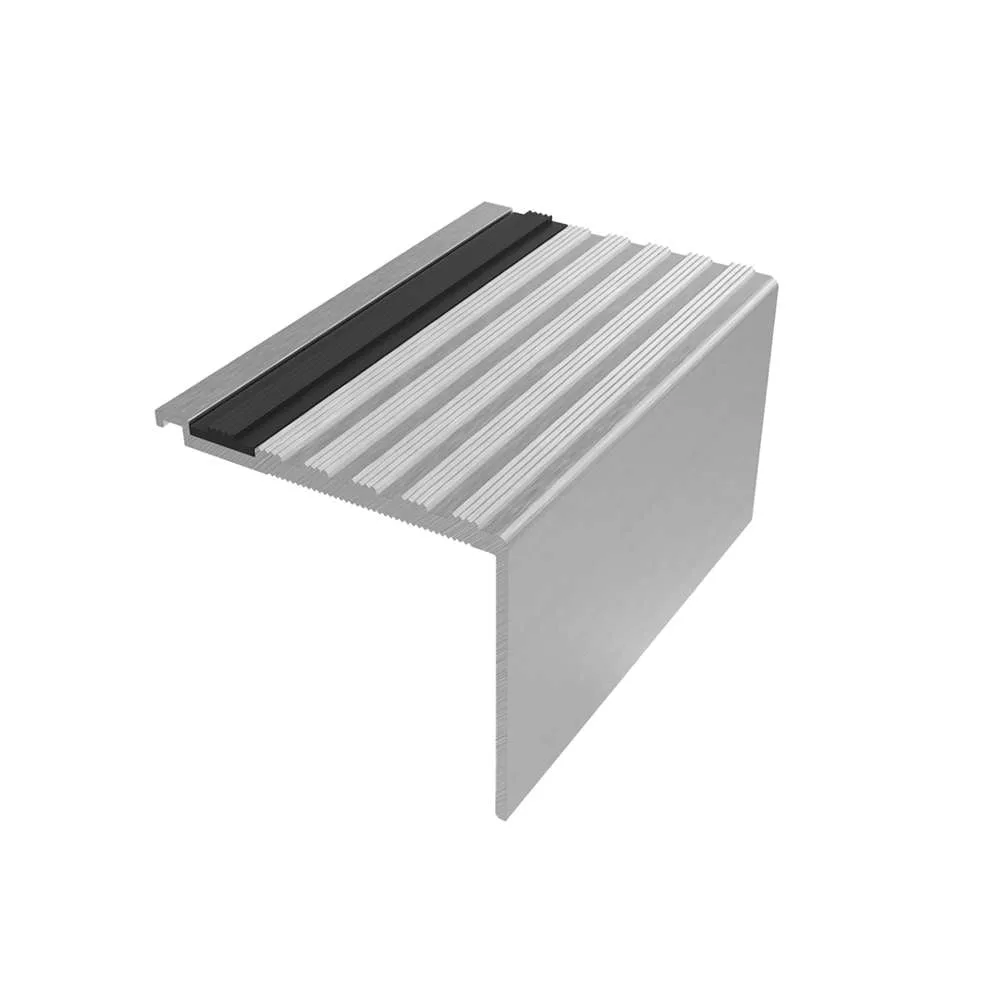

AN65/55CF – Aluminium
The AN65/55CF is a 5mm gauge, square-back, single-channel aluminium stair nosing that is available in a range of finishes, including Black Anodised. Supplied with a 13mm PVC infill strip for concealed fixing through the back channel.
The AN65/55CF has an interlocking back edge designed to accommodate a ramp extension (ANRE25), a tread extender (ANEXT), or a nap detail (ANE) for use with broadloom carpets.
NBS Source
Technical Specification
Suitability
For stairs with low to medium traffic volumes. Heavy foot traffic and impact damage can wear through the finish to reveal the natural aluminium colour beneath.
Application
For use with carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. It is vital that screw heads are down flush, or below, the surface of the channel. Any that remain raised will prevent the concealing strip from affixing properly. Compatible with ANE Nap Detail and ANE25 Ramp Detail. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
2700 mm
Drilling
Array
Light Reflective Value (Finish)
4.8 Find out more
Slip Resistance Values
SRV Wet: 54, SRV Dry: 82 Find out more
Compatible Accessories
ANEXT, ANRE25, ANE
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For use with carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. It is vital that screw heads are down flush, or below, the surface of the channel. Any that remain raised will prevent the concealing strip from affixing properly. Compatible with ANE Nap Detail and ANE25 Ramp Detail. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Array
Light Reflective Value (Finish)
75.55 Find out more
Slip Resistance Values
SRV Wet: 54, SRV Dry: 82 Find out more
Compatible Accessories
ANEXT, ANRE25, ANE
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For use with carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. It is vital that screw heads are down flush, or below, the surface of the channel. Any that remain raised will prevent the concealing strip from affixing properly. Compatible with ANE Nap Detail and ANE25 Ramp Detail. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Array
Light Reflective Value (Finish)
65.4 Find out more
Slip Resistance Values
SRV Wet: 54, SRV Dry: 82 Find out more
Compatible Accessories
ANEXT, ANRE25, ANE
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For use with carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. It is vital that screw heads are down flush, or below, the surface of the channel. Any that remain raised will prevent the concealing strip from affixing properly. Compatible with ANE Nap Detail and ANE25 Ramp Detail. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Array
Light Reflective Value (Finish)
71.65 Find out more
Slip Resistance Values
SRV Wet: 54, SRV Dry: 82 Find out more
Compatible Accessories
ANEXT, ANRE25, ANE
Finishes
Black Anodised
Polished Aluminium
Satin Aluminium
Mill Aluminium
