ANEXT – Aluminium

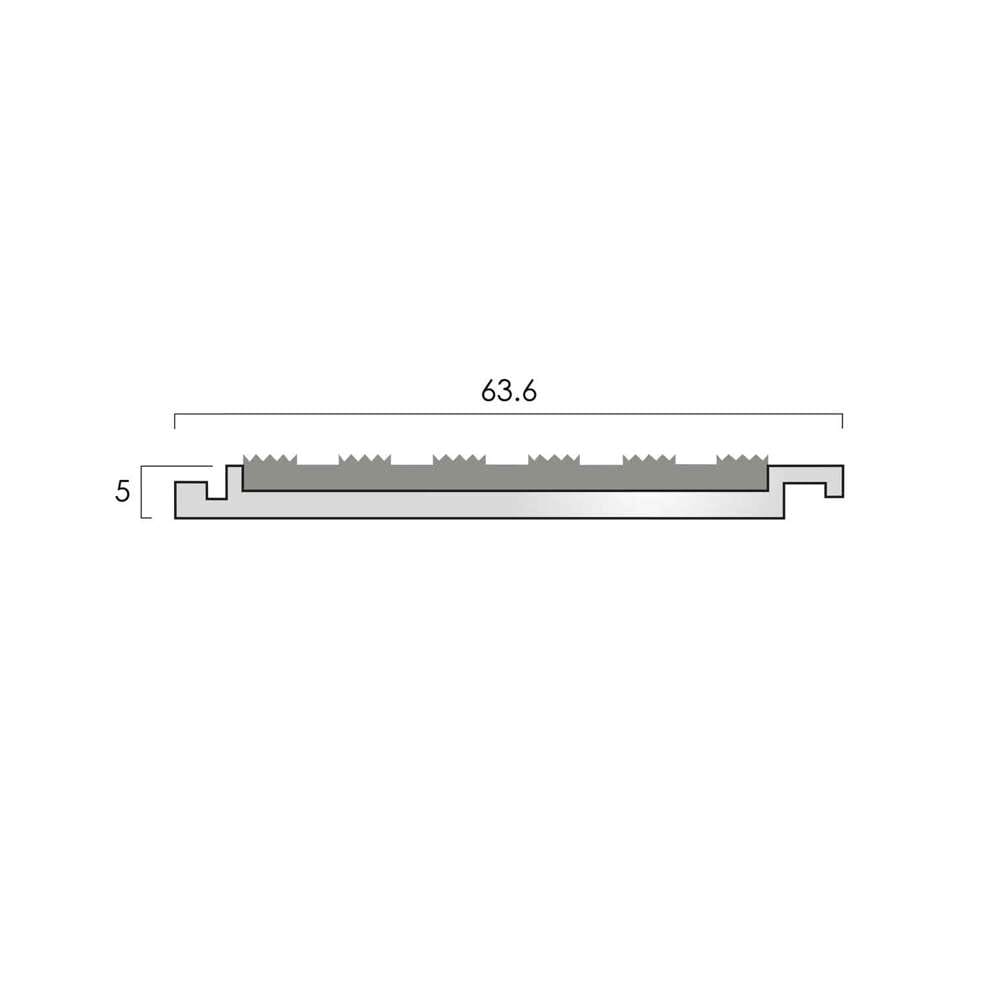

The ANEXT is a 5mm gauge aluminium stair nosing tread extender that is available in a range of finishes with a variety of infill options and colours.
The ANEXT has an interlocking back edge designed to join any of CAT’s 5mm gauge Aluminium Stair Nosings with an interlocking feature. The interlocking back edge can also accommodate a ramp extension code ANRE25, another tread extender code ANEXT, or an ANE nap detail for use with carpet.
ANEXT is also available in Mill Aluminium finish as a heavy-duty aluminium stair nosing tread extender. Supplied with glass-fibre reinforced plastic GRPTI49.5 inserts designed for high foot traffic outdoor environments where enhanced slip resistance is desired. Product code: ANEXT GRP.
Technical Specification
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To extend the going cover of CAT aluminium stair nosings which have an interlock feature at the back edge. Can be used in combination with ANE Nap Detail for carpet installations and ANRE25 Ramp Detail to finish the nose edge of stone and timber stairs and stairs fitted with ceramics and hard flooring, e.g., laminates, LVT, vinyl, lino.
Supplied Cut To Size, up to a maximum lengths of
3200 mm
Drilling
ATI49.5 Aluminium Insert: Undrilled, Drilled with retro fit infill
Castellated PVC Insert: Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Smooth Textured PVC Insert: Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Olympic Grip Insert: Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
71.65 Find out more
Slip Resistance Values
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Compatible Stair Nosings and Accessories
AN51, AN51/55R, AN52, AN52R, AN51/55, AN61, AN69, AN81, AN82, ANE NAP, ANRE25, AN65/30CF, AN65/30RCF, AN65/55CF, AN65/55RCF
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To extend the going cover of CAT aluminium stair nosings which have an interlock feature at the back edge. Can be used in combination with ANE Nap Detail for carpet installations and ANRE25 Ramp Detail to finish the nose edge of stone and timber stairs and stairs fitted with ceramics and hard flooring, e.g., laminates, LVT, vinyl, lino.
Supplied Cut To Size, up to a maximum lengths of
3200 mm
Drilling
ATI49.5 Aluminium Insert: Undrilled, Drilled with retro fit infill
Castellated PVC Insert: Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Smooth Textured PVC Insert: Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Olympic Grip Insert: Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
75.55 Find out more
Slip Resistance Values
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Compatible Stair Nosings and Accessories
AN51, AN51/55R, AN52, AN52R, AN51/55, AN61, AN69, AN81, AN82, ANE NAP, ANRE25, AN65/30CF, AN65/30RCF, AN65/55CF, AN65/55RCF
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To extend the going cover of CAT aluminium stair nosings which have an interlock feature at the back edge. Can be used in combination with ANE Nap Detail for carpet installations and ANRE25 Ramp Detail to finish the nose edge of stone and timber stairs and stairs fitted with ceramics and hard flooring, e.g., laminates, LVT, vinyl, lino.
Supplied Cut To Size, up to a maximum lengths of
3200 mm
Drilling
ATI49.5 Aluminium Insert: Undrilled, Drilled with retro fit infill
Castellated PVC Insert: Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Smooth Textured PVC Insert: Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Olympic Grip Insert: Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
65.40 Find out more
Slip Resistance Values
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Compatible Stair Nosings and Accessories
AN51, AN51/55R, AN52, AN52R, AN51/55, AN61, AN69, AN81, AN82, ANE NAP, ANRE25, AN65/30CF, AN65/30RCF, AN65/55CF, AN65/55RCF
Infill Options
ATI49.5 Aluminium Insert
Mill
Satin
Polished
Black Anodised
Bronze
Light Bronze
Castellated PVC Insert
Black
Flint
Granite
Peat
Spruce
Claret
Regency
Rustic
Jade
Porth Stone
Light Grey
Mid Blue
Fawn
Yellow
Polar Grey
Nimbus
Ivory
Poppy
White
Gold
Olive
Smooth Textured PVC Insert
Black
Light Grey
Polar Grey
Porth Stone
Olympic Grip Insert
Black
Please select the sample you'd like for this product
