BC55 – Brass
BC55 is a brass cover plate designed to bridge two floor coverings at the same height, whilst allowing for expansion.

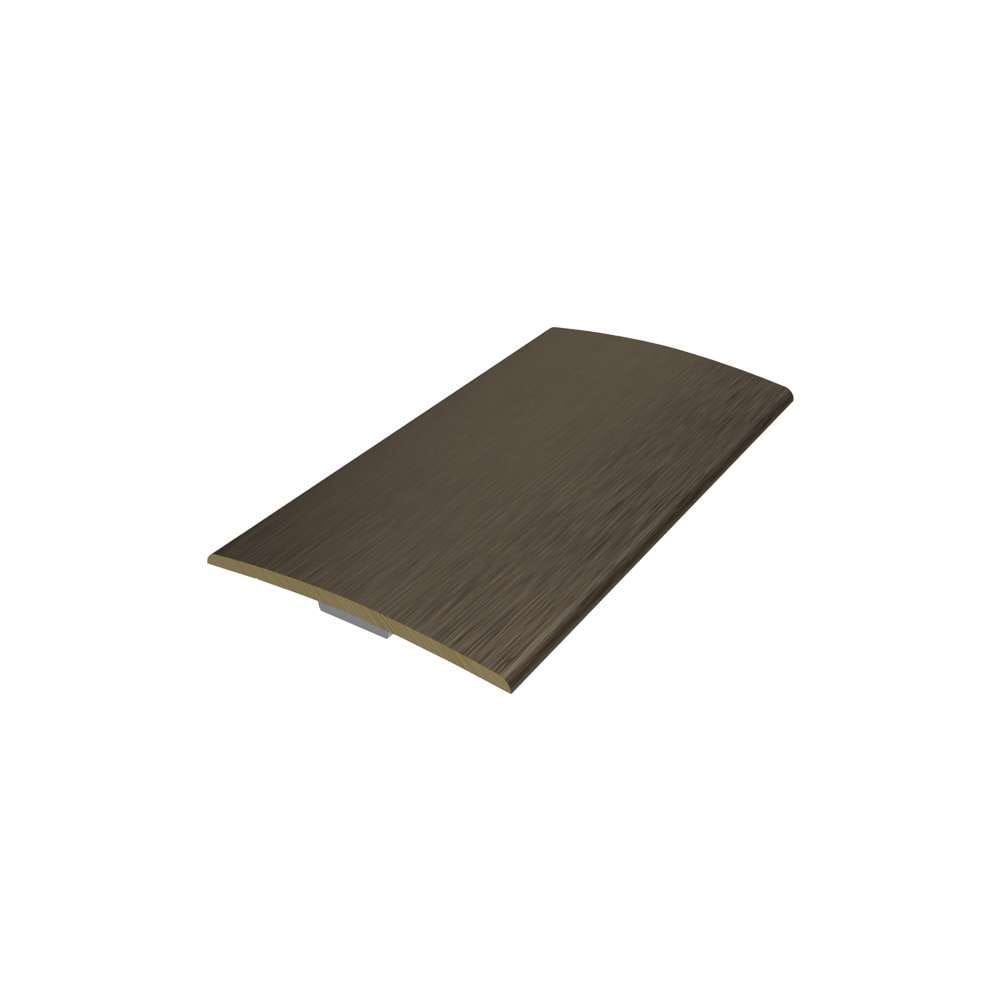

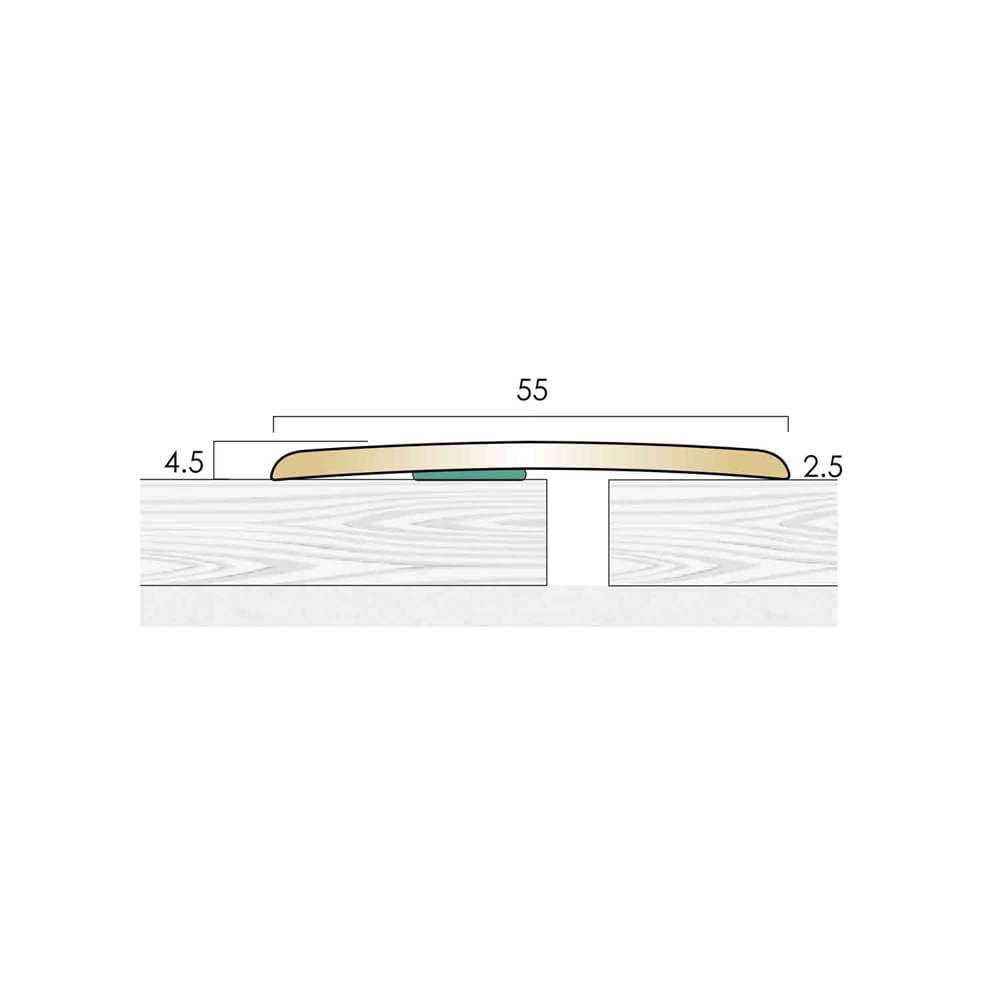

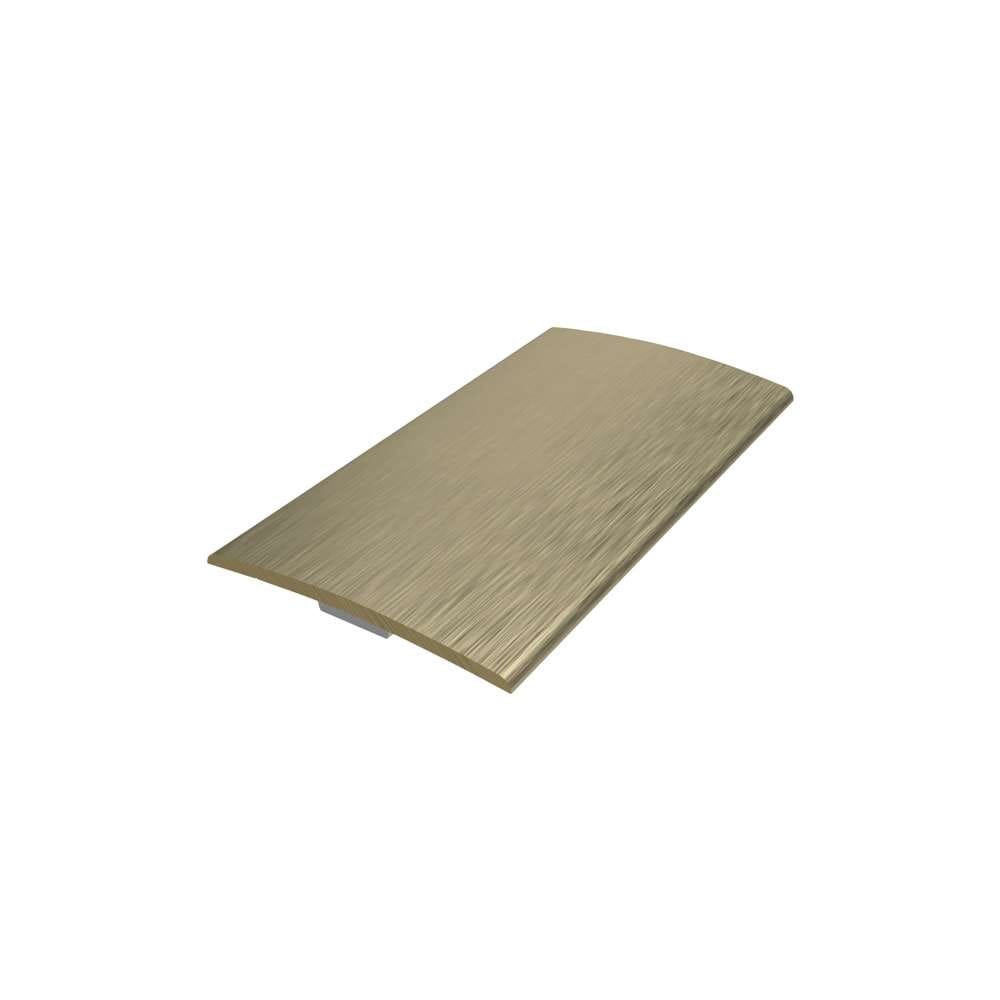

BC55 can be supplied undrilled with Stick Fix double sided adhesive tape pre-applied to the underside for non-mechanical fixing.

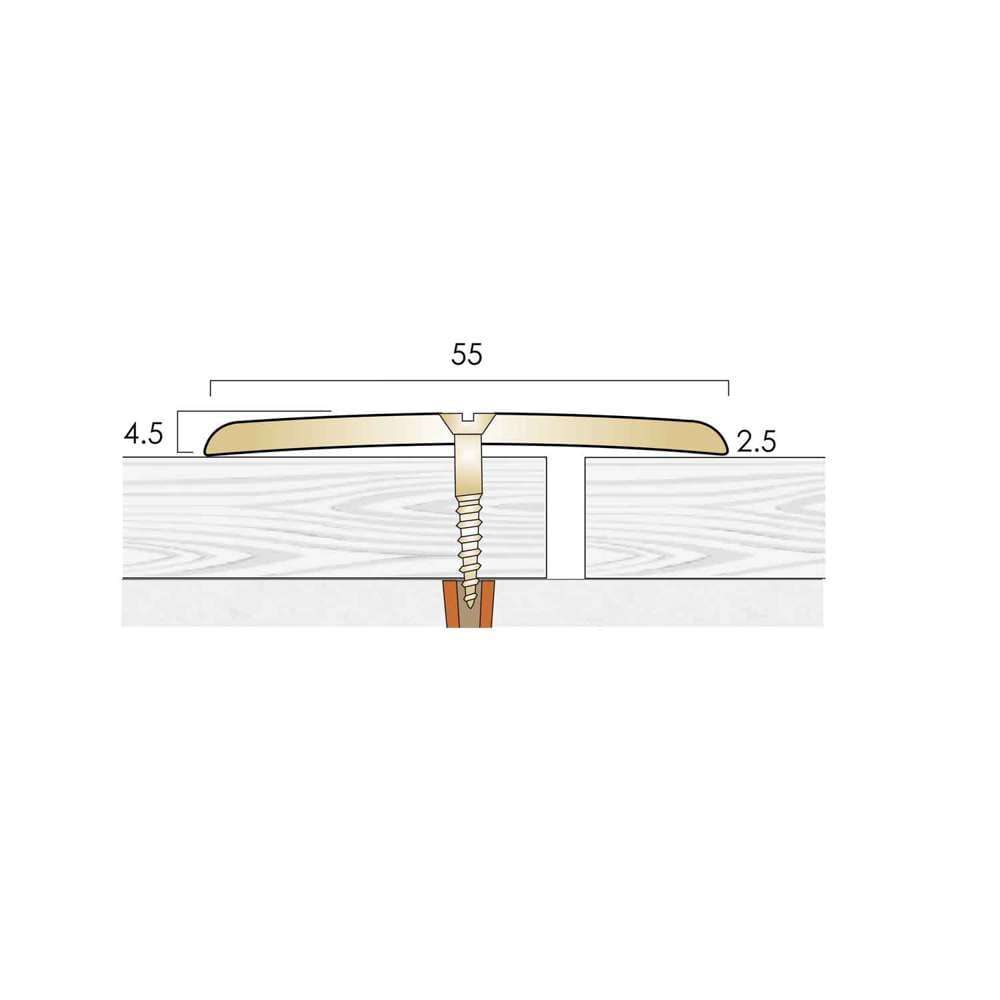

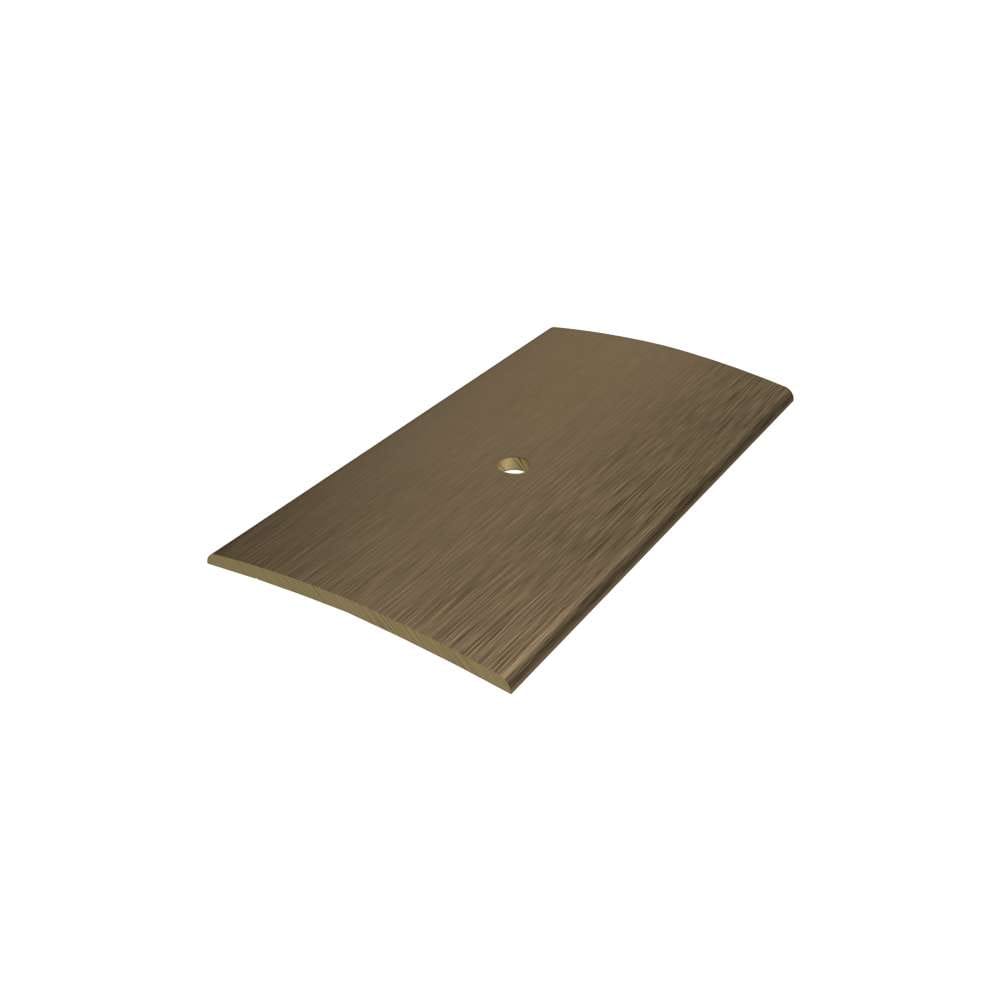

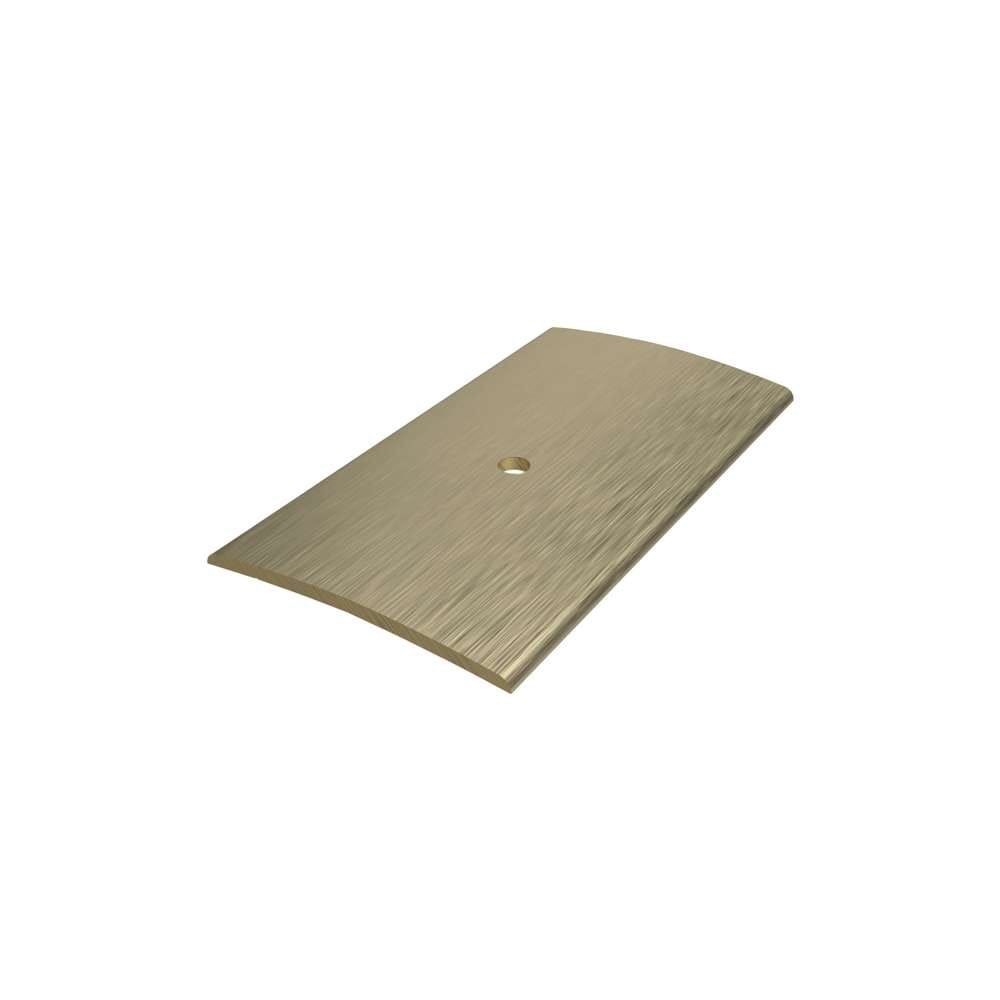

Alternatively, it is available centre drilled for size 8 screws for a mechanical fixing. Fixings are visible in the finished installation. Fixings are not supplied.
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
55 mm
Standard Supply
Supplied undrilled with Stick Fix double sided adhesive tape pre-applied to the underside for non-mechanical fixing.Also available centre-drilled for size 8 screws for a mechanical fixing. Fixings are visible in the finished installation.
Light Reflective Value (Finish)
59.55 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
55 mm
Standard Supply
Supplied undrilled with Stick Fix double sided adhesive tape pre-applied to the underside for non-mechanical fixing.Also available centre-drilled for size 8 screws for a mechanical fixing. Fixings are visible in the finished installation.
Light Reflective Value (Finish)
71.45 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Lengths Available
2715 mm
Visible Surface When Installed
55 mm
Standard Supply
Supplied undrilled with Stick Fix double sided adhesive tape pre-applied to the underside for non-mechanical fixing.Also available centre-drilled for size 8 screws for a mechanical fixing. Fixings are visible in the finished installation.
Light Reflective Value (Finish)
9.15 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Lengths Available
2715 mm
Visible Surface When Installed
55 mm
Standard Supply
Supplied undrilled with Stick Fix double sided adhesive tape pre-applied to the underside for non-mechanical fixing.Also available centre-drilled for size 8 screws for a mechanical fixing. Fixings are visible in the finished installation.
Light Reflective Value (Finish)
29.55 Find out more
Finishes
Satin Brass
Polished Brass
Antique Bronze
Antique Brass
Please select the sample you'd like for this product
