BC80P – Brass

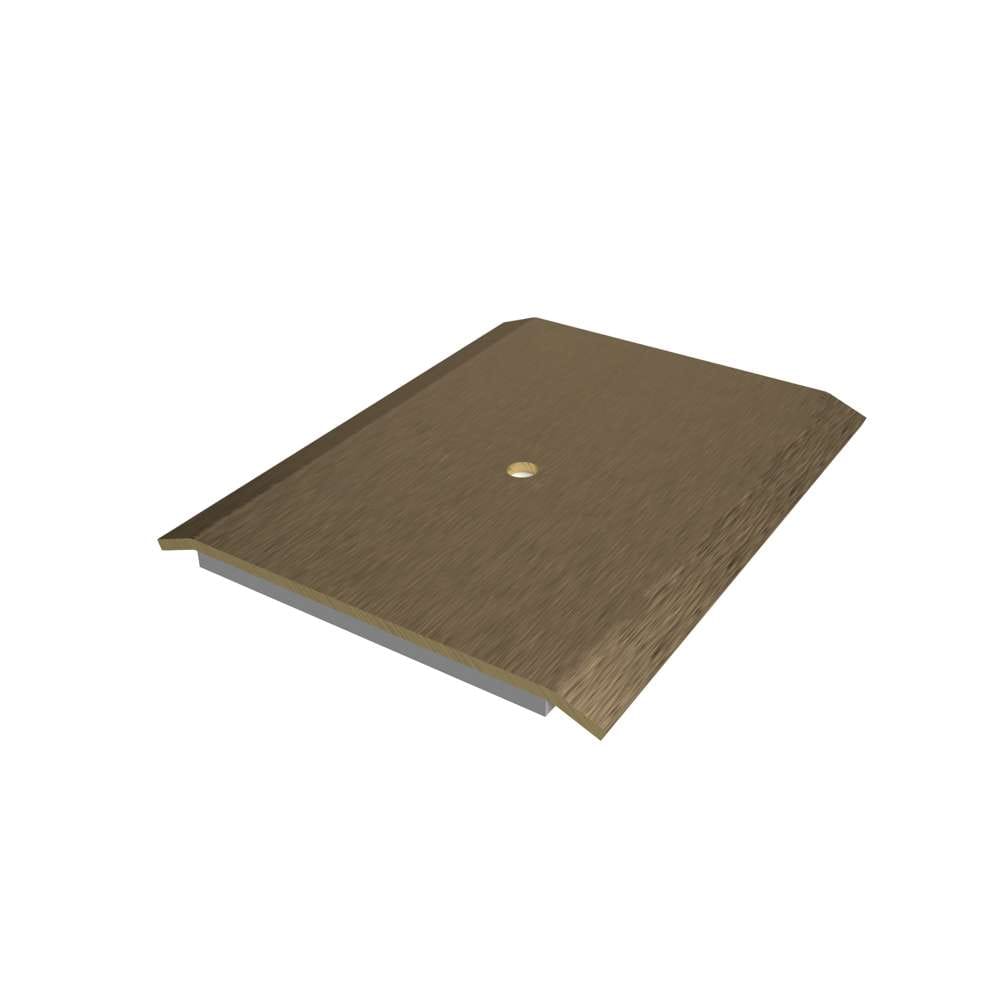

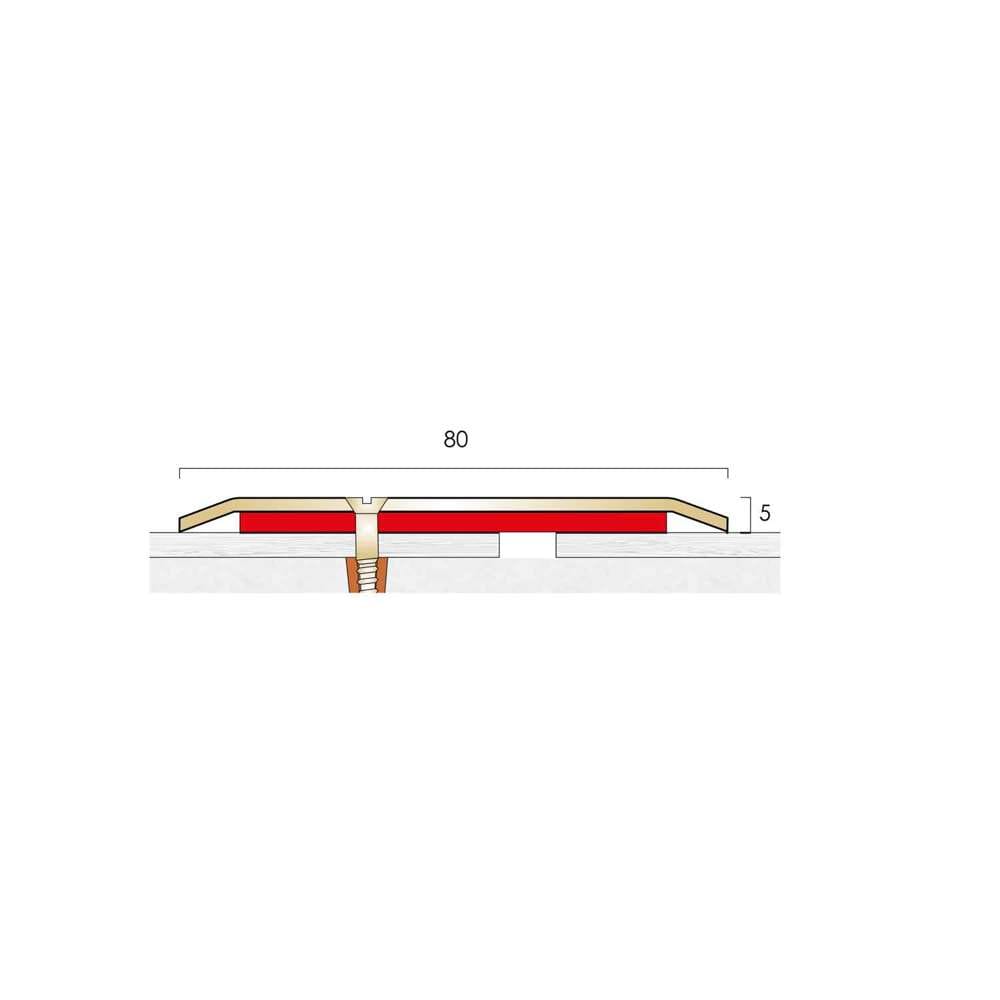

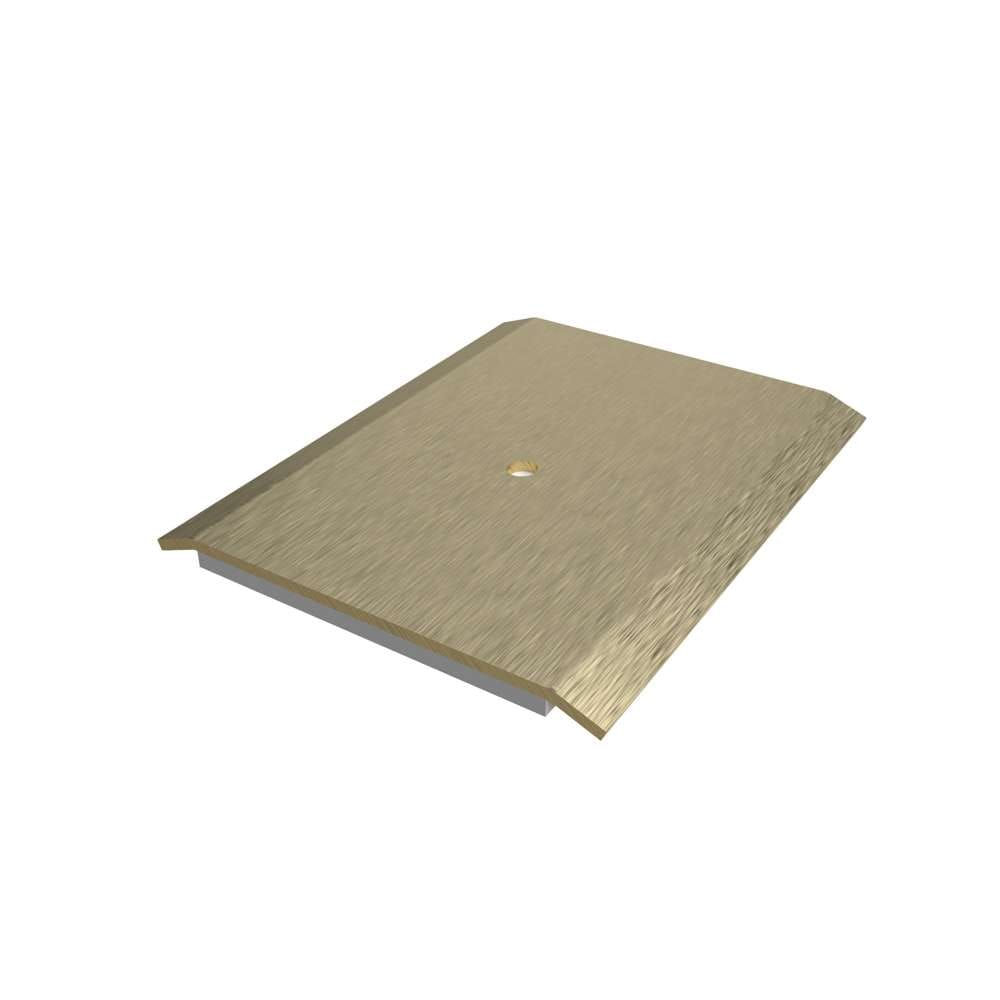

The BC80P is a 2mm gauge, 80mm wide, solid brass cover plate designed for universal applications in commercial and public areas. Available in CAT’s four signature brass finishes. Supplied with a PVC packer (P) making the cover plate suitable for heavy-traffic commercial installations.

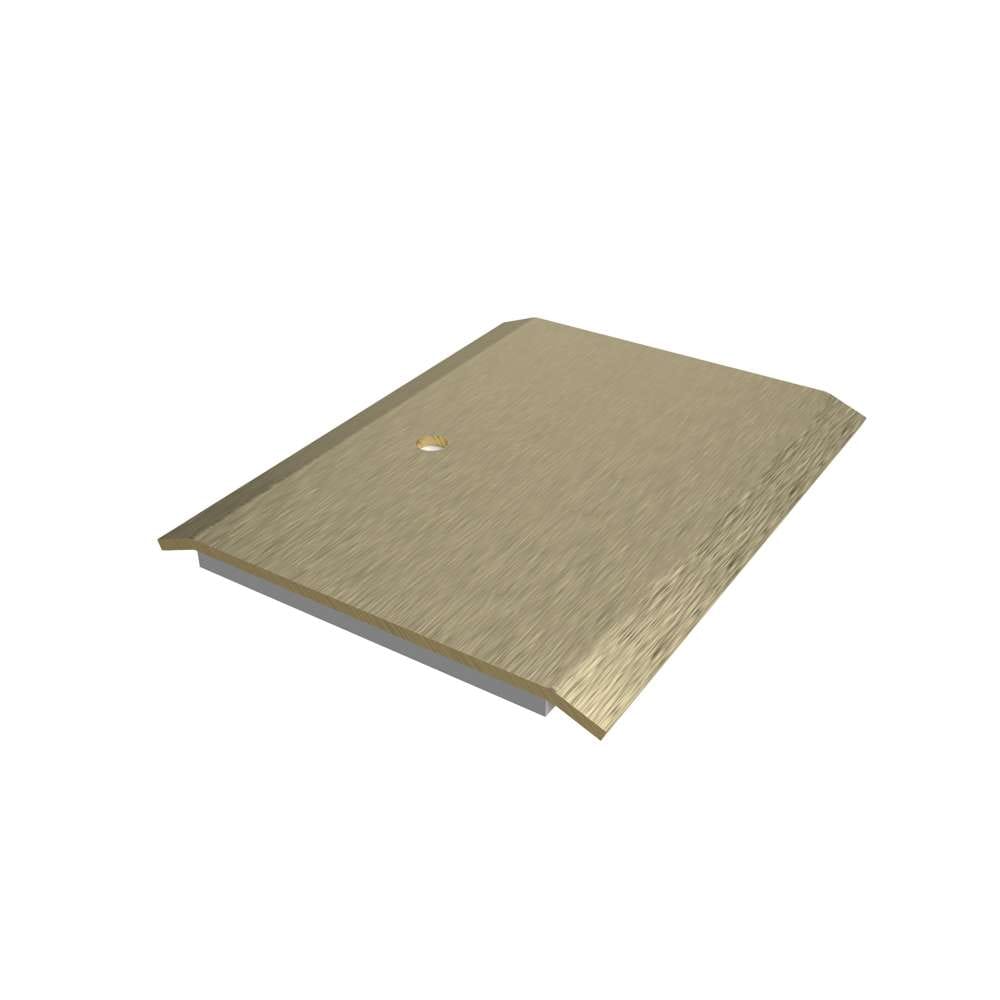

Supplied off-centre drilled for mechanical fixing sing size 8 screws. Available centre drilled or undrilled to special order.

Although the use of a packer (P) is advised, we also offer the cover plate without a packer. Product reference: BC80.

Other sizes are available to special order.

Technical Specification

Antique Bronze
Antique Brass
Satin Brass
Polished Brass
Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Lengths Available

2000 mm

Visible Surface When Installed

80 mm

Standard Supply

Off-centredrilled for size 8 screws.

Light Reflective Value (Finish)

9.15 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Lengths Available

2000 mm

Visible Surface When Installed

80 mm

Standard Supply

Off-centredrilled for size 8 screws.

Light Reflective Value (Finish)

29.55 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2000 mm

Visible Surface When Installed

80 mm

Standard Supply

Off-centredrilled for size 8 screws.

Light Reflective Value (Finish)

59.55 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2000 mm

Visible Surface When Installed

80 mm

Standard Supply

Off-centredrilled for size 8 screws.

Light Reflective Value (Finish)

71.45 Find out more

Finishes

Finish: Antique Bronze

Antique Bronze

Finish: Antique Brass

Antique Brass

Finish: Satin Brass

Satin Brass

Finish: Polished Brass

Polished Brass
