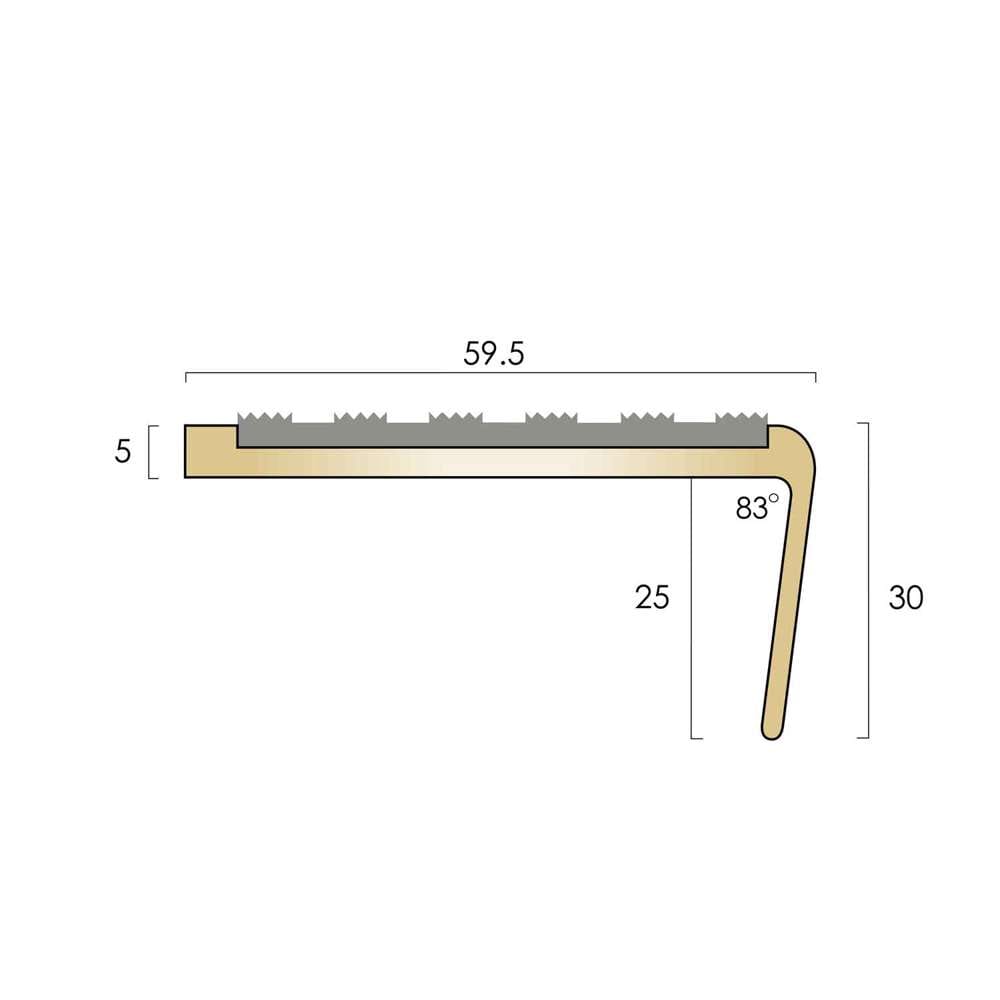

BN6 – Brass
The BN6 is a single channel, raked-back, slimline brass stair nosing fitted with your choice of insert. Stair nosing inserts available include Castellated PVC, Smooth Textured PVC, Brass BTI and Olympic Grip.
Designed to butt up to flooring, or installed with a BNE brass naplock profile for carpet installations and BNFE30 ramp profile for retrofit installations.
Available in CAT’s four signature brass finishes, drilled or undrilled.
NBS Source
Technical Specification
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
To butt up to flooring, or installed with BNE brass naplock profile for carpet installations and BNFE30 ramp profile for retrofit installations.
Supplied Cut to Size, up to a Maximum Length of
2700 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
9.15 Find out more
Compatible Accessories
BNE, BNFE30
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
To butt up to flooring, or installed with BNE brass naplock profile for carpet installations and BNFE30 ramp profile for retrofit installations.
Supplied Cut to Size, up to a Maximum Length of
2700 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
29.55 Find out more
Compatible Accessories
BNE, BNFE30
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To butt up to flooring, or installed with BNE brass naplock profile for carpet installations and BNFE30 ramp profile for retrofit installations.
Supplied Cut to Size, up to a Maximum Length of
2700 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
59.55 Find out more
Compatible Stair Nosings and Accessories
BNE, BNFE30
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To butt up to flooring, or installed with BNE brass naplock profile for carpet installations and BNFE30 ramp profile for retrofit installations.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
71.45 Find out more
Compatible Stair Nosings and Accessories
BNE, BNFE30
Finishes
Antique Bronze
Antique Brass
Satin Brass
Polished Brass
Infill Options
Castellated PVC Insert
Black
Flint
Granite
Peat
Spruce
Claret
Regency
Rustic
Jade
Porth Stone
Light Grey
Mid Blue
Fawn
Yellow
Polar Grey
Nimbus
Ivory
Poppy
White
Gold
Olive
Smooth Textured PVC Insert
Black
Light Grey
Polar Grey
Porth Stone
BTI49.5 Brass Insert
Polished
Satin
Antique Brass
Antique Bronze
Olympic Grip Insert
Black
Please select the sample you'd like for this product
