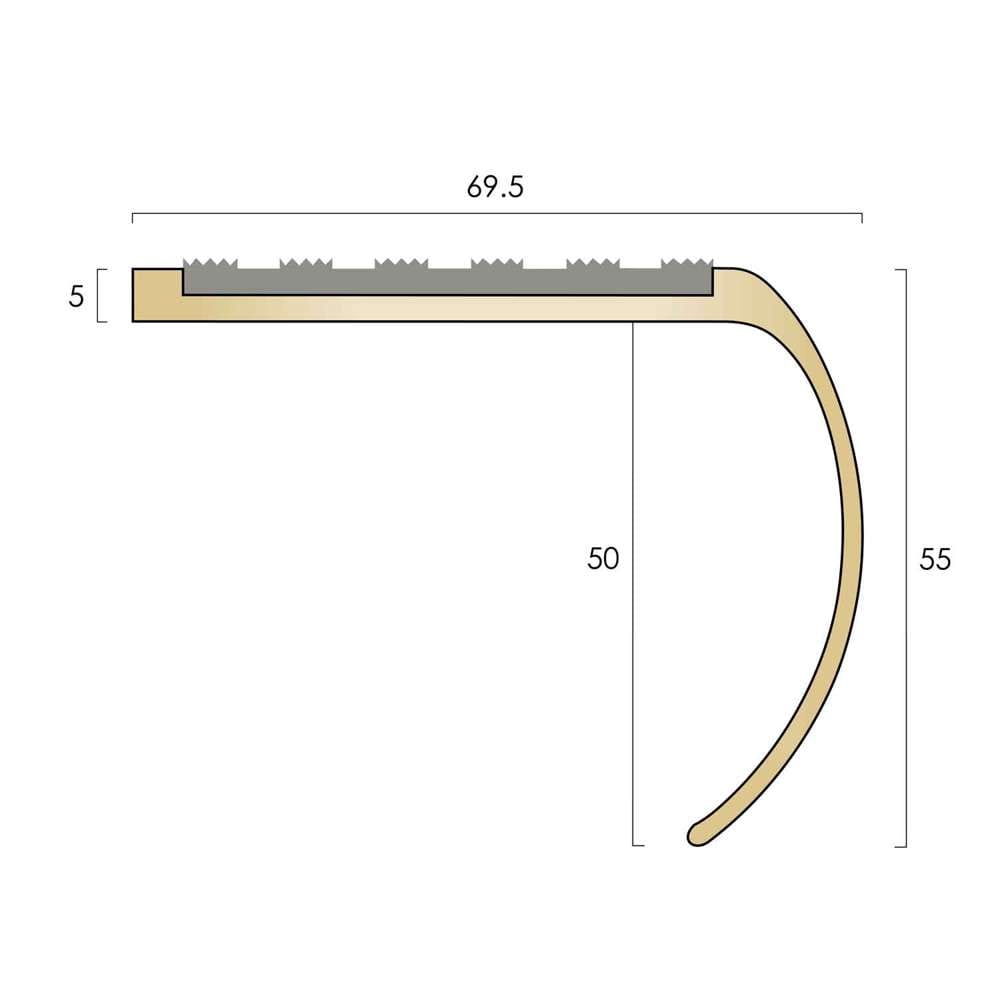

BN69 – Brass

The BN69 is a single channel, bull nose, brass stair nosing available with a choice of insert. Stair Nosing Inserts available include Castellated PVC, Smooth Textured PVC, Brass BTI and Olympic Grip.

Designed to butt up to flooring, or installed with BNE brass naplock profile for carpet installations and BNFE30 ramp profile for retrofit installations.

Available in CAT’s four signature brass finishes, drilled or undrilled.

Order Free Samples

NBS Source

Technical Specification

Antique Brass
Antique Bronze
Polished Brass
Satin Brass
Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are not foot-traffic resistant and are designed to create an aged, unpolished effect.

Application

To butt to flooring or installed with BNE Nap Detail for carpet installations. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Drilled for concealing plugs, Undrilled, Drilled with retro fit infill

Light Reflective Value (Finish)

29.55 Find out more

Slip Resistance Values

BTI49.5 Brass Insert - SRV Dry: 82 - SRV Wet: 54
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more

Compatible Accessories

BNE, BNFE30

Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are not foot-traffic resistant and are designed to create an aged, unpolished effect.

Application

To butt to flooring or installed with BNE Nap Detail for carpet installations. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Drilled for concealing plugs, Undrilled, Drilled with retro fit infill

Light Reflective Value (Finish)

9.15 Find out more

Slip Resistance Values

BTI49.5 Brass Insert - SRV Dry: 82 - SRV Wet: 54
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more

Compatible Accessories

BNE, BNFE30

Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

To butt to flooring or installed with BNE Nap Detail for carpet installations. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

3200 mm

Drilling

Drilled for concealing plugs, Undrilled, Drilled with retro fit infill

Light Reflective Value (Finish)

71.45 Find out more

Slip Resistance Values

BTI49.5 Brass Insert - SRV Dry: 82 - SRV Wet: 54
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more

Compatible Stair Nosings and Accessories

BNE, BNFE30

Suitability

Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

To butt to flooring or installed with BNE Nap Detail for carpet installations. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Drilled for concealing plugs, Undrilled, Drilled with retro fit infill

Light Reflective Value (Finish)

59.55 Find out more

Slip Resistance Values

BTI49.5 Brass Insert - SRV Dry: 82 - SRV Wet: 54
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more

Compatible Stair Nosings and Accessories

BNE, BNFE30

Finishes

Finish: Antique Brass

Antique Brass

Finish: Antique Bronze

Antique Bronze

Finish: Polished Brass

Polished Brass

Finish: Satin Brass

Satin Brass

See more products in these finishes
Find Out More

Infill Options

BTI49.5 Brass Insert

Polished Brass Insert

Polished

Satin Brass Insert

Satin

Antique Brass Insert

Antique Brass

Antique Bronze Insert

Antique Bronze

Castellated PVC Insert

Black Castellated PVC

Black

Granite Castellated PVC

Granite

Peat Castellated PVC

Peat

Spruce Castellated PVC

Spruce

Claret Castellated PVC

Claret

Regency Castellated PVC

Regency

Rustic Castellated PVC

Rustic

Jade Castellated PVC

Jade

Porth Stone Castellated PVC

Porth Stone

Light Grey Castellated PVC

Light Grey

Mid Blue Castellated PVC

Mid Blue

Fawn Castellated PVC

Fawn

Yellow Castellated PVC

Yellow

Polar Grey Castellated PVC

Polar Grey

Nimbus Castellated PVC

Nimbus

Ivory Castellated PVC

Ivory

Poppy Castellated PVC

Poppy

White Castellated PVC

White

Smooth Textured PVC Insert

Black Smooth Textured PVC

Black

Light Grey Smooth Textured PVC

Light Grey

Polar Grey Smooth Textured PVC

Polar Grey

Porth Stone Smooth Textured PVC

Porth Stone

Olympic Grip Insert

Black Olympic Grip Insert

Black
