BN9 – Brass

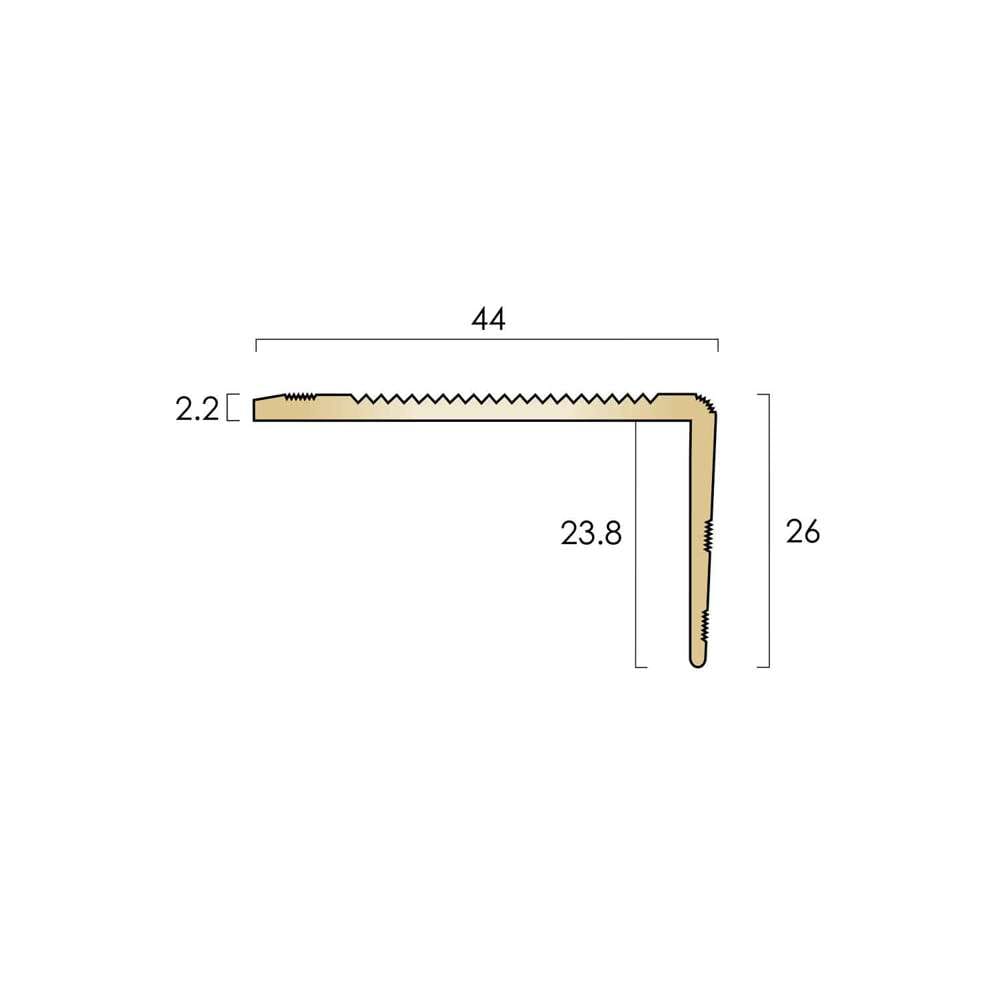

The BN9 is a 2.2mm gauge solid brass stair nosing with a serrated slip-resistant tread and a square-back riser.

This low profile or slimline nosing is designed to butt up to vinyl or LVT floorings such as Amtico or Polyflor.

This stair nosing is supplied in CAT’s four signature brass finishes and can be supplied drilled or undrilled.

Order Free Samples

NBS Source

Technical Specification

Antique Brass
Antique Bronze
Polished Brass
Satin Brass
Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are not foot-traffic resistant and are designed to create an aged, unpolished effect.

Application

For abutting to 2mm thick flooring to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Drilled for countersunk screws​, Undrilled

Light Reflective Value (Finish)

29.55 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are not foot-traffic resistant and are designed to create an aged, unpolished effect.

Application

For abutting to 2mm thick flooring to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Drilled for countersunk screws​, Undrilled

Light Reflective Value (Finish)

9.15 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For abutting to 2mm thick flooring to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

3200 mm

Drilling

Drilled for countersunk screws​, Undrilled

Light Reflective Value (Finish)

71.45 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For abutting to 2mm thick flooring to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Drilled for countersunk screws​, Undrilled

Light Reflective Value (Finish)

59.55 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Finishes

Finish: Antique Brass

Antique Brass

Finish: Antique Bronze

Antique Bronze

Finish: Polished Brass

Polished Brass

Finish: Satin Brass

Satin Brass
