BN90 – Brass

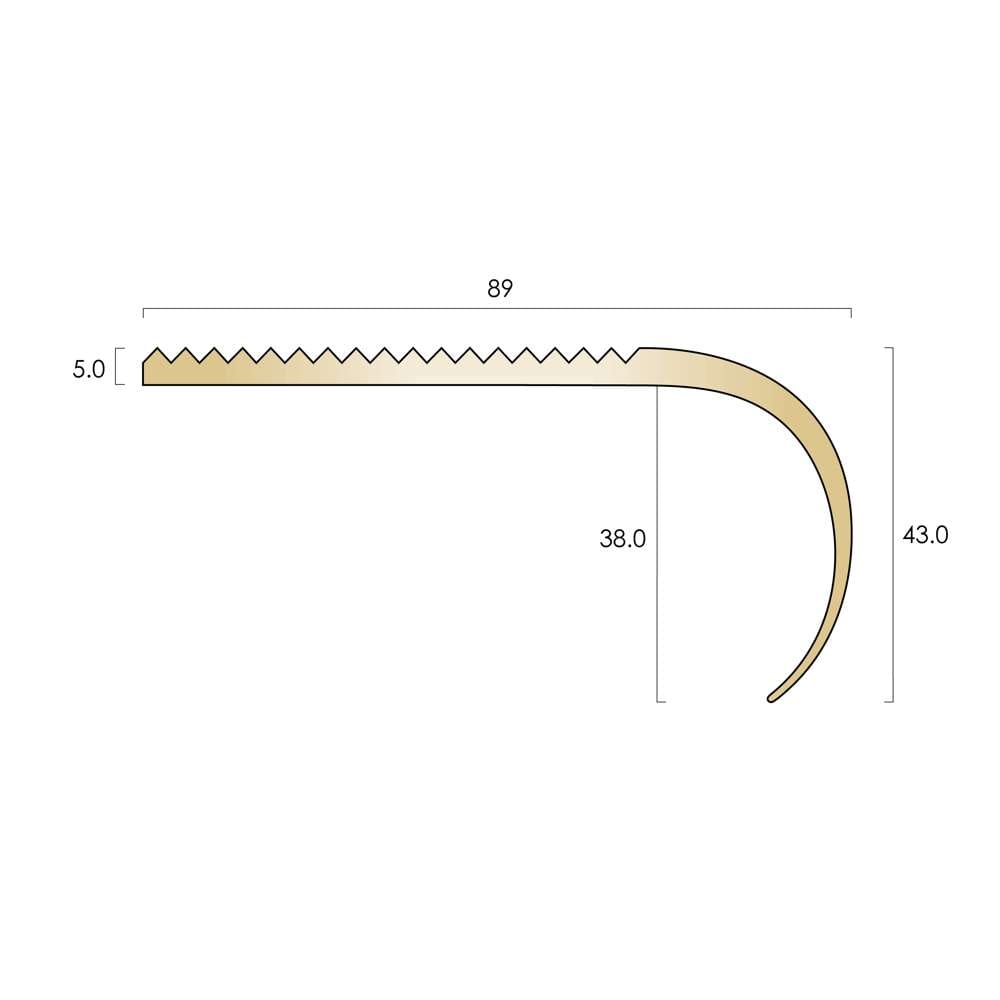

The BN90 is a solid brass stair nosing with a serrated slip-resistant tread and a bull-nose riser.

Designed most commonly, to be butted up to carpet, or used with CAT BNE Nap Detail. This nosing profile can also be rebated into stone and timber stairs or used in conjunction with the BNFE30 Ramp Detail for a retrofit installation. Also suitable for use with a BTI25 or BTI52 tread extender.

The BN90 stair nosing is available in CAT’s four signature brass finishes and can be supplied undrilled or drilled for countersunk fixings.

Order Free Samples

NBS Source

Technical Specification

Antique Bronze
Antique Brass
Satin Brass
Polished Brass
Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Array

Light Reflective Value (Finish)

9.15 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Compatible Accessories

BNE, BNFE30, BTI25, BTI52

Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Array

Light Reflective Value (Finish)

29.55 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Compatible Accessories

BNE, BNFE30, BTI25, BTI52

Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Array

Light Reflective Value (Finish)

59.55 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Compatible Accessories

BNE, BNFE30, BTI25, BTI52

Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

3200 mm

Drilling

Array

Light Reflective Value (Finish)

71.45 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Compatible Accessories

BNE, BNFE30, BTI25, BTI52

Finishes

Finish: Antique Bronze

Antique Bronze

Finish: Antique Brass

Antique Brass

Finish: Satin Brass

Satin Brass

Finish: Polished Brass

Polished Brass

See more products in these finishes
