FAB ANF – Brass
The FAB ANF is a single naplock flooring profile manufactured from an aluminium carrier and a solid brass top. It is designed to trap and protect the edge of the carpet to prevent from fraying. For use where carpet meets resilient floorings such as LVT and Vinyl.
Supplied with a pre-punched base with carpet grippers, suitable for mechanical fixing using size 6 screws.
Designed for the highest quality installations, FAB ANF is available in the following high-quality finishes:
Polished Brass – Code: FAB ANF 1
Satin Brass – Code: FAB ANF 14
Antique Brass – Code: FAB ANF 120
Antique Bronze – Code: FAB ANF 121
Chrome – Code: FAB ANF 122
Satin Chrome – Code: FAB ANF 132
Technical Specification
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
To trap and protect the nap edge of the carpet. Dress down using a block of wood protected with carpet (or similar) and a hammer, working along the profile with even blows.
Lengths Available
900 mm, 2715 mm

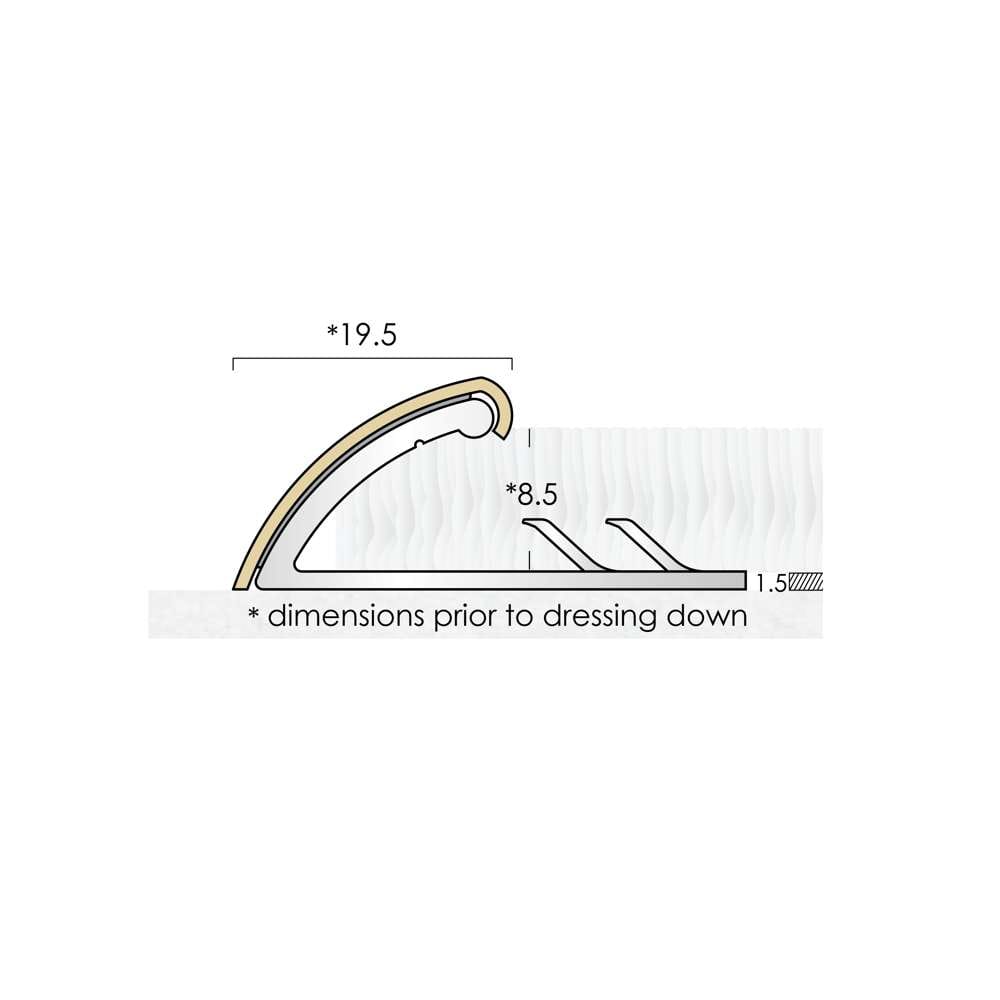

Visible Surface When Installed
19.5 mm
Standard Supply
Supplied with pre-punched carpet gripper and pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.
Light Reflective Value (Finish)
29.55 Find out more
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
To trap and protect the nap edge of the carpet. Dress down using a block of wood protected with carpet (or similar) and a hammer, working along the profile with even blows.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
19.5 mm
Standard Supply
Supplied with pre-punched carpet gripper and pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.
Light Reflective Value (Finish)
9.15 Find out more
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To trap and protect the nap edge of the carpet. Dress down using a block of wood protected with carpet (or similar) and a hammer, working along the profile with even blows.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
19.5 mm
Standard Supply
Supplied with pre-punched carpet gripper and pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.
Light Reflective Value (Finish)
63.60 Find out more
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To trap and protect the nap edge of the carpet. Dress down using a block of wood protected with carpet (or similar) and a hammer, working along the profile with even blows.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
19.5 mm
Standard Supply
Supplied with pre-punched carpet gripper and pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.
Light Reflective Value (Finish)
71.45 Find out more
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To trap and protect the nap edge of the carpet. Dress down using a block of wood protected with carpet (or similar) and a hammer, working along the profile with even blows.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
19.5 mm
Standard Supply
Supplied with pre-punched carpet gripper and pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.
Light Reflective Value (Finish)
59.55 Find out more
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To trap and protect the nap edge of the carpet. Dress down using a block of wood protected with carpet (or similar) and a hammer, working along the profile with even blows.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
19.5 mm
Standard Supply
Supplied with pre-punched carpet gripper and pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.
Light Reflective Value (Finish)
44.85 Find out more
Finishes
Polished Brass
Satin Brass
Antique Brass
Antique Bronze
Chrome
Satin Chrome
