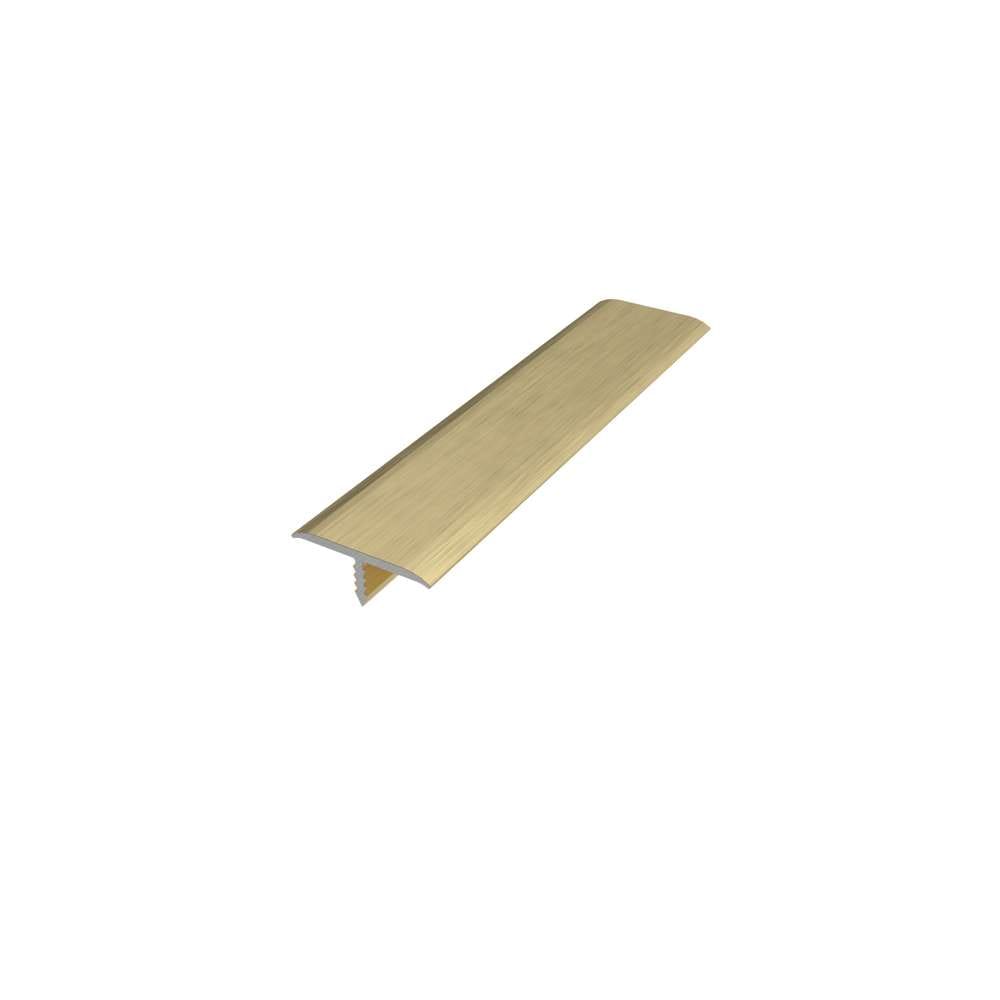

Feline AT25 DHC – Aluminium
Feline AT25 is an aluminium T section designed for joining stone, timber and ceramic floors at the same level while protecting the edges.
Part of the Designer Home Collection, Feline AT25 is available in 8 high-quality finishes to suit all installations.

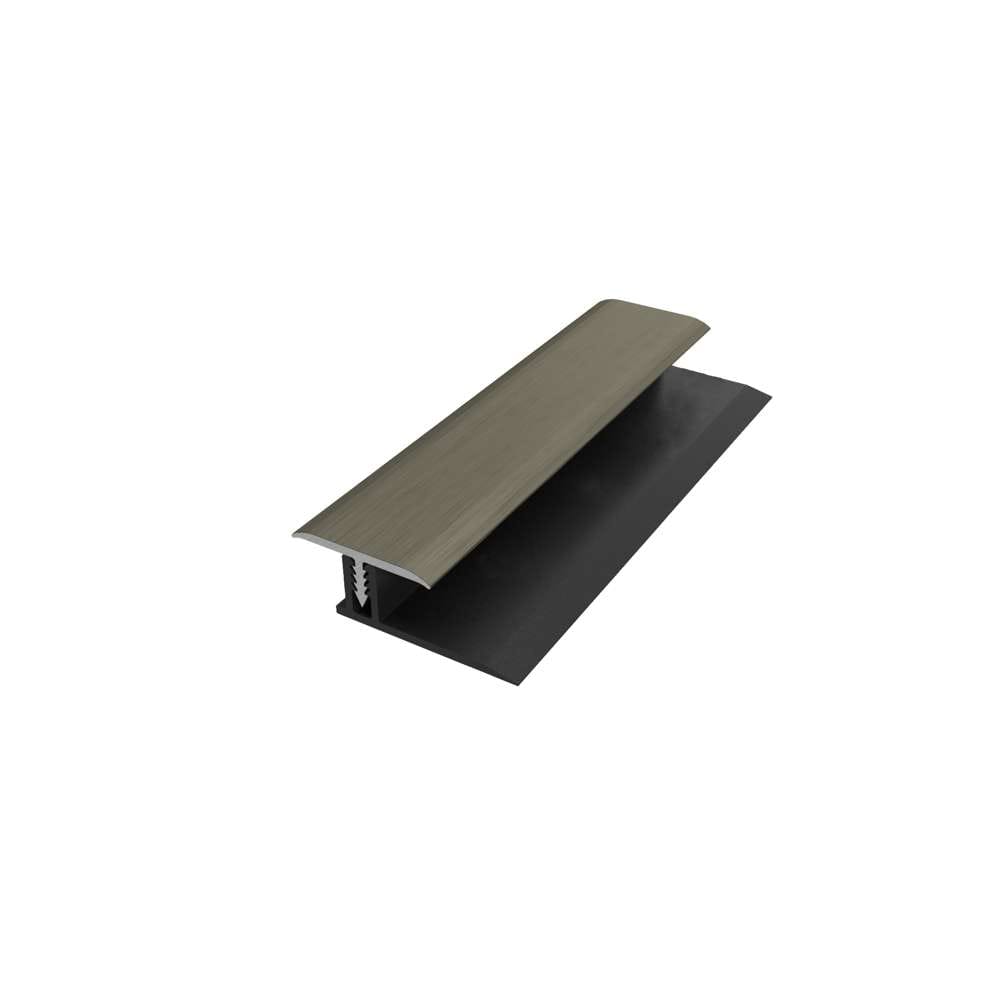

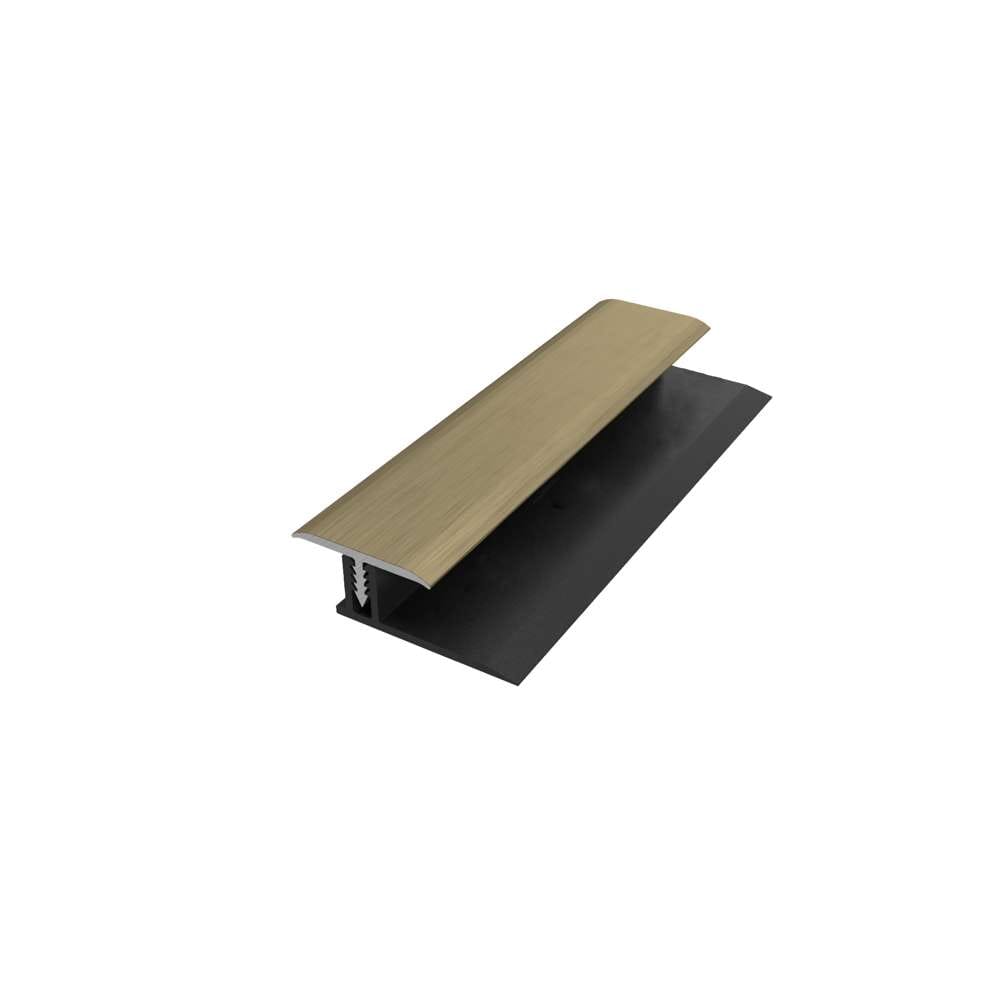

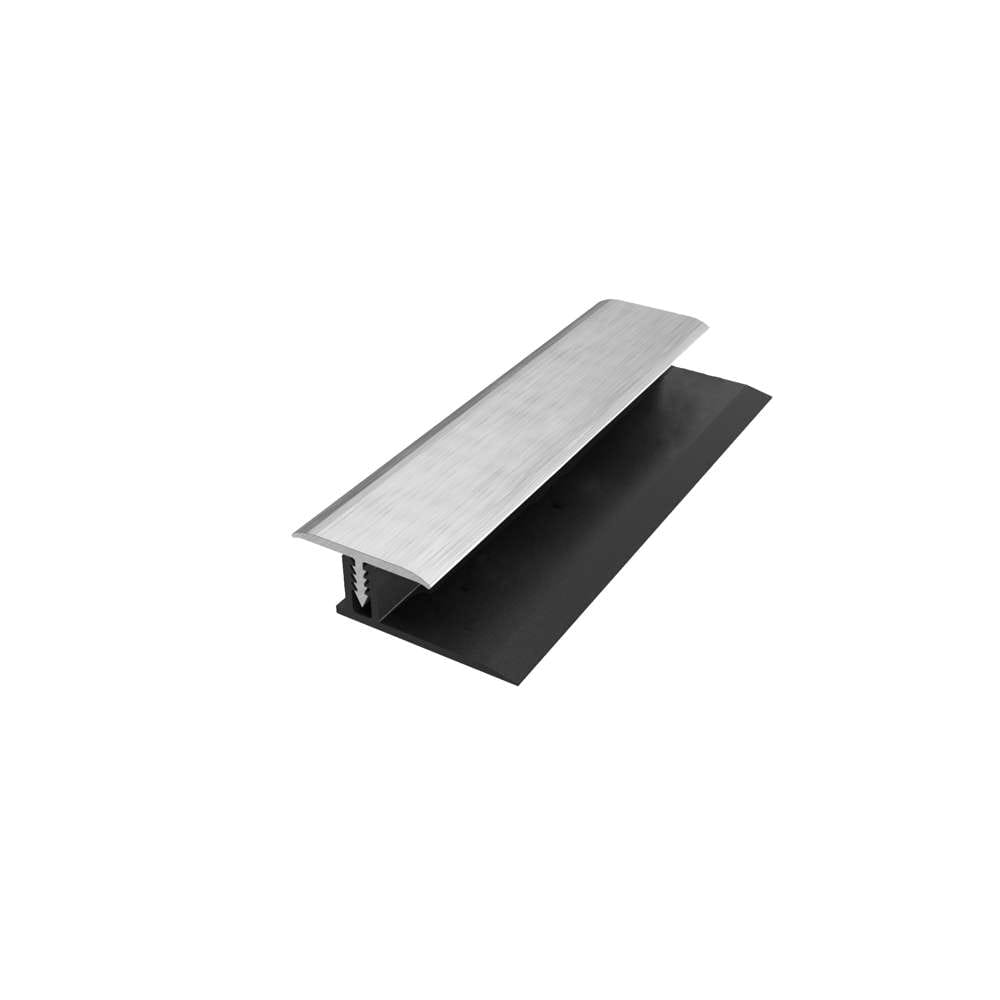

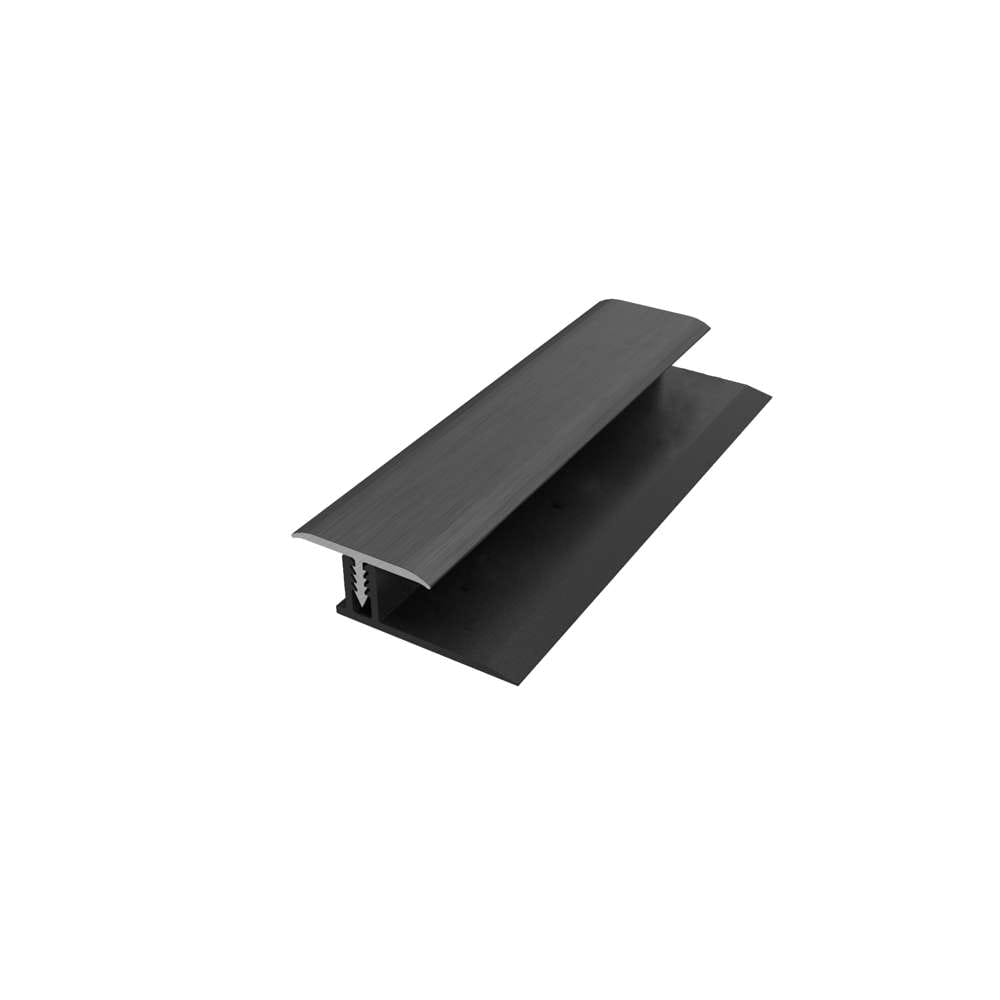

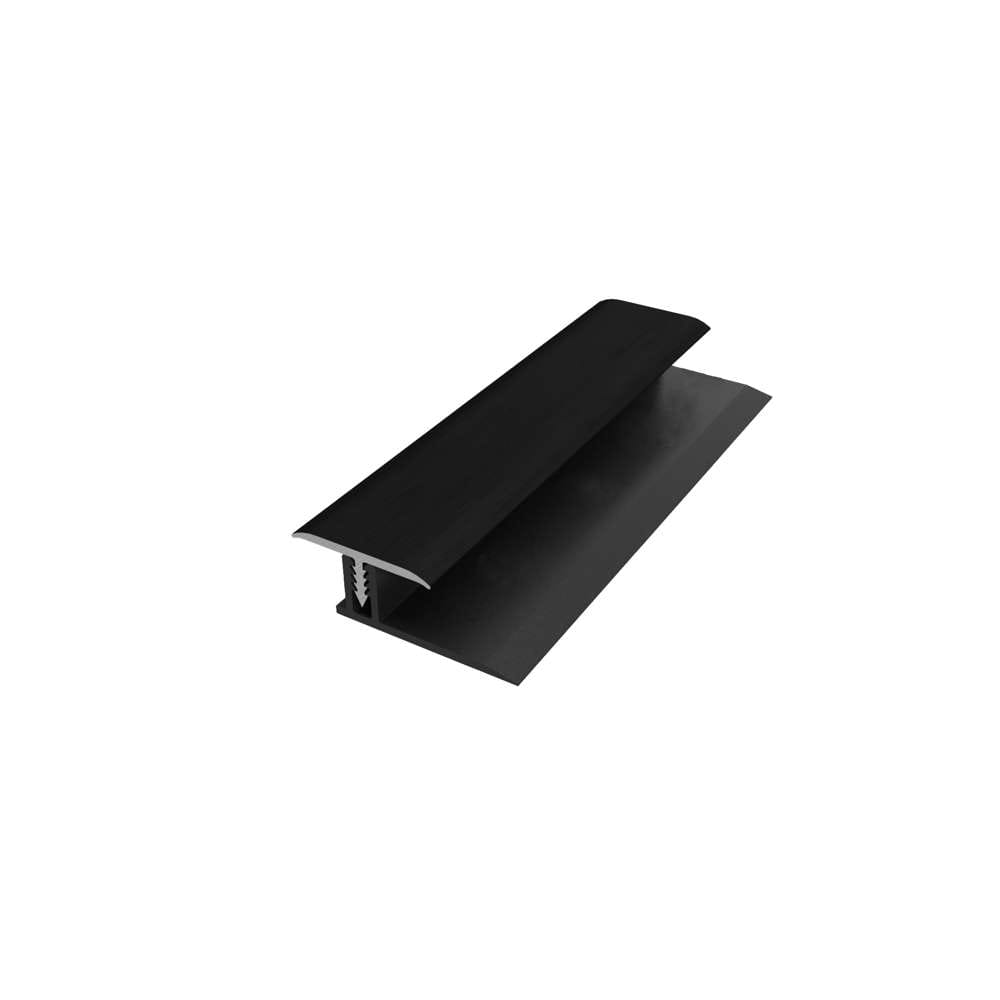

Suitable for use with uPVC bases T BASE 12 and T BASE 15 for a versatile, height adjustable clip-in flooring installation.
Alternatively, Feline AT25 can be installed using adhesive only. We recommend STYCCO FLEX Adhesive for CAT profiles.
Please Note: uPVC base profiles TBASE 12 and TBASE 15 are supplied separately.
NBS Source
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Application

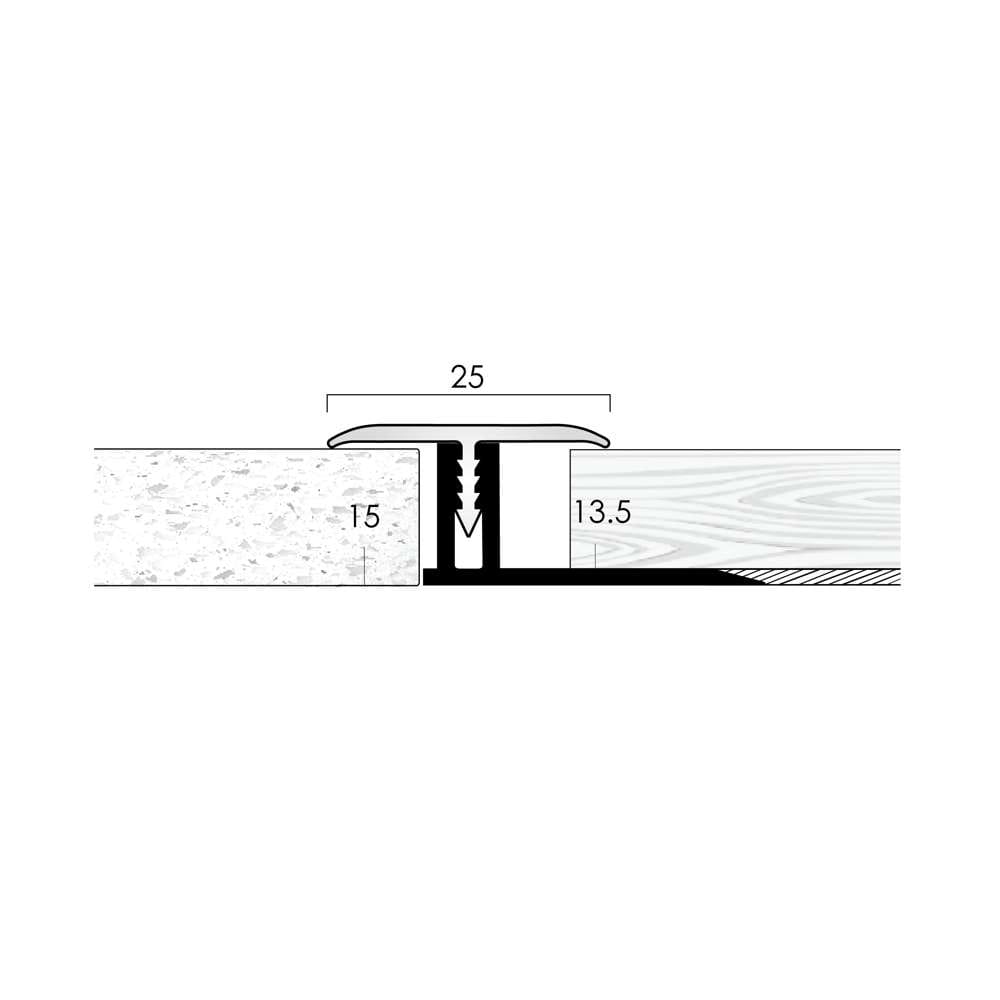

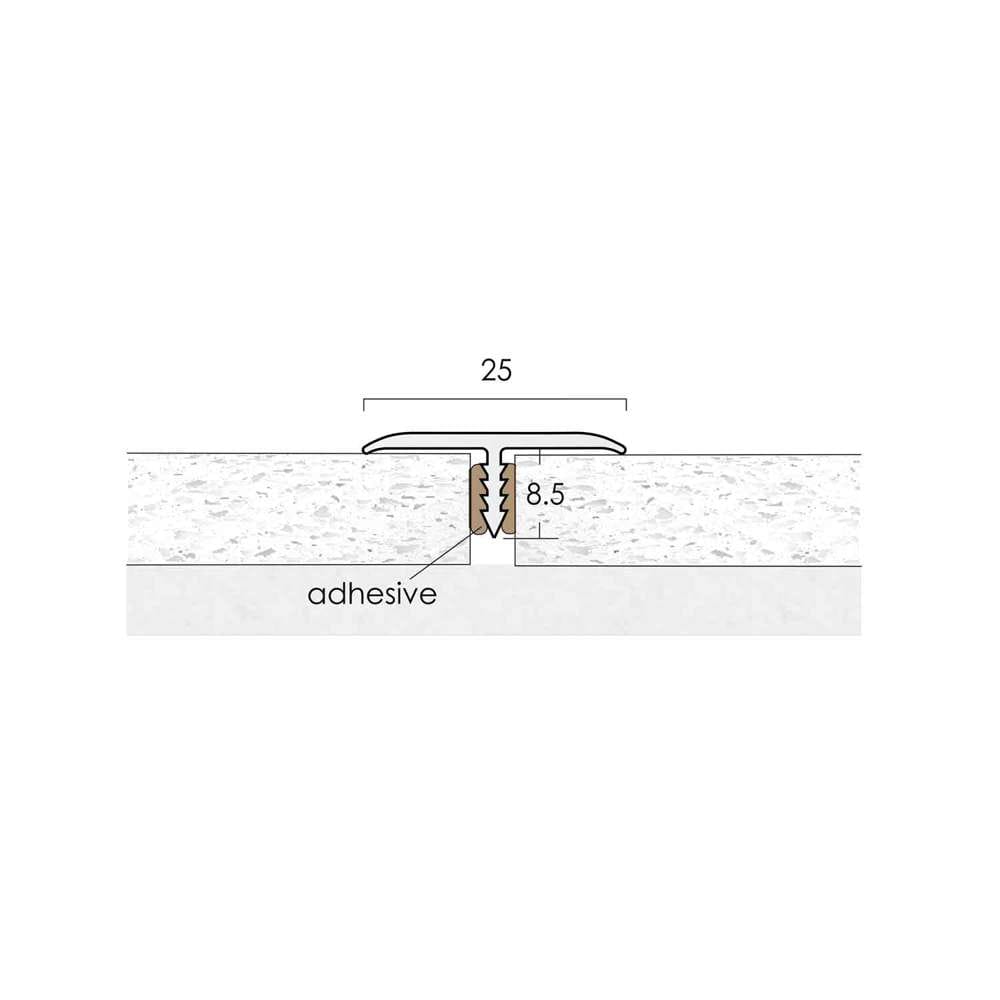

Down leg design provides a secure key for adhesive fixing between adjoining flooring materials where no allowance has to be made for expansion. When allowance for expansion is required by one of the adjoining flooring materials, install with the adhesive applied to the underside as it abuts to the stable flooring only, or by installing with either T Base 12 or T Base 15 uPVC base profiles - supplied separately.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
25 mm
Standard Supply
Undrilled.
Light Reflective Value (Finish)
81.95 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Application
Down leg design provides a secure key for adhesive fixing between adjoining flooring materials where no allowance has to be made for expansion. When allowance for expansion is required by one of the adjoining flooring materials, install with the adhesive applied to the underside as it abuts to the stable flooring only, or by installing with either T Base 12 or T Base 15 uPVC base profiles - supplied separately.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
25 mm
Standard Supply
Undrilled.
Light Reflective Value (Finish)
10.10 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Application
Down leg design provides a secure key for adhesive fixing between adjoining flooring materials where no allowance has to be made for expansion. When allowance for expansion is required by one of the adjoining flooring materials, install with the adhesive applied to the underside as it abuts to the stable flooring only, or by installing with either T Base 12 or T Base 15 uPVC base profiles - supplied separately.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
25 mm
Standard Supply
Undrilled.
Light Reflective Value (Finish)
51.90 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Application
Down leg design provides a secure key for adhesive fixing between adjoining flooring materials where no allowance has to be made for expansion. When allowance for expansion is required by one of the adjoining flooring materials, install with the adhesive applied to the underside as it abuts to the stable flooring only, or by installing with either T Base 12 or T Base 15 uPVC base profiles - supplied separately.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
25 mm
Standard Supply
Undrilled.
Light Reflective Value (Finish)
41.45 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Application
Down leg design provides a secure key for adhesive fixing between adjoining flooring materials where no allowance has to be made for expansion. When allowance for expansion is required by one of the adjoining flooring materials, install with the adhesive applied to the underside as it abuts to the stable flooring only, or by installing with either T Base 12 or T Base 15 uPVC base profiles - supplied separately.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
25 mm
Standard Supply
Undrilled.
Light Reflective Value (Finish)
65.30 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Application
Down leg design provides a secure key for adhesive fixing between adjoining flooring materials where no allowance has to be made for expansion. When allowance for expansion is required by one of the adjoining flooring materials, install with the adhesive applied to the underside as it abuts to the stable flooring only, or by installing with either T Base 12 or T Base 15 uPVC base profiles - supplied separately.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
25 mm
Standard Supply
Undrilled.
Light Reflective Value (Finish)
27.25 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Application
Down leg design provides a secure key for adhesive fixing between adjoining flooring materials where no allowance has to be made for expansion. When allowance for expansion is required by one of the adjoining flooring materials, install with the adhesive applied to the underside as it abuts to the stable flooring only, or by installing with either T Base 12 or T Base 15 uPVC base profiles - supplied separately.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
25 mm
Standard Supply
Undrilled.
Light Reflective Value (Finish)
5.20 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Application
Down leg design provides a secure key for adhesive fixing between adjoining flooring materials where no allowance has to be made for expansion. When allowance for expansion is required by one of the adjoining flooring materials, install with the adhesive applied to the underside as it abuts to the stable flooring only, or by installing with either T Base 12 or T Base 15 uPVC base profiles - supplied separately.
Lengths Available
900 mm, 2715 mm
Visible Surface When Installed
25 mm
Standard Supply
Undrilled.
Light Reflective Value (Finish)
10.75 Find out more
Finishes
Brushed Brass
Designer Satin
Brushed Stainless
Bright
Bronze
Pewter
Onyx Black
Light Bronze
Please select the sample you'd like for this product
