FPB 19×3 – Brass

FPB19x3 brass stair tread inserts are designed to define and provide slip resistance to the edge of the stair treads. Available in a range of finishes, including CAT’s four signature brass finishes.

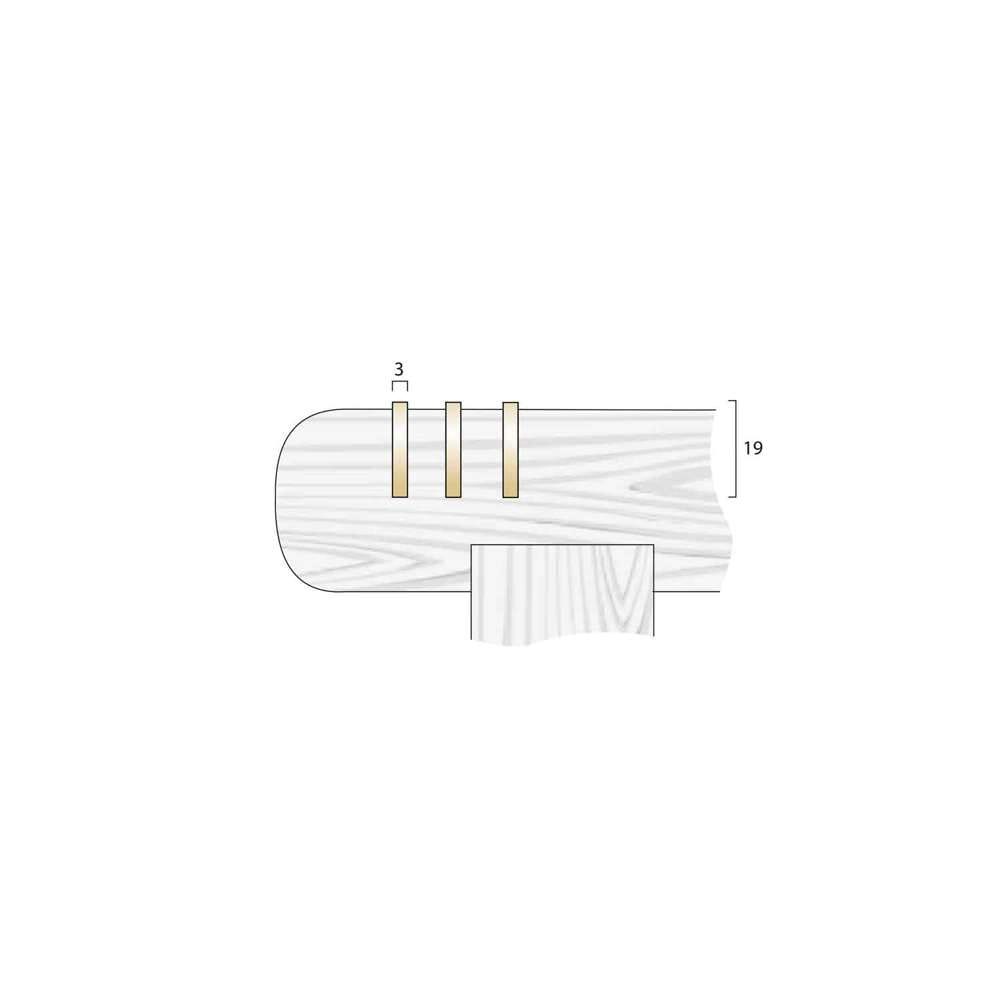

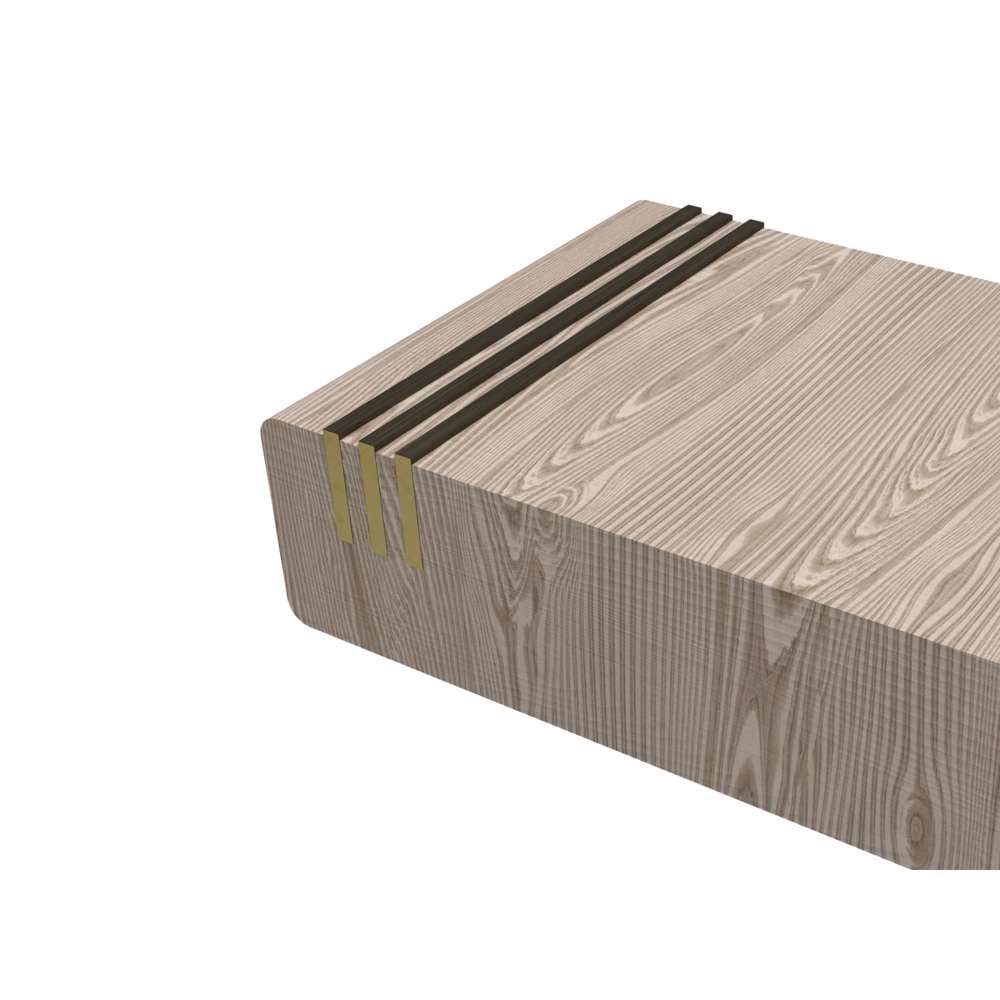

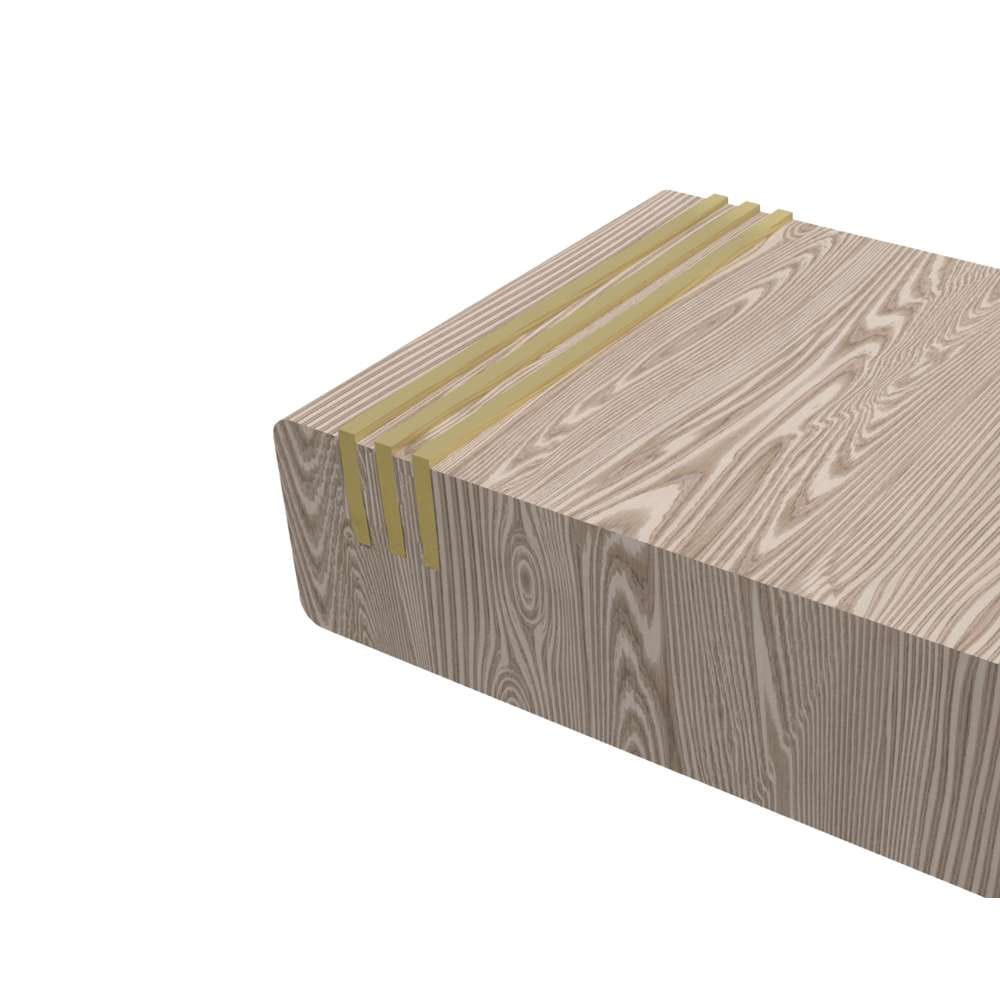

Typical installations include timber steps and stone steps. FPB19x3 is also suitable for use as a wall or floor inlay strip to create designs and patterns on floors and walls.

Tolerance allowance should always be made when rebating to allow for any variation in size. Samples available prior to rebate.

16x6mm profiles are available to special order.

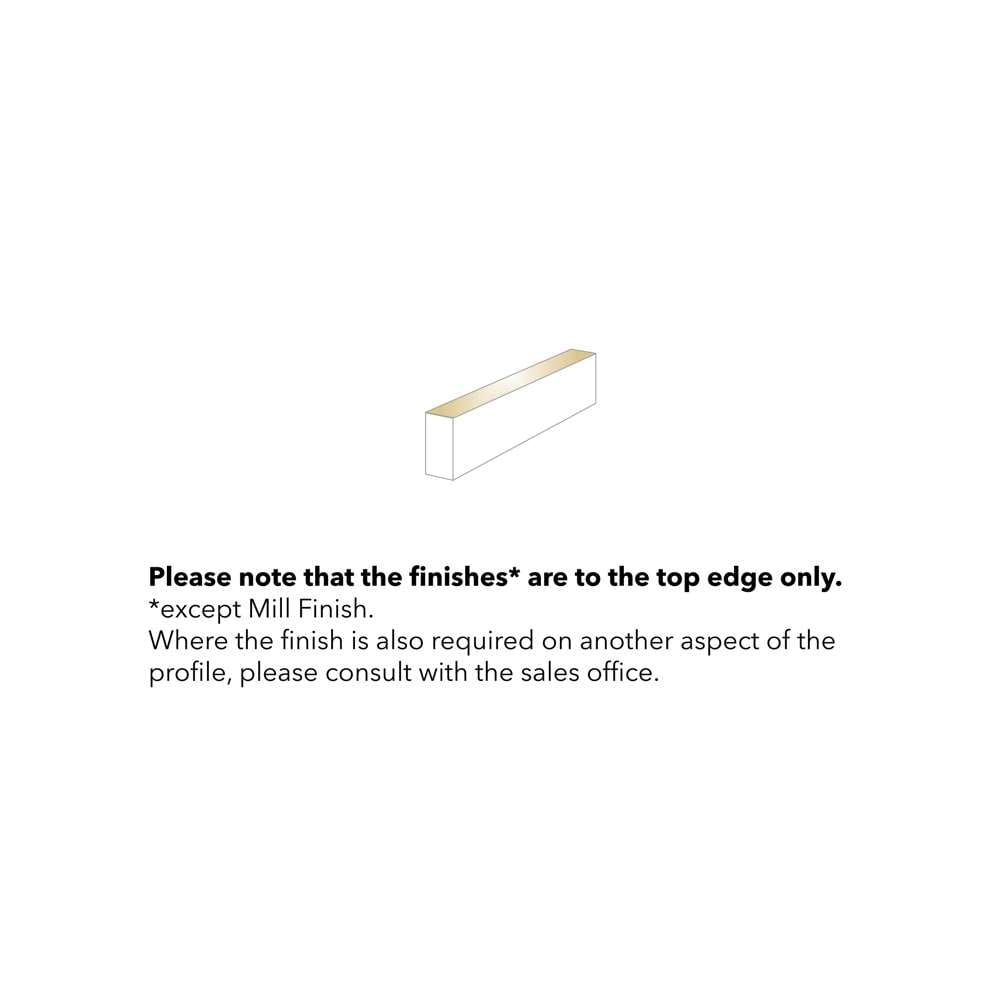

Please Note: Finishes, except Mill Brass, are applied to the top visible edge only. Where the finish is also required on another aspect of the profile, please consult with the sales office.

Technical Specification

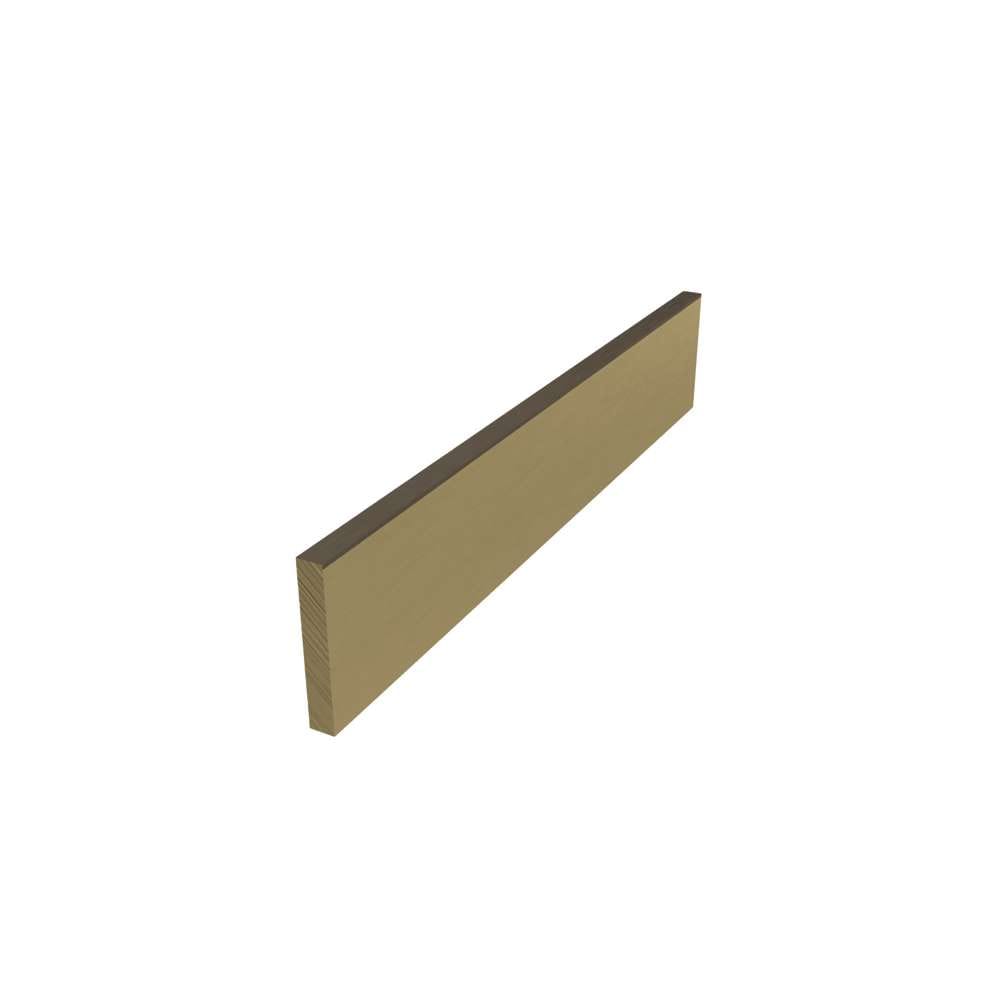

Antique Bronze
Antique Brass

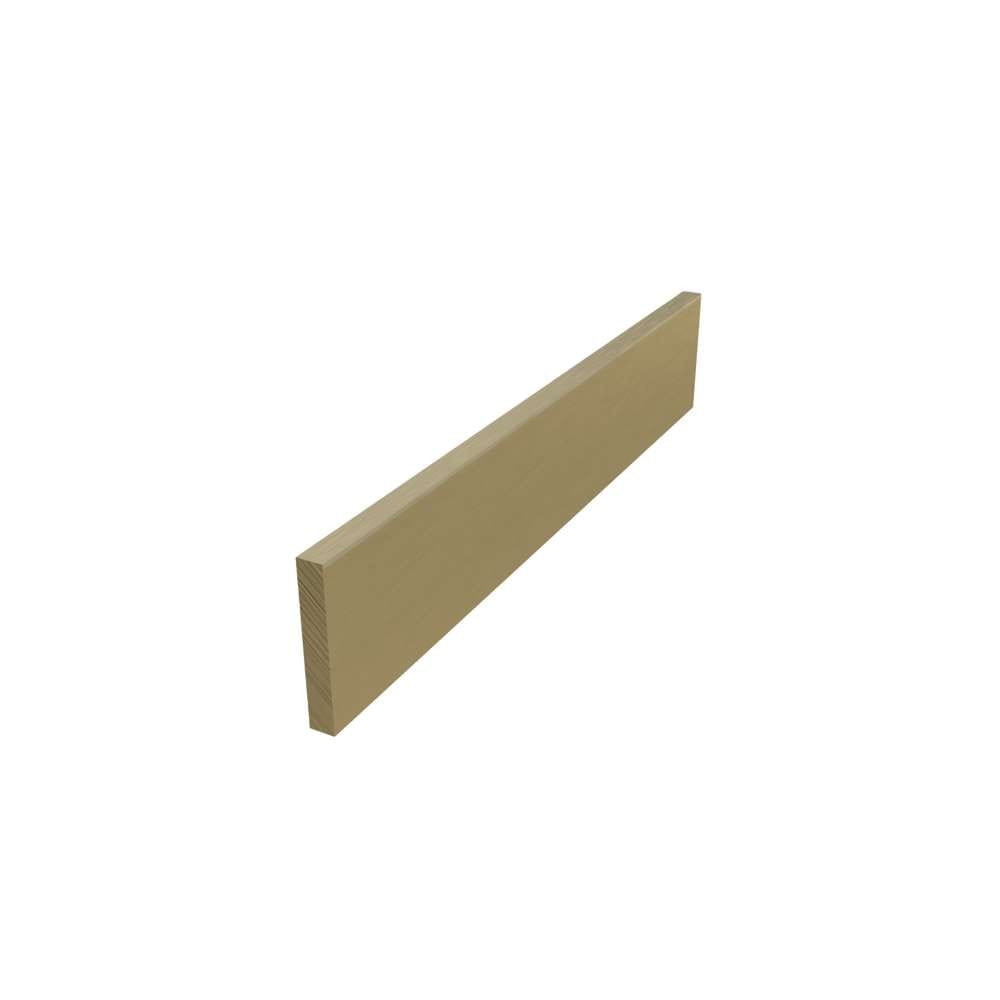

Satin Brass

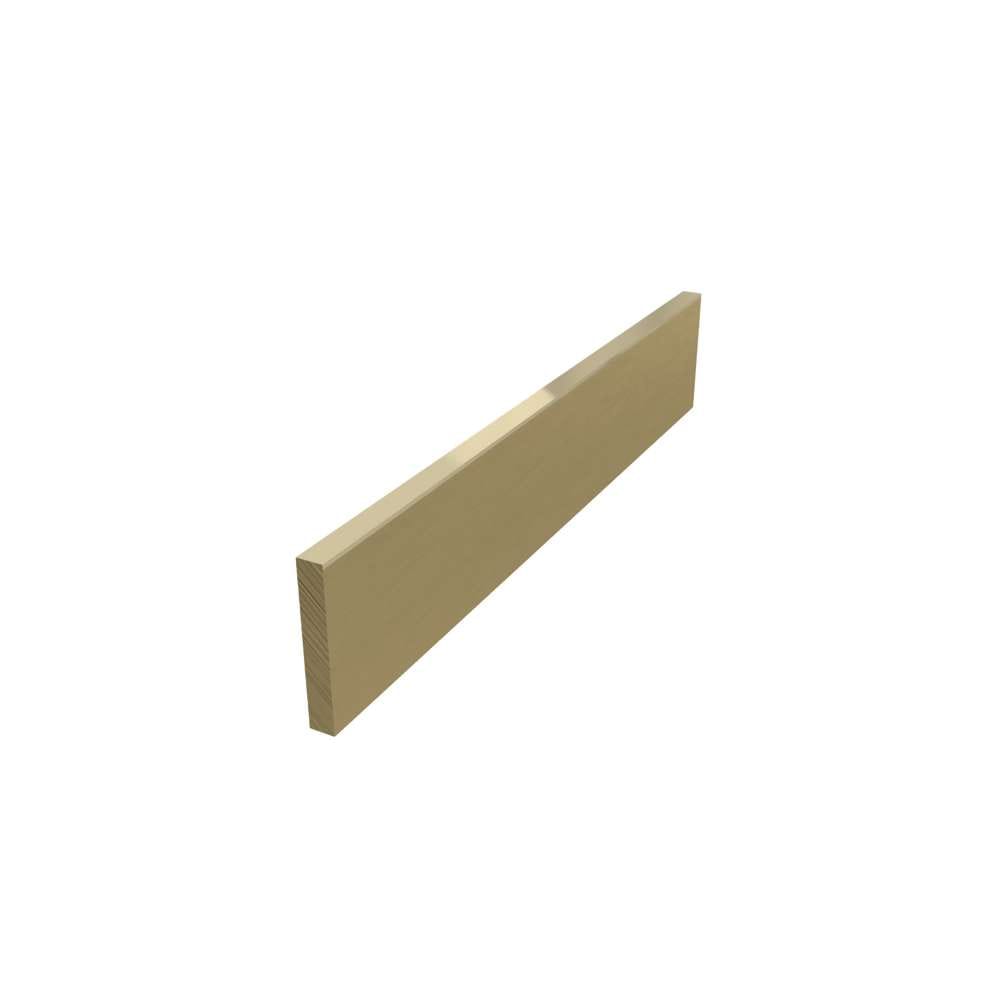

Polished Brass

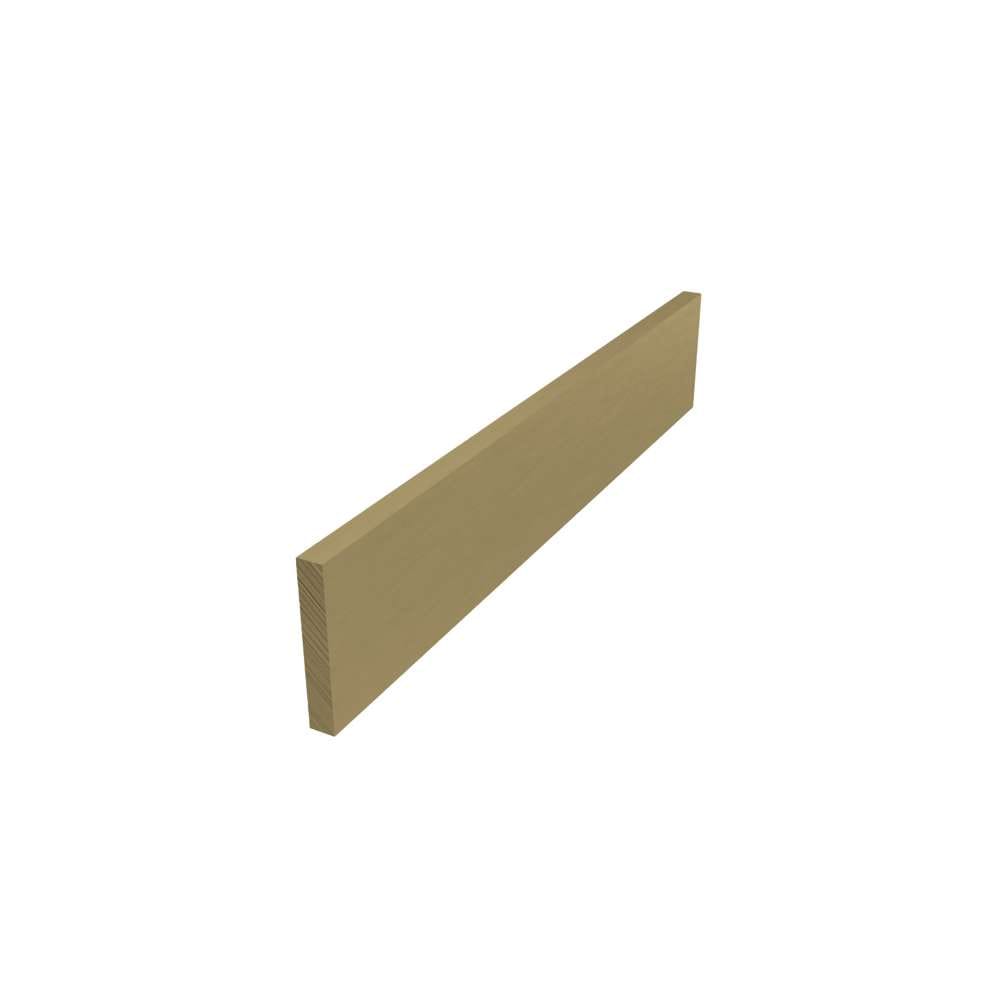

Mill Brass
Suitability

Medium to heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

For rebating into stone and wooden steps to provide a visual aid and some slip resistance or for creating flooring features. Small variations in dimensions may occur and therefore rebating should be to suit the delivered product. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2000, 3000 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

9.15 Find out more

Can Also Be Used As

Floor and Wall Inlay Strip

Suitability

Medium to heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

For rebating into stone and wooden steps to provide a visual aid and some slip resistance or for creating flooring features. Small variations in dimensions may occur and therefore rebating should be to suit the delivered product. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2000, 3000 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

29.55 Find out more

Can Also Be Used As

Floor and Wall Inlay Strip

Suitability

Medium to heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For rebating into stone and wooden steps to provide a visual aid and some slip resistance or for creating flooring features. Small variations in dimensions may occur and therefore rebating should be to suit the delivered product. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2000, 3000 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

59.55 Find out more

Can Also Be Used As

Floor and Wall Inlay Strip

Suitability

Medium to heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For rebating into stone and wooden steps to provide a visual aid and some slip resistance or for creating flooring features. Small variations in dimensions may occur and therefore rebating should be to suit the delivered product. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2000, 3000 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

71.45 Find out more

Can Also Be Used As

Floor and Wall Inlay Strip

Suitability

Medium to heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

For rebating into stone and wooden steps to provide a visual aid and some slip resistance or for creating flooring features. Small variations in dimensions may occur and therefore rebating should be to suit the delivered product. Installation guide available.

Supplied Cut to Size, up to a Maximum Length of

2000, 3000 mm

Fixing

Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Light Reflective Value (Finish)

60.55 Find out more

Can Also Be Used As

Floor and Wall Inlay Strip

Finishes

Finish: Antique Bronze

Antique Bronze

Finish: Antique Brass

Antique Brass

Finish: Satin Brass

Satin Brass

Finish: Polished Brass

Polished Brass

Finish: Mill Brass

Mill Brass
