Kliks Slim Twin Top – Brass

Brass Kliks Slim Twin Top profiles are designed to adjoin two floors at the same level.

Available in CAT’s high-quality brass finishes, including polished brass, antique bronze and chrome.

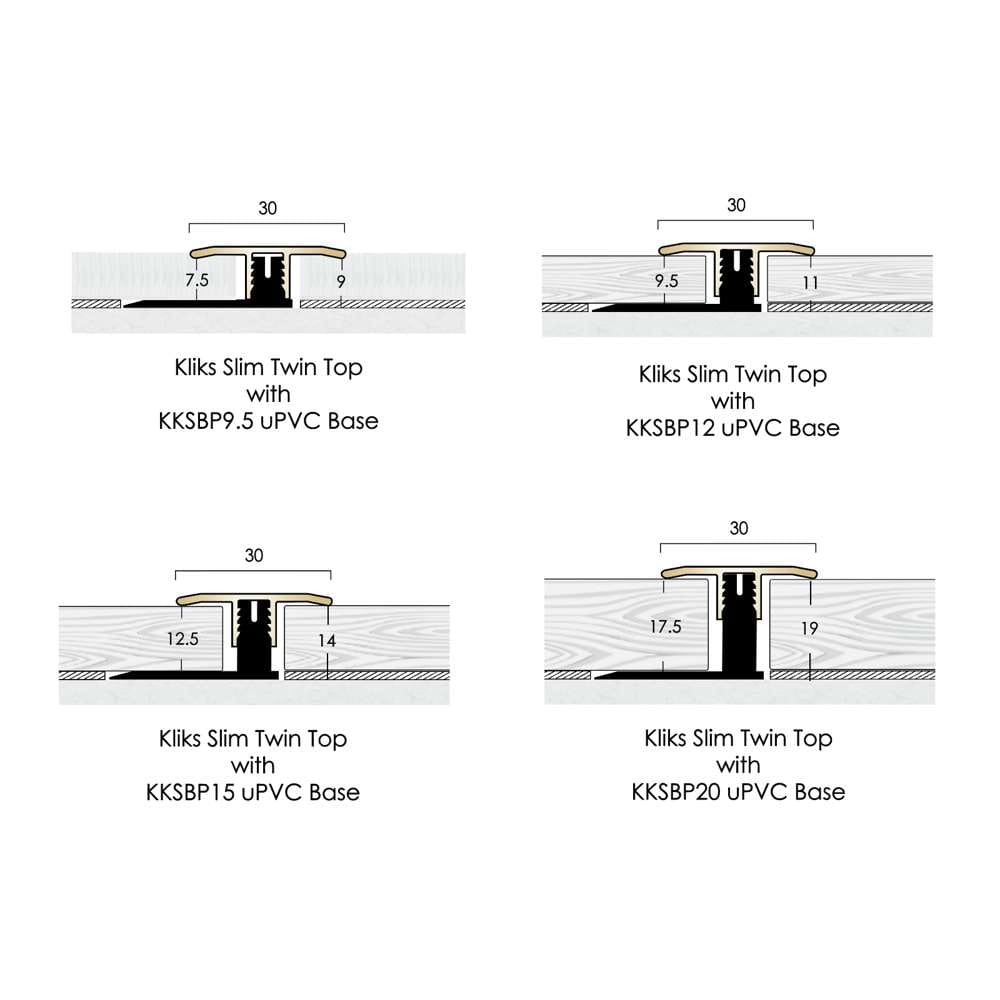

Brass Kliks Slim Twin Top profiles are installed using uPVC bases with interlocking barb design for height adjustment when tops are secured. Product references: KKSBP9.5, KKSBP12, KKSBP15 and KKSBP20.

The selected base is fitted to the subfloor & floor coverings are then installed allowing for natural expansion. The top profile is then clipped over the base to the desired height, covering the expansion & protecting the raw edge of the flooring. Allows up to 10 mm expansion on each side.

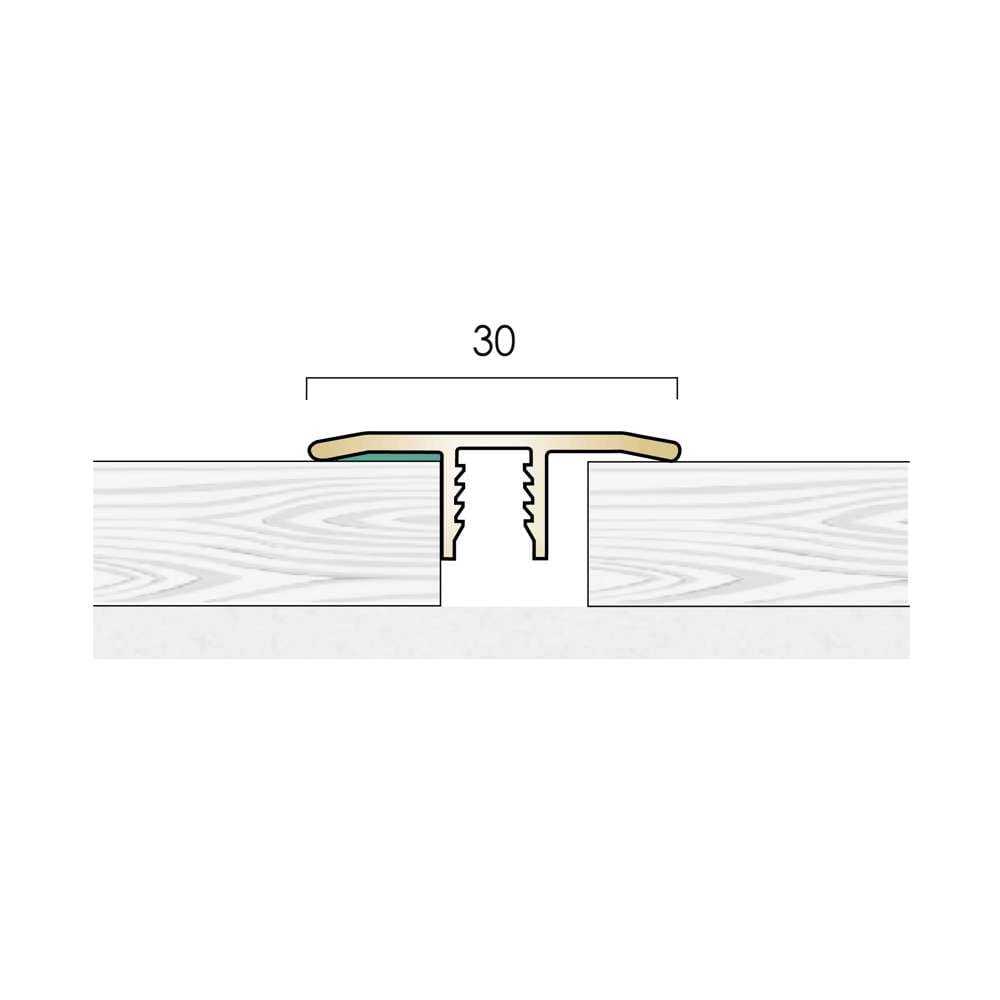

This profile can be fitted without a base when ordered with Stick Fix tape pre-applied to the underside of the horizontal surface.

Brass Kliks Slim Twin Top profiles are available in the following finishes:
Polished Brass – Code: KKSL2

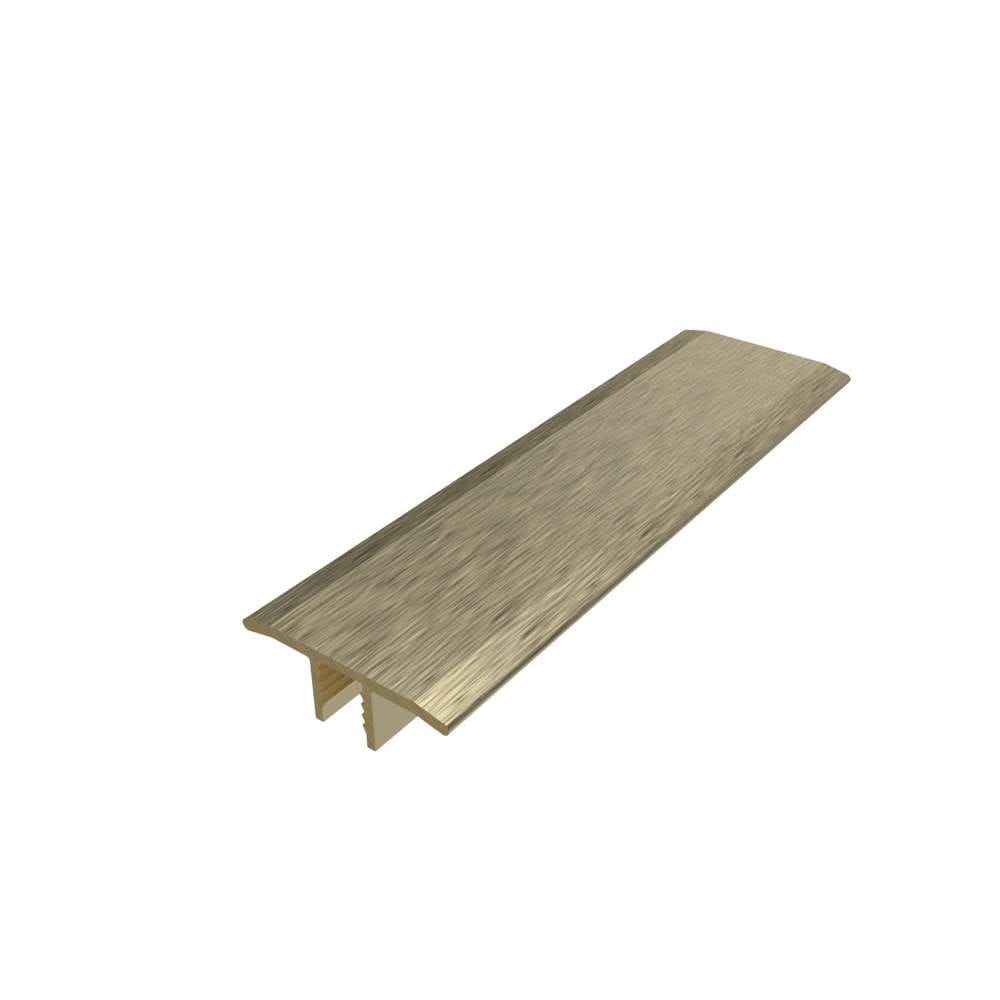

Satin Brass – Code: KKSL201

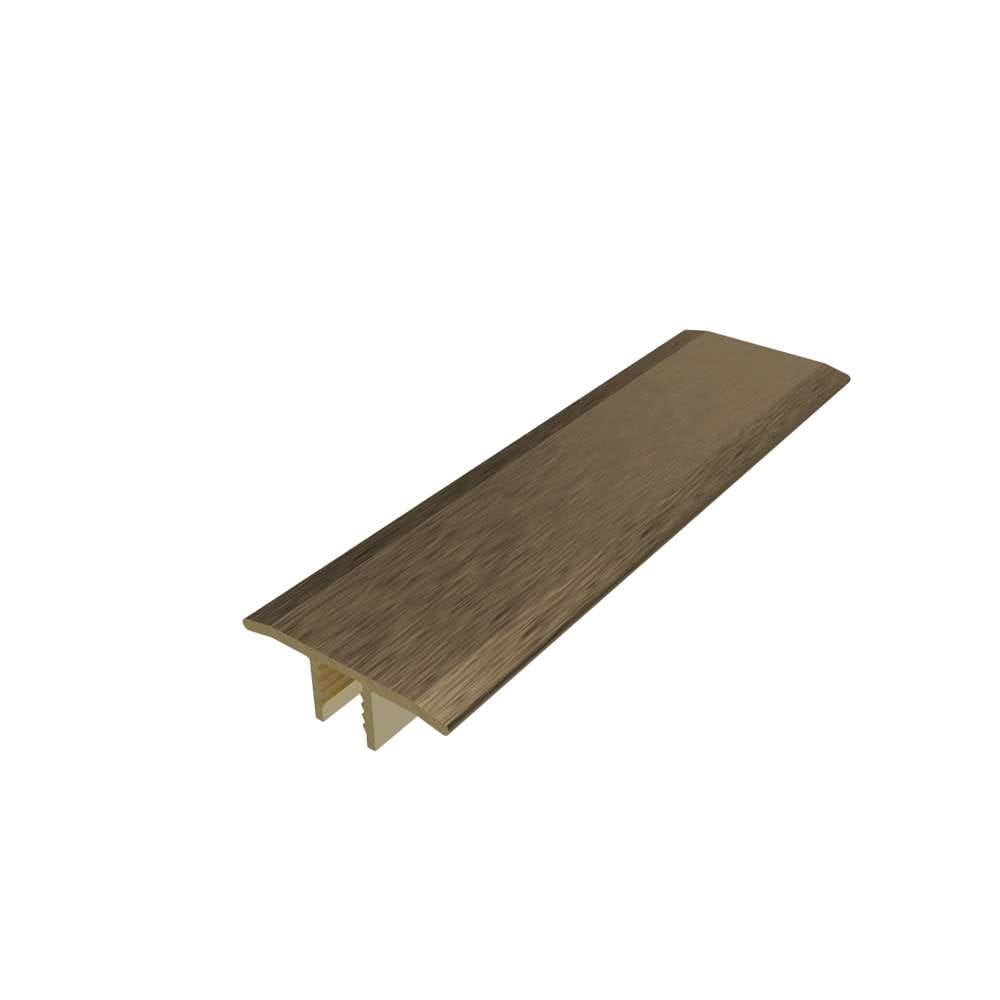

Antique Brass – Code: KKSL20
Antique Bronze – Code: KKSL21

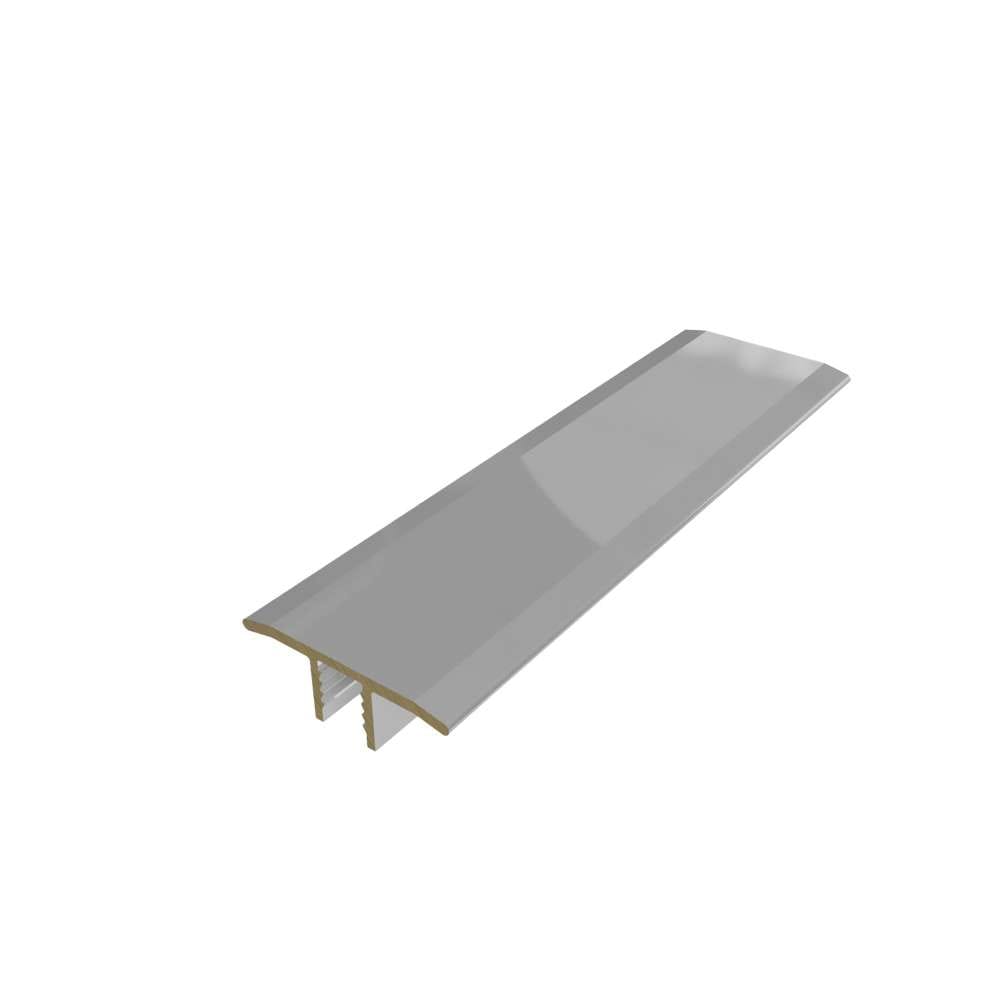

Chrome – Code: KKSL22

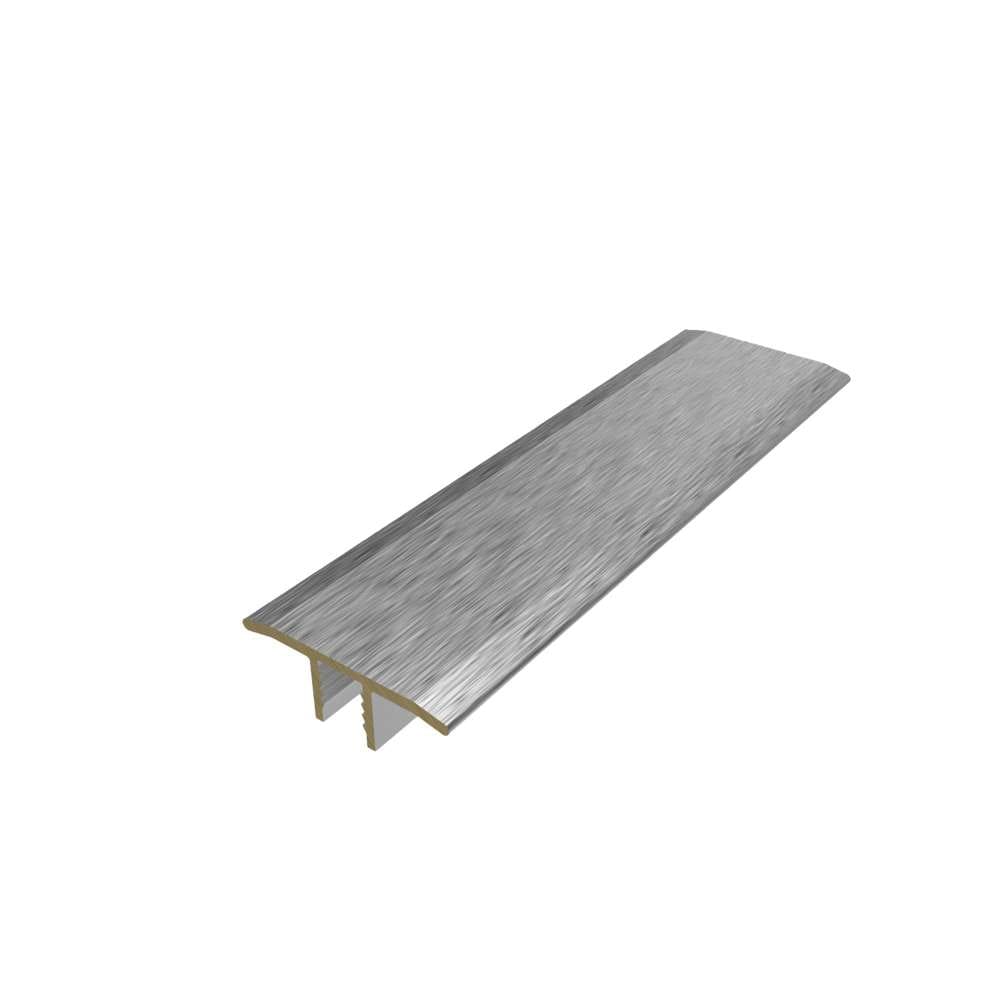

Satin Chrome – Code: KKSL42

Please Note: Kliks Slim base profiles ‘KKSBP’s are supplied separately.

Technical Specification

Satin Chrome
Chrome
Antique Bronze
Antique Brass
Satin Brass
Polished Brass
Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

Installed in combination with one of five compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion.

Lengths Available

2715, 900 mm

Visible Surface When Installed

30 mm

Standard Supply

Undrilled.

Light Reflective Value (Finish)

44.85 Find out more

Compatible Bases

KKSBP9.5, KKSBP12, KKSBP15, KKSBP20

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

Installed in combination with one of five compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion.

Lengths Available

2715, 900 mm

Visible Surface When Installed

30 mm

Standard Supply

Undrilled.

Light Reflective Value (Finish)

63.6 Find out more

Compatible Bases

KKSBP9.5, KKSBP12, KKSBP15, KKSBP20

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

Installed in combination with one of five compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion.

Lengths Available

2715, 900 mm

Visible Surface When Installed

30 mm

Standard Supply

Undrilled.

Light Reflective Value (Finish)

9.15 Find out more

Compatible Bases

KKSBP9.5, KKSBP12, KKSBP15, KKSBP20

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

Installed in combination with one of five compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion.

Lengths Available

2715, 900 mm

Visible Surface When Installed

30 mm

Standard Supply

Undrilled.

Light Reflective Value (Finish)

29.55 Find out more

Compatible Bases

KKSBP9.5, KKSBP12, KKSBP15, KKSBP20

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

Installed in combination with one of five compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion.

Lengths Available

2715, 900 mm

Visible Surface When Installed

30 mm

Standard Supply

Undrilled.

Light Reflective Value (Finish)

59.55 Find out more

Compatible Bases

KKSBP9.5, KKSBP12, KKSBP15, KKSBP20

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

Installed in combination with one of five compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion.

Lengths Available

2715, 900 mm

Visible Surface When Installed

30 mm

Standard Supply

Undrilled.

Light Reflective Value (Finish)

71.45 Find out more

Compatible Bases

KKSBP9.5, KKSBP12, KKSBP15, KKSBP20

Finishes

Finish: Satin Chrome

Satin Chrome

Finish: Chrome

Chrome

Finish: Antique Bronze

Antique Bronze

Finish: Antique Brass

Antique Brass

Finish: Satin Brass

Satin Brass

Finish: Polished Brass

Polished Brass
