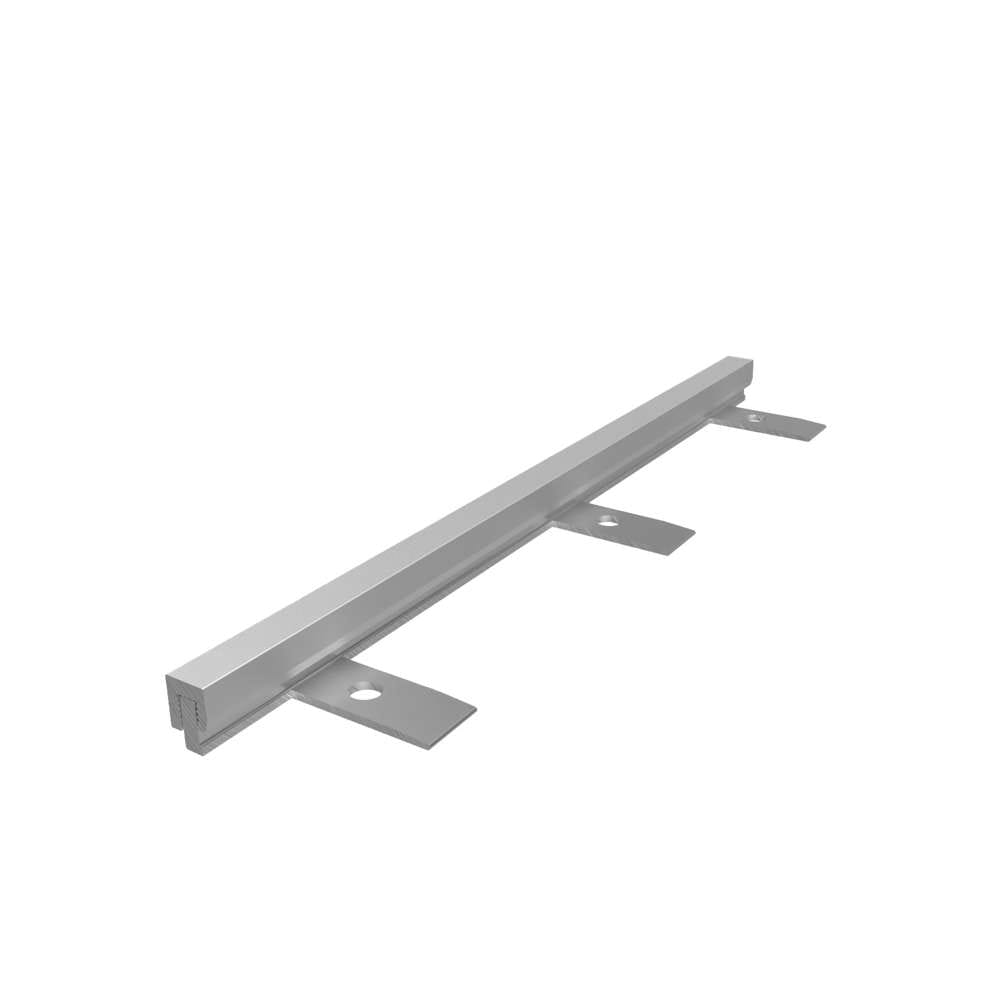

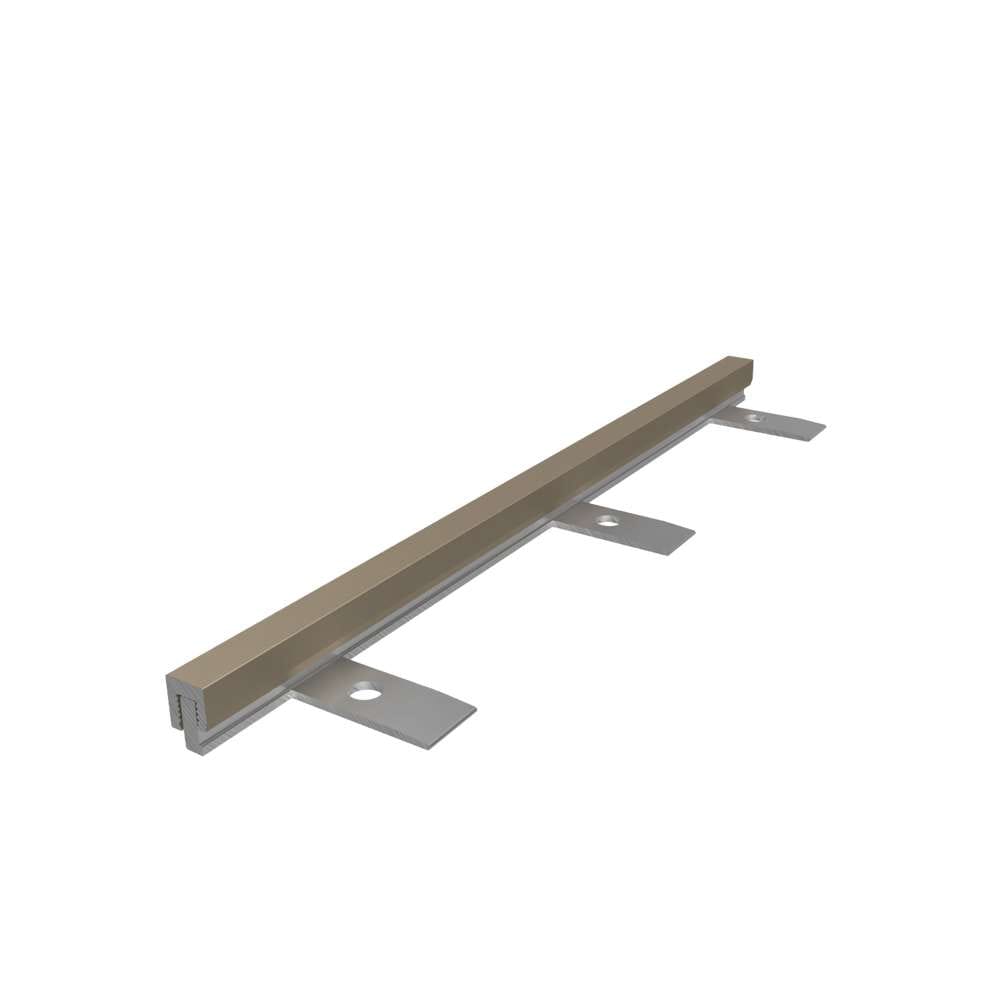

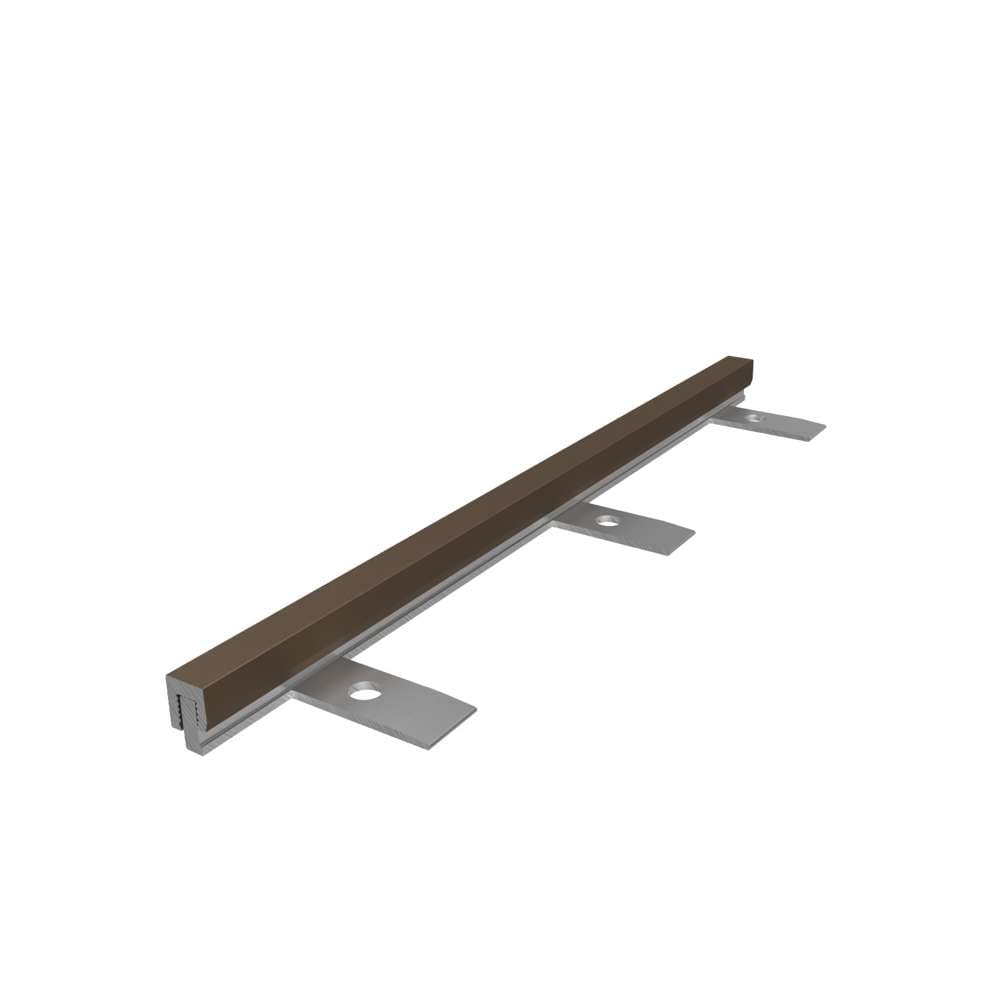

Mainline TTA11.5 – Aluminium
Mainline TTA11.5 is a 7.5mm wide top aluminium feature angle designed to create a neat transition and definition between floorings. Available in 3 outstanding finishes to suit all projects.

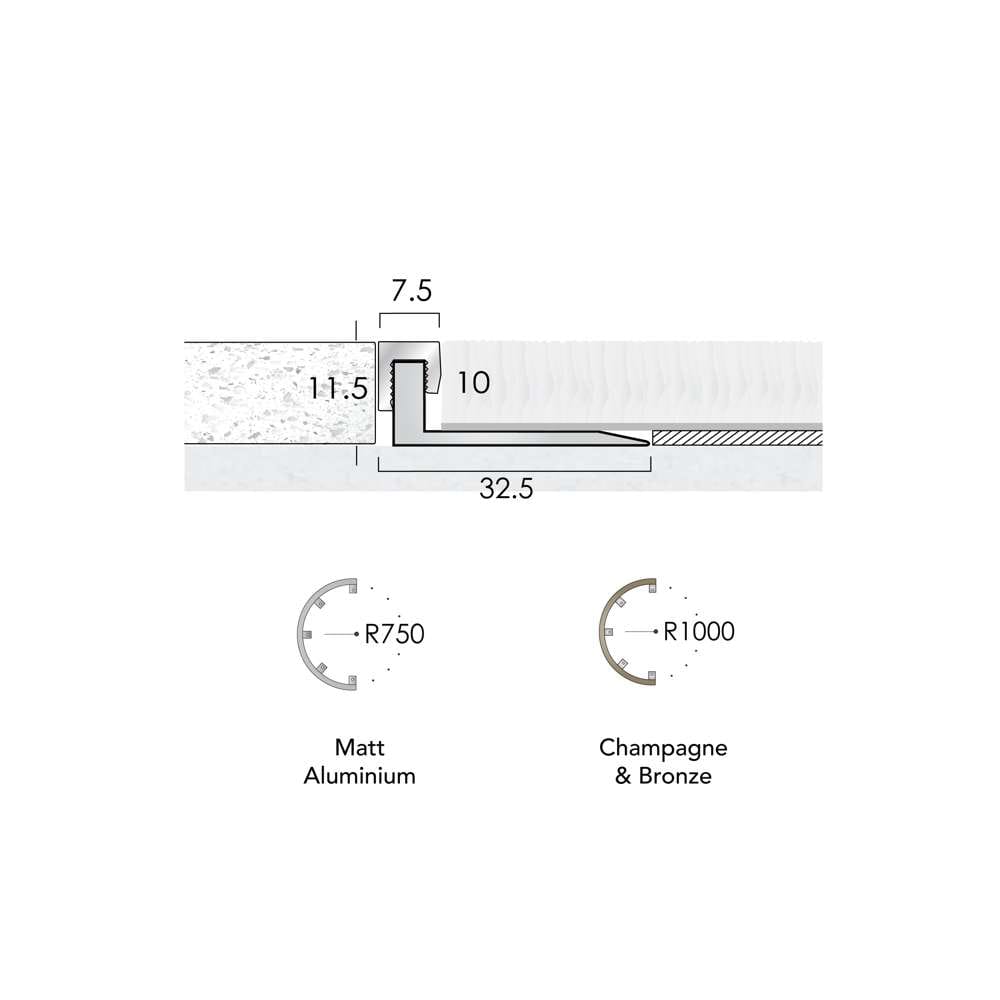

The feature angle has 11.5mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.

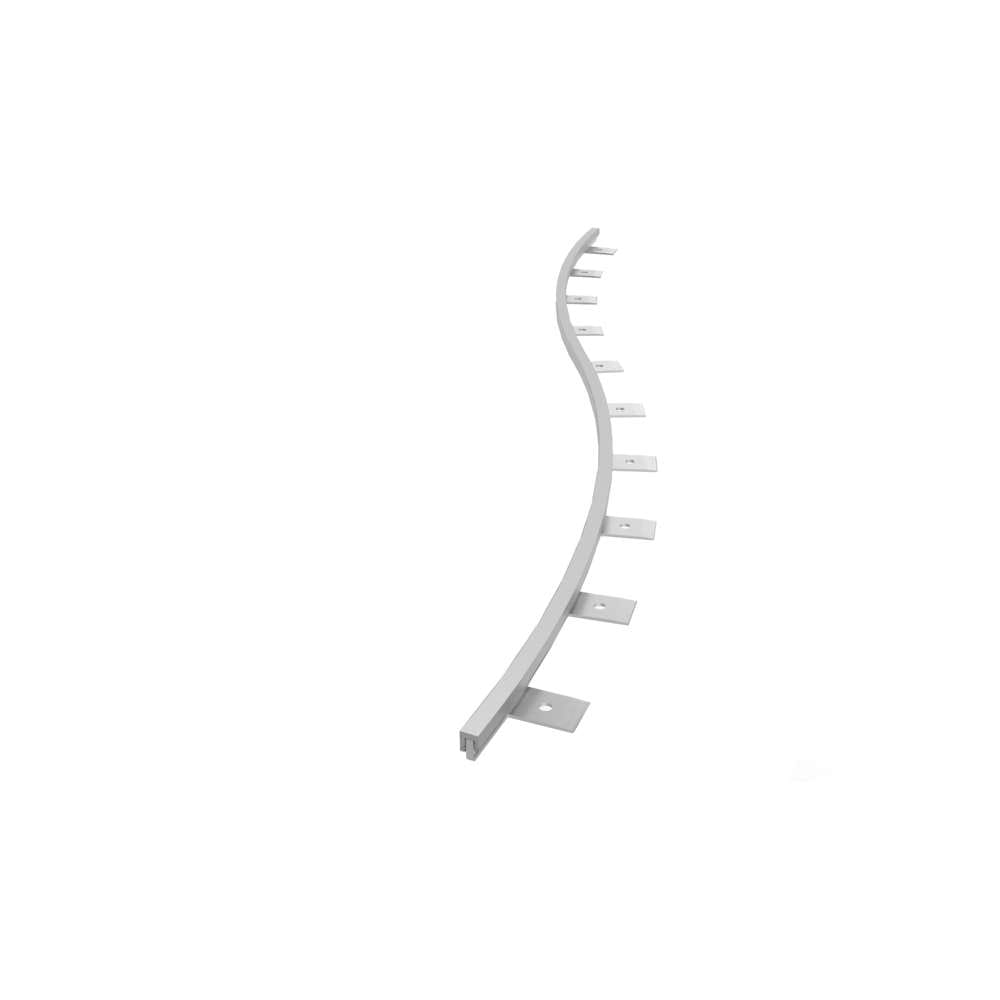

Mainline TTA11.5 is supplied with bases tagged at 80mm centres to allow on-site forming of gradual concave and convex curves to a minimum radius of 750mm (Matt Aluminium finish) or 1000mm (Bronze and Champagne finishes).
Suitable for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.
Mainline TTA11.5 is also available with a pre-punched base designed to create a neat, straight edge between floor coverings. Product reference: Mainline A11.5.
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
7.5 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing with tags at 80 mm centres for ease of curving.
Minimum Curving Radius
1000 mm
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
7.5 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing with tags at 80 mm centres for ease of curving.
Minimum Curving Radius
1000 mm
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
7.5 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing with tags at 80 mm centres for ease of curving.
Minimum Curving Radius
750 mm
Light Reflective Value (Finish)
71.65 Find out more
