Mainline TTP21.3 – PVC

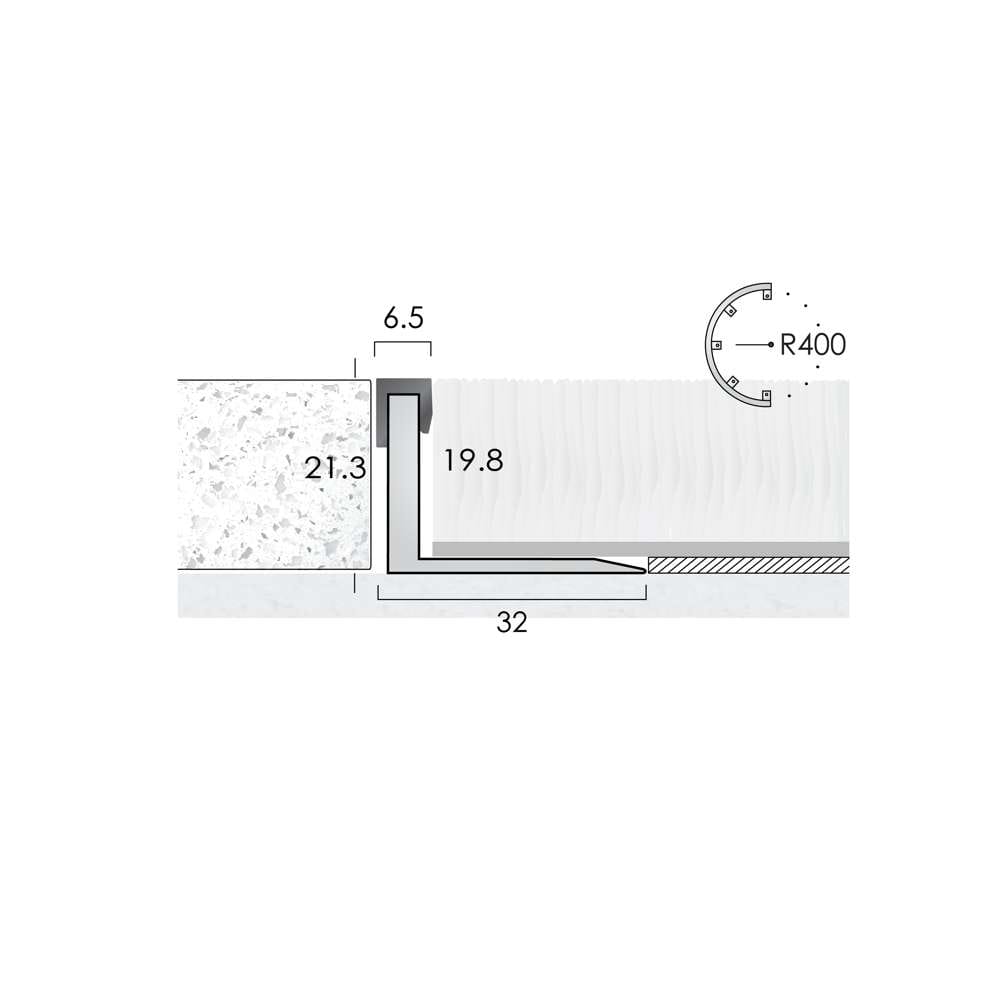

Mainline TTP21.3 is an aluminium feature angle with a 6.5mm top bonded PVC cap designed to create a neat transition and definition between floorings.

The feature angle has 21.3mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.

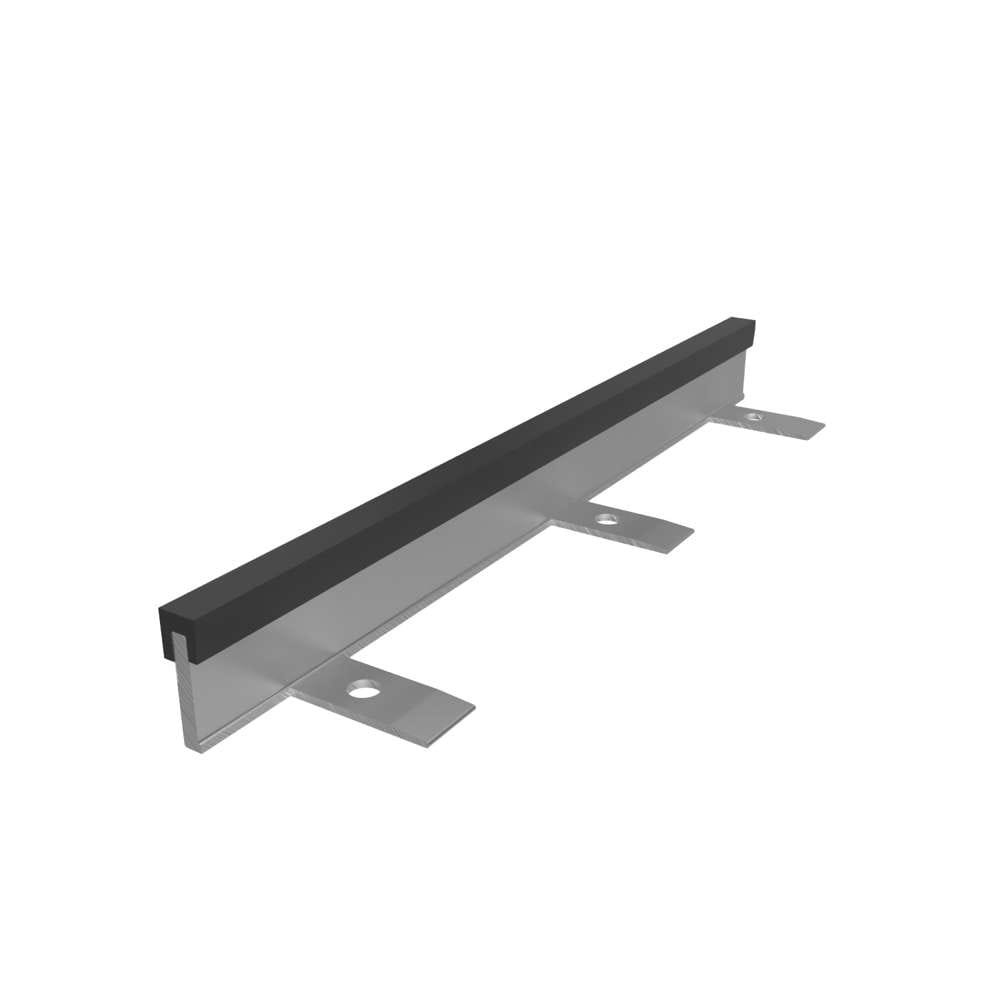

Mainline TTP21.3 is supplied with bases tagged at 80mm centres to allow on-site forming of gradual concave and convex curves to a minimum radius of 400mm.

Suitable for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.

Mainline TTP21.3 is also available with a pre-punched base designed to create a neat, straight edge between floor coverings. Product reference: Mainline P21.3.

Technical Specification

Polar Grey
Black
Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2715 mm

Visible Surface When Installed

6.5 mm

Standard Supply

Tags pre-punched for mechanical (size 6 screw).

Minimum Curving Radius

400 mm

Light Reflective Value (Finish)

42.73 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2715 mm

Visible Surface When Installed

6.5 mm

Standard Supply

Tags pre-punched for mechanical (size 6 screw).

Minimum Curving Radius

400 mm

Light Reflective Value (Finish)

4.47 Find out more

Finishes

Finish: Polar Grey

Polar Grey

Finish: Black

Black
