S16 – Stainless Steel

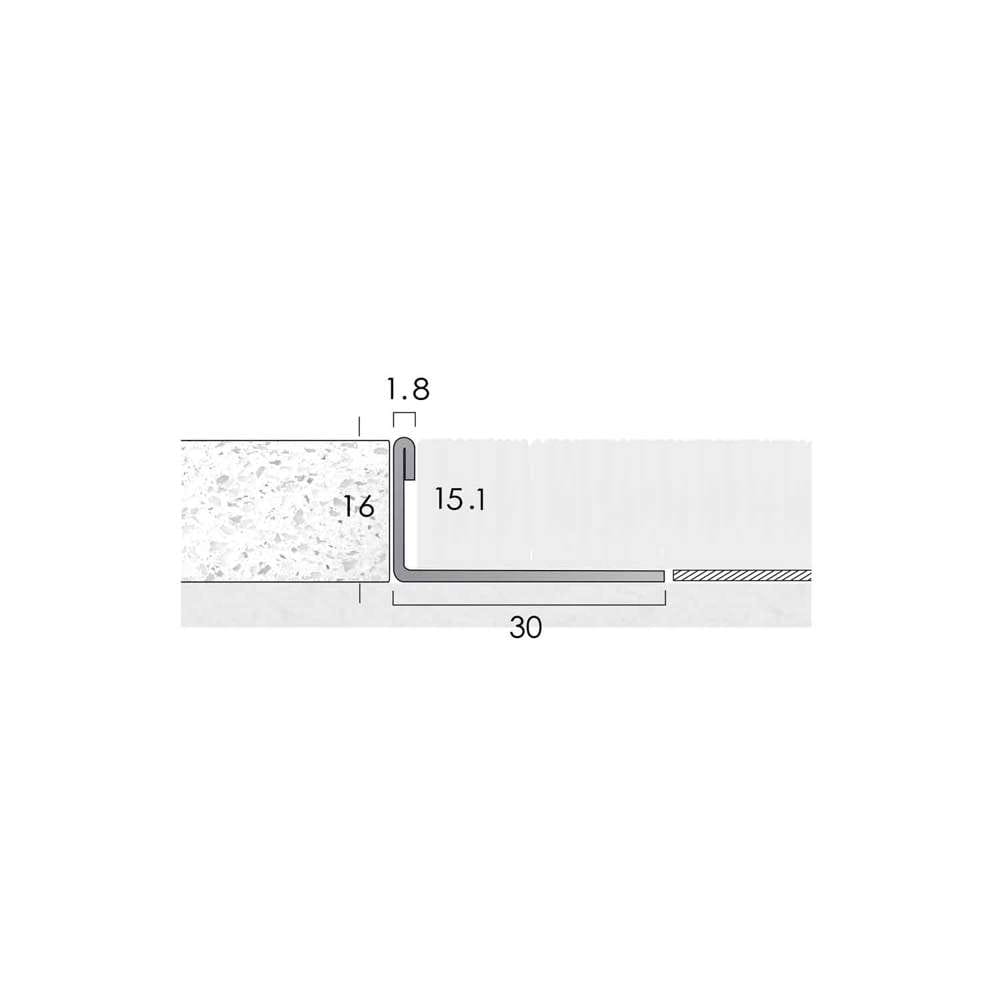

S16 is a 1.8mm top stainless steel angle designed to create a neat, straight edge between floor coverings.

The angle has 16mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.

S16 is supplied with pre-punched bases for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.

S16 is also available with a tagged base to allow on-site forming of gradual concave and convex curves. Product reference: TTS16.

Technical Specification

Mill Stainless Steel
Satin Stainless Steel
Polished Stainless Steel
Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2000 mm

Visible Surface When Installed

1.8 mm

Standard Supply

Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.

Light Reflective Value (Finish)

58.02 Find out more

Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2000 mm

Visible Surface When Installed

1.8 mm

Standard Supply

Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.

Light Reflective Value (Finish)

53.7 Find out more

Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2000 mm

Visible Surface When Installed

1.8 mm

Standard Supply

Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.

Light Reflective Value (Finish)

62 Find out more

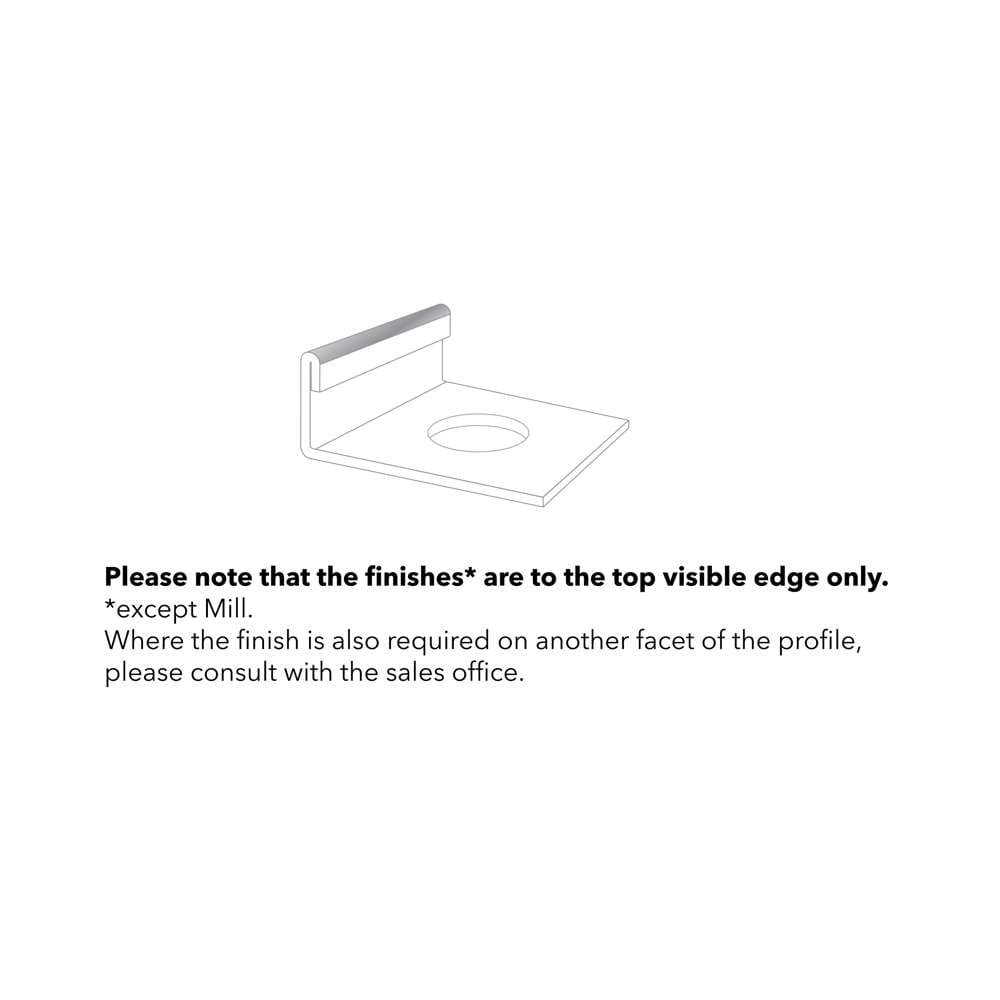

Finishes

Finish: Mill Stainless Steel

Mill Stainless Steel

Finish: Satin Stainless Steel

Satin Stainless Steel

Finish: Polished Stainless Steel

Polished Stainless Steel

See more products in these finishes
