TTA22.5 – Aluminium

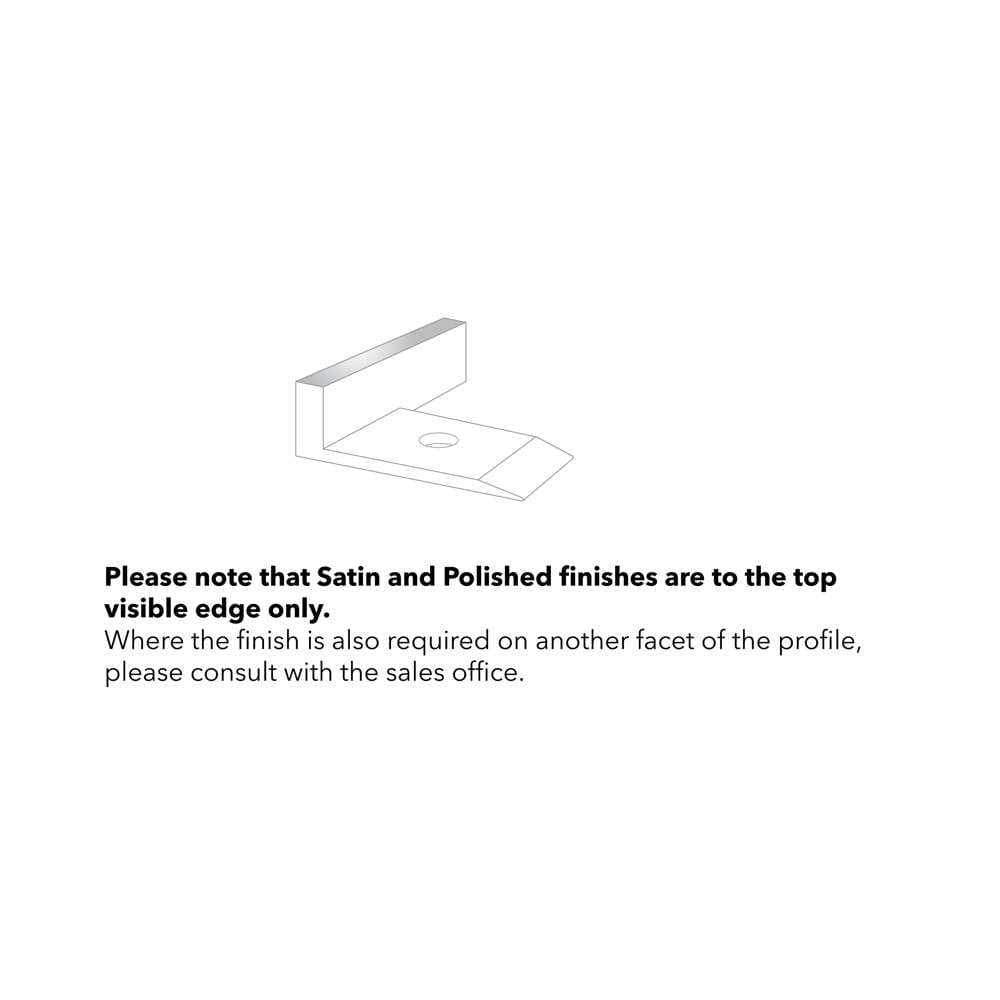

TTA22.5 is a 3mm wide top aluminium feature angle designed to create a neat transition and definition between floorings.

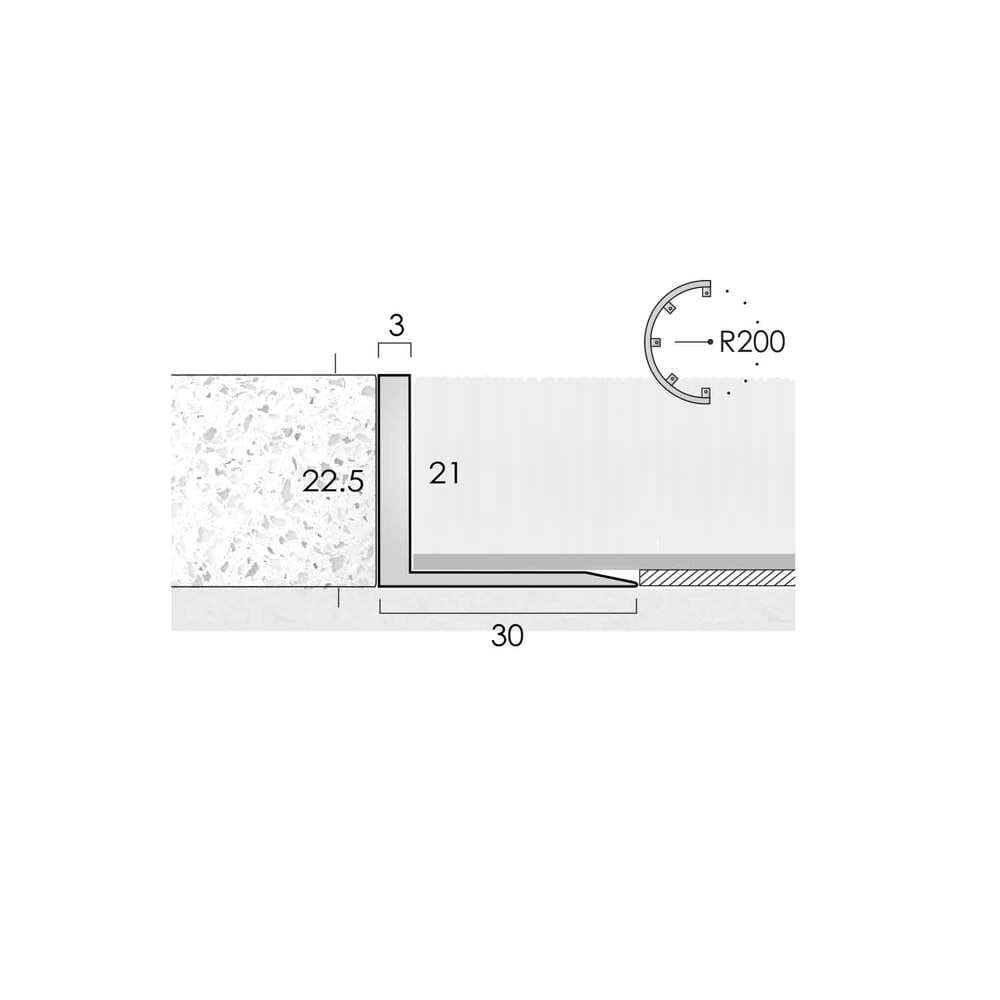

The feature angle has 22.5mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.
TTA22.5 is supplied with bases tagged at 80mm centres to allow on-site forming of gradual concave and convex curves to a minimum radius of 200mm.
Suitable for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.
TTA22.5 is also available with a pre-punched base designed to create a neat, straight edge between floor coverings. Product reference: A22.5.
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
3 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing with tags at 80 mm centres for ease of curving.
Minimum Curving Radius
200 mm
Light Reflective Value (Finish)
65.4 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
3 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing with tags at 80 mm centres for ease of curving.
Minimum Curving Radius
200 mm
Light Reflective Value (Finish)
75.55 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
3 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing with tags at 80 mm centres for ease of curving.
Minimum Curving Radius
200 mm
Light Reflective Value (Finish)
71.65 Find out more
