TTB22.5 – Brass

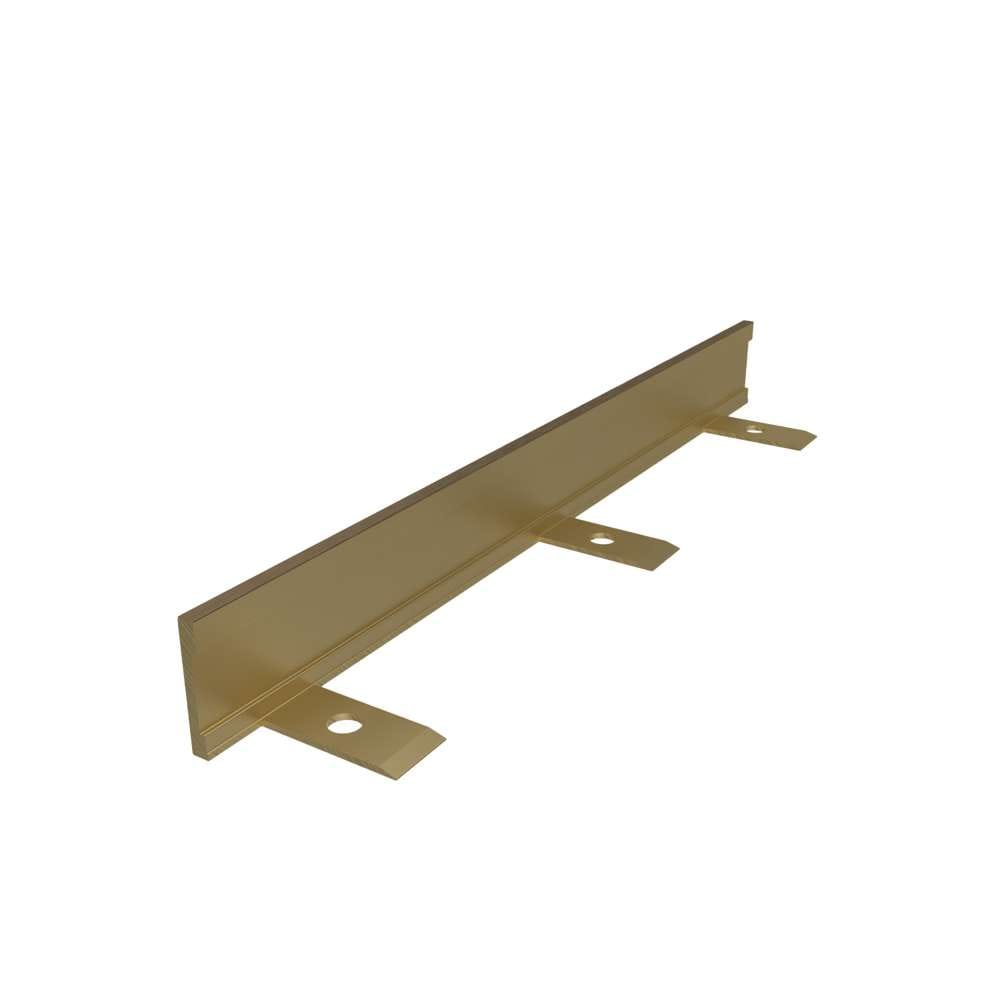

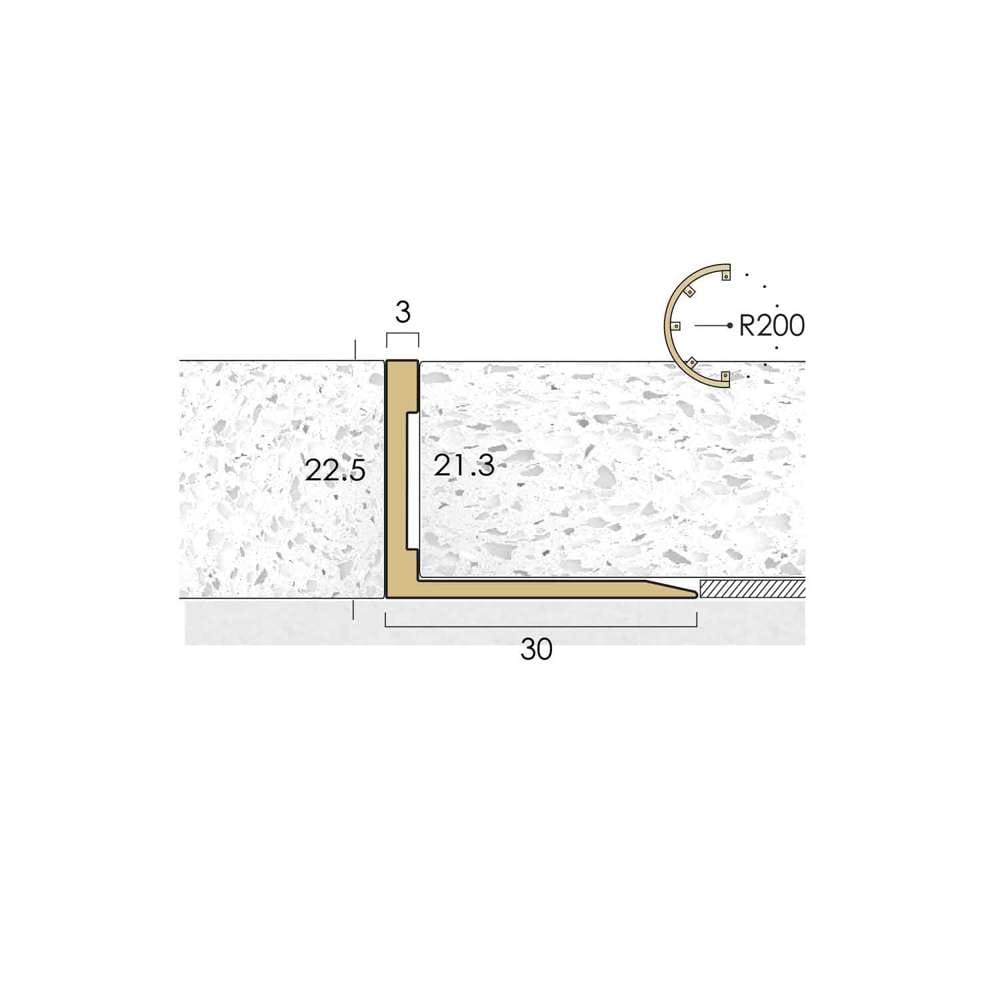

TTB22.5 is a 3mm wide top angle designed to create a neat transition and definition between floorings.

The feature angle has 22.5mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.

TTB22.5 is supplied with bases tagged at 80mm centres to allow on-site forming of gradual concave and convex curves to a minimum radius of 200mm.

Suitable for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.

TTB22.5 is also available with a pre-punched base designed to create a neat, straight edge between floor coverings. Product reference: B22.5.

Technical Specification

Antique Bronze
Antique Brass
Polished Brass
Satin Brass
Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Lengths Available

2715 mm

Visible Surface When Installed

3 mm

Standard Supply

Tags pre-punched for mechanical (size 6 screw).

Minimum Curving Radius

200 mm

Light Reflective Value (Finish)

9.15 Find out more

Please Note

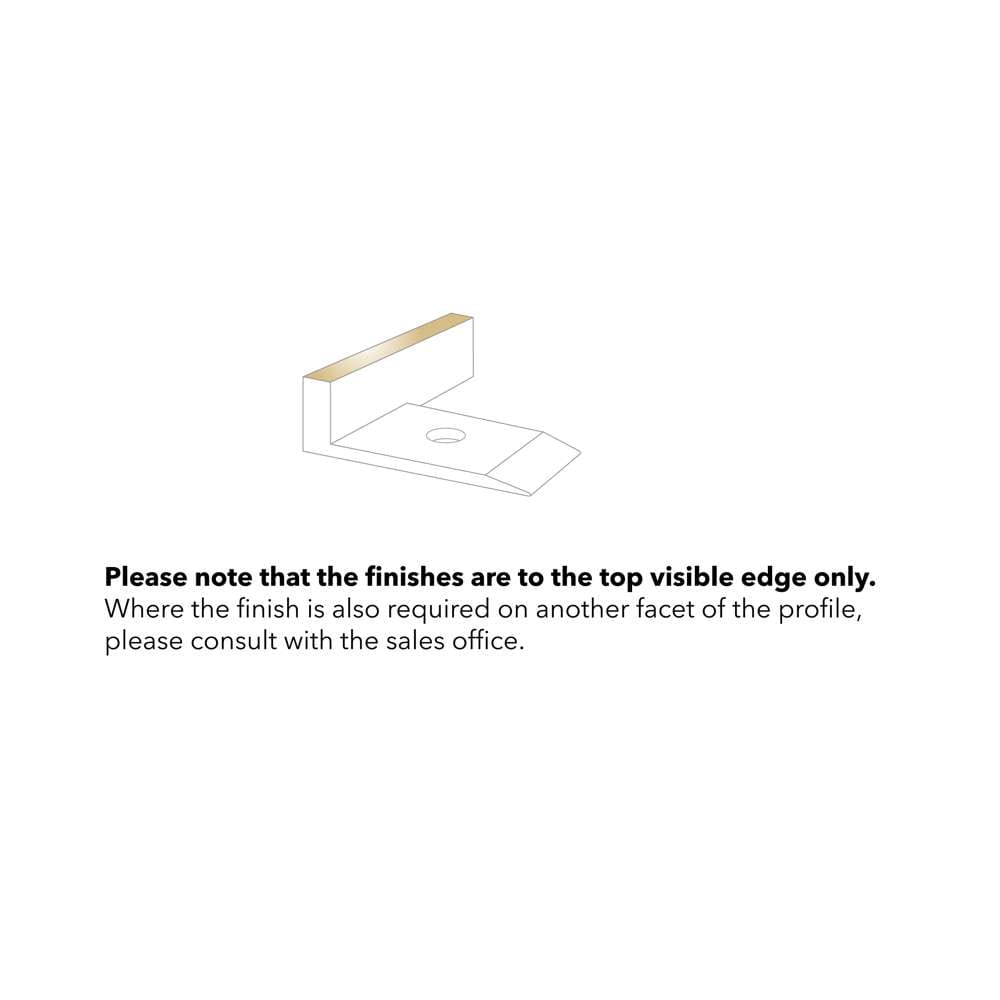

Finishes available are applied to the top visible edge only.

Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Lengths Available

2715 mm

Visible Surface When Installed

3 mm

Standard Supply

Tags pre-punched for mechanical (size 6 screw).

Minimum Curving Radius

200 mm

Light Reflective Value (Finish)

29.55 Find out more

Please Note

Finishes available are applied to the top visible edge only.

Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2715 mm

Visible Surface When Installed

3 mm

Standard Supply

Tags pre-punched for mechanical (size 6 screw).

Minimum Curving Radius

200 mm

Light Reflective Value (Finish)

71.45 Find out more

Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2715 mm

Visible Surface When Installed

3 mm

Standard Supply

Tags pre-punched for mechanical (size 6 screw).

Minimum Curving Radius

200 mm

Light Reflective Value (Finish)

59.55 Find out more

Finishes

Finish: Antique Bronze

Antique Bronze

Finish: Antique Brass

Antique Brass

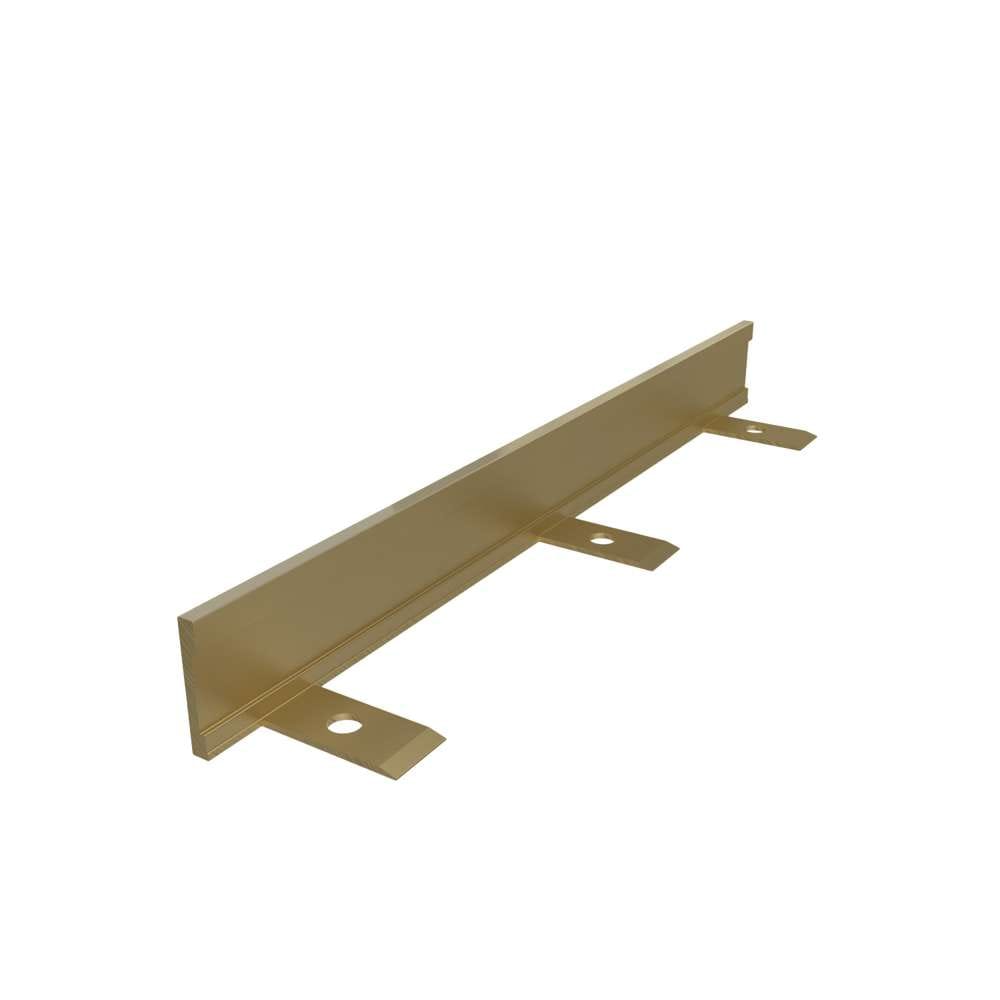

Finish: Polished Brass

Polished Brass

Finish: Satin Brass

Satin Brass

See more products in these finishes
