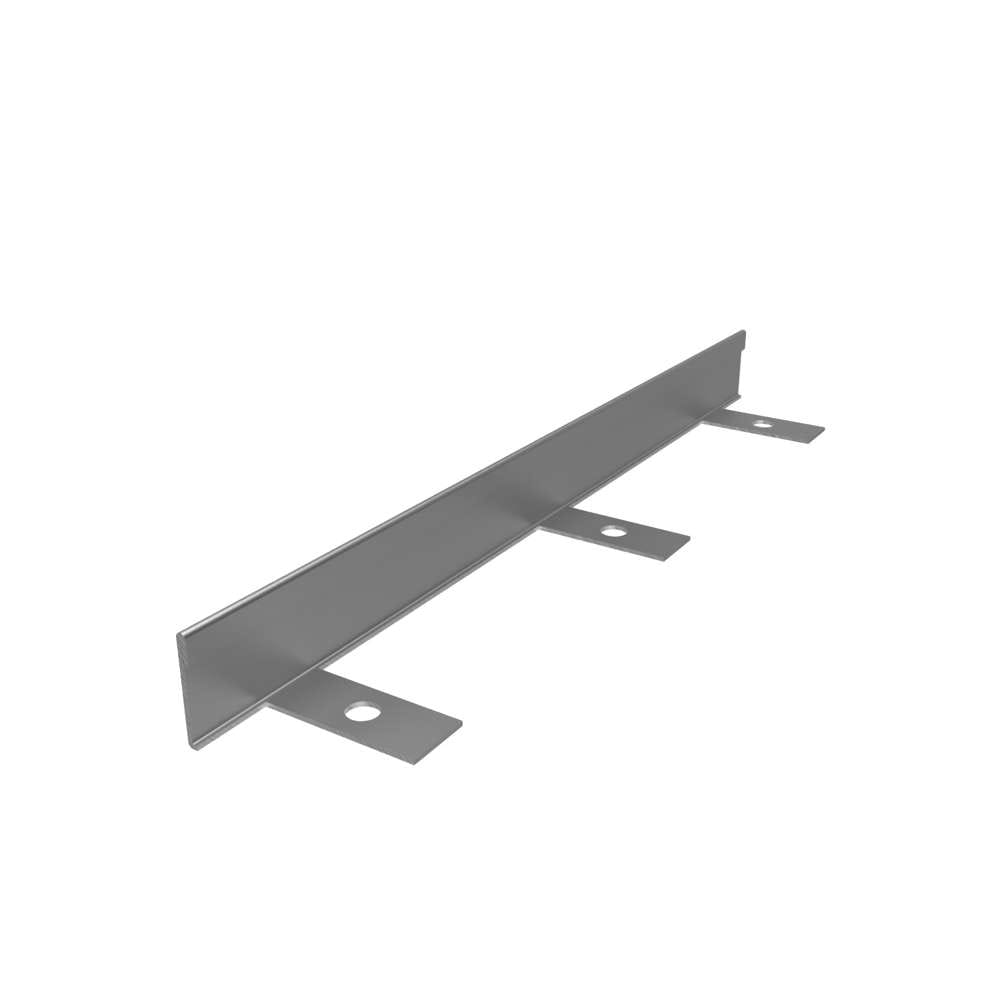

TTS19 – Stainless Steel

TTS19 is a 1.8mm wide top stainless steel feature angle designed to create a neat transition and definition between floorings.

The feature angle has 19mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.

TTS19 is supplied with bases tagged at 80mm centres to allow on-site forming of gradual concave and convex curves to a minimum radius of 200mm.

Suitable for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.

TTS19 is also available with a pre-punched base designed to create a neat, straight edge between floor coverings. Product reference: S19.

Technical Specification

Mill Stainless Steel
Satin Stainless Steel
Polished Stainless Steel
Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2000 mm

Visible Surface When Installed

1.8 mm

Standard Supply

Tags pre-punched for mechanical fixing (size 6 screw).

Minimum Curving Radius

200 mm

Light Reflective Value (Finish)

58.02 Find out more

Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2000 mm

Visible Surface When Installed

1.8 mm

Standard Supply

Tags pre-punched for mechanical fixing (size 6 screw).

Minimum Curving Radius

200 mm

Light Reflective Value (Finish)

53.7 Find out more

Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2000 mm

Visible Surface When Installed

1.8 mm

Standard Supply

Tags pre-punched for mechanical fixing (size 6 screw).

Minimum Curving Radius

200 mm

Light Reflective Value (Finish)

62 Find out more

Finishes

Finish: Mill Stainless Steel

Mill Stainless Steel

Finish: Satin Stainless Steel

Satin Stainless Steel

Finish: Polished Stainless Steel

Polished Stainless Steel
