TTS9 – Stainless Steel

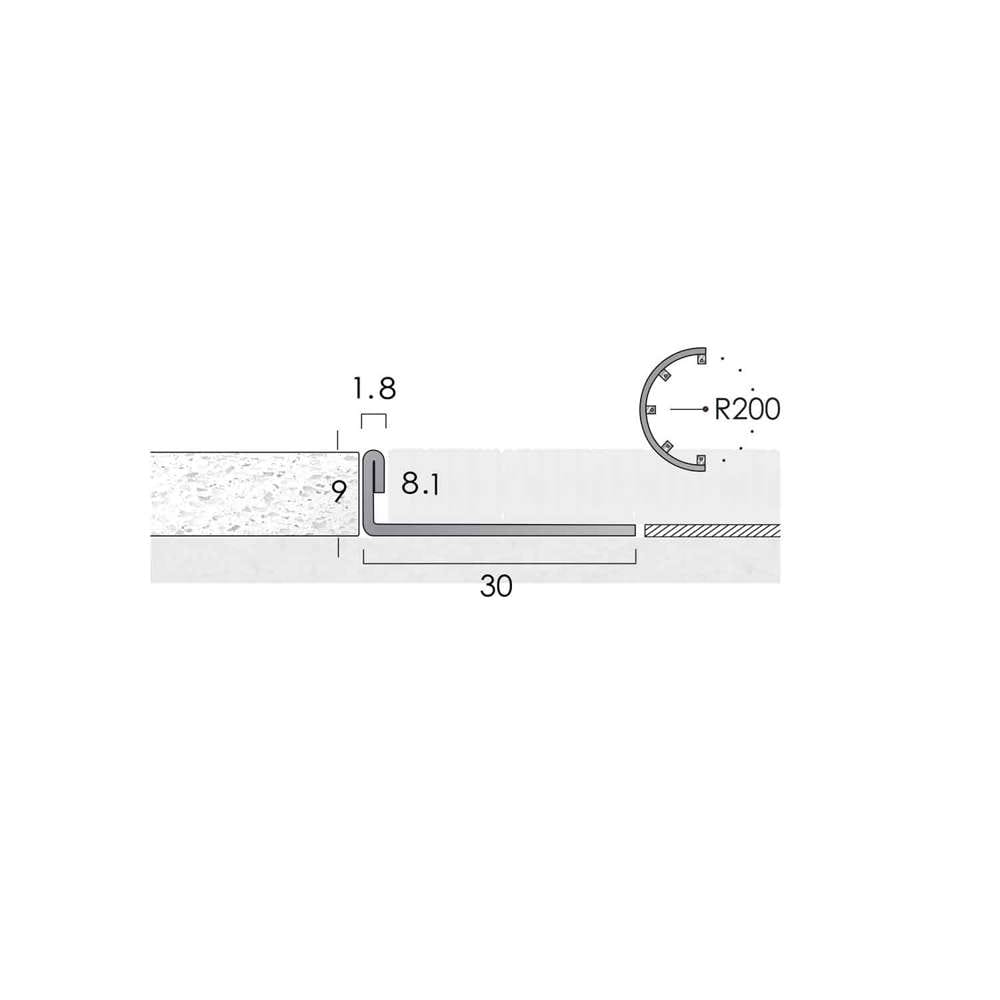

TTS9 is a 1.8mm wide top stainless steel feature angle designed to create a neat transition and definition between floorings.
The feature angle has 9mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.
TTS9 is supplied with bases tagged at 80mm centres to allow on-site forming of gradual concave and convex curves to a minimum radius of 200mm.
Suitable for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.
TTS9 is also available with a pre-punched base designed to create a neat, straight edge between floor coverings. Product reference: S9.
Order Free SamplesTechnical Specification
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2000 mm
Visible Surface When Installed
1.8 mm
Standard Supply
Tags pre-punched for mechanical fixing (size 6 screw).
Minimum Curving Radius
200 mm
Light Reflective Value (Finish)
58.02 Find out more
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2000 mm
Visible Surface When Installed
1.8 mm
Standard Supply
Tags pre-punched for mechanical fixing (size 6 screw).
Minimum Curving Radius
200 mm
Light Reflective Value (Finish)
53.7 Find out more
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2000 mm
Visible Surface When Installed
1.8 mm
Standard Supply
Tags pre-punched for mechanical fixing (size 6 screw).
Minimum Curving Radius
200 mm
Light Reflective Value (Finish)

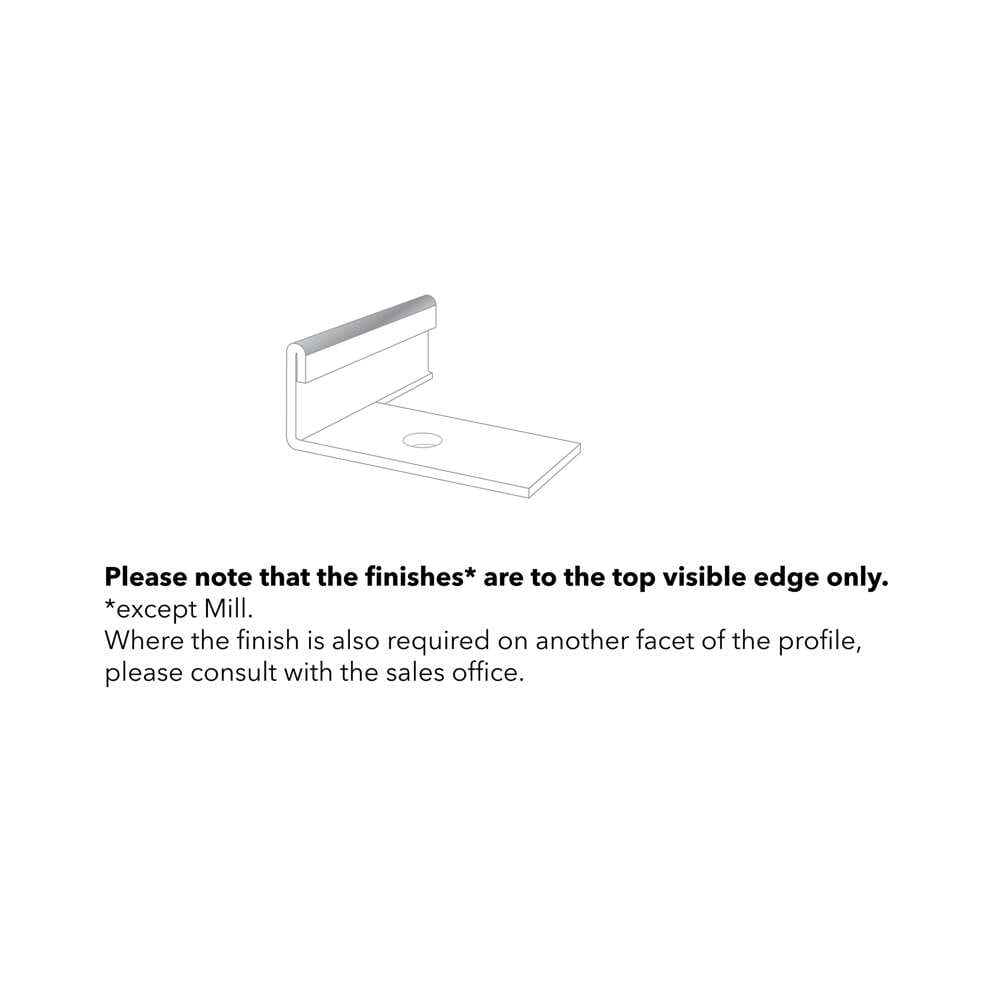

Finishes
Mill Stainless Steel
Satin Stainless Steel
Polished Stainless Steel
Please select the sample you'd like for this product
