AN52 – Aluminium

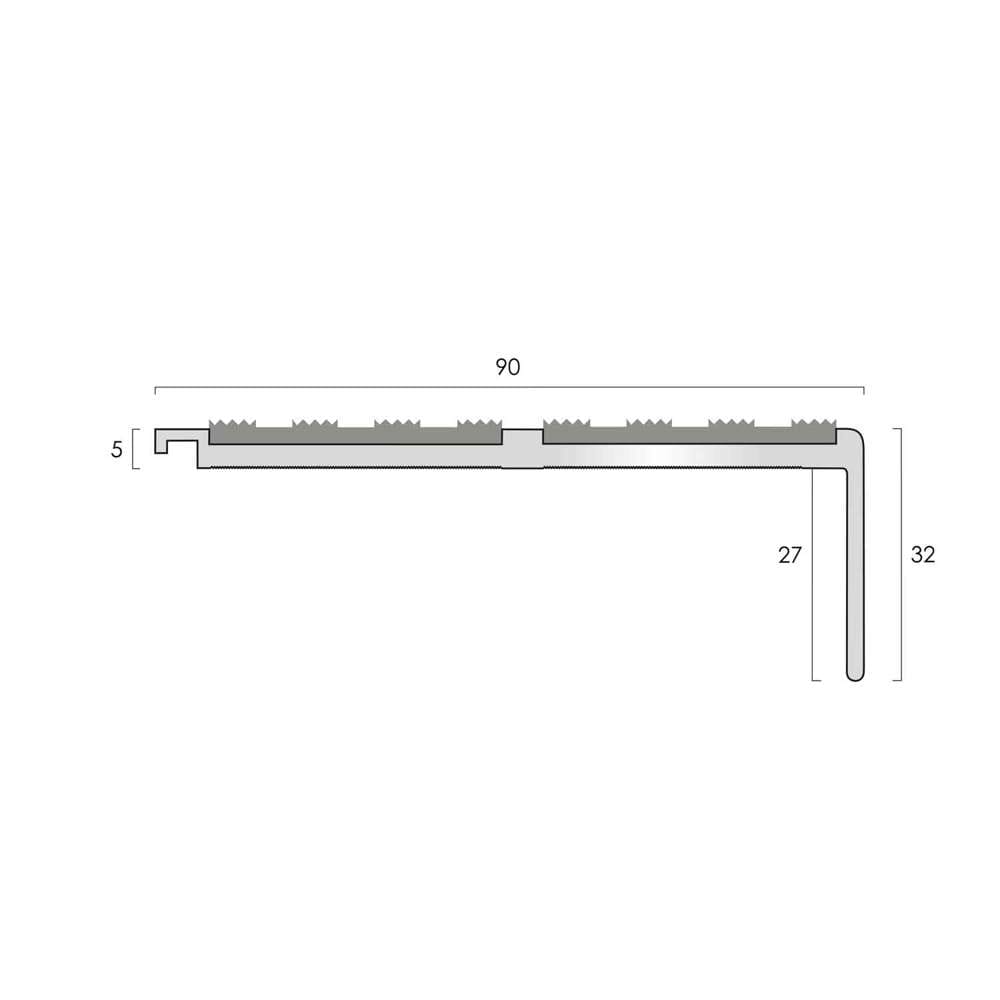

The AN52 is a 5mm gauge, square-back, double-channel aluminium stair nosing that is available in a range of finishes with a variety of infill options and colours.
The AN52 has an interlocking back edge designed to accommodate a ramp extension (ANRE25), a tread extender (ANEXT), or a nap detail (ANE) for use with broadloom carpets.
In addition, AN52 is available for use in wet/external installations. Supplied in Mill Aluminium with Olympic Carborundum infill in a range of colours. Product reference: Olympic AN52.
NBS Source
Technical Specification
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Compatible with profiles ANE Nap Detail, ANRE25 Ramp Detail and ANEXT extension tread. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
75.55 Find out more
Slip Resistance Values
ATI37.25 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
37.25mm Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
37.25mm Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Find out more
Compatible Stair Nosings and Accessories
ANEXT, ANRE25, ANE NAP
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Compatible with profiles ANE Nap Detail, ANRE25 Ramp Detail and ANEXT extension tread. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
65.4 Find out more
Slip Resistance Values
ATI37.25 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
37.25mm Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
37.25mm Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Find out more
Compatible Stair Nosings and Accessories
ANEXT, ANRE25, ANE NAP
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Compatible with profiles ANE Nap Detail, ANRE25 Ramp Detail and ANEXT extension tread. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Drilling
Drilled for concealing plugs, Undrilled, Drilled with retro fit infill
Light Reflective Value (Finish)
71.65 Find out more
Slip Resistance Values
ATI37.25 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
37.25mm Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
37.25mm Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
Find out more
Compatible Stair Nosings and Accessories
ANEXT, ANRE25, ANE NAP
Infill Options
Olympic Grip Insert
Black
ATI37.25 Aluminium Insert
Mill
Satin
Polished
37.25mm Castellated PVC Insert
Black
Light Grey
Granite
Peat
White
Porth Stone
Flint
Yellow
Polar Grey
37.25mm Smooth Textured PVC Insert
Black
Light Grey
Polar Grey
Porth Stone
