AR63 – Aluminium

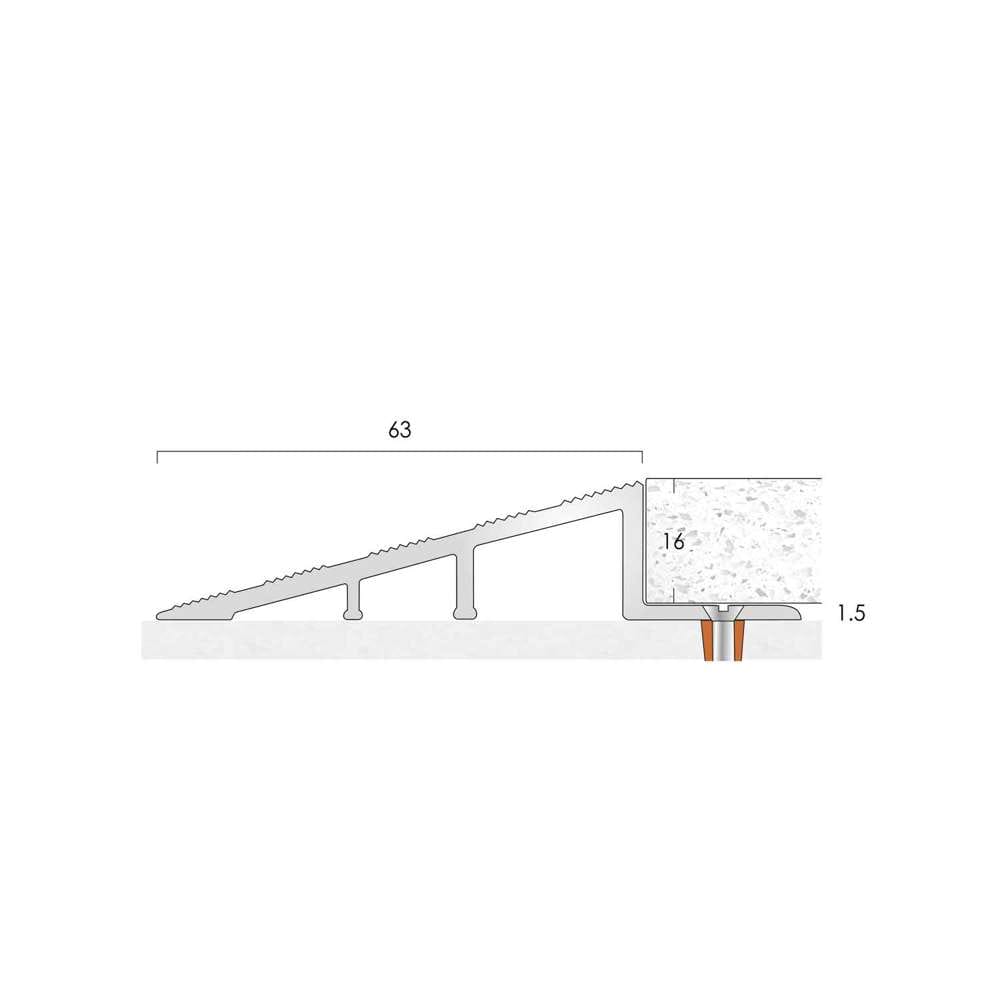

AR63 is an aluminium wide ramp profile designed for use where floors adjoin at different levels to protect the edges of the flooring material. Typical examples include barrier matting in entrance areas, or stone flooring.
Supplied drilled through the tail plate for a concealed fixing, using size 8 screws. Fixings are not supplied.
AR63 is also available as a pre-fabricated matwell frame, or in pre-cut mitres.
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public buildings, as well as for quality domestic installations. Ideal for creating matwell frames.
Lengths Available
2715 mm
Visible Surface When Installed
63 mm
Standard Supply
Drilled through the foot of the profile for size 8 screws.
Light Reflective Value (Finish)
71.65 Find out more
