ARCP/70/18 – Aluminium

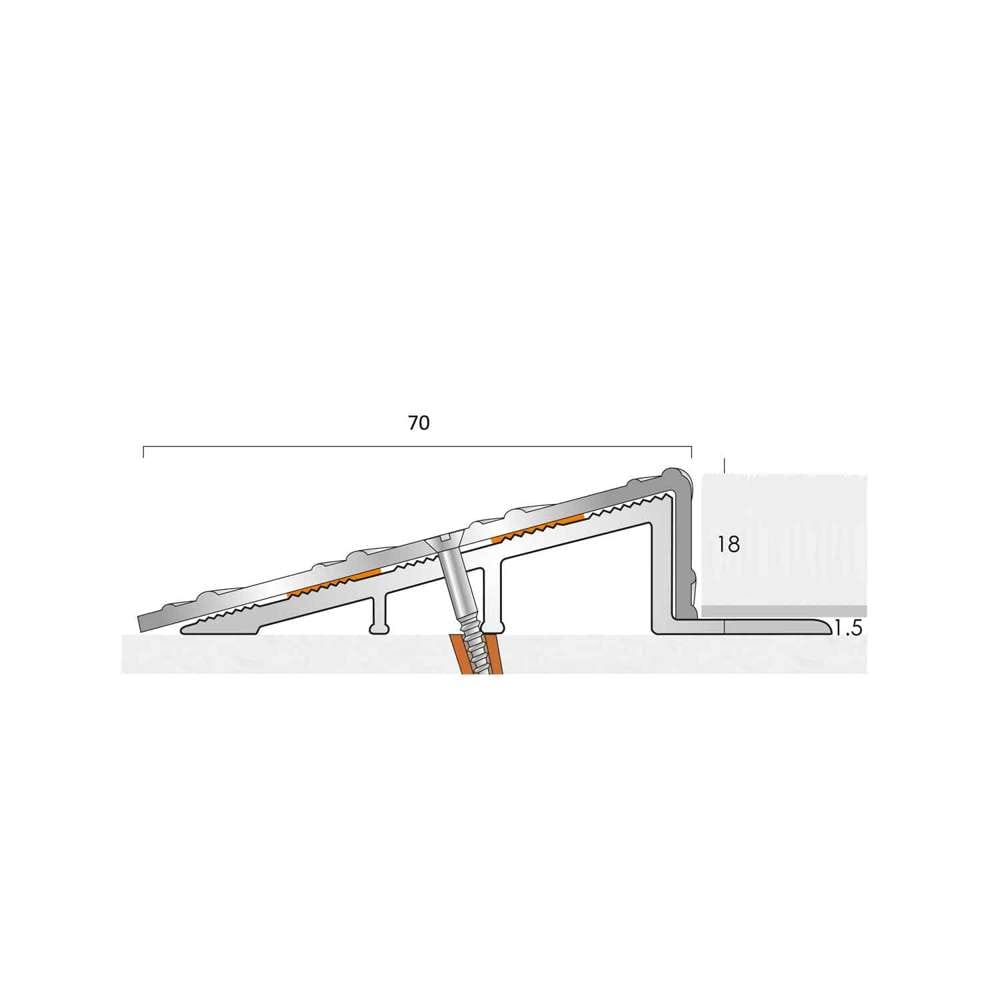

ARCP/70/18 is a heavy-duty aluminium wide ramp profile with aluminium chequer plate bonded cover, designed for use where floors adjoin at different levels to protect the edges of the flooring material. Typical examples: barrier matting in entrance areas, timber or stone flooring.
Supplied drilled through the tread for mechanical fixing using size 8 screws.
ARCP/70/18 is also available as a pre-fabricated, base-fix ramp edge matwell frame.
Available in pre-cut mitres. We can also manufacture angle matwell frames in pre-cut mitres with welded base, subject to frame size.
Produced to customer sizes, all matwell frames have safety edge machine finished corners.
Technical Specification
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations. Ideal for creating matwell frames.
Lengths Available
2000 mm
Visible Surface When Installed
70 mm
Standard Supply
Drilled through the ramp face of the profile for size 8 screws.
Light Reflective Value (Finish)
71.65 Find out more
