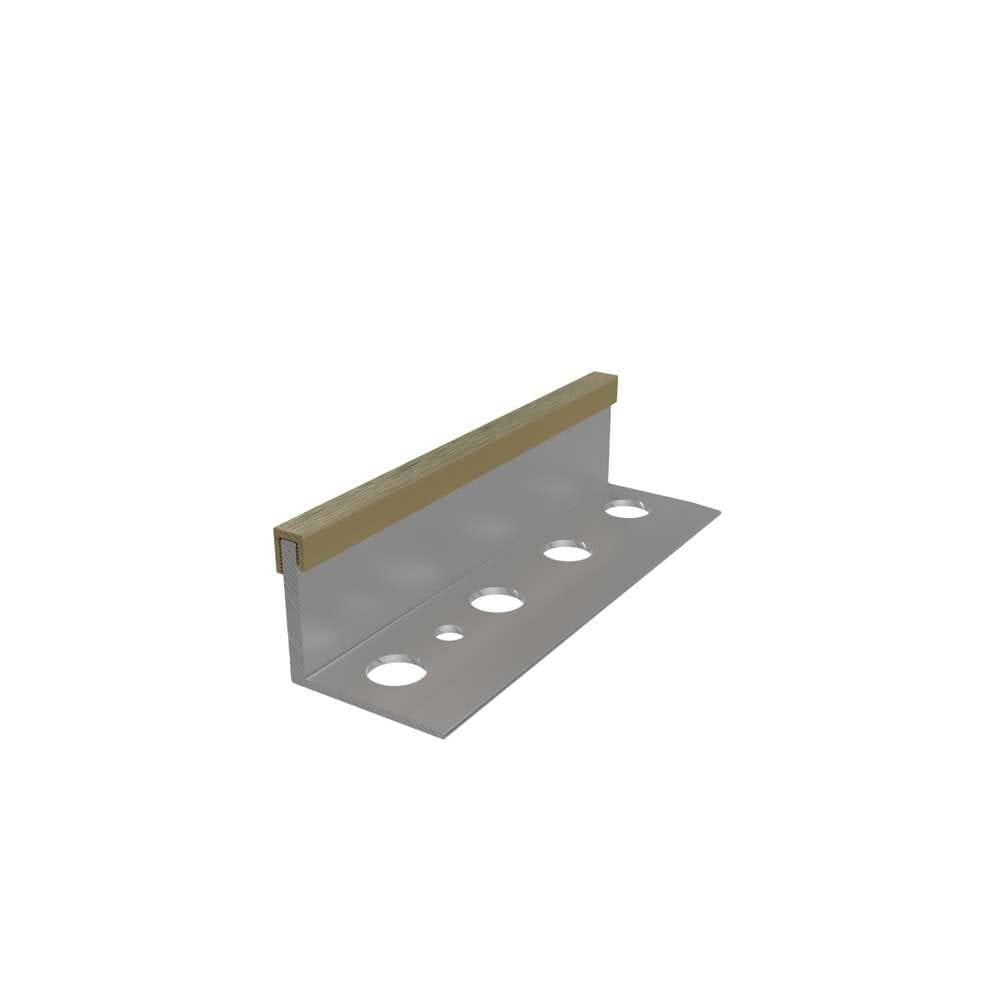

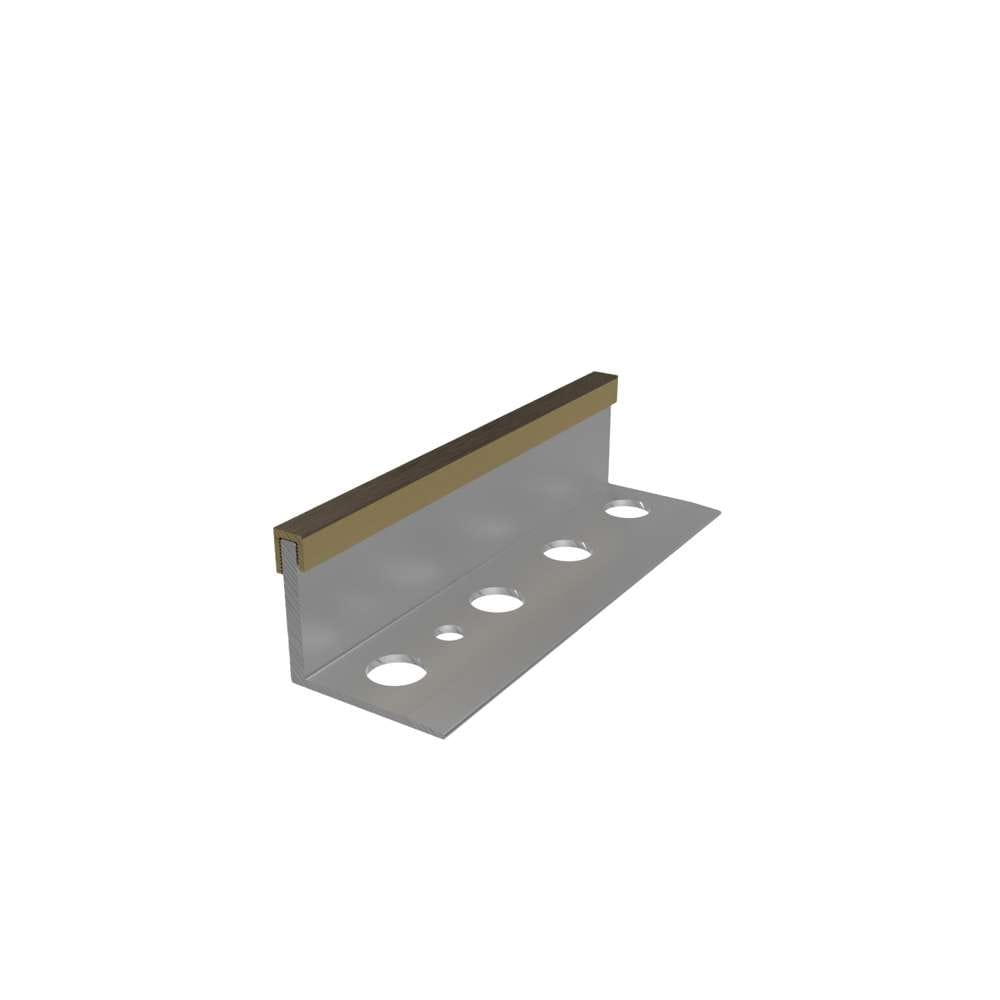

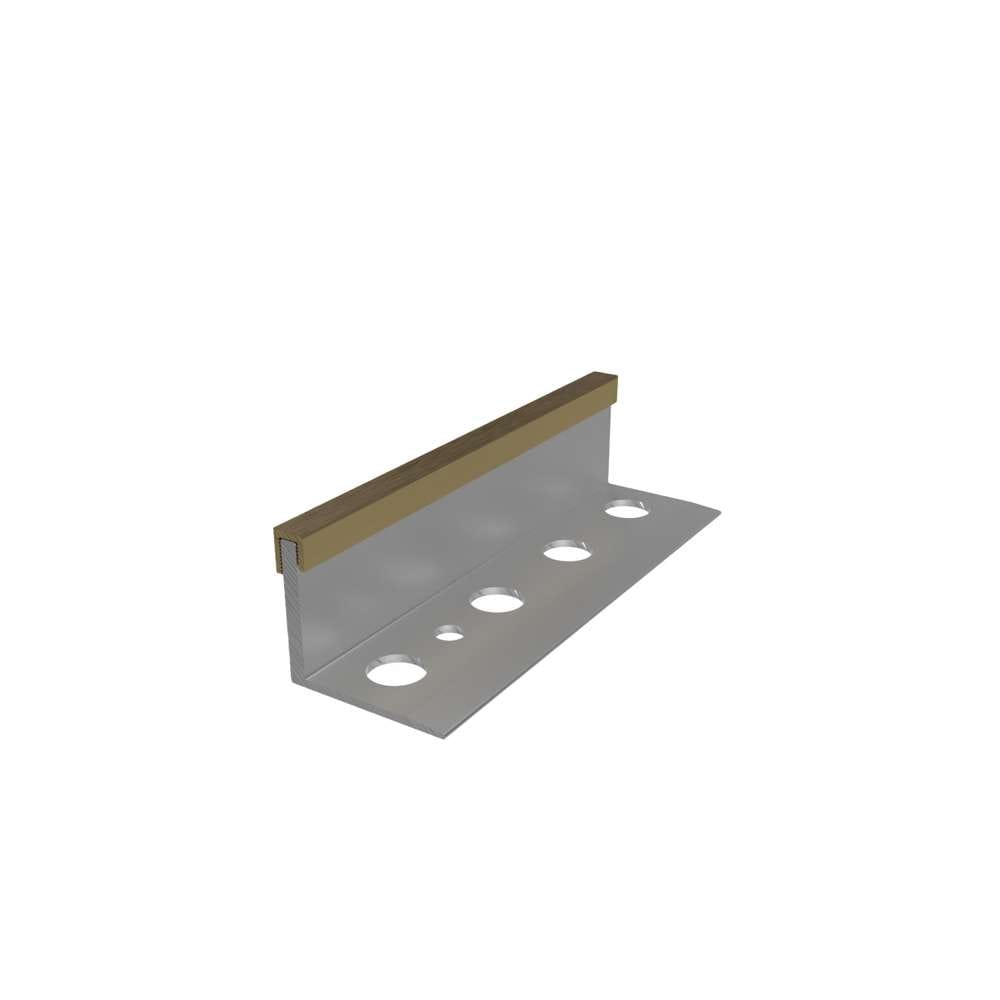

B626 – Brass

B626 is a 6mm wide top brass feature angle designed to create a neat, straight edge between floor coverings.

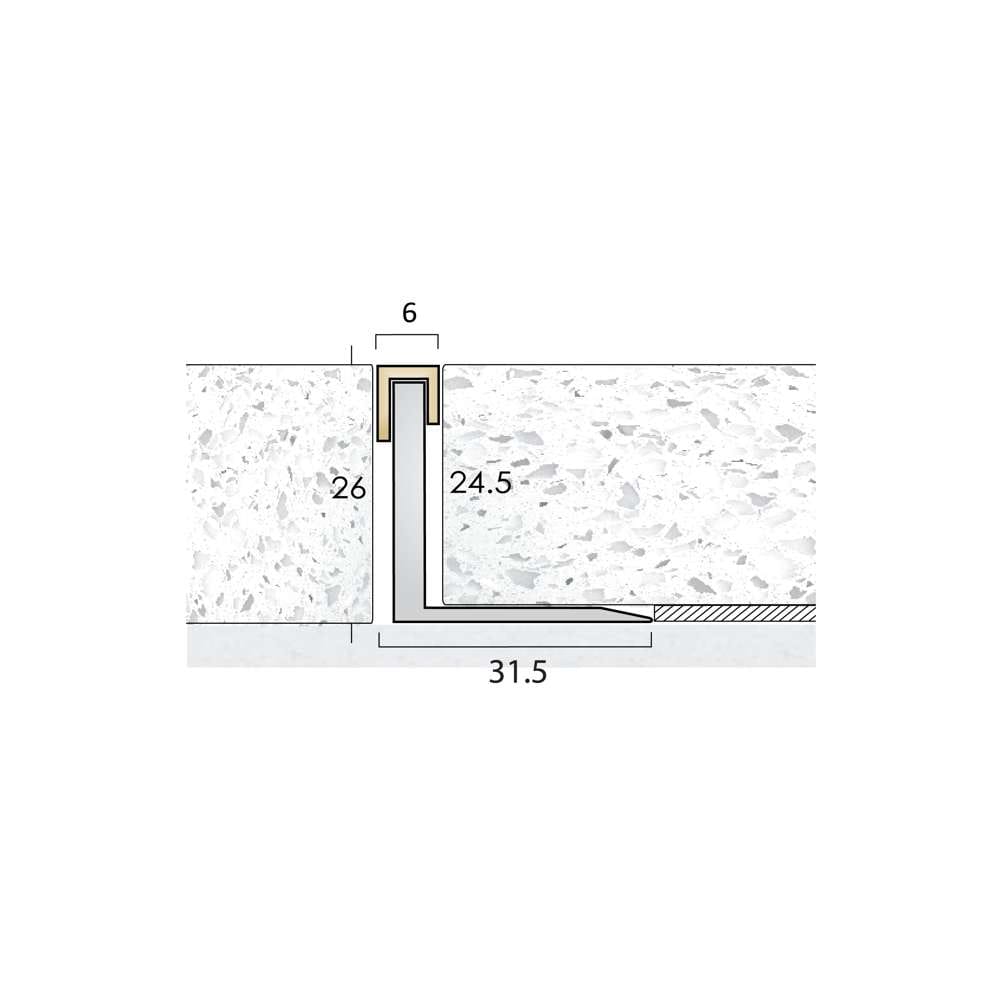

The angle has 26mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.

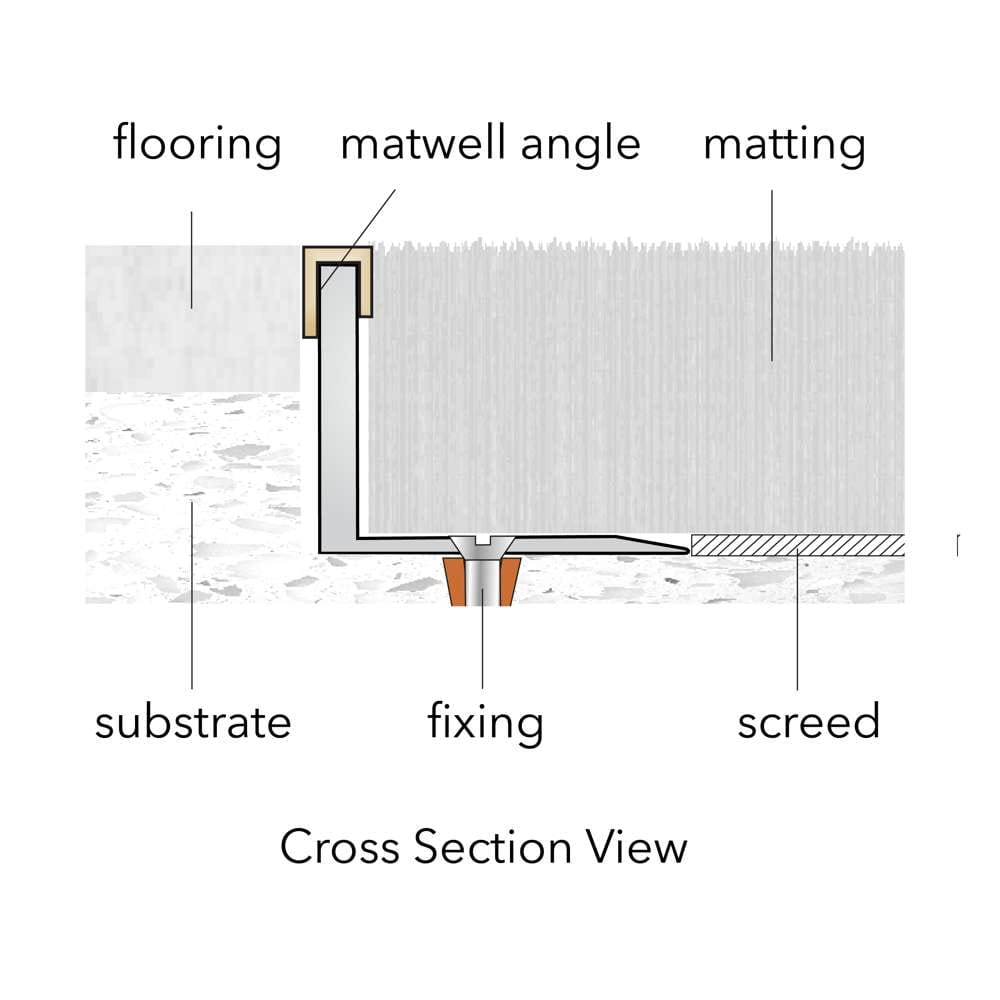

B626 is supplied with pre-punched bases for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.

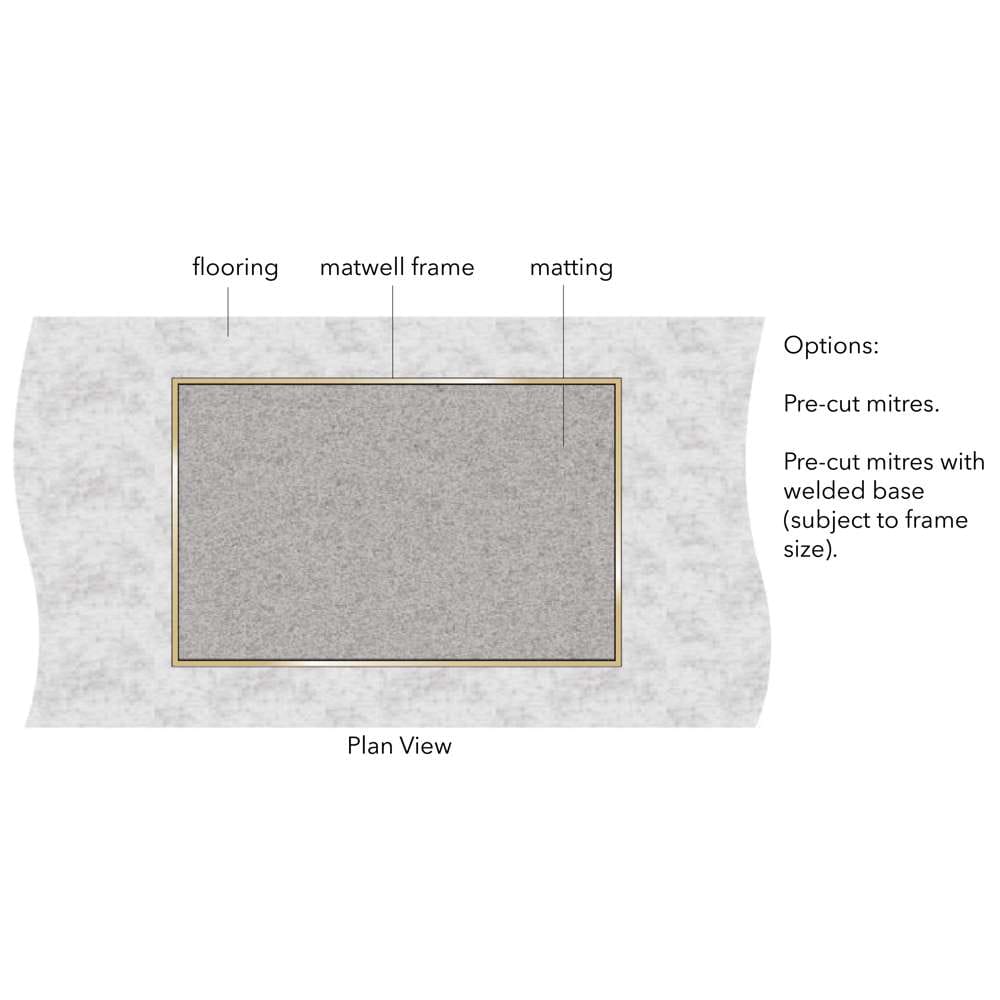

B626 is also available as a pre-fabricated, base-fix matwell frame.

Available in pre-cut mitres. We can also manufacture angle matwell frames in pre-cut mitres with welded base, subject to frame size.

Produced to customer sizes, all matwell frames have safety edge machine finished corners.

B626 is also available with a tagged base to allow on-site forming of gradual concave and convex curves. Product reference: TTB626.

Technical Specification

Antique Bronze
Antique Brass
Polished Brass
Satin Brass
Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Lengths Available

2715 mm

Visible Surface When Installed

6 mm

Standard Supply

Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.

Light Reflective Value (Finish)

9.15 Find out more

Please Note

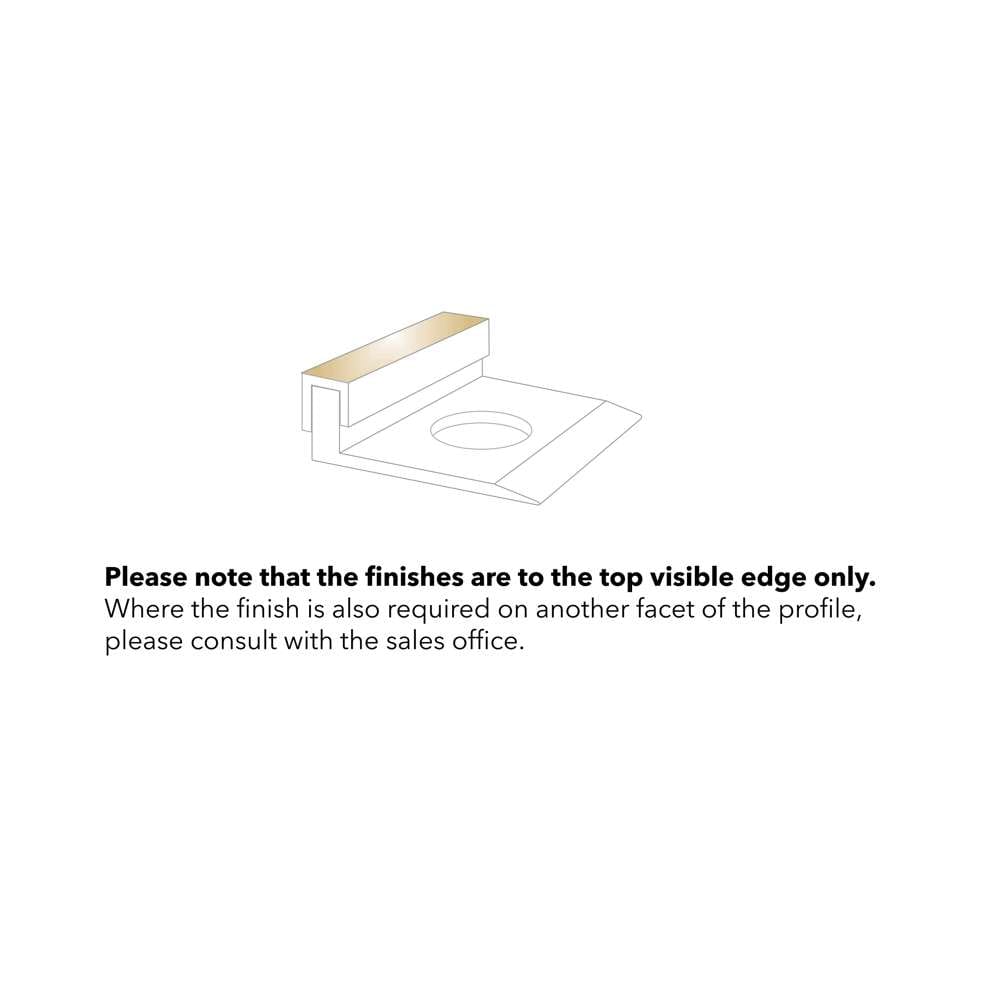

Finishes available are applied to the top visible edge only.

Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Lengths Available

2715 mm

Visible Surface When Installed

6 mm

Standard Supply

Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.

Light Reflective Value (Finish)

29.55 Find out more

Please Note

Finishes available are applied to the top visible edge only.

Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2715 mm

Visible Surface When Installed

6 mm

Standard Supply

Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.

Light Reflective Value (Finish)

71.45 Find out more

Please Note

Finishes available are applied to the top visible edge only.

Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2715 mm

Visible Surface When Installed

6 mm

Standard Supply

Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.

Light Reflective Value (Finish)

59.55 Find out more

Please Note

Finishes available are applied to the top visible edge only.

Finishes

Finish: Antique Bronze

Antique Bronze

Finish: Antique Brass

Antique Brass

Finish: Polished Brass

Polished Brass

Finish: Satin Brass

Satin Brass

See more products in these finishes
