B623.5 – Brass

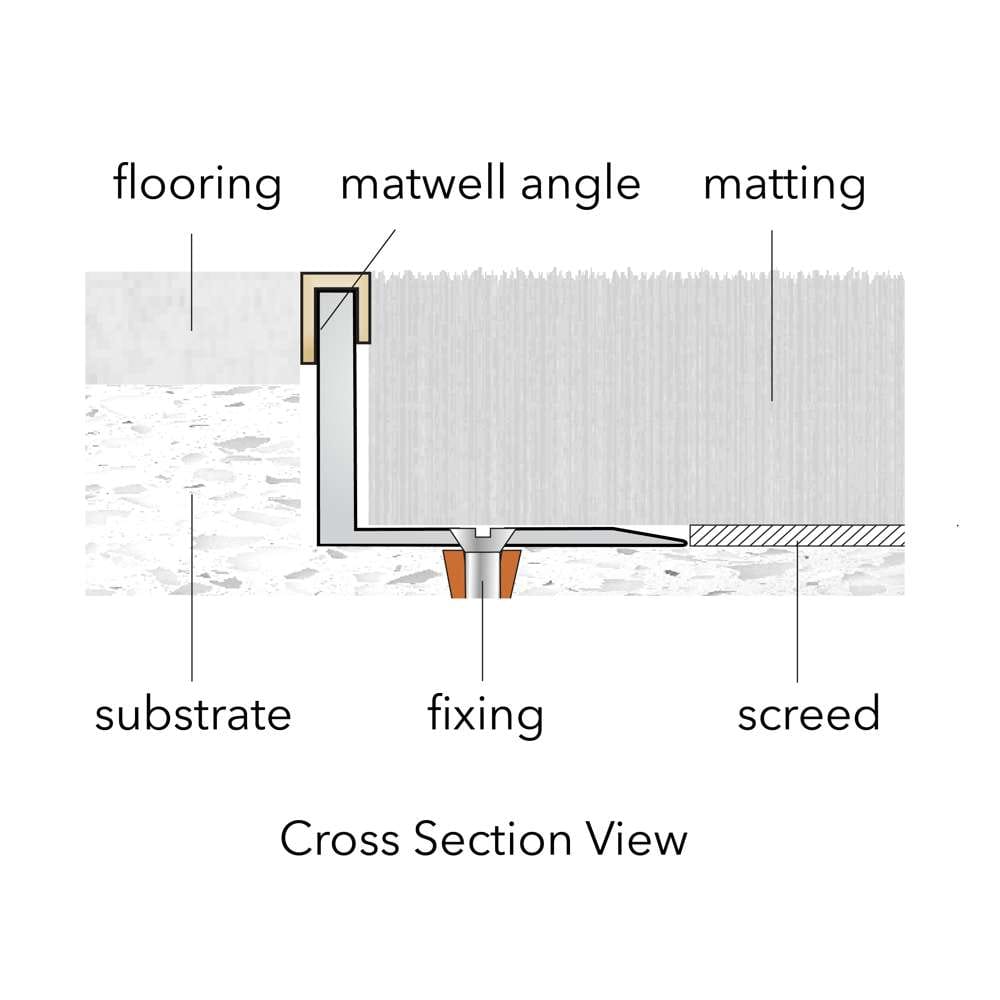

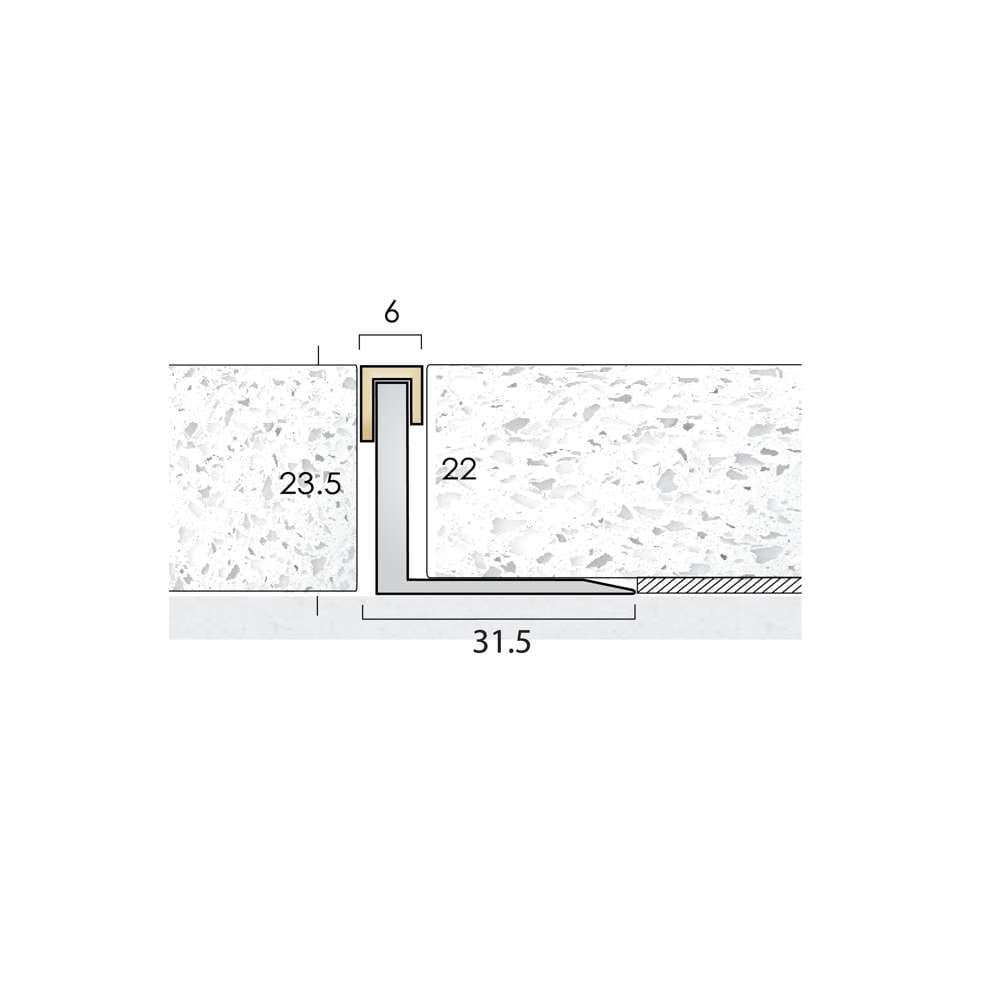

B623.5 is a 6mm wide top brass feature angle designed to create a neat, straight edge between floor coverings.
The angle has 23.5mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.
B623.5 is supplied with pre-punched bases for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.

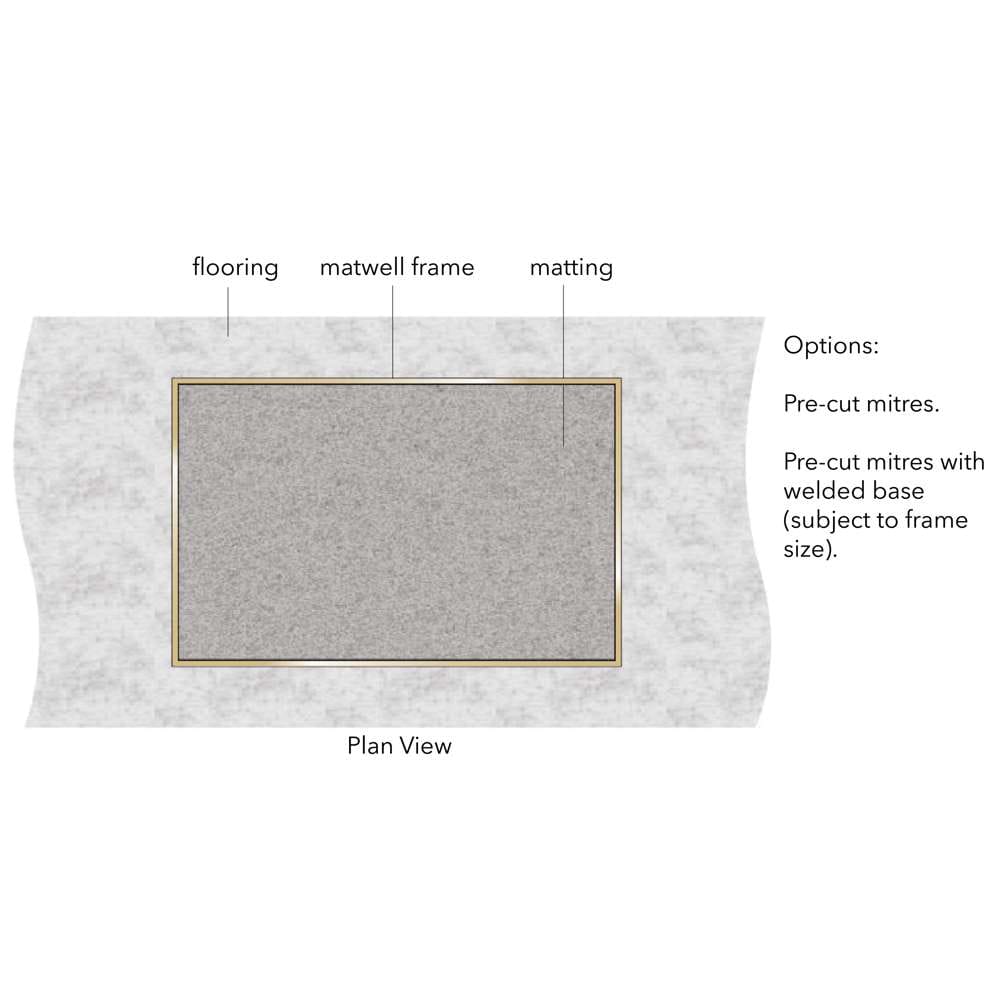

B623.5 is also available as a pre-fabricated, base-fix matwell frame.
Available in pre-cut mitres. We can also manufacture angle matwell frames in pre-cut mitres with welded base, subject to frame size.
Produced to customer sizes, all matwell frames have safety edge machine finished corners.
B623.5 is also available with a tagged base to allow on-site forming of gradual concave and convex curves. Product reference: TTB623.5.
Technical Specification
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Lengths Available
2715 mm
Visible Surface When Installed
6 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.
Light Reflective Value (Finish)
9.15 Find out more
Please Note

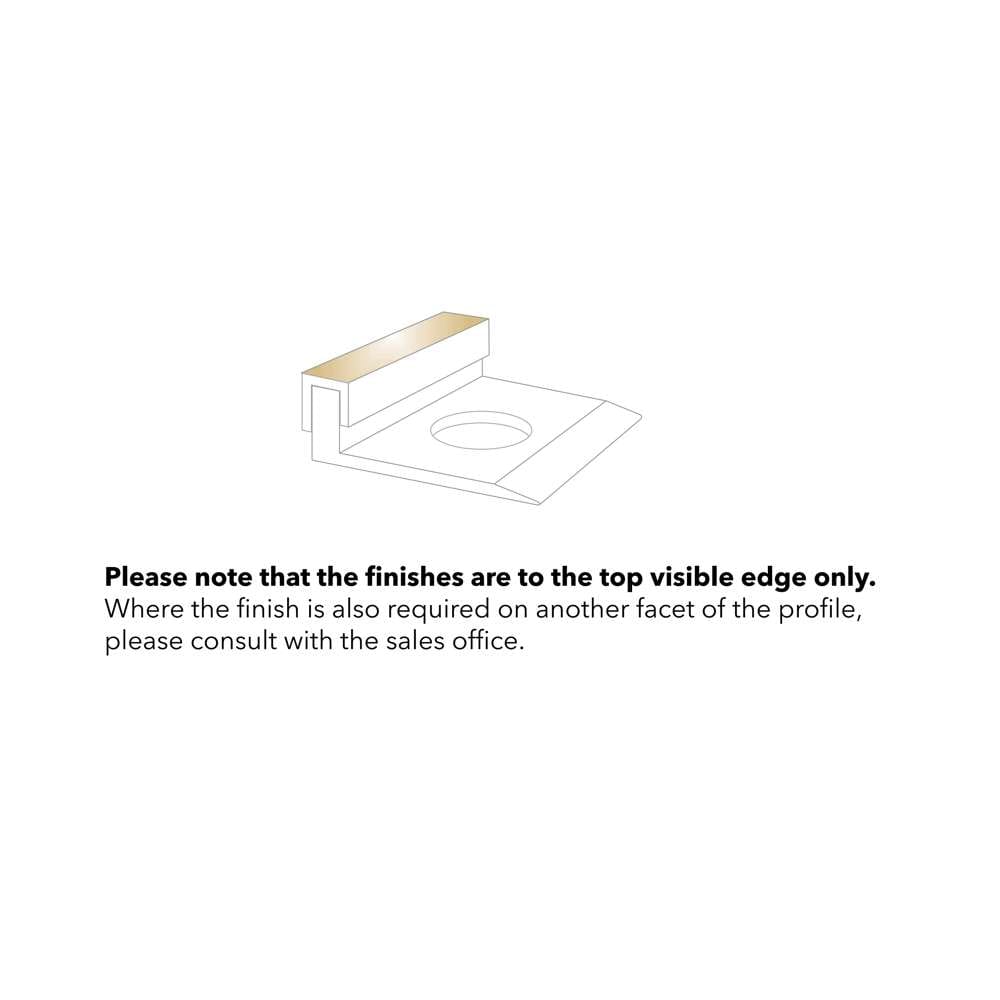

Finishes available are applied to the top visible edge only.
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Lengths Available
2715 mm
Visible Surface When Installed
6 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.
Light Reflective Value (Finish)
29.55 Find out more
Please Note
Finishes available are applied to the top visible edge only.
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
6 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.
Light Reflective Value (Finish)
71.45 Find out more
Please Note
Finishes available are applied to the top visible edge only.
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
6 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.
Light Reflective Value (Finish)
59.55 Find out more
Please Note
Finishes available are applied to the top visible edge only.
Finishes
Antique Bronze
Antique Brass
Polished Brass
Satin Brass
Please select the sample you'd like for this product
