BN1SLR – Brass

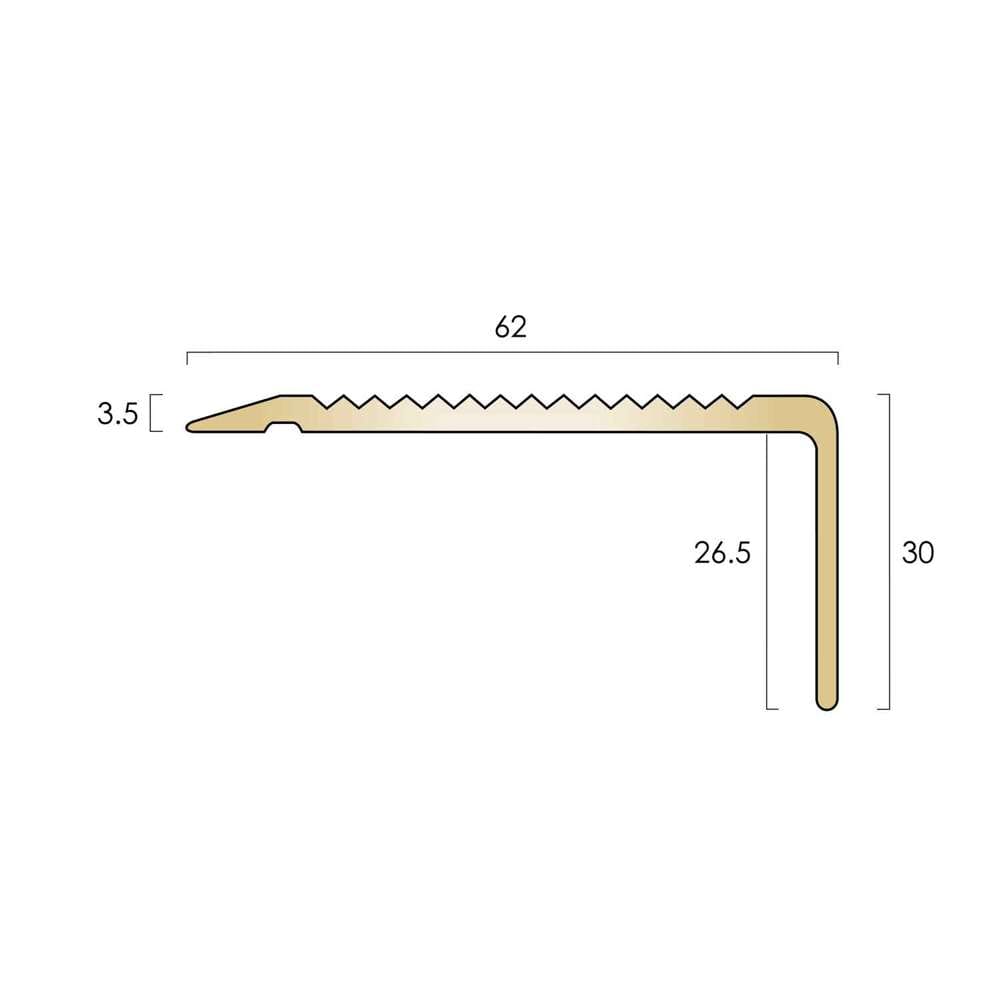

The BN1SLR is a solid brass stair nosing with a serrated slip-resistant tread, and a ramped back edge.

Designed most commonly, to be fitted directly to the step or on the top of resilient floor coverings. The BN1SLR can be fitted directly to stone and timber stairs as well as staircases fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl and lino.

The BN1SLR stair nosing is available in CAT’s four signature brass finishes and can be supplied undrilled or drilled for countersunk fixings.

Order Free Samples

NBS Source

Technical Specification

Antique Bronze
Antique Brass
Satin Brass
Polished Brass
Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Drilled for countersunk screws, Undrilled

Light Reflective Value (Finish)

9.15 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Drilled for countersunk screws, Undrilled

Light Reflective Value (Finish)

29.55 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.

Supplied Cut to Size, up to a Maximum Length of

2700 mm

Drilling

Drilled for countersunk screws, Undrilled

Light Reflective Value (Finish)

59.55 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Suitability

Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

Application

To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.

Supplied Cut to Size, up to a Maximum Length of

3200 mm

Drilling

Drilled for countersunk screws, Undrilled

Light Reflective Value (Finish)

71.45 Find out more

Slip Resistance Values

SRV Wet: 45, SRV Dry: 73 Find out more

Finishes

Finish: Antique Bronze

Antique Bronze

Finish: Antique Brass

Antique Brass

Finish: Satin Brass

Satin Brass

Finish: Polished Brass

Polished Brass

See more products in these finishes
