BN1SLR15R – Brass

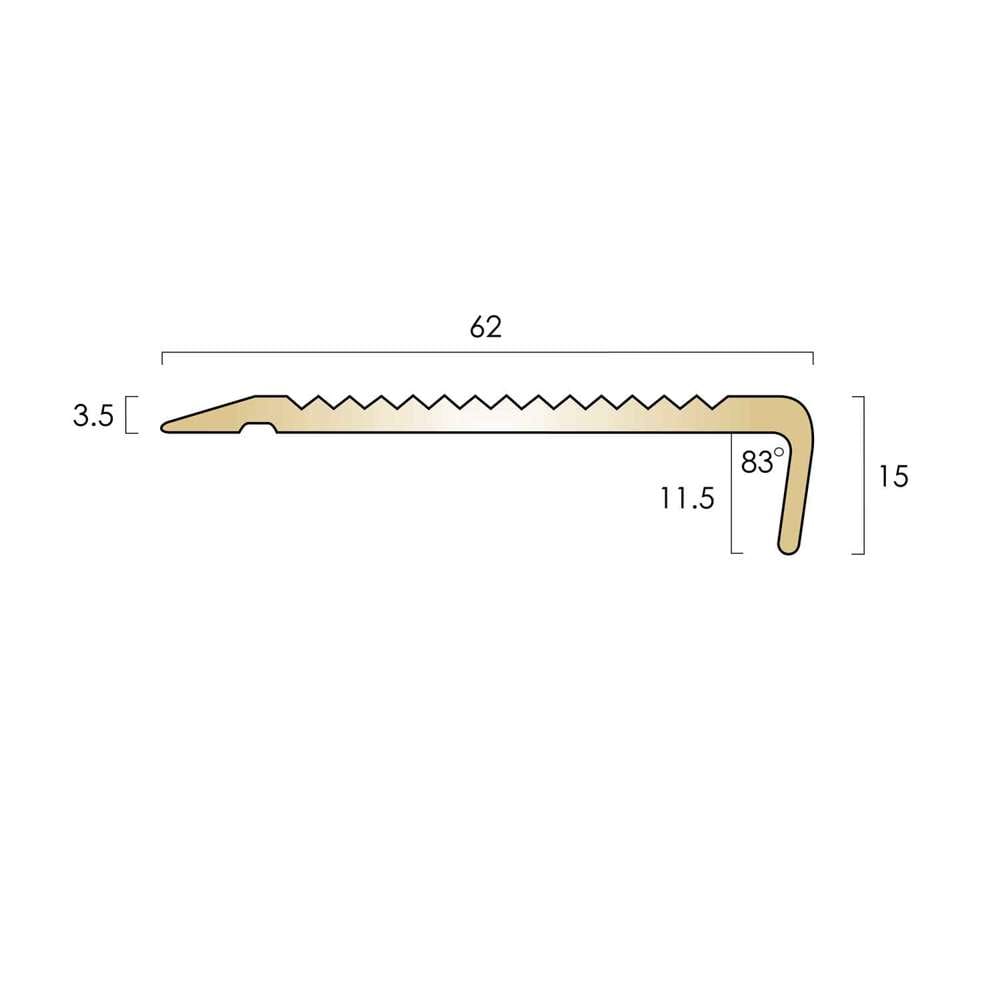

The BN1SLR15R is a solid brass stair nosing with a serrated slip-resistant tread, a ramped back edge and a ramped back edge and a reduced raked back riser.
Designed most commonly, to be fitted directly to the step or on the top of resilient floor coverings. The BN1SLR15R can be fitted directly to stone and timber stairs as well as staircases fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl and lino.
The BN1SLR15R stair nosing is available in CAT’s four signature brass finishes and can be supplied undrilled or drilled for countersunk fixings.
Order Free SamplesNBS Source
Technical Specification
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
2500 mm
Drilling
Drilled for countersunk screws, Undrilled
Light Reflective Value (Finish)
9.15 Find out more
Slip Resistance Values
SRV Wet: 45, SRV Dry: 73 Find out more
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
2500 mm
Drilling
Drilled for countersunk screws, Undrilled
Light Reflective Value (Finish)
29.55 Find out more
Slip Resistance Values
SRV Wet: 45, SRV Dry: 73 Find out more
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
2500 mm
Drilling
Drilled for countersunk screws, Undrilled
Light Reflective Value (Finish)
59.55 Find out more
Slip Resistance Values
SRV Wet: 45, SRV Dry: 73 Find out more
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino.
Supplied Cut to Size, up to a Maximum Length of
2500 mm
Drilling
Drilled for countersunk screws, Undrilled
Light Reflective Value (Finish)
71.45 Find out more
Slip Resistance Values
SRV Wet: 45, SRV Dry: 73 Find out more
Finishes
Antique Bronze
Antique Brass
Satin Brass
Polished Brass
