BTI52 – Brass

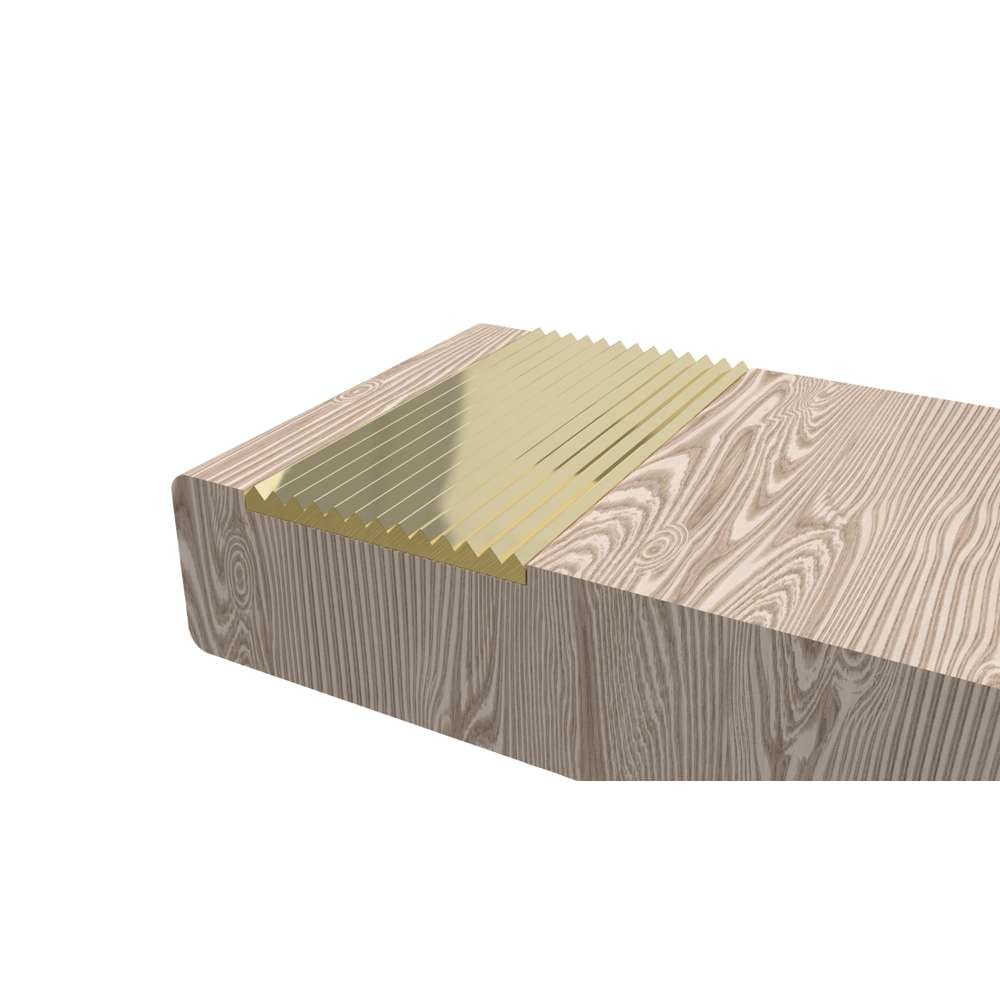

BTI52 is a brass ribbed tread stair tread insert.
Typically installed to define and provide slip resistance to the edge of stair treads. Tolerance allowance should always be made when rebating to allow for any variation in size. Samples are available prior to rebate.

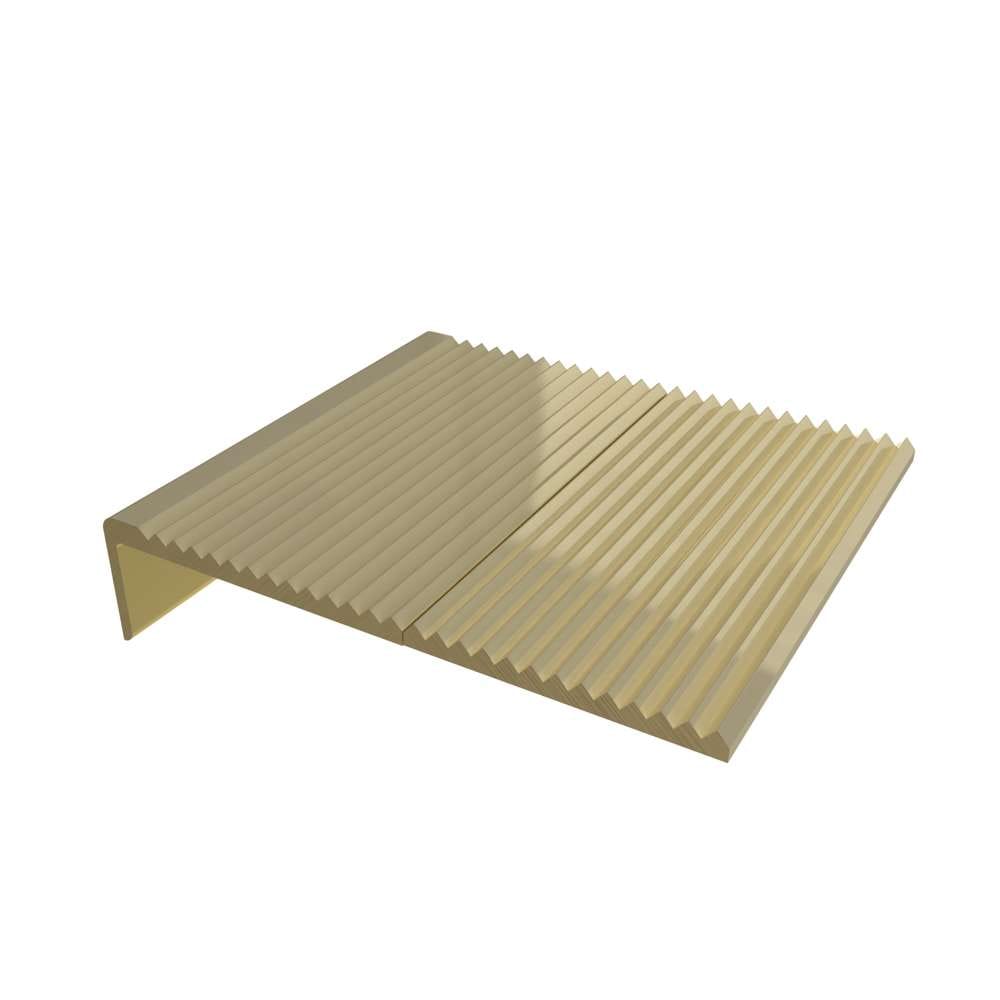

BTI52 is often used as a stair tread extender behind our 4.8mm and 5mm gauge ribbed tread solid brass stair nosings.
Technical Specification
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can be used in combination with stair nosings of equivalent thickness to create extended step going cover. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Fixing
Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.
Light Reflective Value (Finish)
71.45 Find out more
Slip Resistance Values
SRV Wet: 45, SRV Dry: 73 Find out more
Can Also Be Used As
Stair Nosing Tread Extender
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can be used in combination with stair nosings of equivalent thickness to create extended step going cover. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
3200 mm
Fixing
Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.
Light Reflective Value (Finish)
60.55 Find out more
Slip Resistance Values
SRV Wet: 45, SRV Dry: 73 Find out more
Can Also Be Used As
Stair Nosing Tread Extender
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can be used in combination with stair nosings of equivalent thickness to create extended step going cover. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
2700 mm
Fixing
Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.
Light Reflective Value (Finish)
9.15 Find out more
Slip Resistance Values
SRV Wet: 45, SRV Dry: 73 Find out more
Can Also Be Used As
Stair Nosing Tread Extender
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can be used in combination with stair nosings of equivalent thickness to create extended step going cover. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
2700 mm
Fixing
Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.
Light Reflective Value (Finish)
29.55 Find out more
Slip Resistance Values
SRV Wet: 45, SRV Dry: 73 Find out more
Can Also Be Used As
Stair Nosing Tread Extender
Suitability
Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can be used in combination with stair nosings of equivalent thickness to create extended step going cover. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
2700 mm
Fixing
Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.
Light Reflective Value (Finish)
59.55 Find out more
Slip Resistance Values
SRV Wet: 45, SRV Dry: 73 Find out more
Can Also Be Used As
Stair Nosing Tread Extender
Finishes

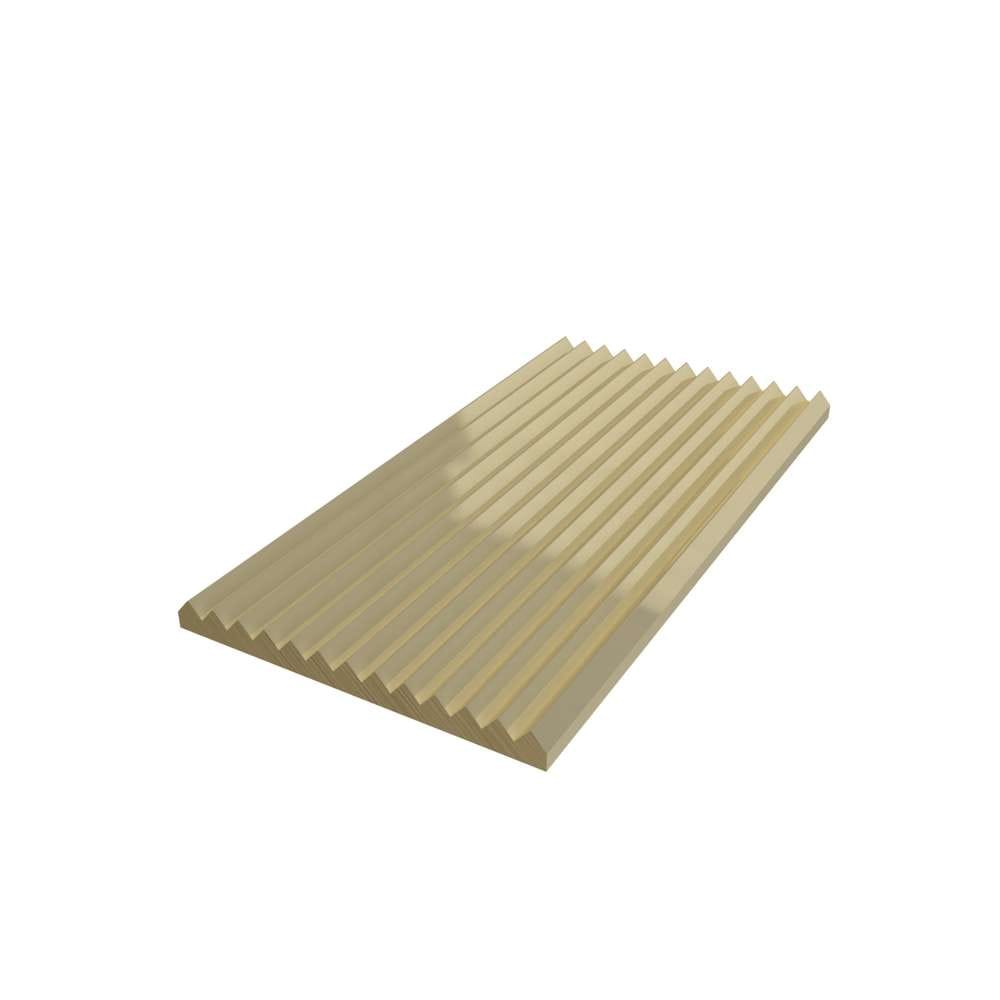

Polished Brass
Mill Brass

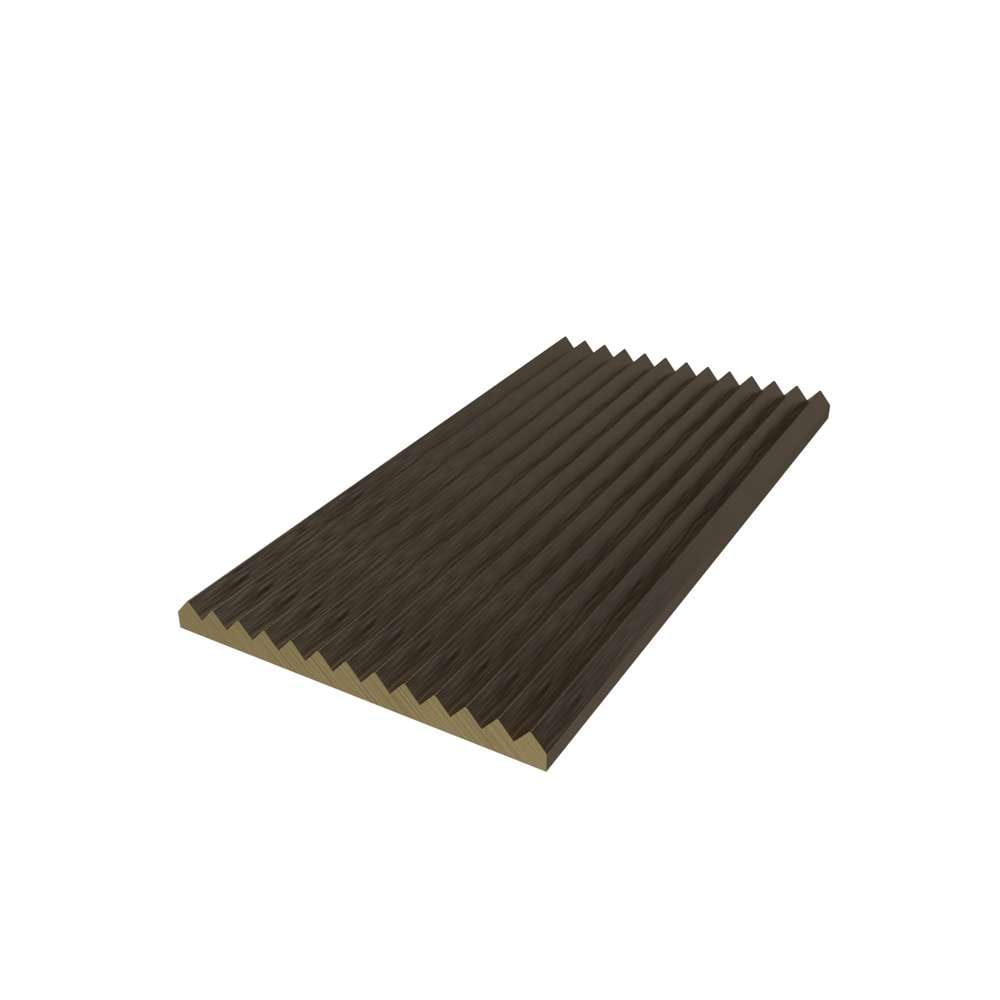

Antique Bronze
Antique Brass

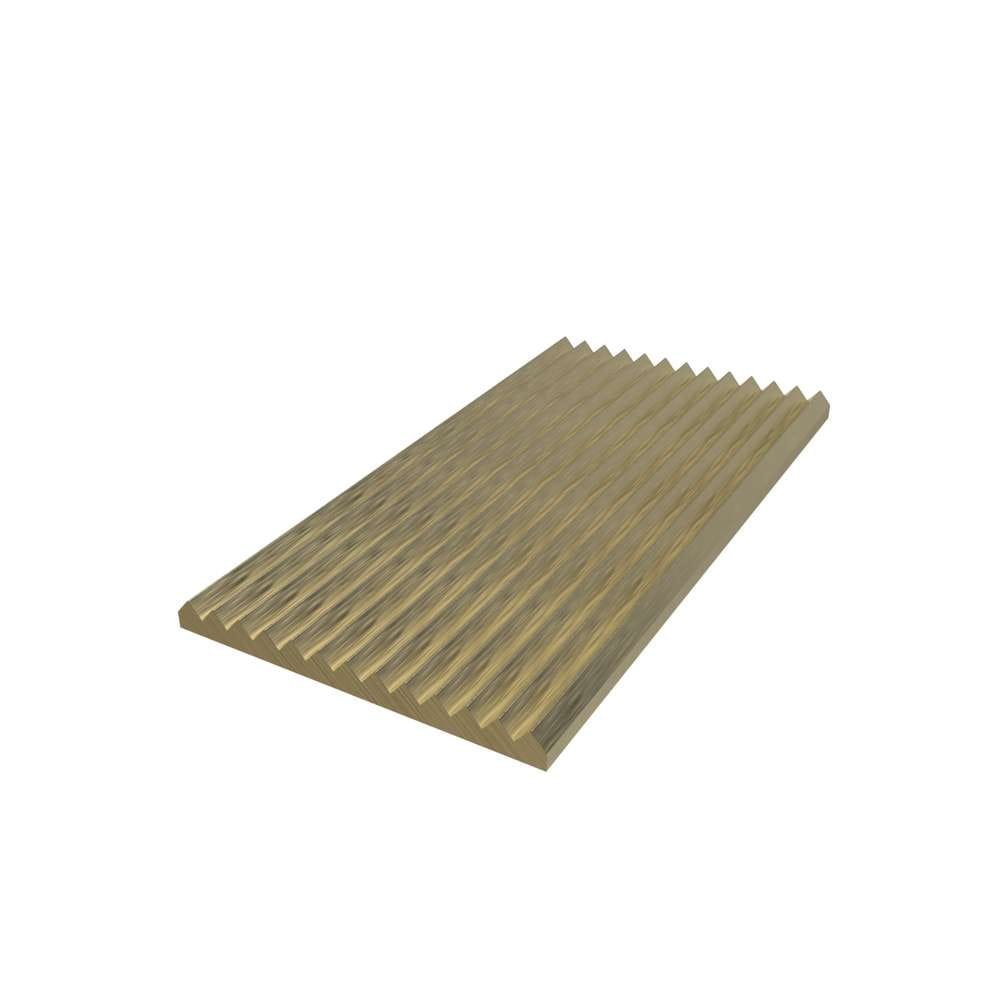

Satin Brass
