FAB2 – Brass

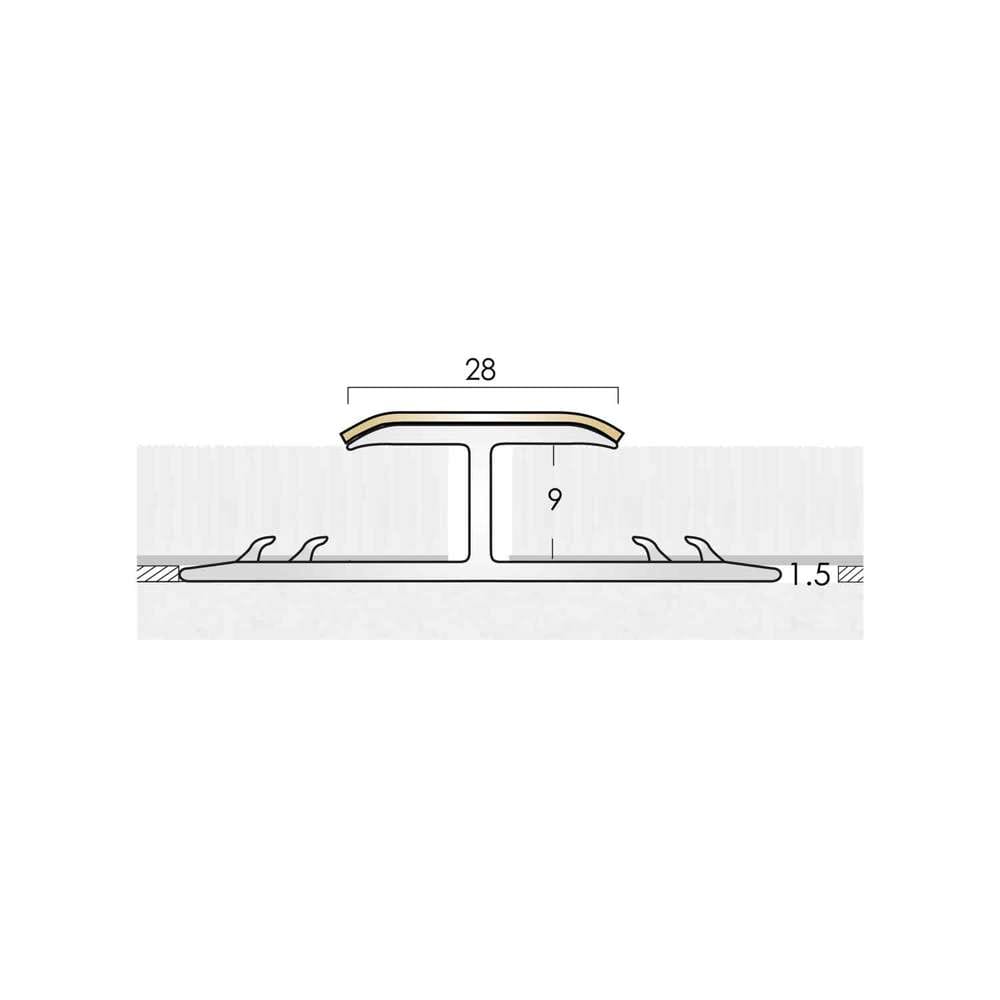

The FAB 2 is a twin top, twin leg, double naplock, carpet to carpet flooring profile manufactured from an aluminium carrier and a solid brass top.

The profile protects the edges of carpets from fraying and has punched grippers in the base to hold the carpet. Suitable for mechanical fixing to the sub-floor.
​​
FAB2 profiles are available in the following high-quality finishes:

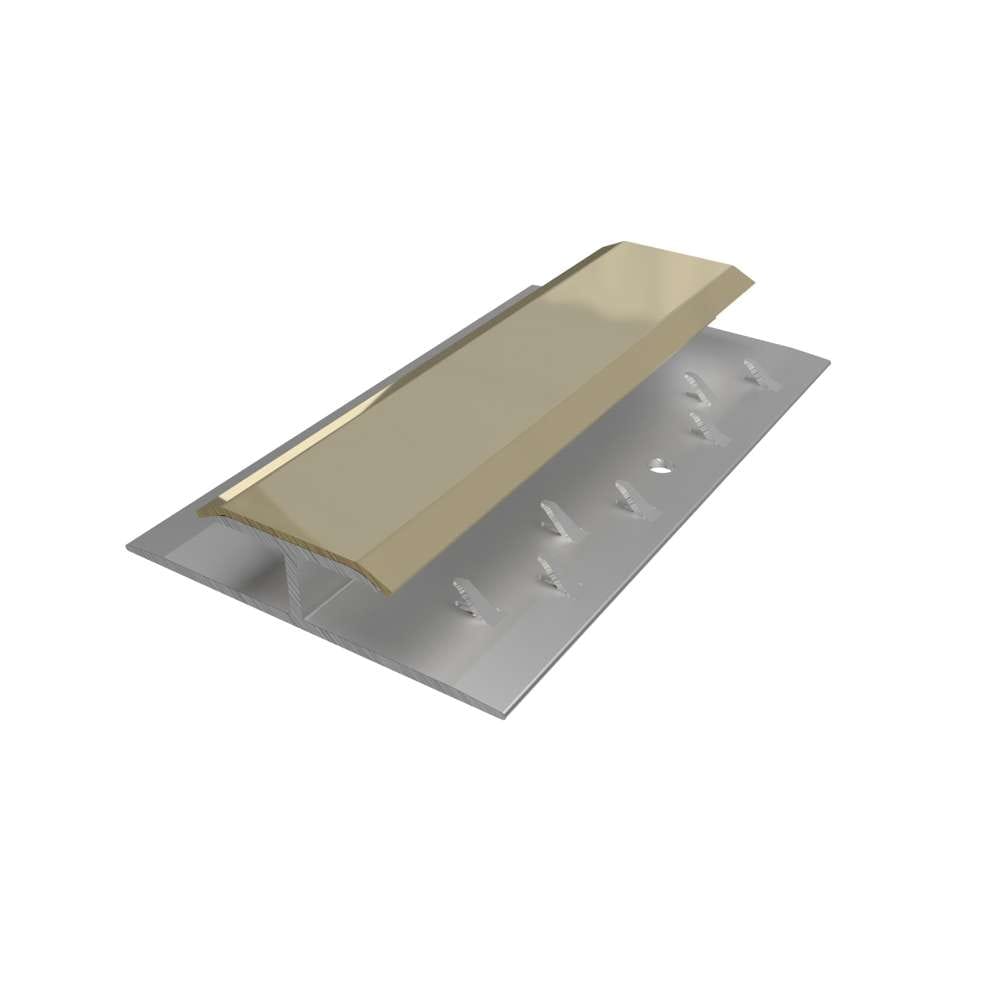

Polished Brass – Code: FAB2

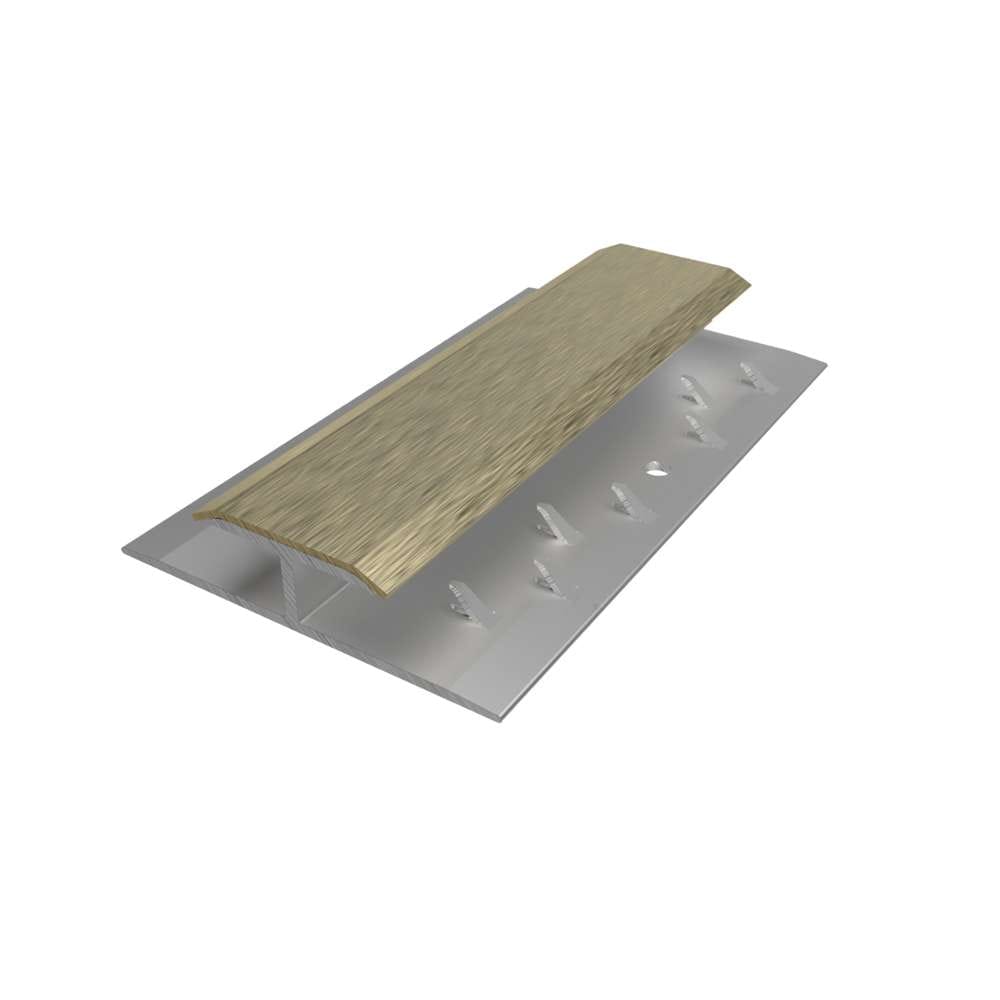

Satin Brass – Code: FAB24

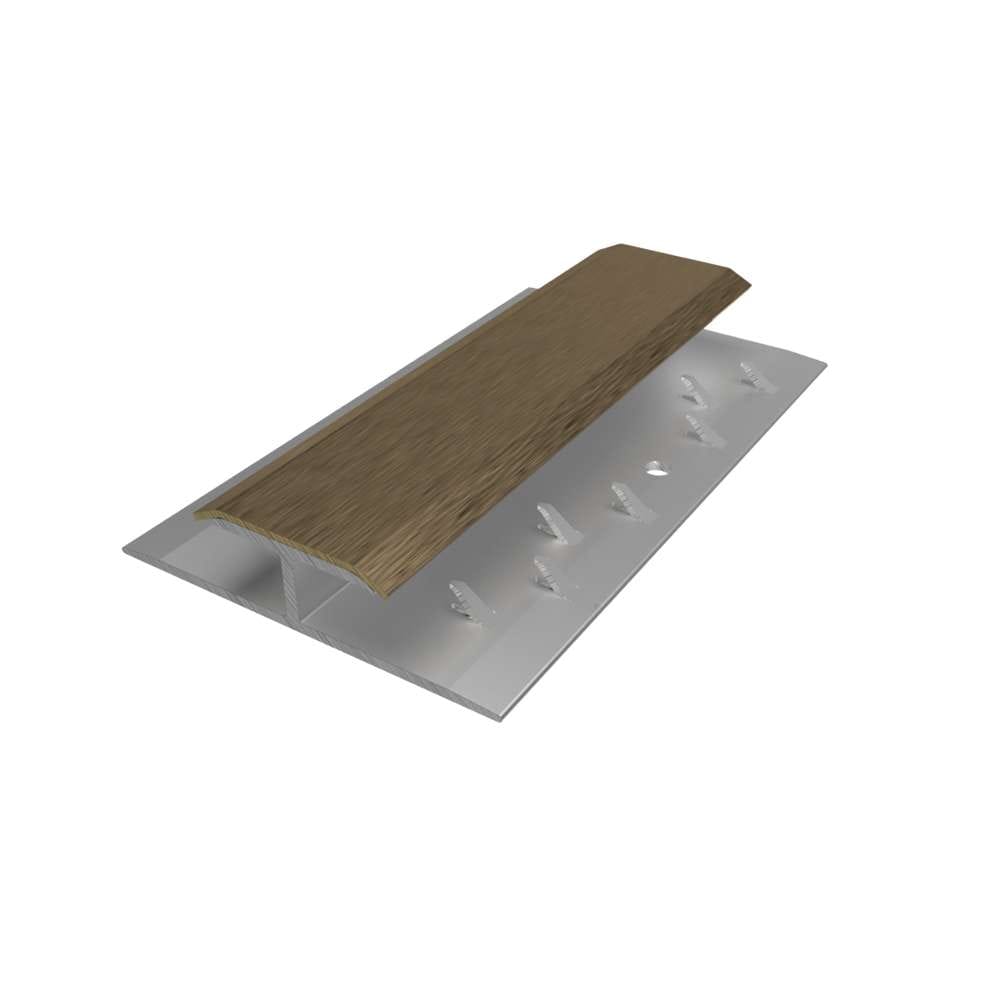

Antique Brass – Code: FAB220
Antique Bronze – Code: FAB221

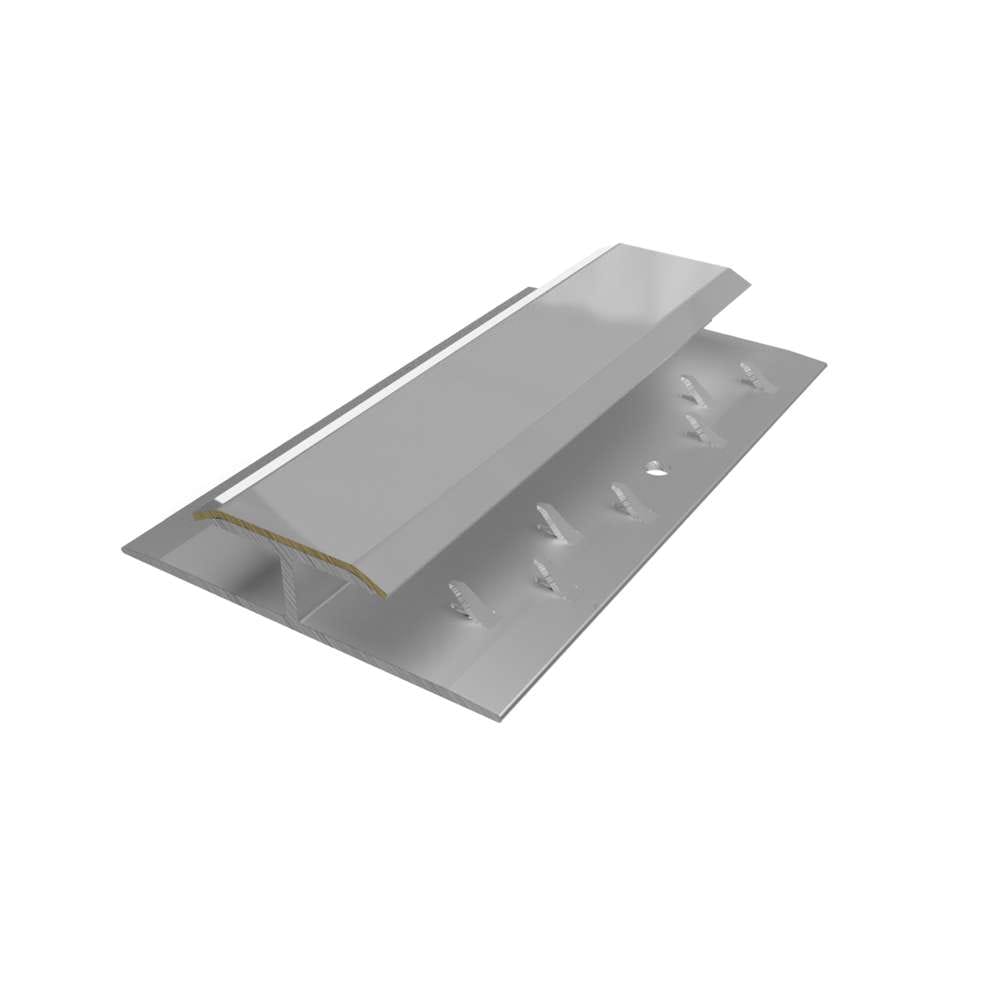

Chrome – Code: FAB222
Satin Chrome – Code: FAB232

NBS Source

Technical Specification

Polished Brass
Satin Chrome
Chrome
Antique Bronze
Antique Brass
Satin Brass
Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

Suitable for stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

28 mm

Standard Supply

Pre-punched and drilled for size 6 screws. Fixings not supplied. Can also be nailed or adhesive fixed.

Light Reflective Value (Finish)

71.45 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

Suitable for stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

28 mm

Standard Supply

Pre-punched and drilled for size 6 screws. Fixings not supplied. Can also be nailed or adhesive fixed.

Light Reflective Value (Finish)

44.85 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

Suitable for stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

28 mm

Standard Supply

Pre-punched and drilled for size 6 screws. Fixings not supplied. Can also be nailed or adhesive fixed.

Light Reflective Value (Finish)

63.6 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

Suitable for stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

28 mm

Standard Supply

Pre-punched and drilled for size 6 screws. Fixings not supplied. Can also be nailed or adhesive fixed.

Light Reflective Value (Finish)

9.15 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

Suitable for stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

28 mm

Standard Supply

Pre-punched and drilled for size 6 screws. Fixings not supplied. Can also be nailed or adhesive fixed.

Light Reflective Value (Finish)

29.55 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

Suitable for stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

28 mm

Standard Supply

Pre-punched and drilled for size 6 screws. Fixings not supplied. Can also be nailed or adhesive fixed.

Light Reflective Value (Finish)

59.55 Find out more

Finishes

Finish: Polished Brass

Polished Brass

Finish: Satin Chrome

Satin Chrome

Finish: Chrome

Chrome

Finish: Antique Bronze

Antique Bronze

Finish: Antique Brass

Antique Brass

Finish: Satin Brass

Satin Brass
