FAB3 – Brass

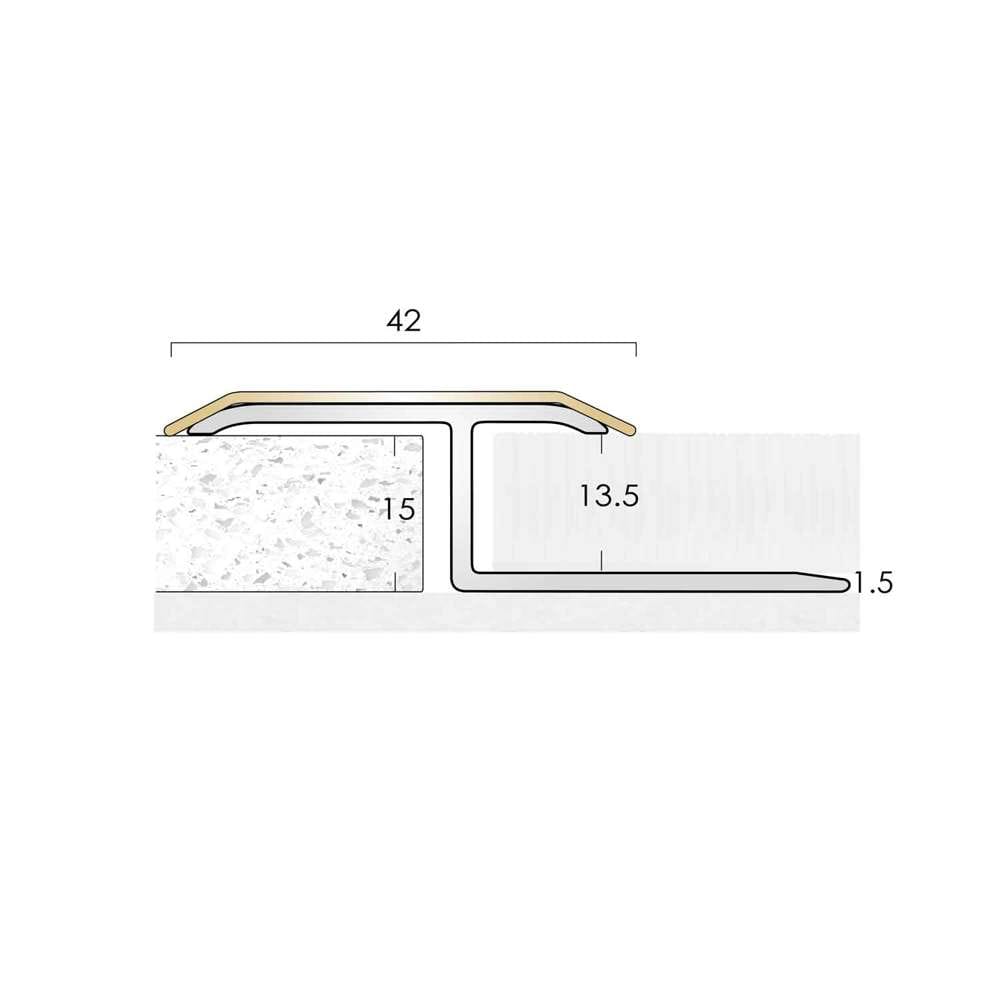

FAB3 is an extra wide twin top, single leg, single naplock joining profile for carpet to stone/timber/ceramic floors at the same level. FAB3 is manufactured from an aluminium carrier and a solid brass top.
The profile protects the edges of materials from fraying/damage. FAB 3 is available in CAT’s four signature brass finishes.
FAB3 profiles are available in CAT’s four signature brass finishes:

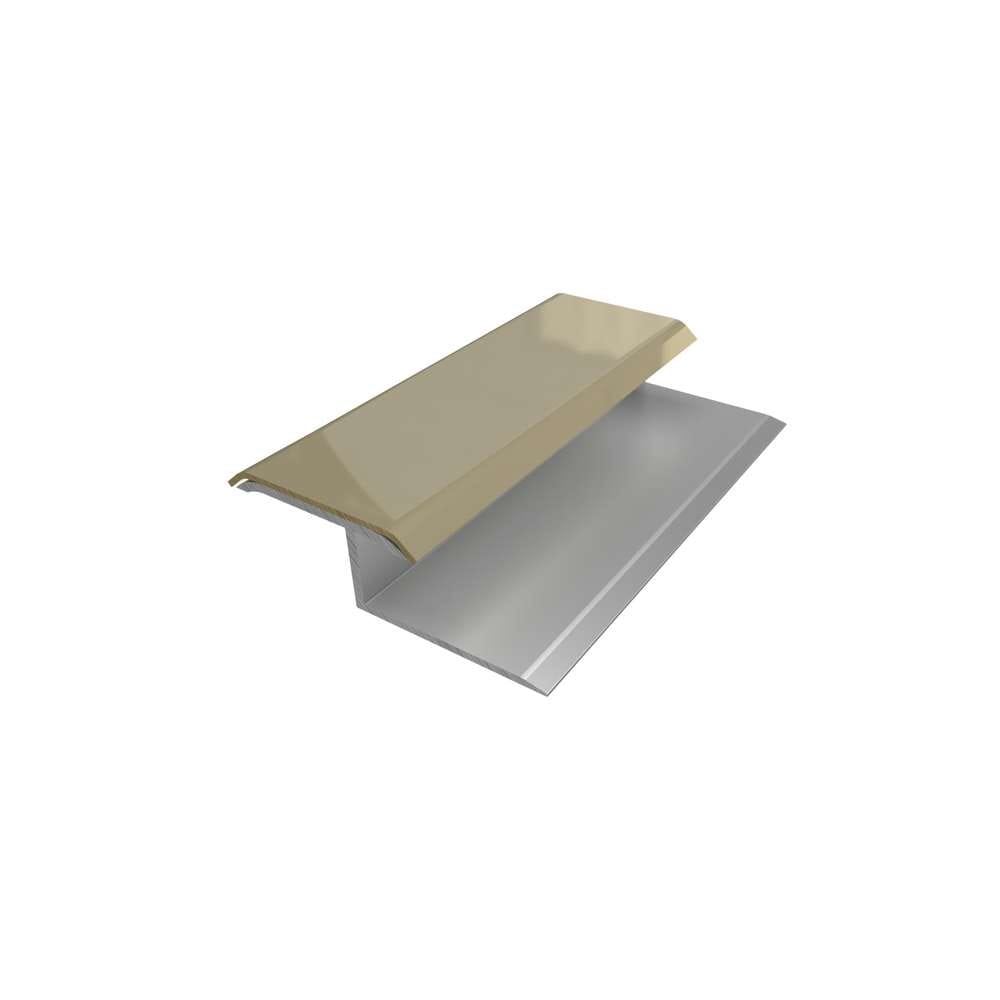

Polished Brass – Code: FAB3

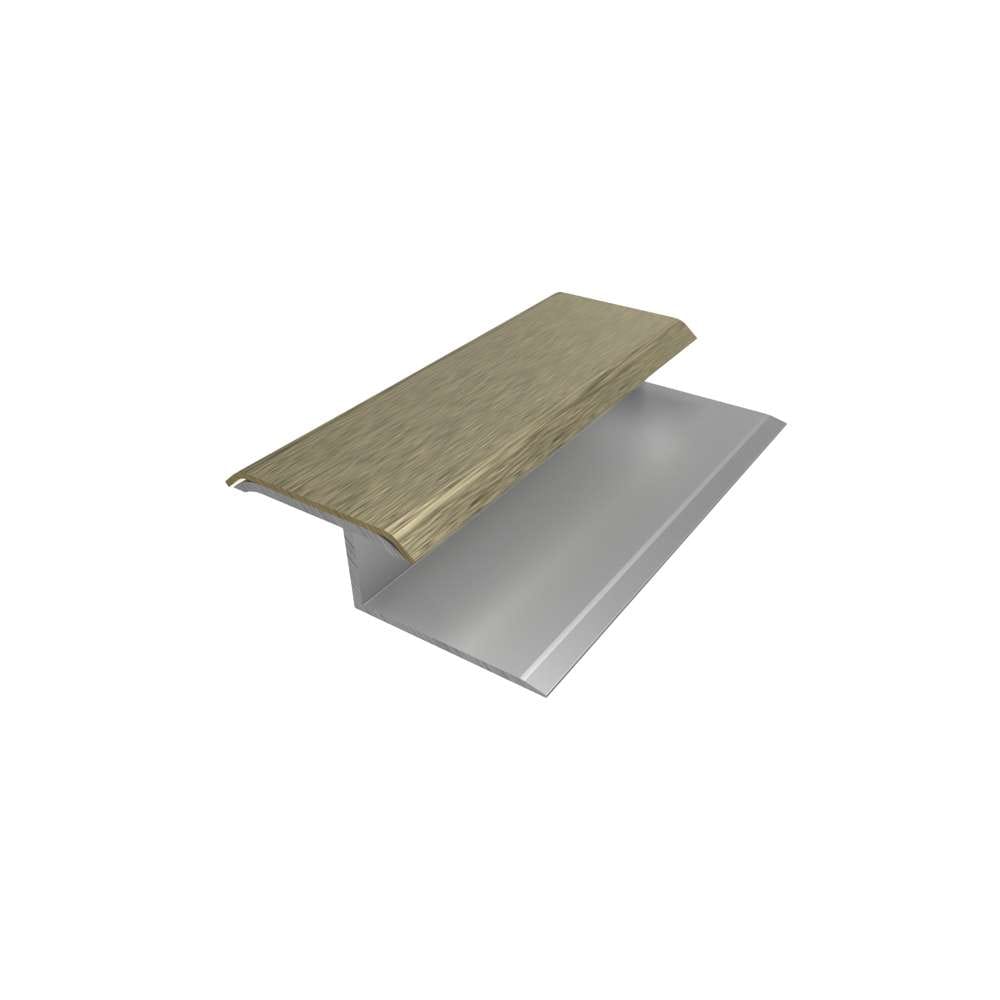

Satin Brass – Code: FAB34

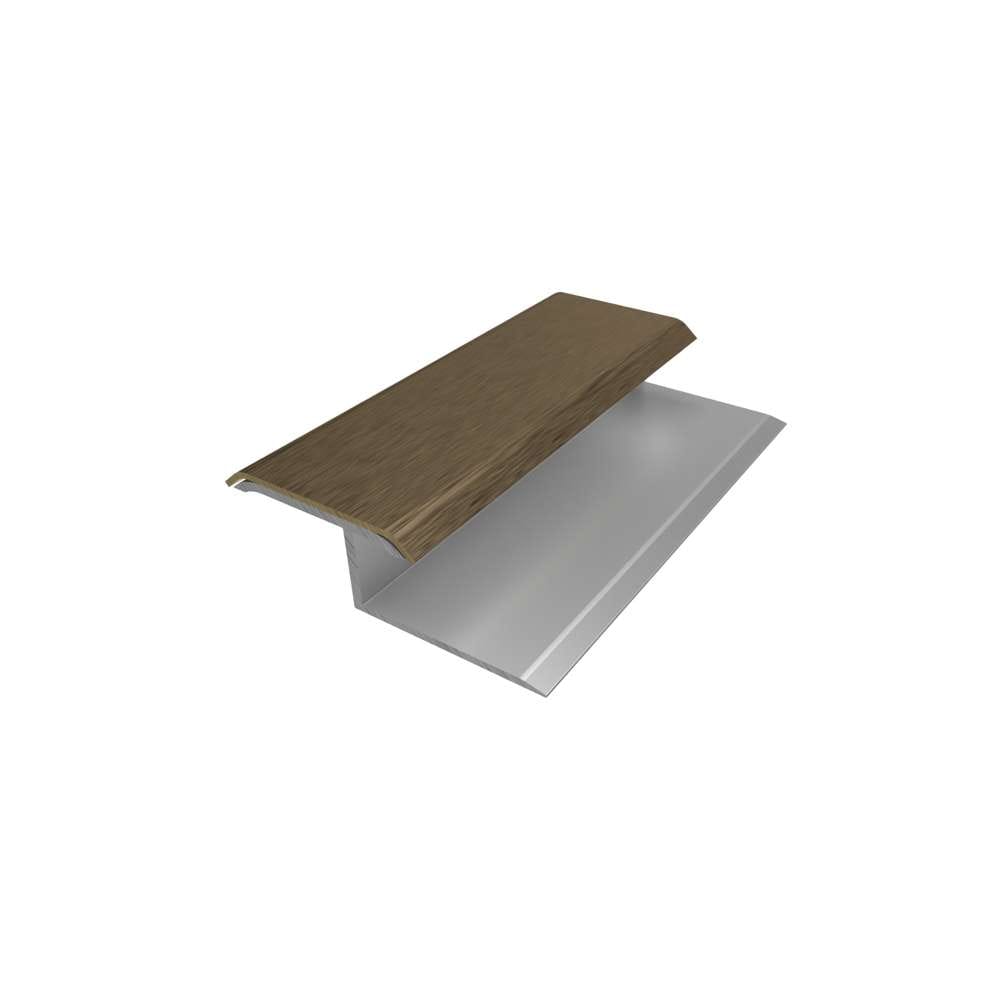

Antique Brass – Code: FAB320

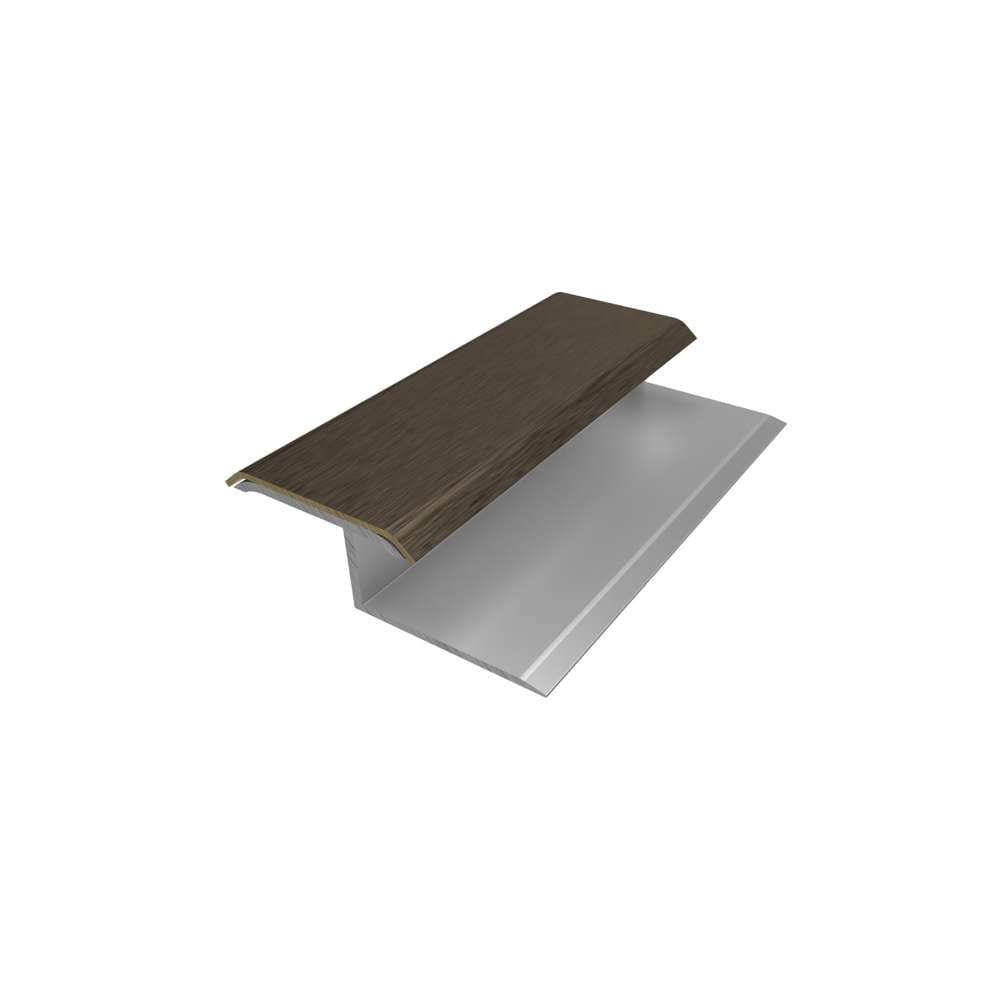

Antique Bronze – Code: FAB321
NBS Source
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Application
Suitable for stretch fit or stick down installation methods.
Lengths Available
2000 mm
Visible Surface When Installed
42 mm
Standard Supply
Pre-punched and drilled for size 6 screws. Fixings not supplied. Can also be nailed or adhesive fixed.
Light Reflective Value (Finish)
59.55 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Application
Suitable for stretch fit or stick down installation methods.
Lengths Available
2000 mm
Visible Surface When Installed
42 mm
Standard Supply
Pre-punched and drilled for size 6 screws. Fixings not supplied. Can also be nailed or adhesive fixed.
Light Reflective Value (Finish)
71.45 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
Suitable for stretch fit or stick down installation methods.
Lengths Available
2000 mm
Visible Surface When Installed
42 mm
Standard Supply
Pre-punched and drilled for size 6 screws. Fixings not supplied. Can also be nailed or adhesive fixed.
Light Reflective Value (Finish)
9.15 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
Suitable for stretch fit or stick down installation methods.
Lengths Available
2000 mm
Visible Surface When Installed
42 mm
Standard Supply
Pre-punched and drilled for size 6 screws. Fixings not supplied. Can also be nailed or adhesive fixed.
Light Reflective Value (Finish)
29.55 Find out more
Finishes
Satin Brass
Polished Brass
Antique Bronze
Antique Brass
Please select the sample you'd like for this product
