Feline A/10 DHC – Aluminium

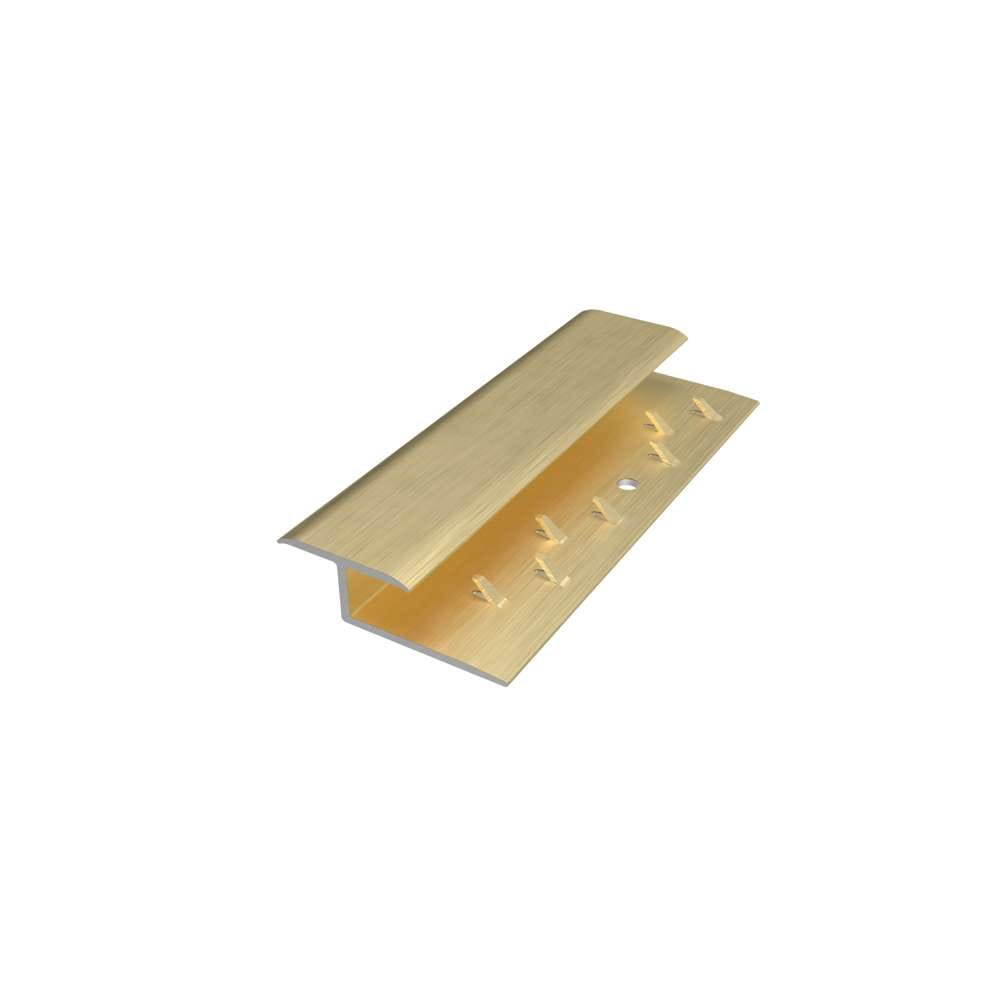

Feline A/10 is a twin top, single leg, aluminium flooring trim designed for joining carpet to a hard floor such as timber or ceramic flooring at the same level.

As part of the Designer Home Collection, Feline A/10 is available in 7 high-quality finishes to suit all installations.

Also known in the industry as a z bar, door threshold or carpet to tile door bar, these trims are designed to protect the edges of the floor coverings.

This sleek carpet trim is also designed to allow for the expansion of the hard flooring if required. Suitable for mechanical fixing to the sub-floor.

NBS Source

Technical Specification

Pewter
Onyx Black
Light Bronze
Designer Satin
Brushed Stainless
Bright
Bronze
Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

For stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

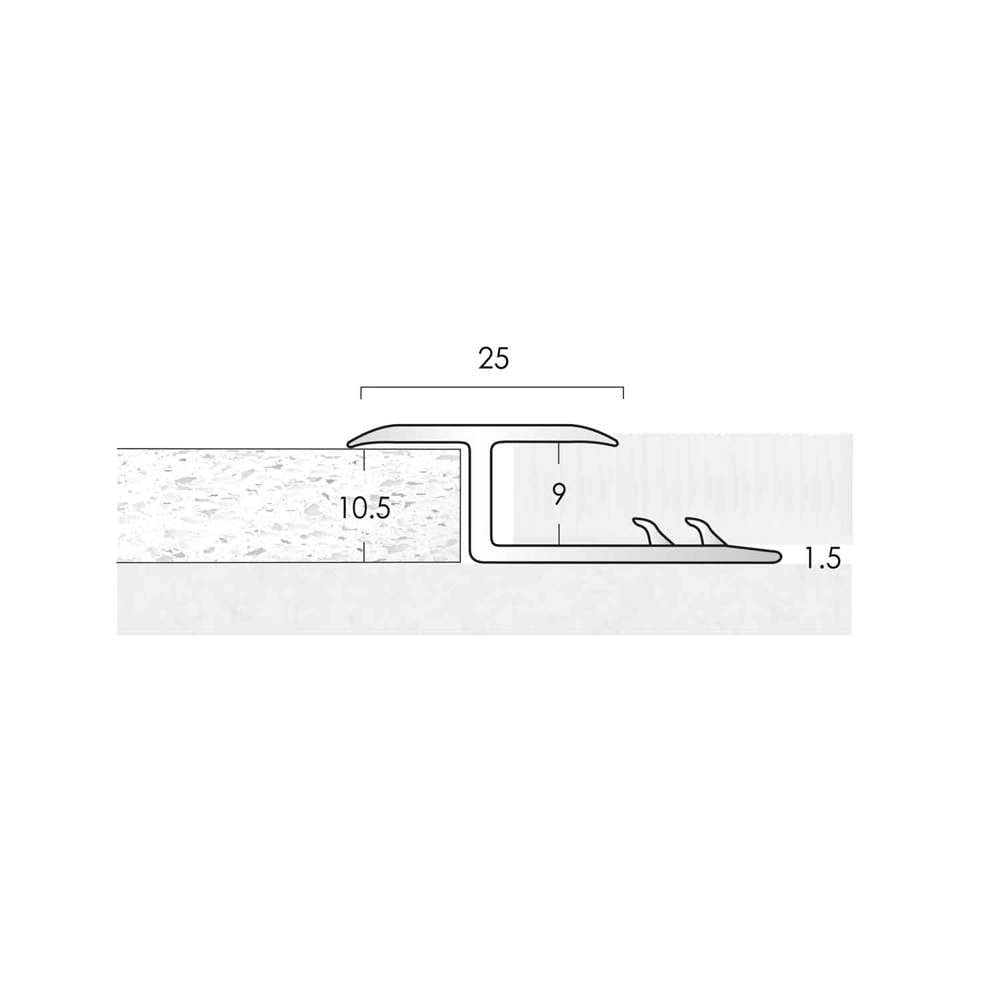

Visible Surface When Installed

25 mm

Standard Supply

Supplied pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.

Light Reflective Value (Finish)

10.75 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

For stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

25 mm

Standard Supply

Supplied pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.

Light Reflective Value (Finish)

5.2 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

For stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

25 mm

Standard Supply

Supplied pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.

Light Reflective Value (Finish)

27.25 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

For stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

25 mm

Standard Supply

Supplied pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.

Light Reflective Value (Finish)

65.3 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

For stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

25 mm

Standard Supply

Supplied pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.

Light Reflective Value (Finish)

41.45 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

For stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

25 mm

Standard Supply

Supplied pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.

Light Reflective Value (Finish)

81.95 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

For stretch fit or stick down installation methods.

Lengths Available

2715, 900 mm

Visible Surface When Installed

25 mm

Standard Supply

Supplied pre-drilled for screw or nail fixing. Drilled for size 6 screws. Fixings not supplied.

Light Reflective Value (Finish)

10.1 Find out more

Finishes

Finish: Pewter

Pewter

Finish: Onyx Black

Onyx Black

Finish: Light Bronze

Light Bronze

Finish: Designer Satin

Designer Satin

Finish: Brushed Stainless

Brushed Stainless

Finish: Bright

Bright

Finish: Bronze

Bronze
