Mainline P27.3 – PVC

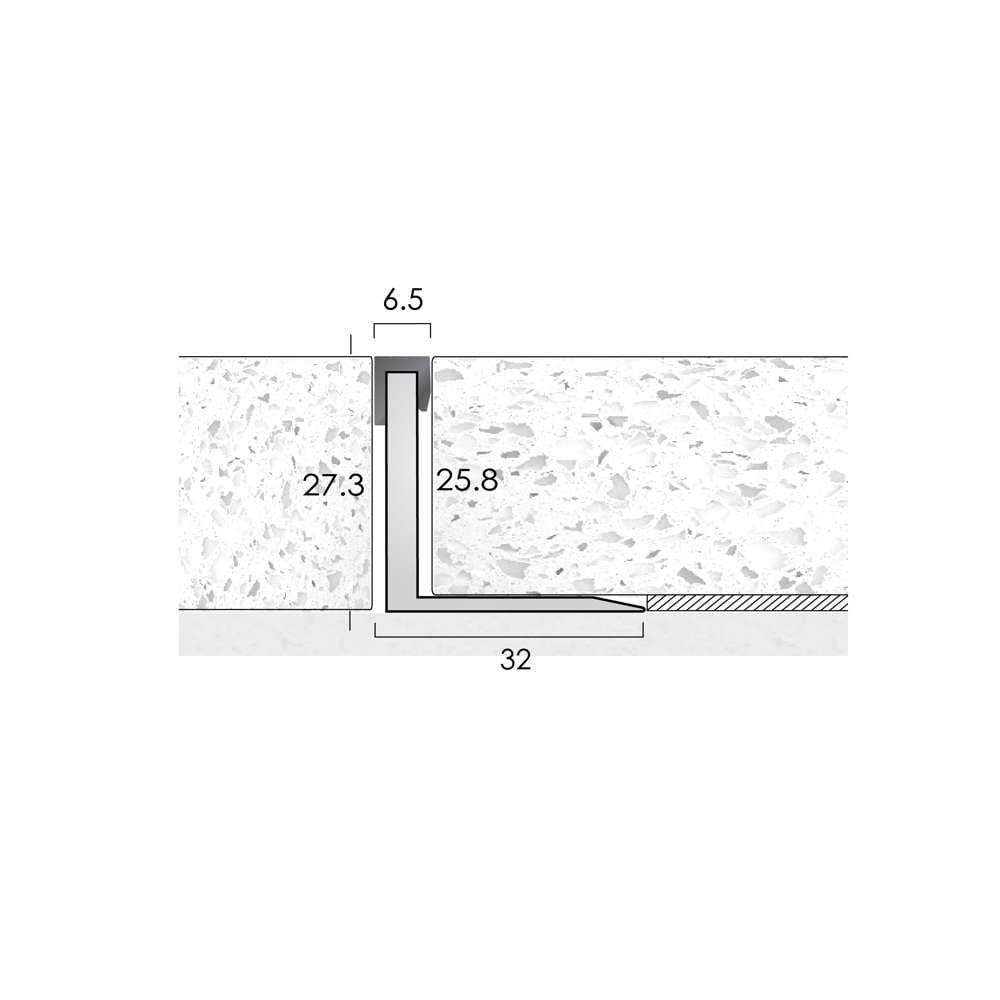

Mainline P27.3 is an aluminium feature angle with a 6.5mm top bonded PVC cap designed to create a neat, straight edge between floor coverings.
The angle has 27.3mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.
Mainline P27.3 is supplied with pre-punched bases for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.
Mainline P27.3 is also available as a pre-fabricated, base-fix matwell frame.
Available in pre-cut mitres. We can also manufacture angle matwell frames in pre-cut mitres with welded base, subject to frame size.
Produced to customer sizes, all matwell frames have safety edge machine finished corners.
Mainline P27.3 is also available with a tagged base to allow on-site forming of gradual concave and convex curves. Product reference: Mainline TTP27.3.
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
6.5 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.
Light Reflective Value (Finish)
42.73 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
6.5 mm
Standard Supply
Base pre-punched for mechanical (size 6 screws or nails) or adhesive fixing.
Light Reflective Value (Finish)
4.47 Find out more
Please select the sample you'd like for this product
