Mainline TTP27.3 – PVC

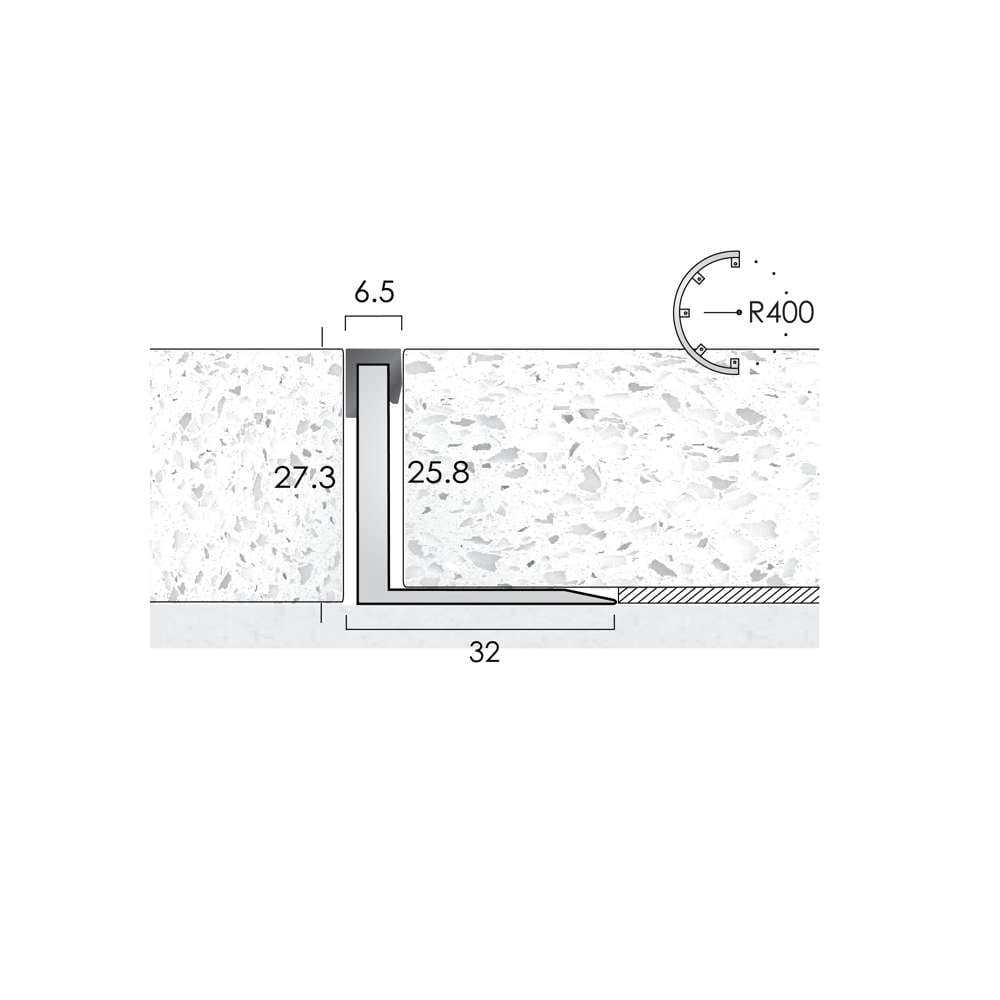

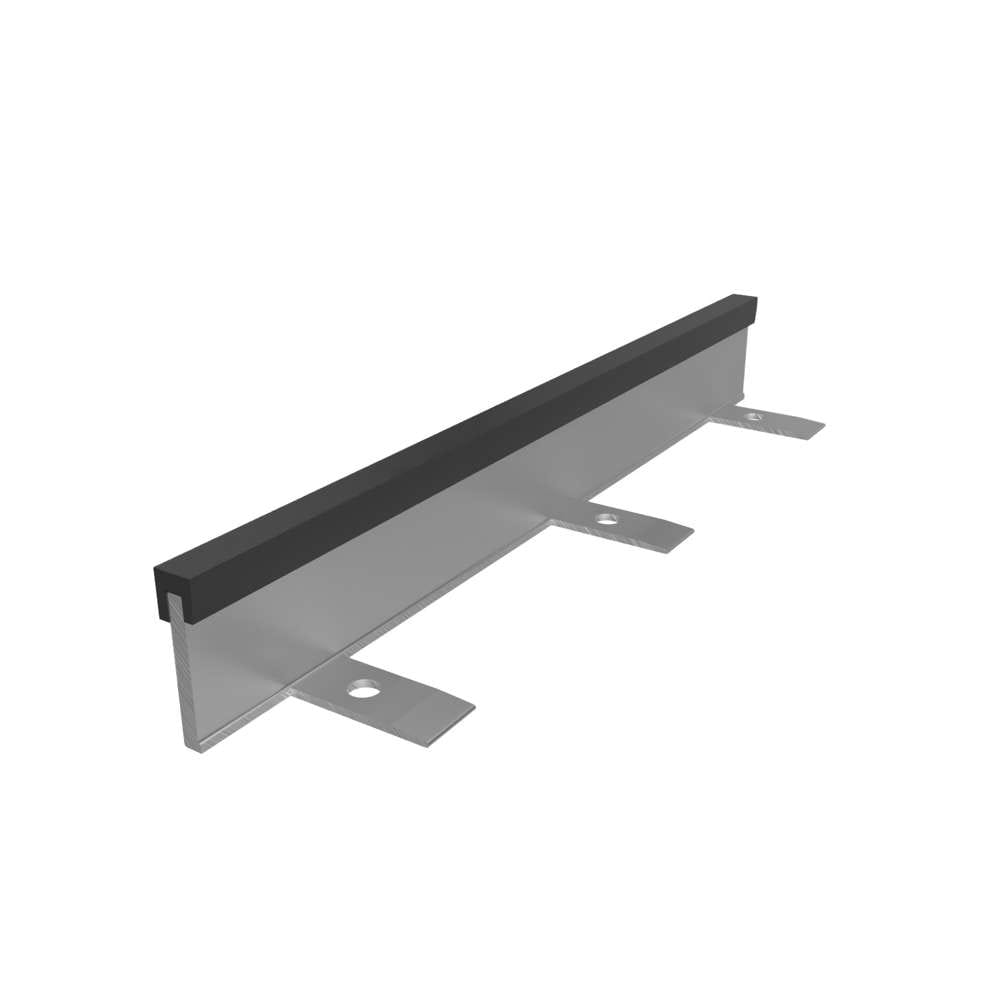

Mainline TTP27.3 is an aluminium feature angle with a 6.5mm top bonded PVC cap designed to create a neat transition and definition between floorings.
The feature angle has 27.3mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.
Mainline TTP27.3 is supplied with bases tagged at 80mm centres to allow on-site forming of gradual concave and convex curves to a minimum radius of 400mm.
Suitable for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.
Mainline TTP27.3 is also available with a pre-punched base designed to create a neat, straight edge between floor coverings. Product reference: Mainline P27.3.
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
6.5 mm
Standard Supply
Tags pre-punched for mechanical (size 6 screw).
Minimum Curving Radius
400 mm
Light Reflective Value (Finish)
42.73 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
6.5 mm
Standard Supply
Tags pre-punched for mechanical (size 6 screw).
Minimum Curving Radius
400 mm
Light Reflective Value (Finish)
4.47 Find out more
Please select the sample you'd like for this product
