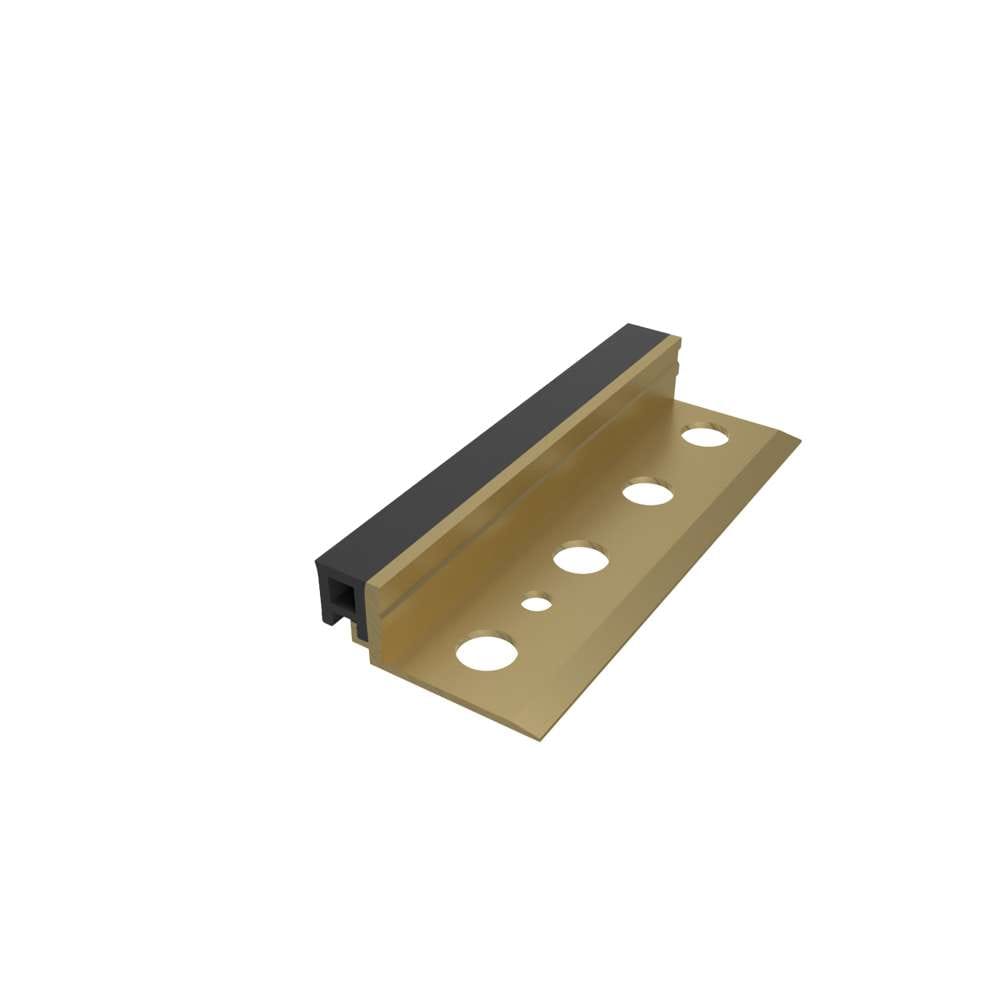

RBS16 – Brass

Reflex profiles are a range of expansion and movement joints that are designed for use with all hard flooring, eliminating cracking and protecting edges against erosion.

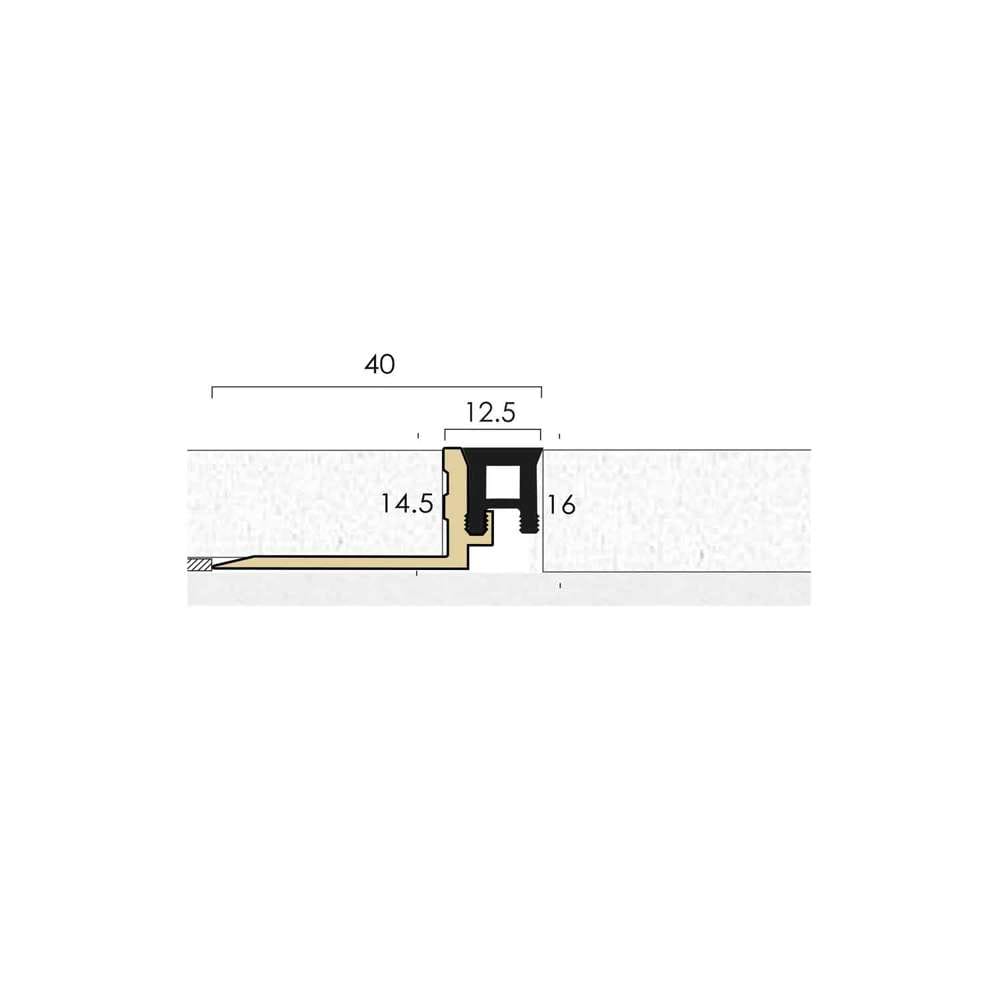

RBS16 brass angles have a 16mm external up-stand for use in finishing the edges of floor coverings of 14.5mm thickness.

RBS16 is a single leg profile supplied with an expansion medium which, under pressure will compress readily by 20%.

RBS16 is also available as a double leg profile with an expansion medium. Product reference: RBD16.

Technical Specification

Matt Brass
Suitability

Can be fitted over underfloor heating systems operating within normal temperature ranges of such installations, up to a maximum of 30°C. For environments where profiles will be exposed to high levels of chemicals or immersion, please discuss your requirements with our technical sales office.

Lengths Available

2715 mm

Visible Surface When Installed

12.5 mm

Standard Supply

Punched base for adhesive fixing.

Light Reflective Value (Finish)

60.55 Find out more

Expansion Media Colours Available

Black, Grey
