RBS9 – Brass
Reflex profiles are a range of expansion and movement joints that are designed for use with all hard flooring, eliminating cracking and protecting edges against erosion.

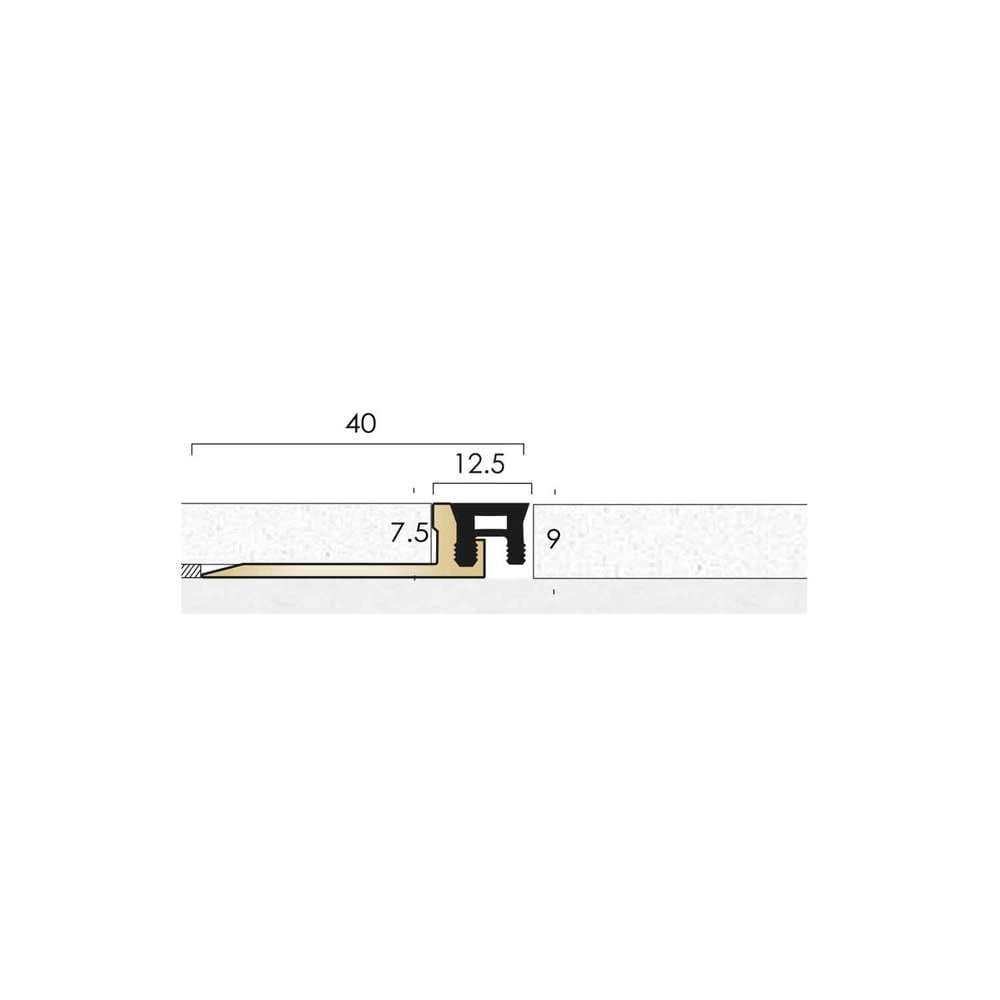

RBS9 brass angles have a 9mm external up-stand for use in finishing the edges of floor coverings of 7.5mm thickness.
RBS9 is a single leg profile supplied with an expansion medium which, under pressure will compress readily by 20%.
RBS9 is also available as a double leg profile with an expansion medium. Product reference: RBD9.
Technical Specification
Suitability
Can be fitted over underfloor heating systems operating within normal temperature ranges of such installations, up to a maximum of 30°C. For environments where profiles will be exposed to high levels of chemicals or immersion, please discuss your requirements with our technical sales office.
Lengths Available
2715 mm
Visible Surface When Installed
12.5 mm
Standard Supply
Punched base for adhesive fixing.
Light Reflective Value (Finish)
60.55 Find out more
Expansion Media Colours Available
Black, Grey
