T78i – Aluminium

T78i aluminium transition plates are designed to bridge two floor coverings whilst allowing for expansion.

Supplied with a choice of pre-taped infill for retro-fit installations. Infill options include castellated aluminium ATI49.5 and Castellated PVC in a range of colours and finishes to complement floor coverings in commercial environments.

T78i is supplied centre drilled for mechanical fixing using size 8 screws. Also available off-centre drilled to special order. Fixings not supplied.

Technical Specification

Matt Silver
Suitability

Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Lengths Available

2715 mm

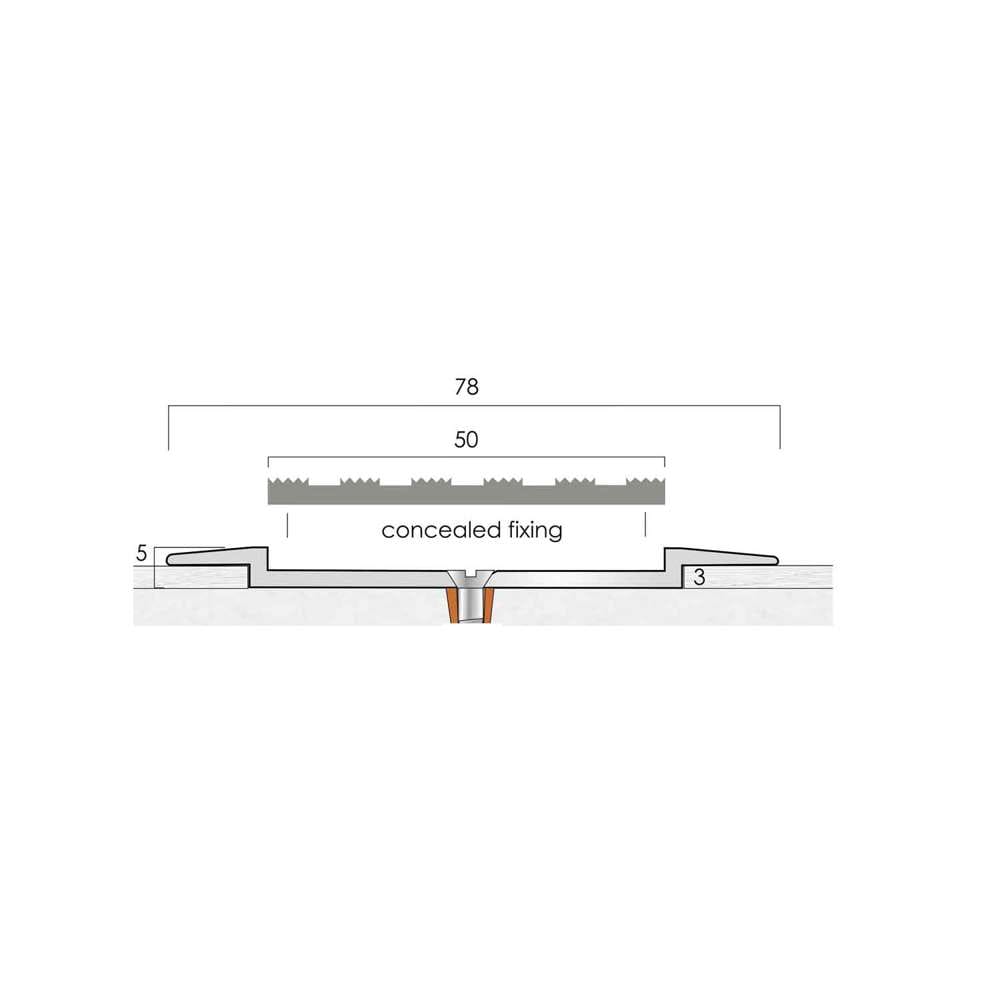

Visible Surface When Installed

78 mm

Standard Supply

Aluminium base centre-drilled for size 8 screws.

Slip Resistance Values

ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Find out more

Light Reflective Value (Finish)

71.65 Find out more

Find Out More

Infill Options

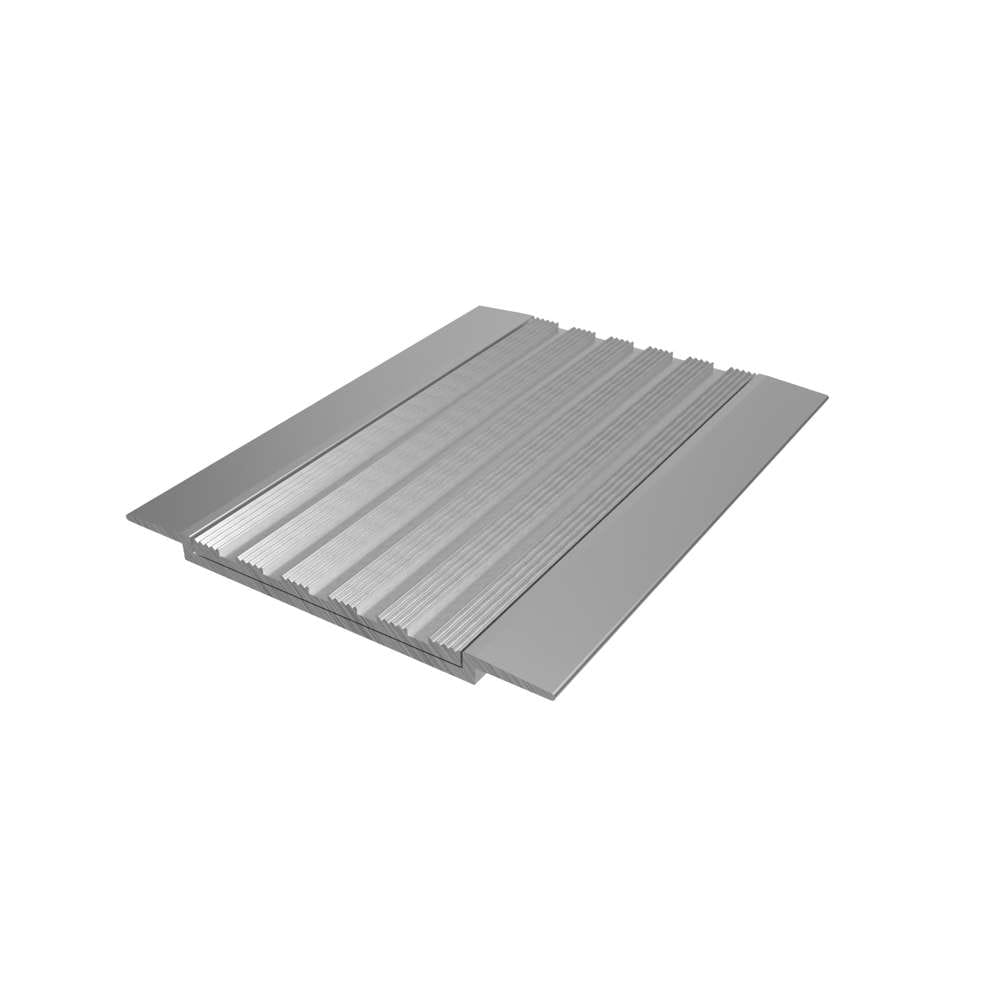

ATI49.5 Aluminium Insert

Mill finish

Mill

Satin finish

Satin

Polished finish

Polished

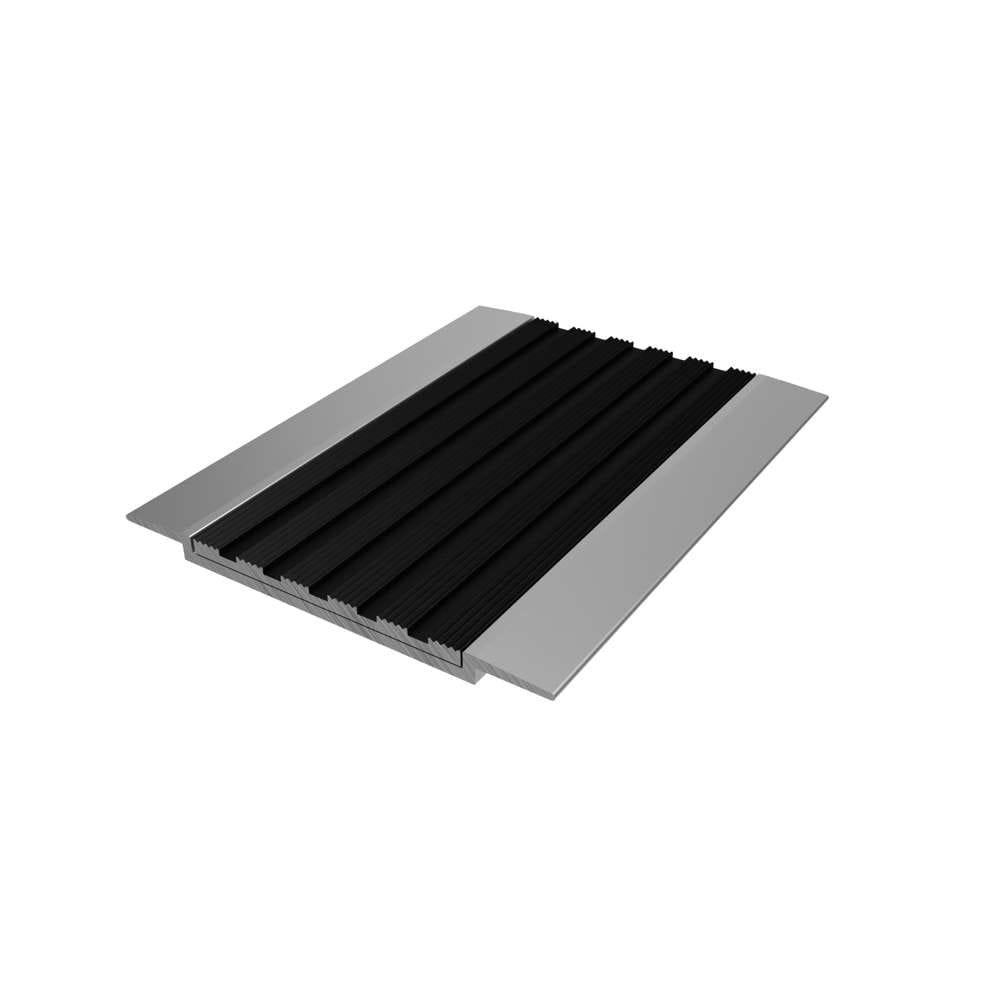

Black Anodised finish

Black Anodised

Bronze finish

Bronze

Light Bronze finish

Light Bronze

Castellated PVC Insert

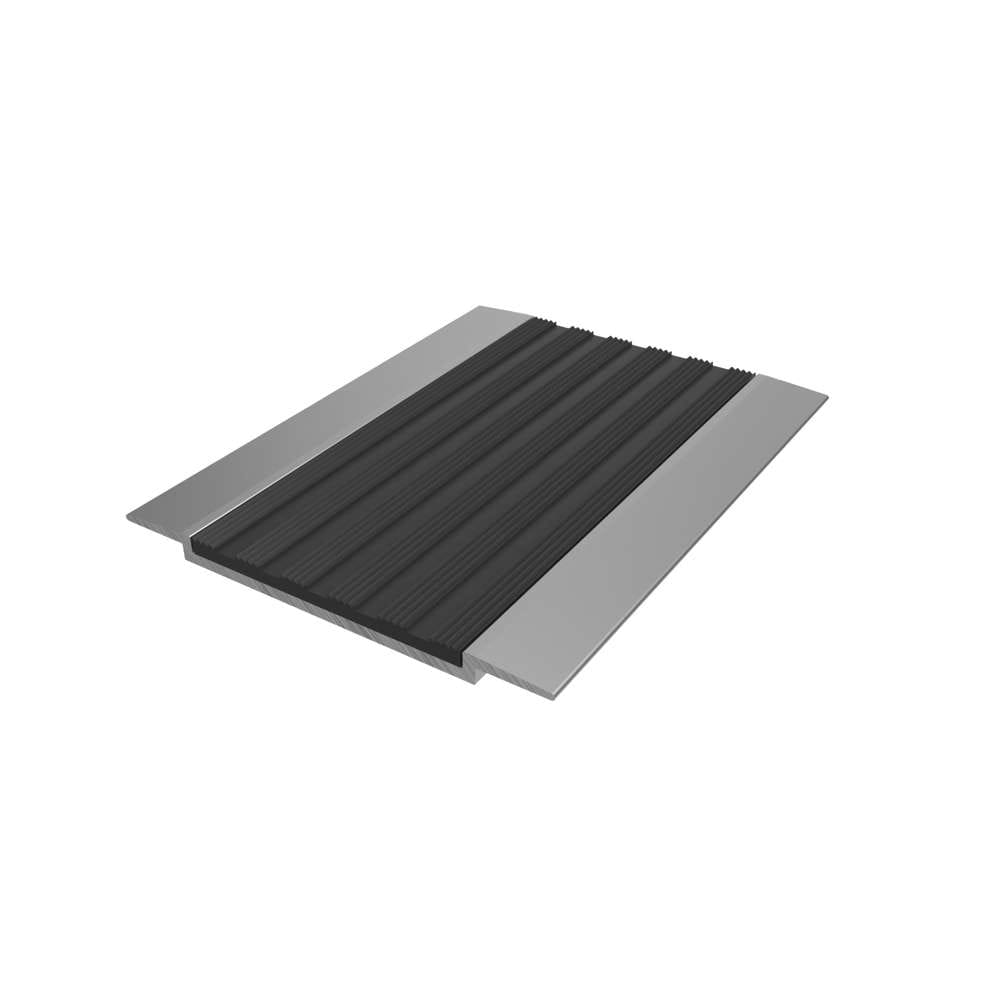

Black Castellated PVC

Black

Flint Castellated PVC

Flint

Granite Castellated PVC

Granite

Peat Castellated PVC

Peat

Spruce Castellated PVC

Spruce

Claret Castellated PVC

Claret

Regency Castellated PVC

Regency

Rustic Castellated PVC

Rustic

Jade Castellated PVC

Jade

Porth Stone Castellated PVC

Porth Stone

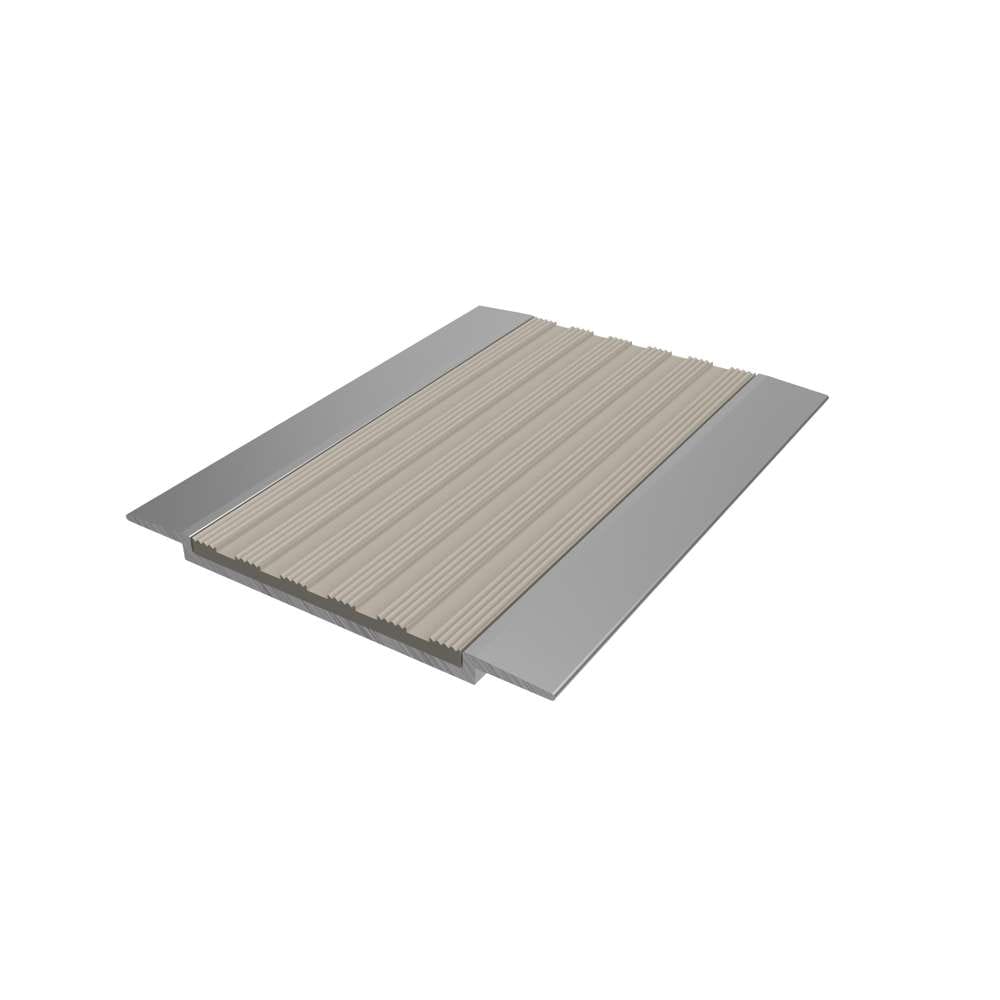

Light Grey Castellated PVC

Light Grey

Mid Blue Castellated PVC

Mid Blue

Fawn Castellated PVC

Fawn

Yellow Castellated PVC

Yellow

Polar Grey Castellated PVC

Polar Grey

Nimbus Castellated PVC

Nimbus

Ivory Castellated PVC

Ivory

Poppy Castellated PVC

Poppy

White Castellated PVC

White

Gold Castellated PVC

Gold

Olive Castellated PVC

Olive
