T80i – Aluminium
T80i aluminium transition plates are designed for use where floors adjoin at the same level and allowing for expansion. Typical examples: timber or stone flooring.
Supplied with a choice of pre-taped infill for retro-fit installations. Infill options include castellated aluminium ATI49.5 and Castellated PVC in a range of colours and finishes to complement floor coverings in commercial environments.

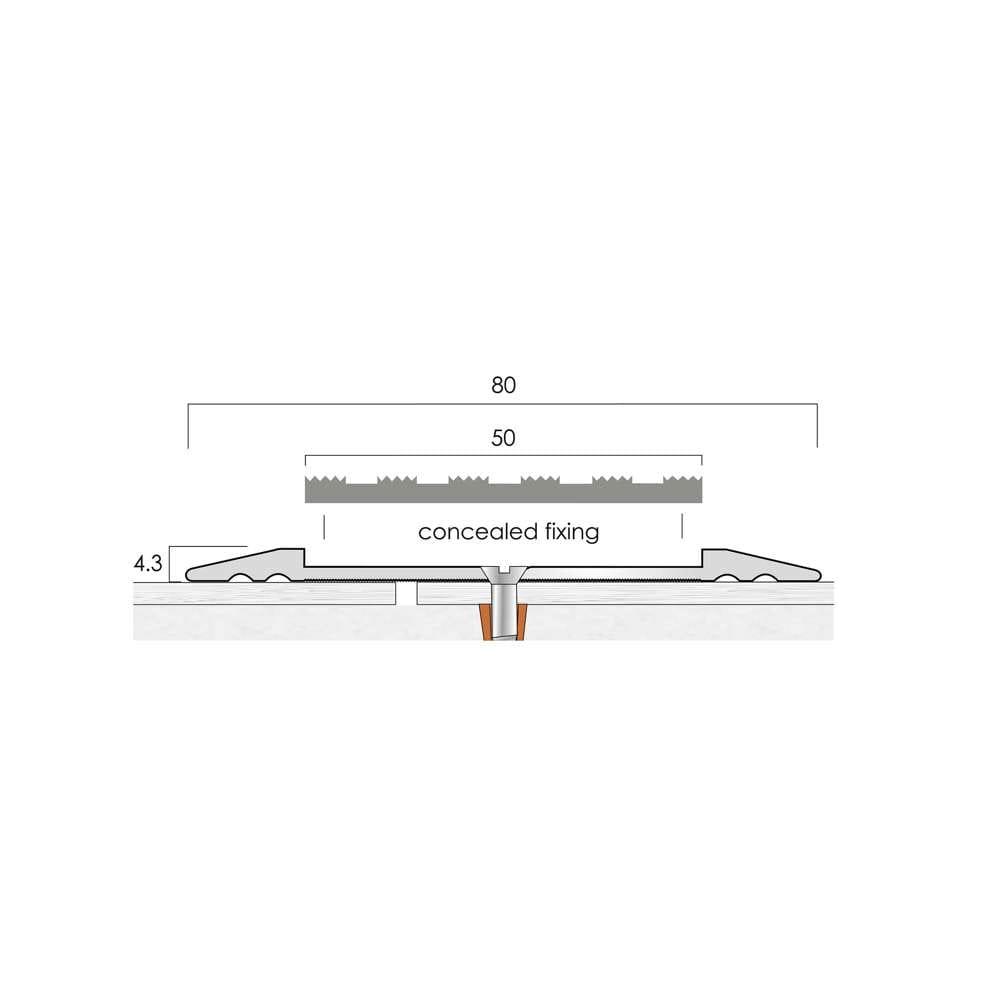

T80i is supplied centre drilled for mechanical fixing using size 8 screws. Also available off-centre drilled to special order. Fixings not supplied.
Order Free SamplesTechnical Specification
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
80 mm
Standard Supply
Aluminium base centre-drilled for size 8 screws.
Slip Resistance Values
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Find out more
Light Reflective Value (Finish)
71.65 Find out more
Infill Options

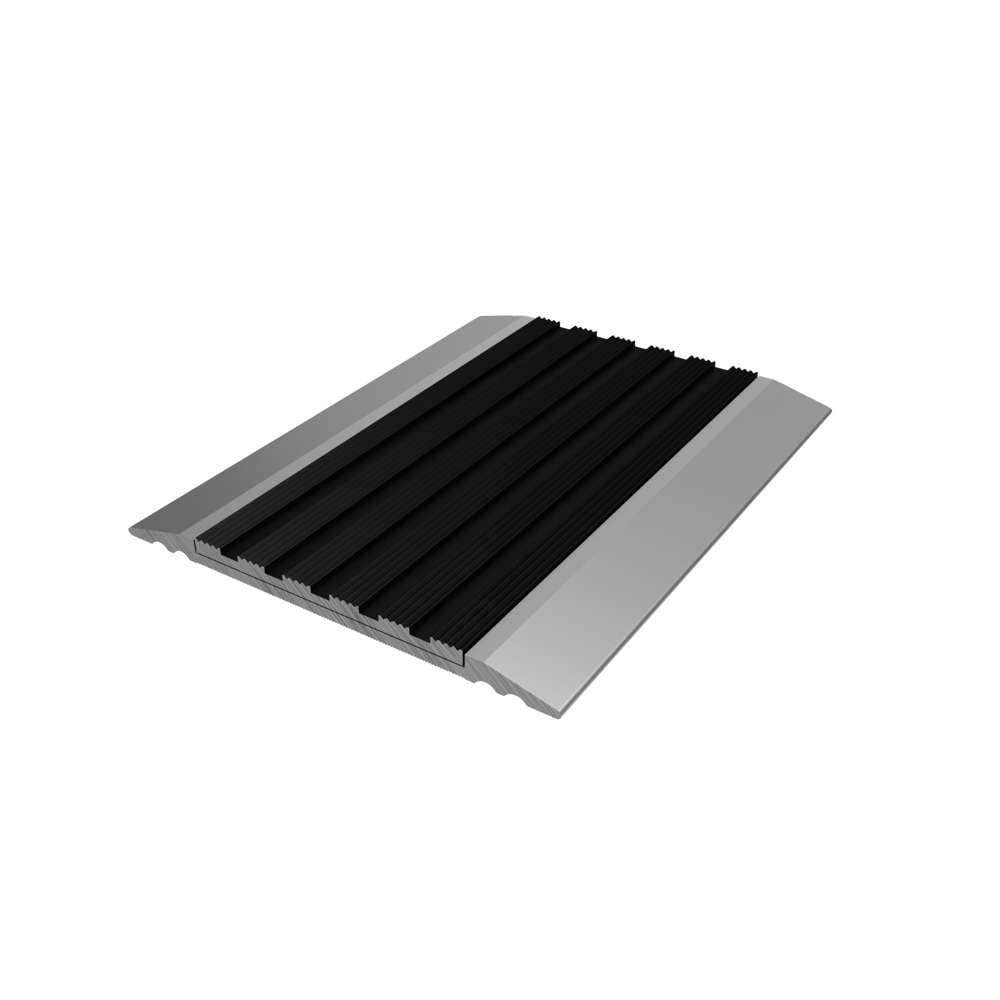

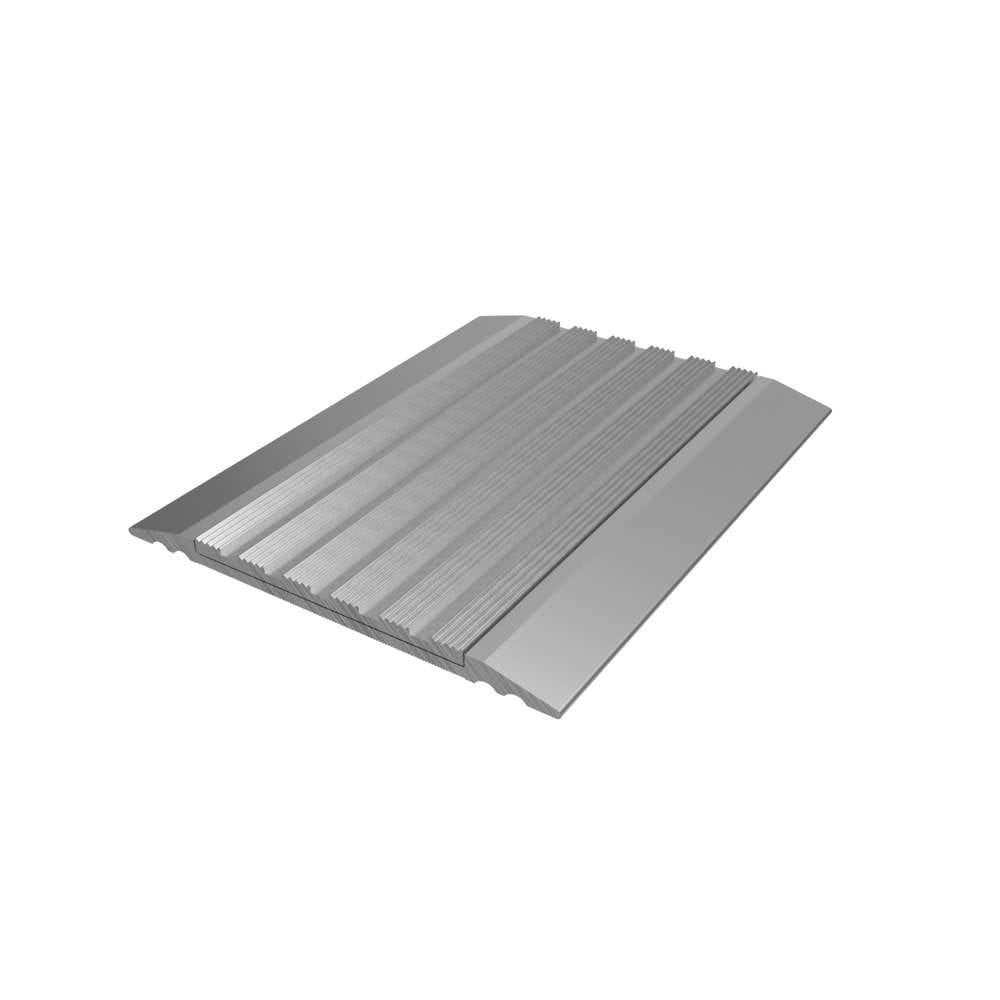

ATI49.5 Aluminium Insert
Mill
Satin
Polished
Black Anodised
Bronze
Light Bronze

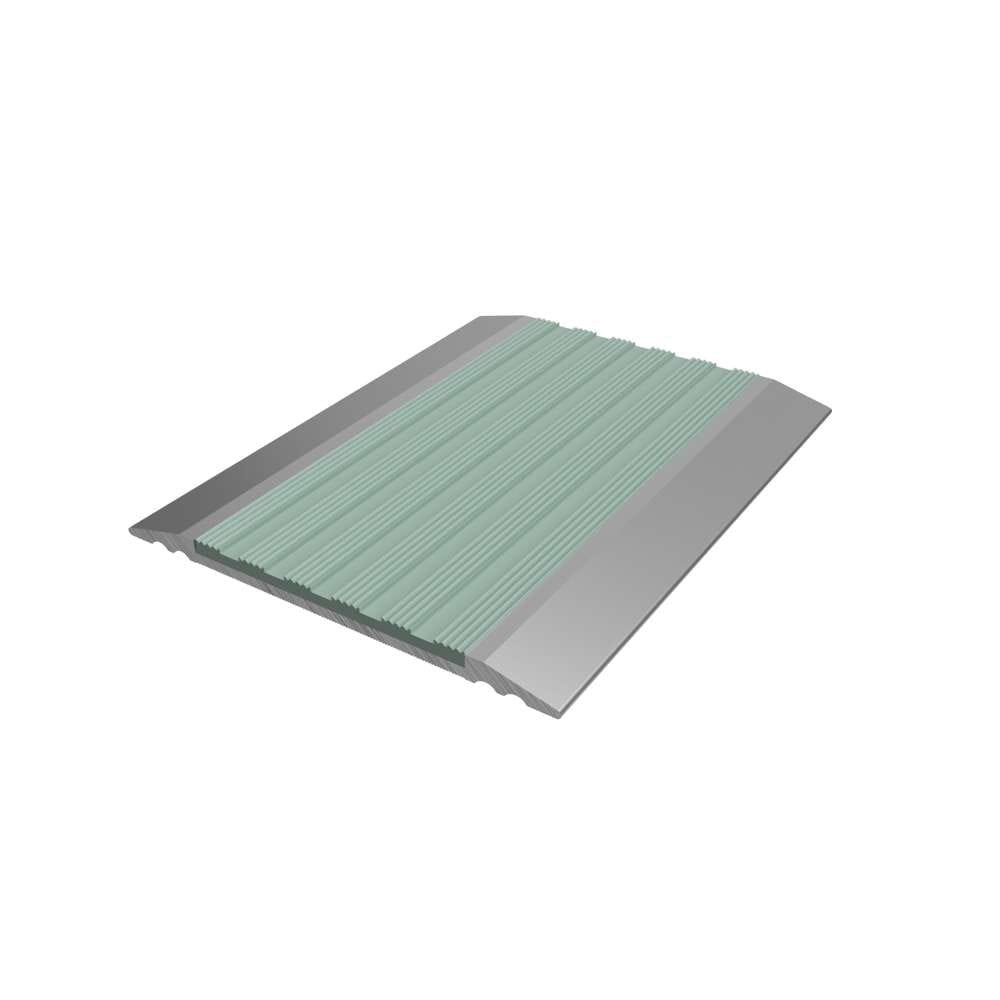

Castellated PVC Insert
Black
Flint
Granite
Peat
Spruce
Claret
Regency
Rustic
Jade
Porth Stone
Light Grey
Mid Blue
Fawn
Yellow
Polar Grey
Nimbus
Ivory
Poppy
White
