TTB623.5 – Brass
TTB623.5 is a 7.5mm wide top brass feature angle designed to create a neat transition and definition between floorings.
The feature angle has 23.5mm external up-stand for use in finishing the edges of floor coverings of equivalent thickness.
TTB623.5 is supplied with bases tagged at 80mm centres to allow on-site forming of gradual concave and convex curves to a minimum radius of 750mm.
Suitable for adhesive or mechanical fixing using size 6 screws. Fixings are not supplied.
TTB623.5 is also available with a pre-punched base designed to create a neat, straight edge between floor coverings. Product reference: B623.5.
Technical Specification
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Lengths Available
2715 mm
Visible Surface When Installed
6 mm
Standard Supply
Tags pre-punched for mechanical (size 6 screw).
Minimum Curving Radius
750 mm
Light Reflective Value (Finish)
9.15 Find out more
Please Note

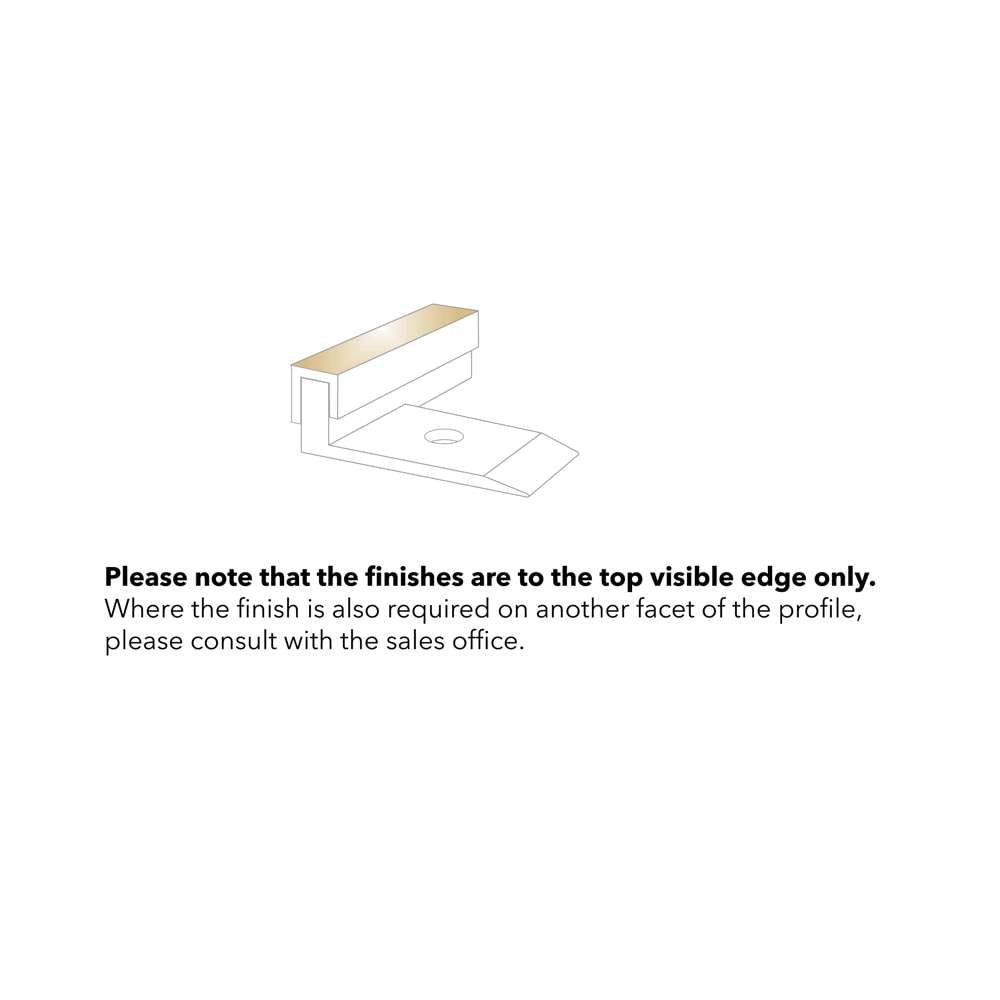

Finishes available are applied to the top visible edge only.
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Lengths Available
2715 mm
Visible Surface When Installed
6 mm
Standard Supply
Tags pre-punched for mechanical (size 6 screw).
Minimum Curving Radius
750 mm
Light Reflective Value (Finish)
29.55 Find out more
Please Note
Finishes available are applied to the top visible edge only.
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
6 mm
Standard Supply
Tags pre-punched for mechanical (size 6 screw).
Minimum Curving Radius
750 mm
Light Reflective Value (Finish)
71.45 Find out more
Suitability
Heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Lengths Available
2715 mm
Visible Surface When Installed
6 mm
Standard Supply
Tags pre-punched for mechanical (size 6 screw).
Minimum Curving Radius
750 mm
Light Reflective Value (Finish)
59.55 Find out more
Finishes

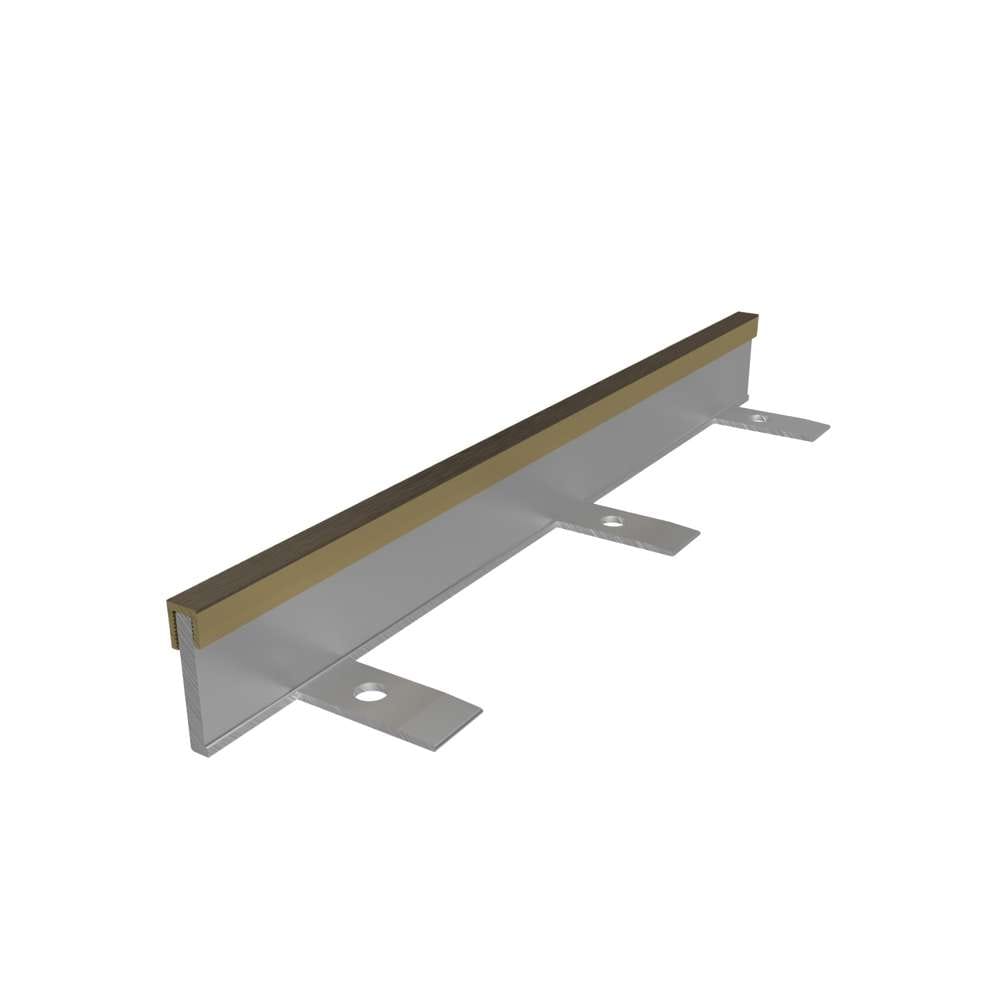

Antique Bronze
Antique Brass

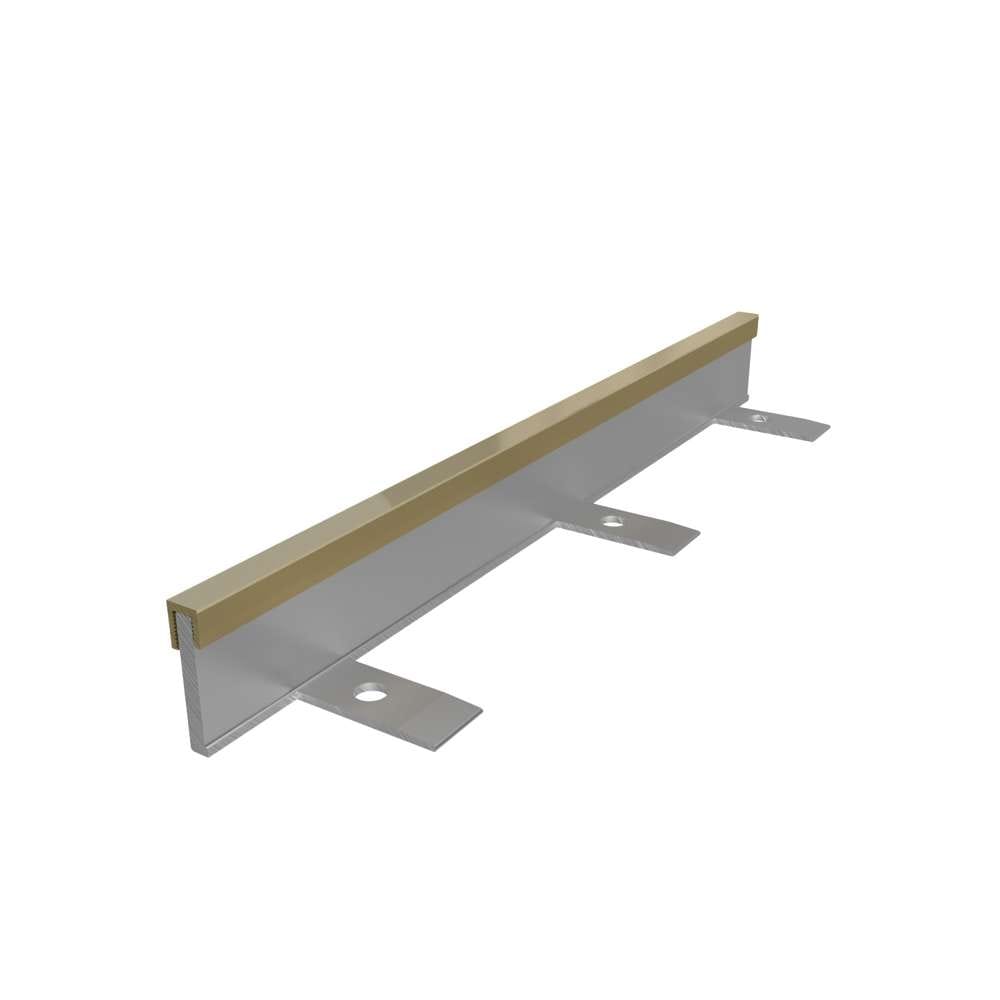

Polished Brass

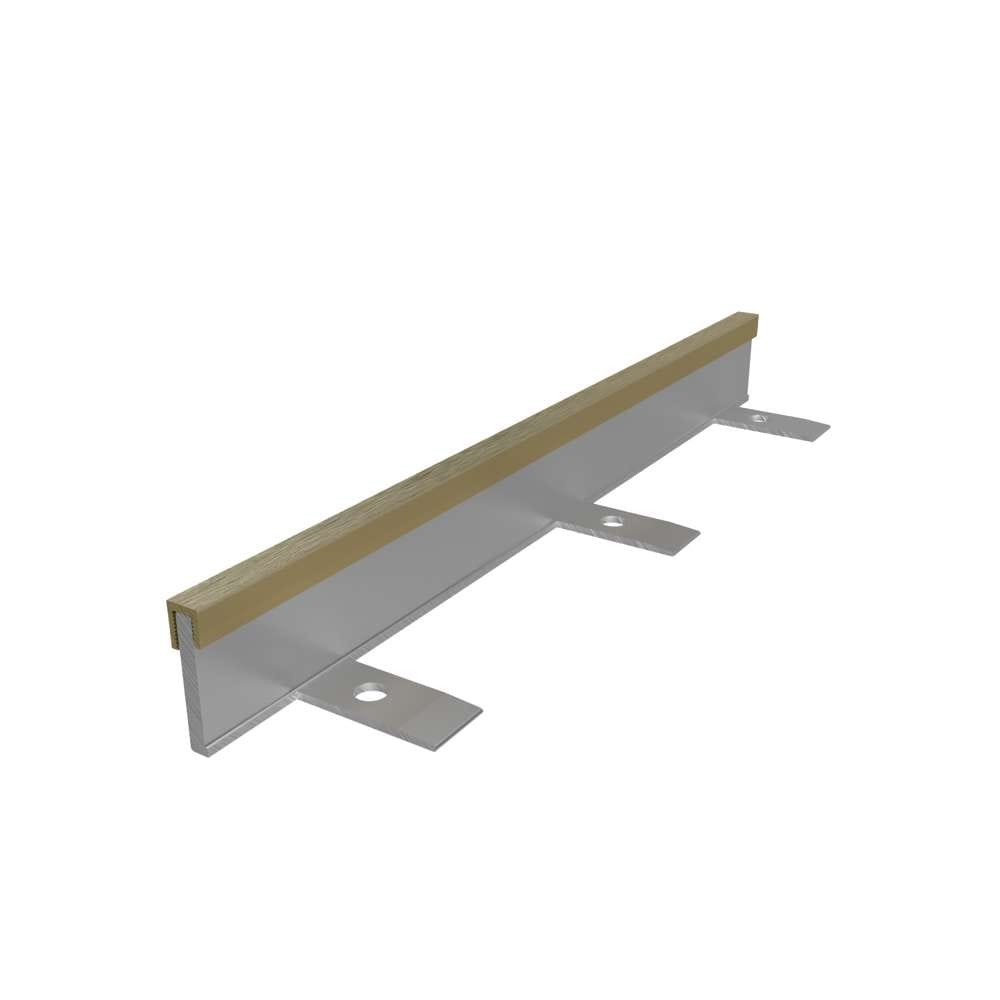

Satin Brass
