BR17/70 – Brass

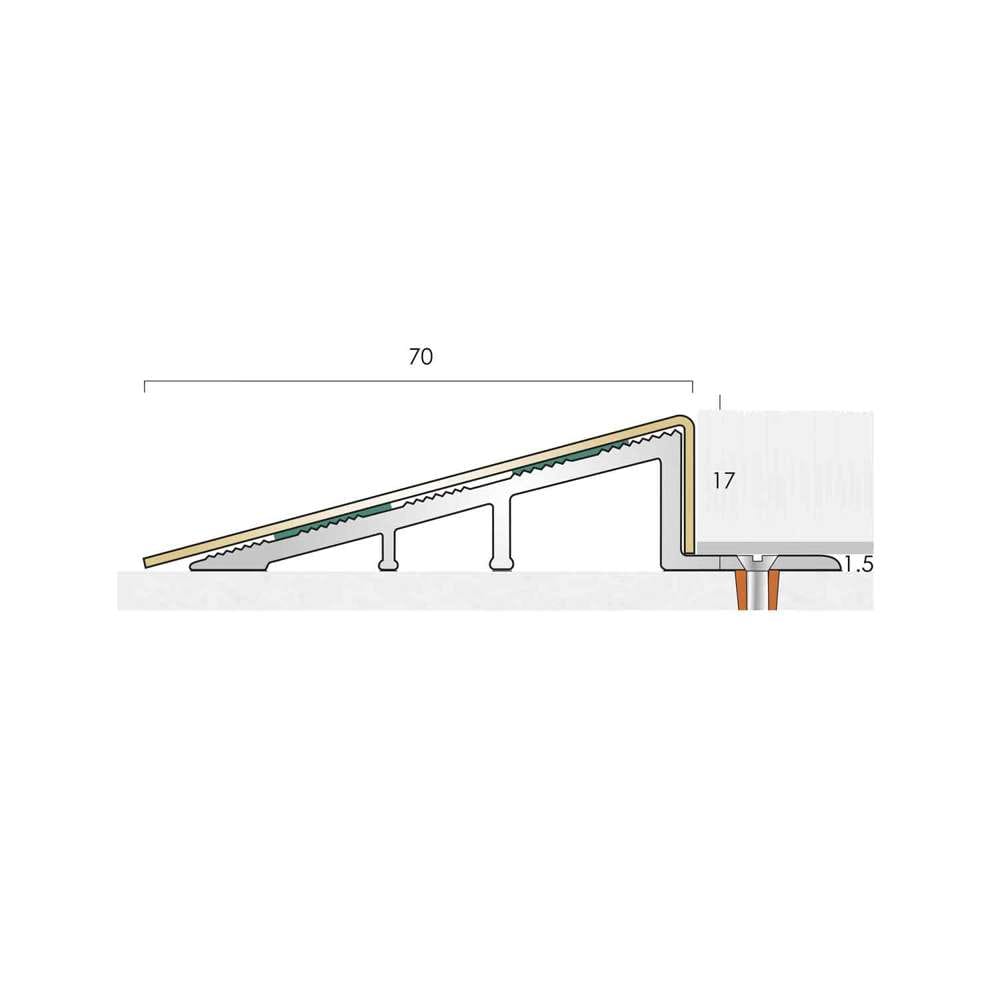

BR17/70 is an aluminium ramp profile with brass bonded cover, designed for use where floors adjoin at different levels to protect the edges of the flooring material. Available in CAT’s four signature brass finishes.

BR17/70 is a high-quality finish ramp profile for prestigious installations. Typical examples: barrier matting in entrance areas, timber or stone flooring.

Supplied drilled through the tail plate for concealed fixing using size 8 screws.

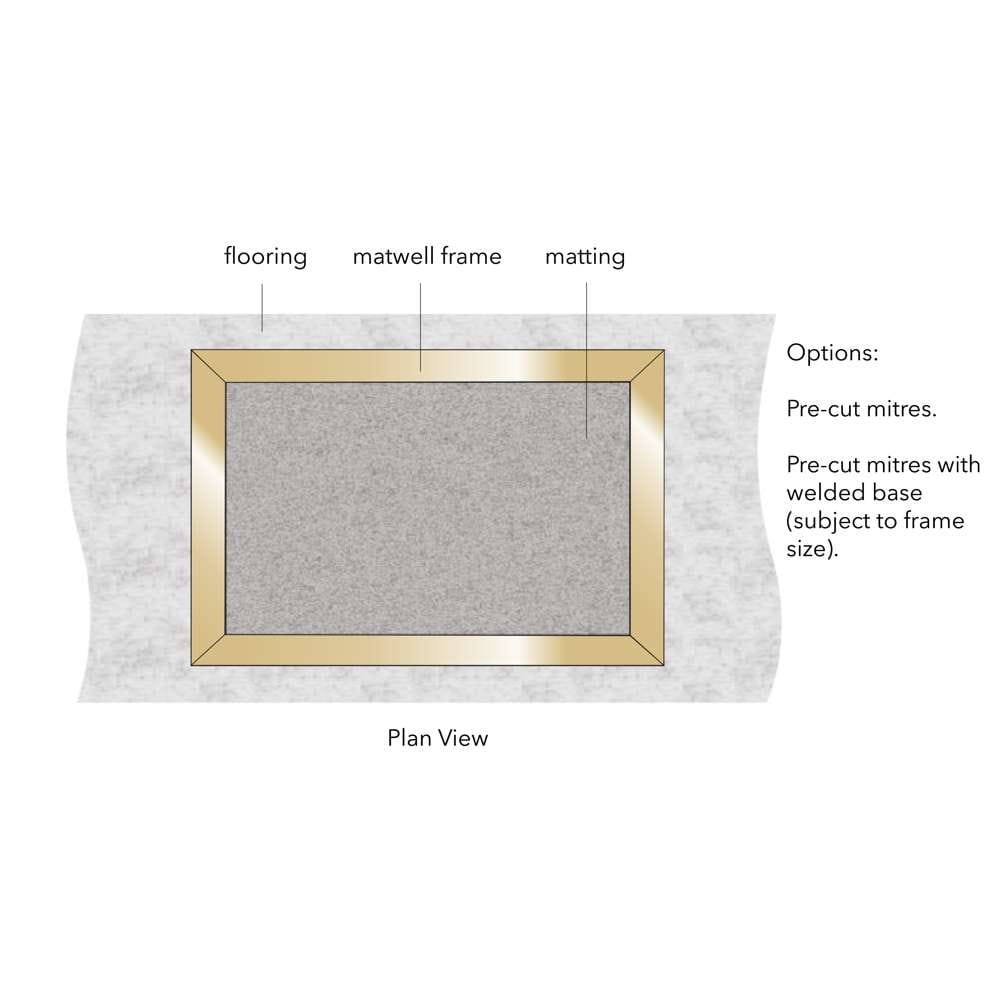

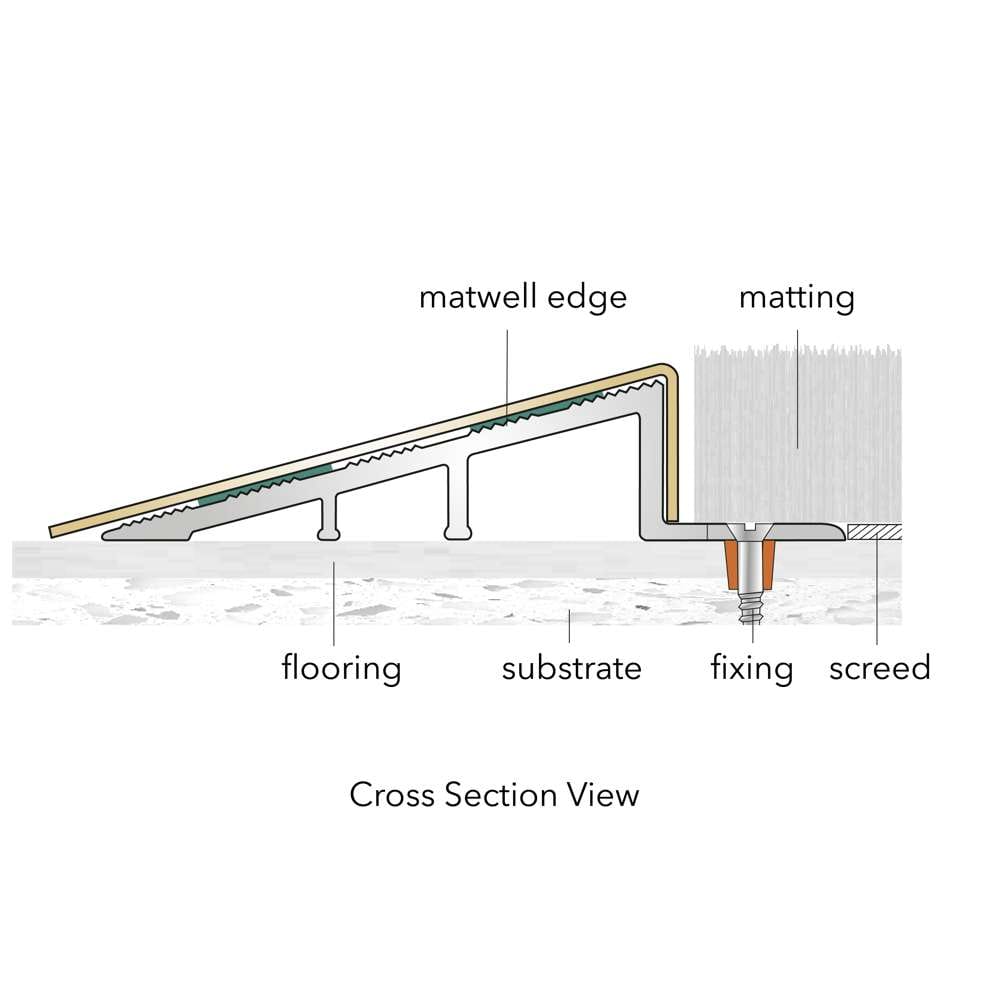

BR17/70 is also available as a pre-fabricated, base-fix ramp edge matwell frame.

Available in pre-cut mitres. We can also manufacture angle matwell frames in pre-cut mitres with welded base, subject to frame size.

Produced to customer sizes, all matwell frames have safety edge machine finished corners.

Technical Specification

Polished Brass

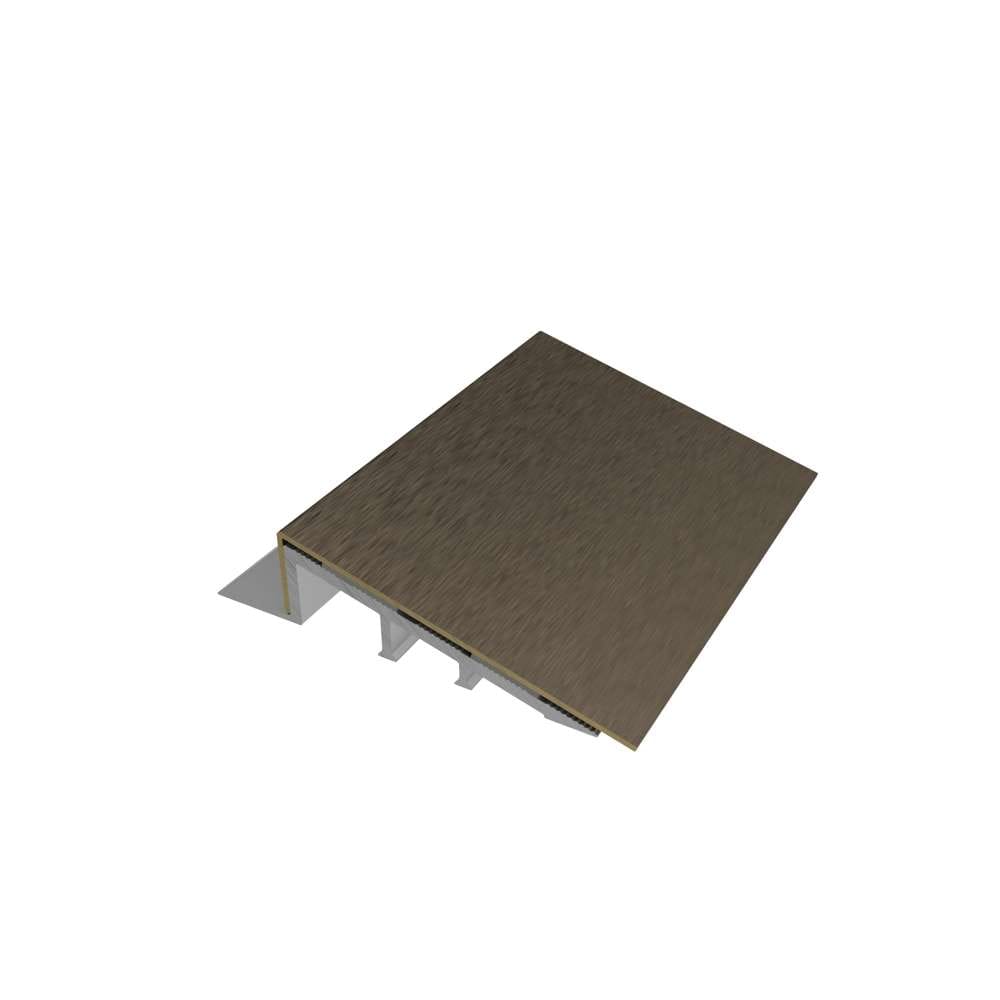

Antique Bronze
Antique Brass

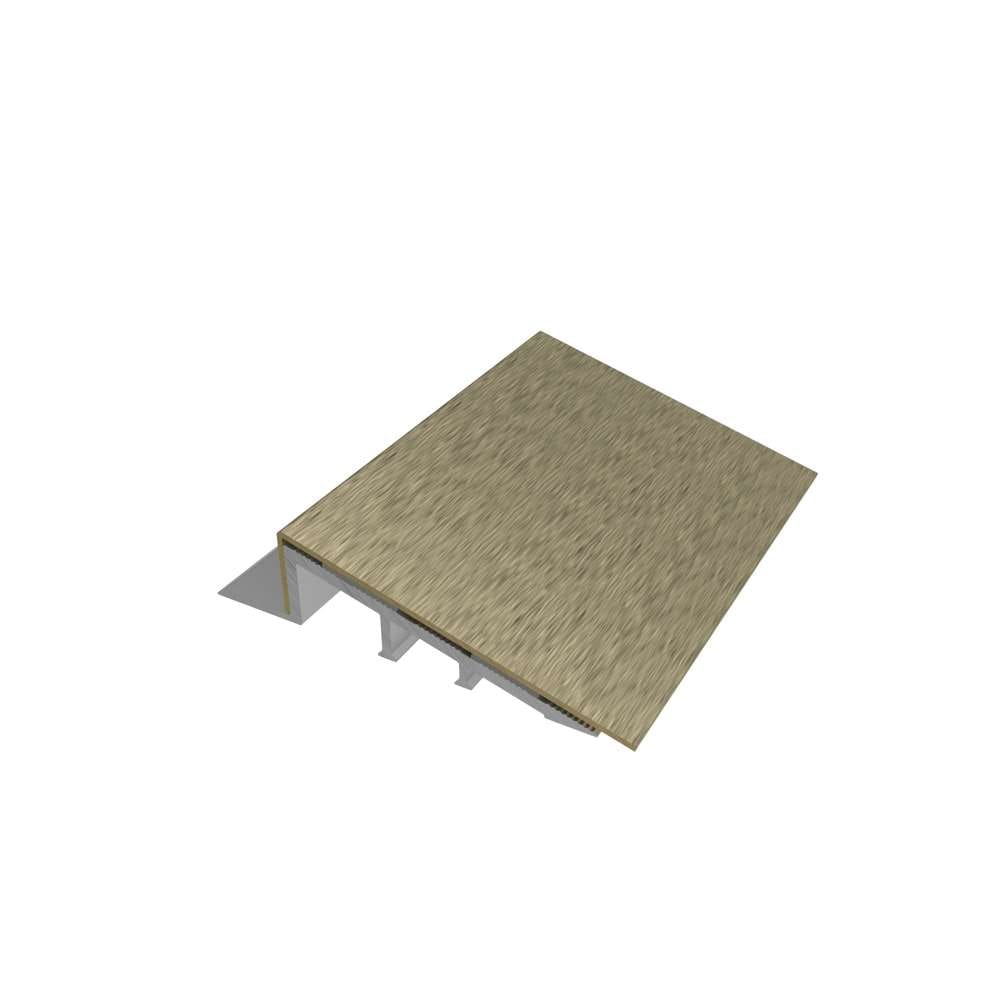

Satin Brass
Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations. Ideal for creating matwell frames.

Lengths Available

2000 mm

Visible Surface When Installed

70 mm

Standard Supply

Drilled through the foot of the profile for size 8 screws.

Light Reflective Value (Finish)

71.45 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations. Ideal for creating matwell frames.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Lengths Available

2000 mm

Visible Surface When Installed

70 mm

Standard Supply

Drilled through the foot of the profile for size 8 screws.

Light Reflective Value (Finish)

9.15 Find out more

Light Reflective Value (Finish)

9.15 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations. Ideal for creating matwell frames.
Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Lengths Available

2000 mm

Visible Surface When Installed

70 mm

Standard Supply

Drilled through the foot of the profile for size 8 screws.

Light Reflective Value (Finish)

29.55 Find out more

Light Reflective Value (Finish)

71.45 Find out more

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations. Ideal for creating matwell frames.

Lengths Available

2000 mm

Visible Surface When Installed

70 mm

Standard Supply

Drilled through the foot of the profile for size 8 screws.

Light Reflective Value (Finish)

59.55 Find out more

Finishes

Finish: Polished Brass

Polished Brass

Finish: Antique Bronze

Antique Bronze

Finish: Antique Brass

Antique Brass

Finish: Satin Brass

Satin Brass
