SR17/70 – Stainless Steel

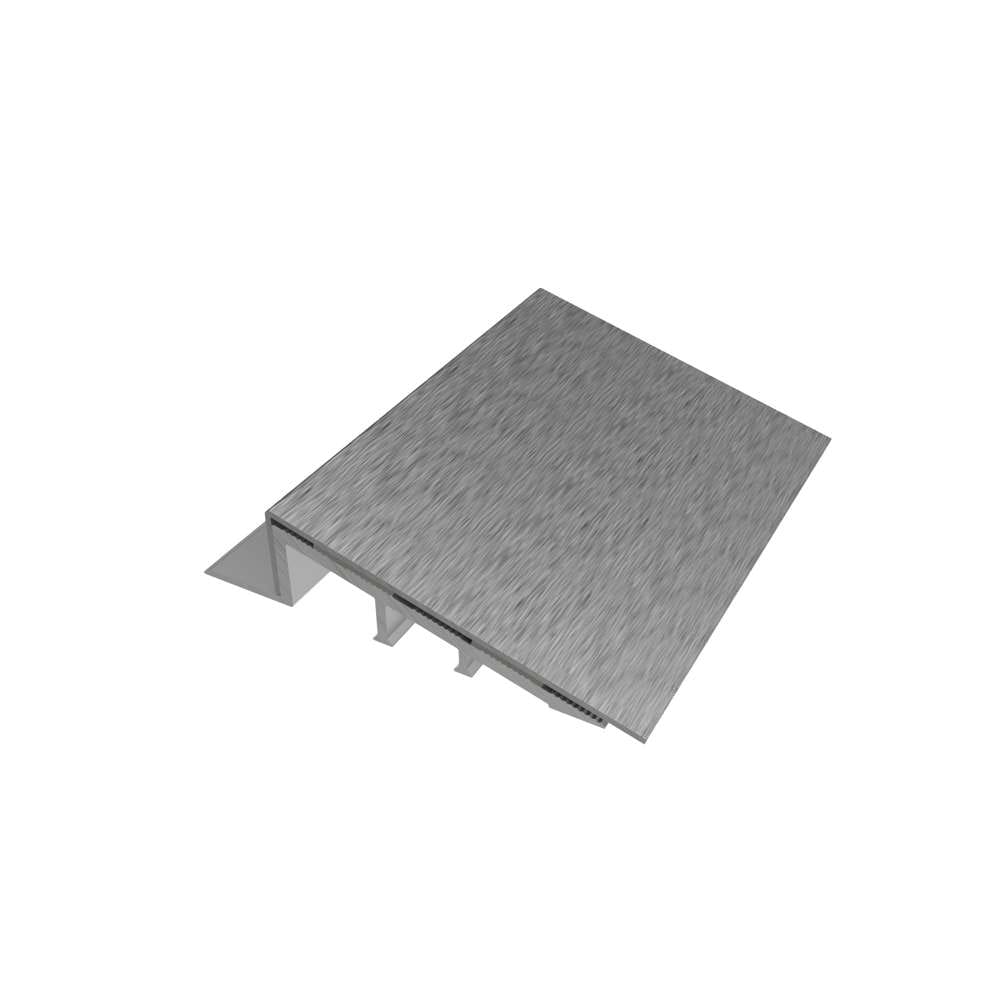

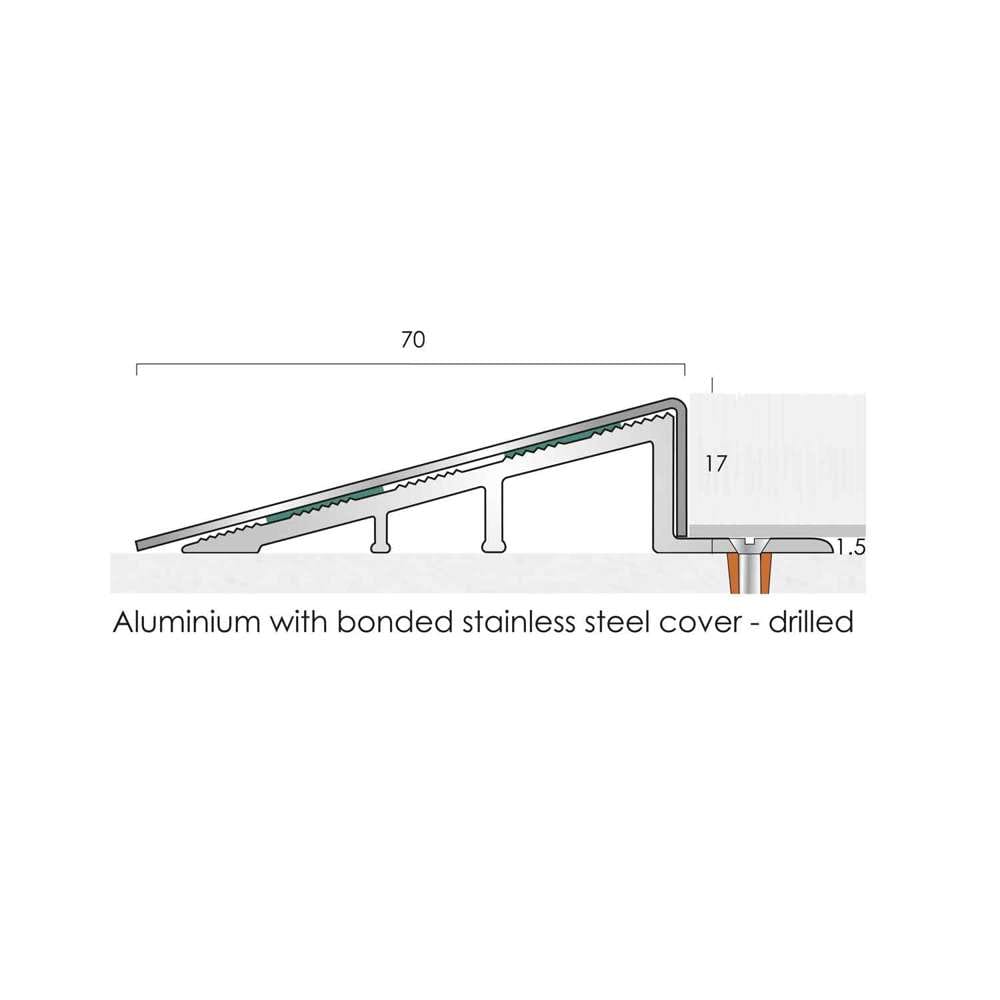

SR17/70 is an aluminium ramp profile with stainless steel bonded cover, designed for use where floors adjoin at different levels to protect the edges of the flooring material.
SR17/70 is a high-quality finish ramp profile for prestigious installations. Typical examples: barrier matting in entrance areas, timber or stone flooring.
Supplied drilled through the tail plate for concealed fixing using size 8 screws.

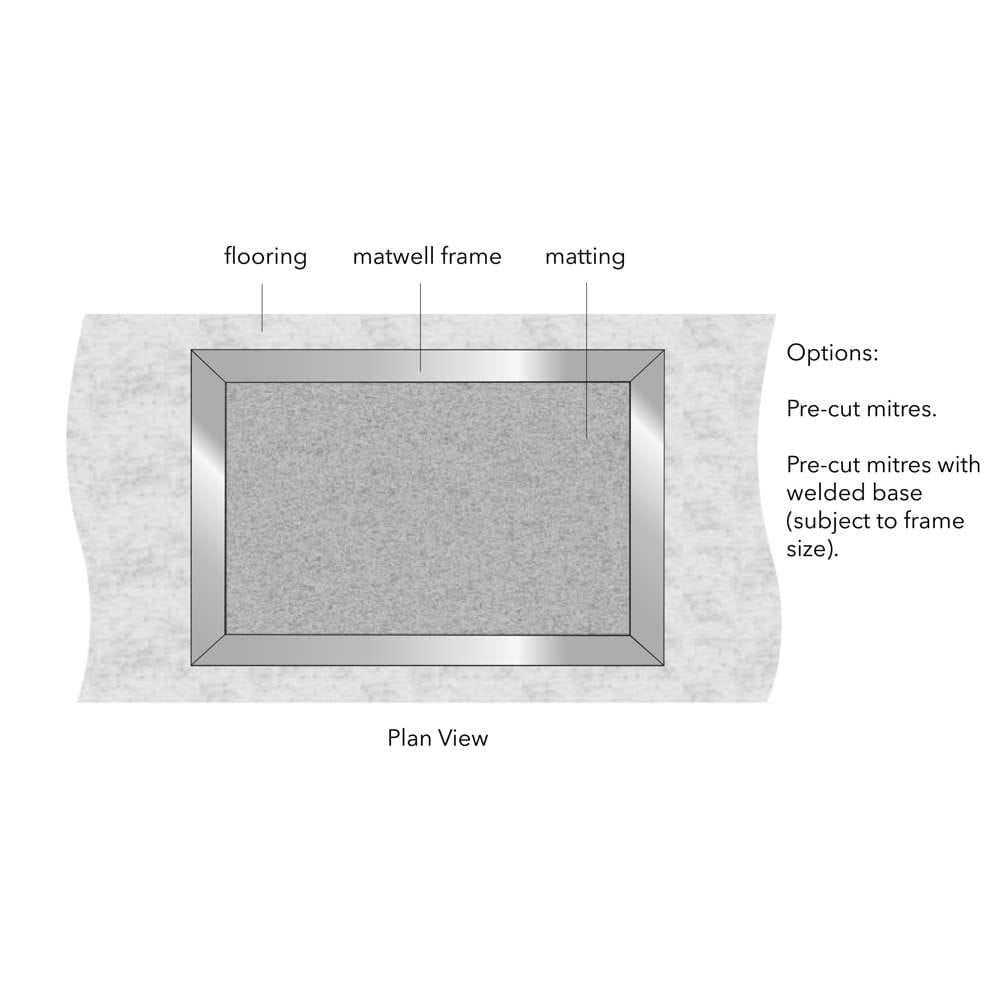

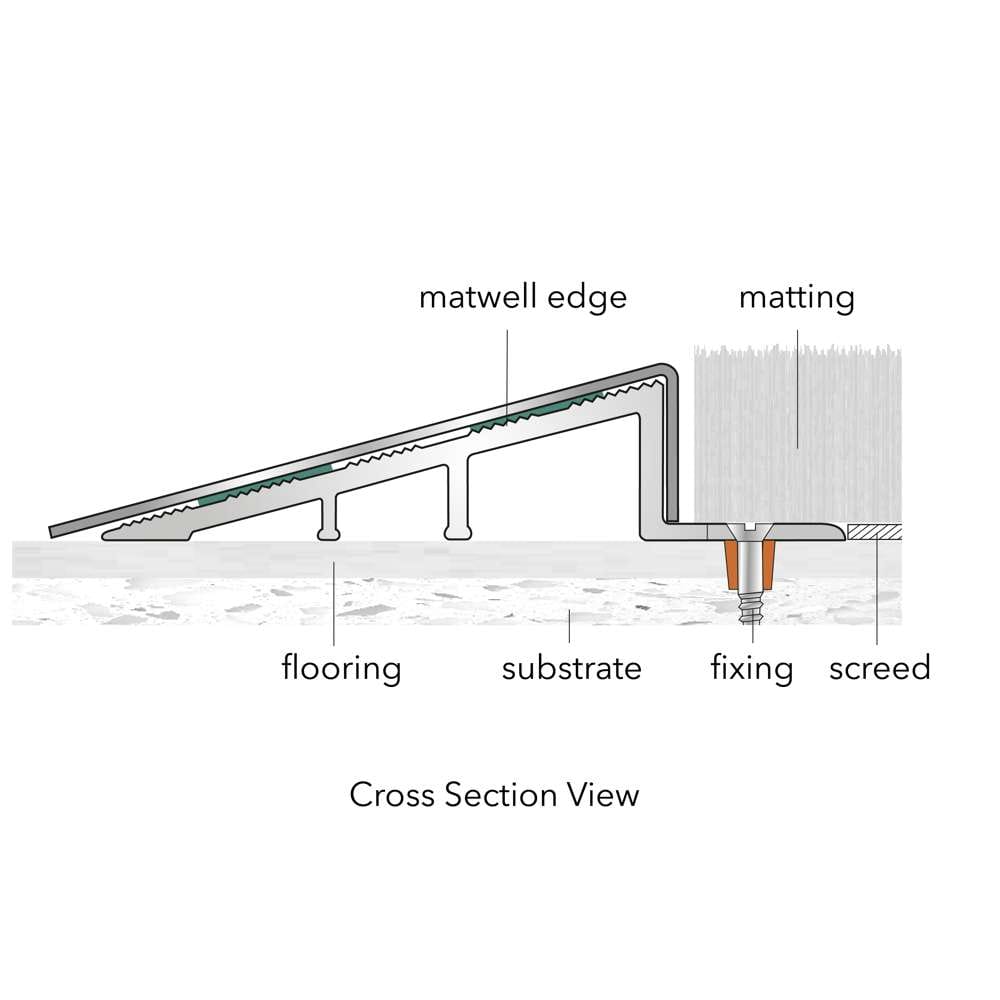

SR17/70 is also available as a pre-fabricated, base-fix ramp edge matwell frame.
Available in pre-cut mitres. We can also manufacture angle matwell frames in pre-cut mitres with welded base, subject to frame size.
Produced to customer sizes, all matwell frames have safety edge machine finished corners.
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations. Ideal for creating matwell frames.
Lengths Available
2500 mm
Visible Surface When Installed
70 mm
Standard Supply
Drilled through the foot of the profile for size 8 screws.
Light Reflective Value (Finish)
53.7 Find out more
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations. Ideal for creating matwell frames.
Lengths Available
2500 mm
Visible Surface When Installed
70 mm
Standard Supply
Drilled through the foot of the profile for size 8 screws.
Light Reflective Value (Finish)
