Kliks Ramp Top – Aluminium
Kliks Aluminium Ramp Top profiles are designed to adjoin two floors of differing heights.

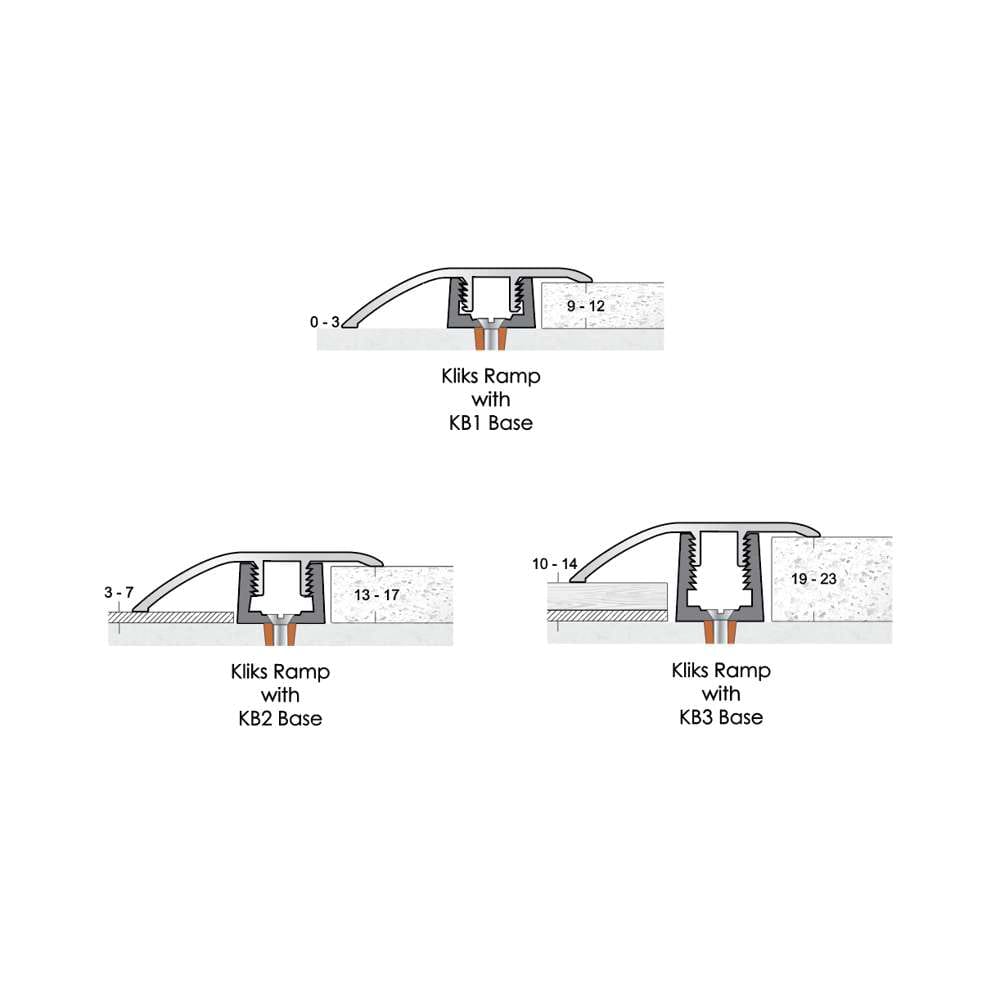

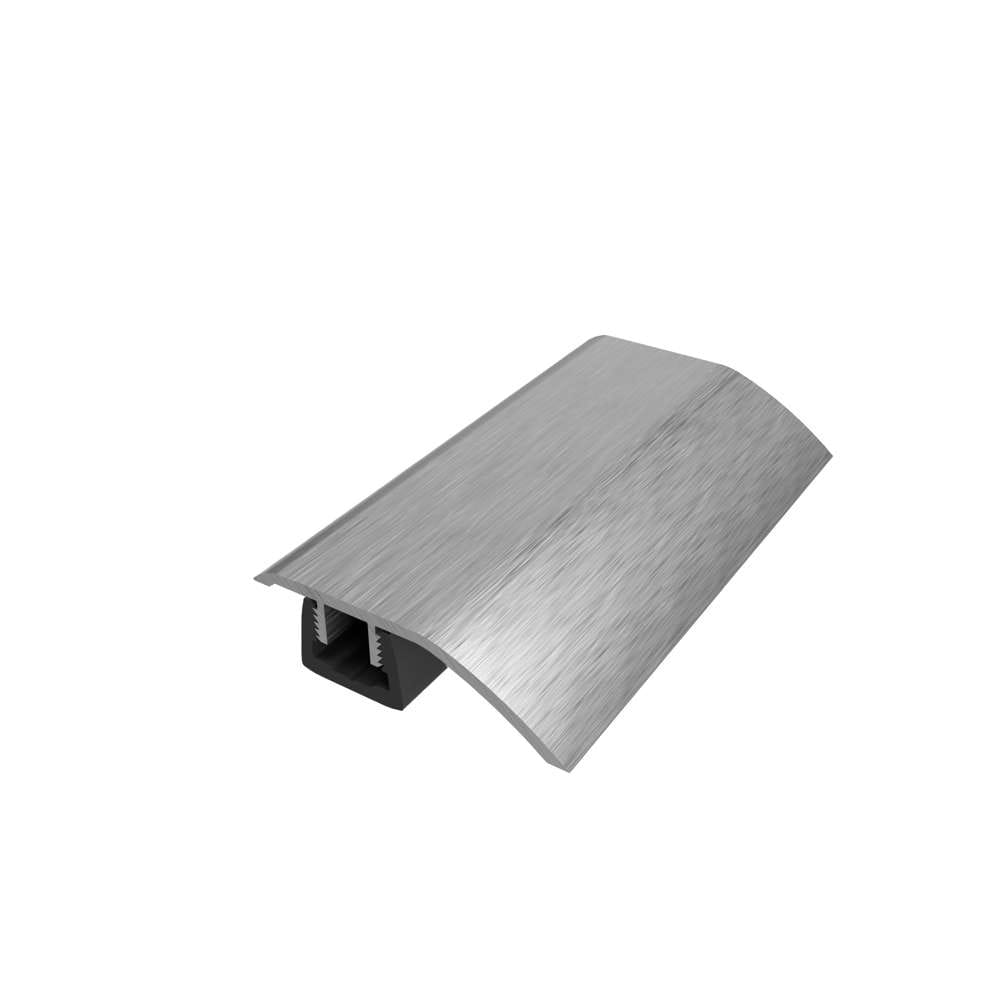

Kliks Aluminium Ramp Top profiles are installed using uPVC bases with interlocking barb design for height adjustment when tops are secured. Product references: KB1, KB2, KB3.
The selected base is fitted to the subfloor & floor coverings are then installed allowing for natural expansion. The top profile is then clipped over the base to the desired height, covering the expansion & protecting the raw edge of the flooring.

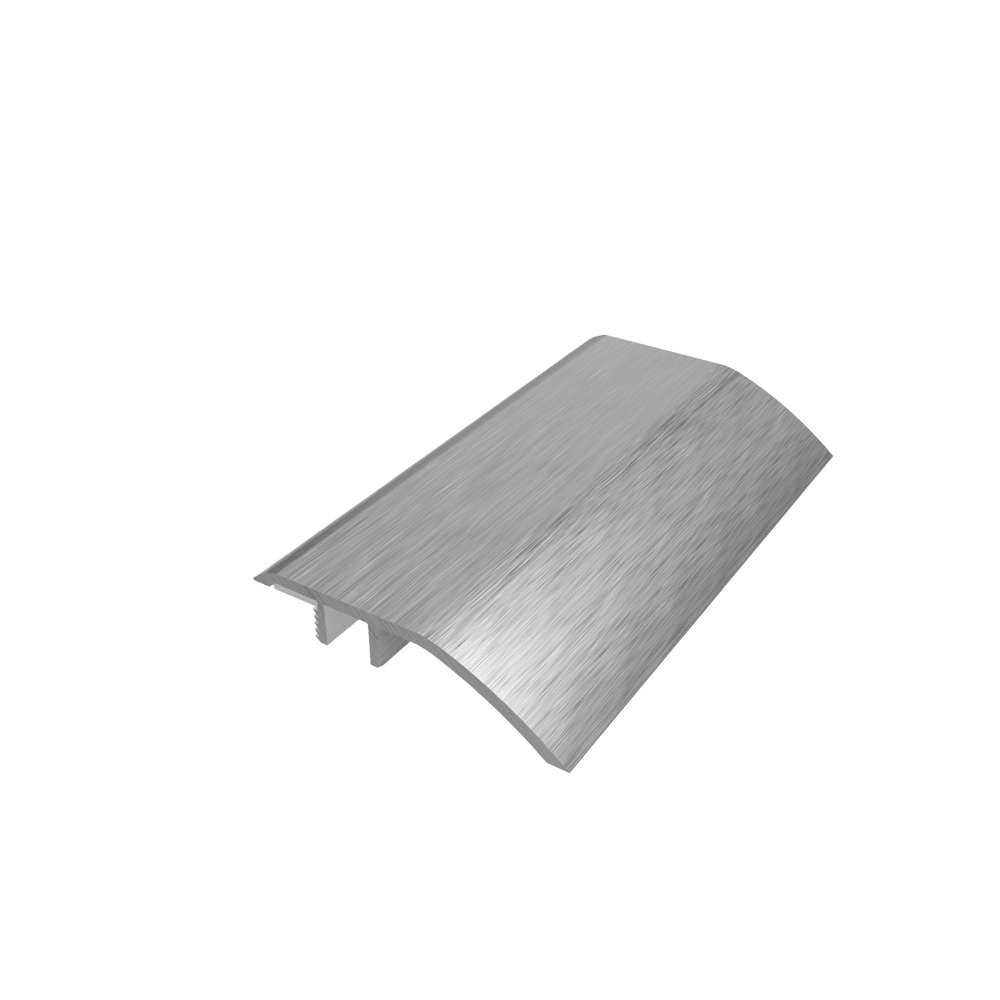

This profile can be fitted without a base when ordered with Stick Fix tape pre-applied to the underside of the horizontal surface.
Aluminium Kliks Ramp Top profiles are available in the following finishes:
Satin Aluminium – Code: KK133
Polished Aluminium – Code: KK123
Please Note: Kliks bases, ‘KB’s, are supplied separately.
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Application
Installed in combination with one of three compatible bases to protect the edges of the floor coverings. The chosen KB base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.
Lengths Available
2715 mm

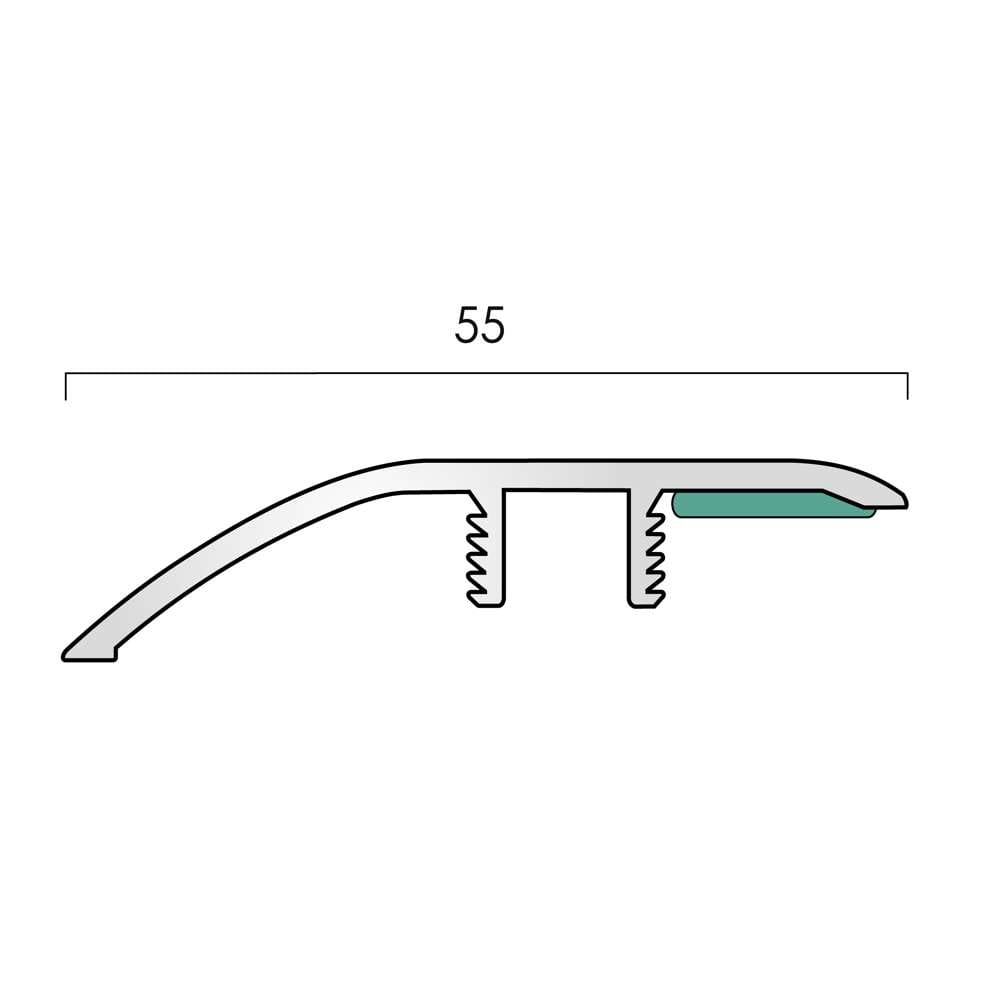

Visible Surface When Installed
55 mm
Standard Supply
Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.
Light Reflective Value (Finish)
65.4 Find out more
Compatible Bases
KB1, KB2, KB3
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Application
Installed in combination with one of three compatible bases to protect the edges of the floor coverings. The chosen KB base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.
Lengths Available
2715 mm
Visible Surface When Installed
55 mm
Standard Supply
Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.
Light Reflective Value (Finish)
75.55 Find out more
Compatible Bases
KB1, KB2, KB3
