Kliks Slim Ramp Top – Brass
Brass Kliks Slim Ramp Top profiles are designed to adjoin two floors of differing heights.
Available in CAT’s high-quality brass finishes, including polished brass, antique bronze and chrome.

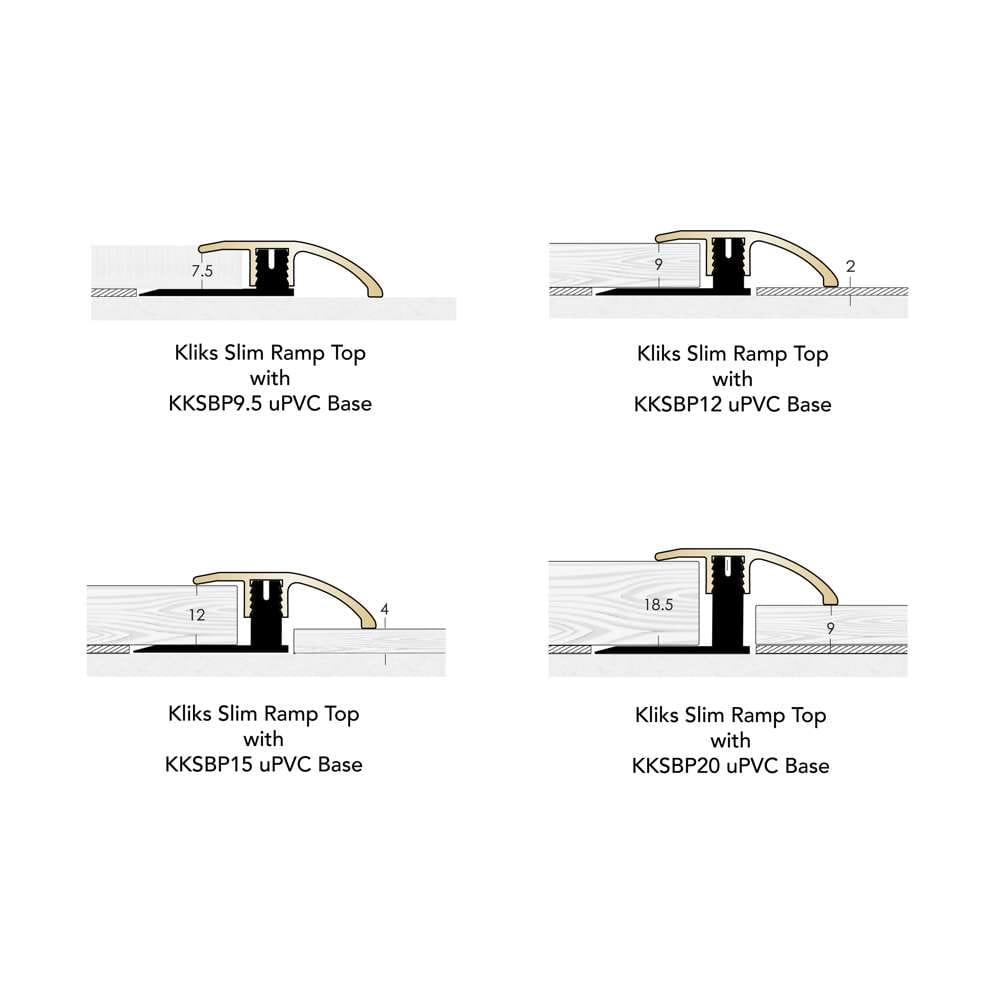

Brass Kliks Slim Ramp Top profiles are installed using uPVC bases with interlocking barb design for height adjustment when tops are secured. Product references: KKSBP9.5, KKSBP12, KKSBP15 and KKSBP20.
The selected base is fitted to the subfloor & floor coverings are then installed allowing for natural expansion. The top profile is then clipped over the base to the desired height, covering the expansion & protecting the raw edge of the flooring.
This profile can be fitted without a base when ordered with Stick Fix tape pre-applied to the underside of the horizontal surface.
Brass Kliks Ramp Top profiles are available in the following finishes:
Polished Brass – Code: KKSLR3

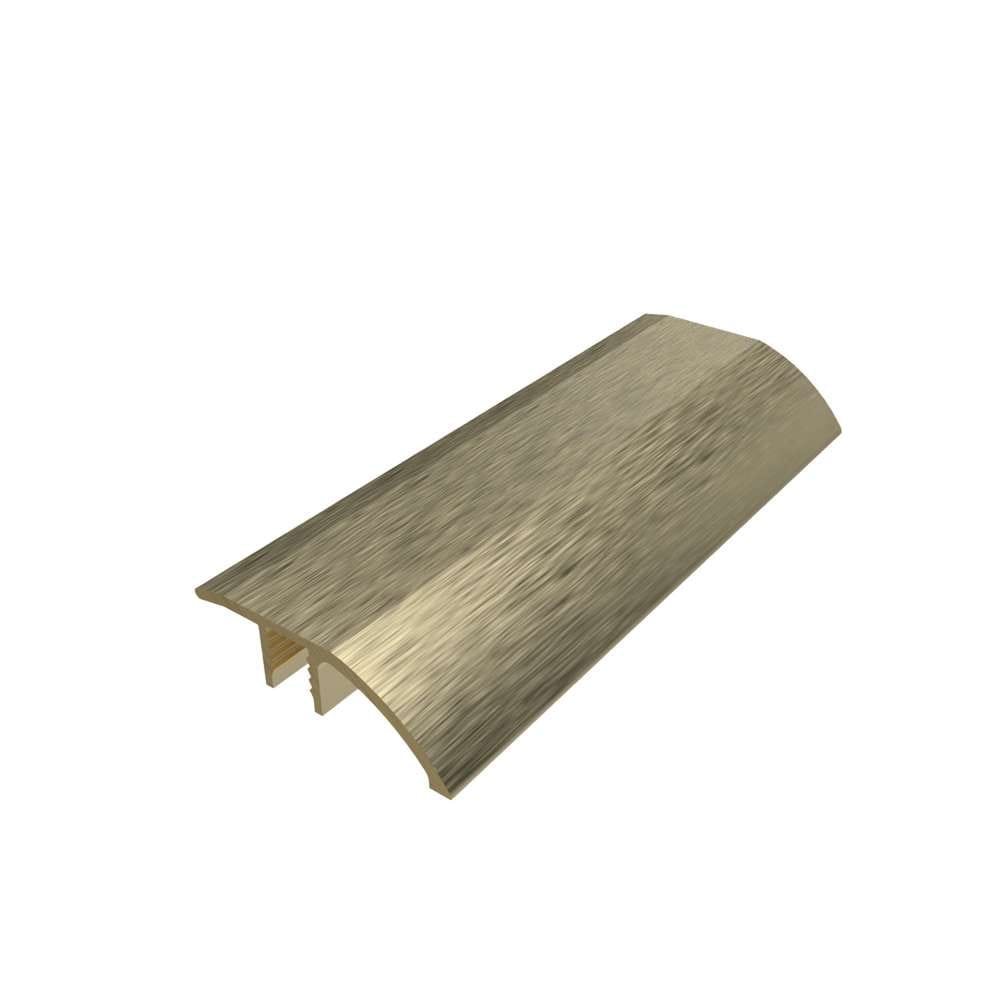

Satin Brass – Code: KKSLR301
Antique Brass – Code: KKSLR203

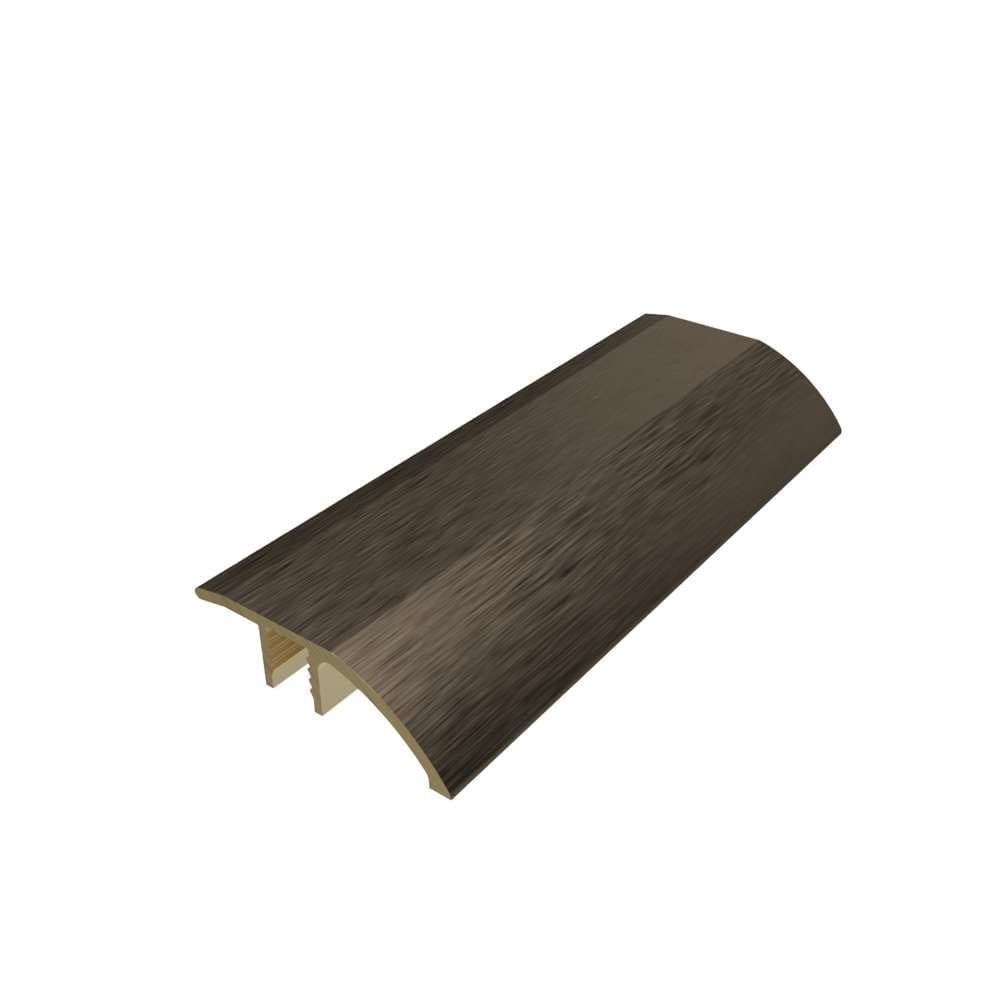

Antique Bronze – Code: KKSLR213
Chrome – Code: KKSLR223

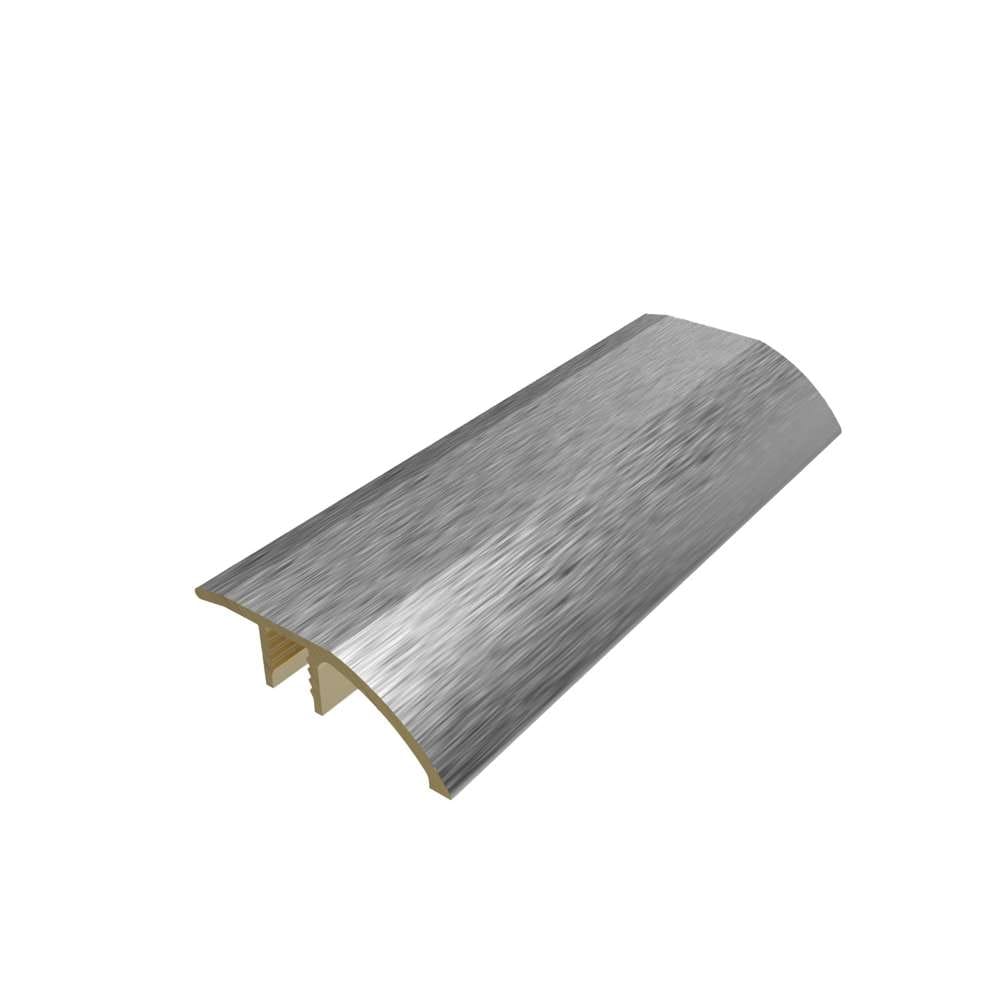

Satin Chrome – Code: KKSLR243
Please Note: Kliks Slim bases, ‘KKSBP’s, are supplied separately.
Technical Specification
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Application
Installed in combination with one of four compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.
Lengths Available
2715, 900 mm
Visible Surface When Installed

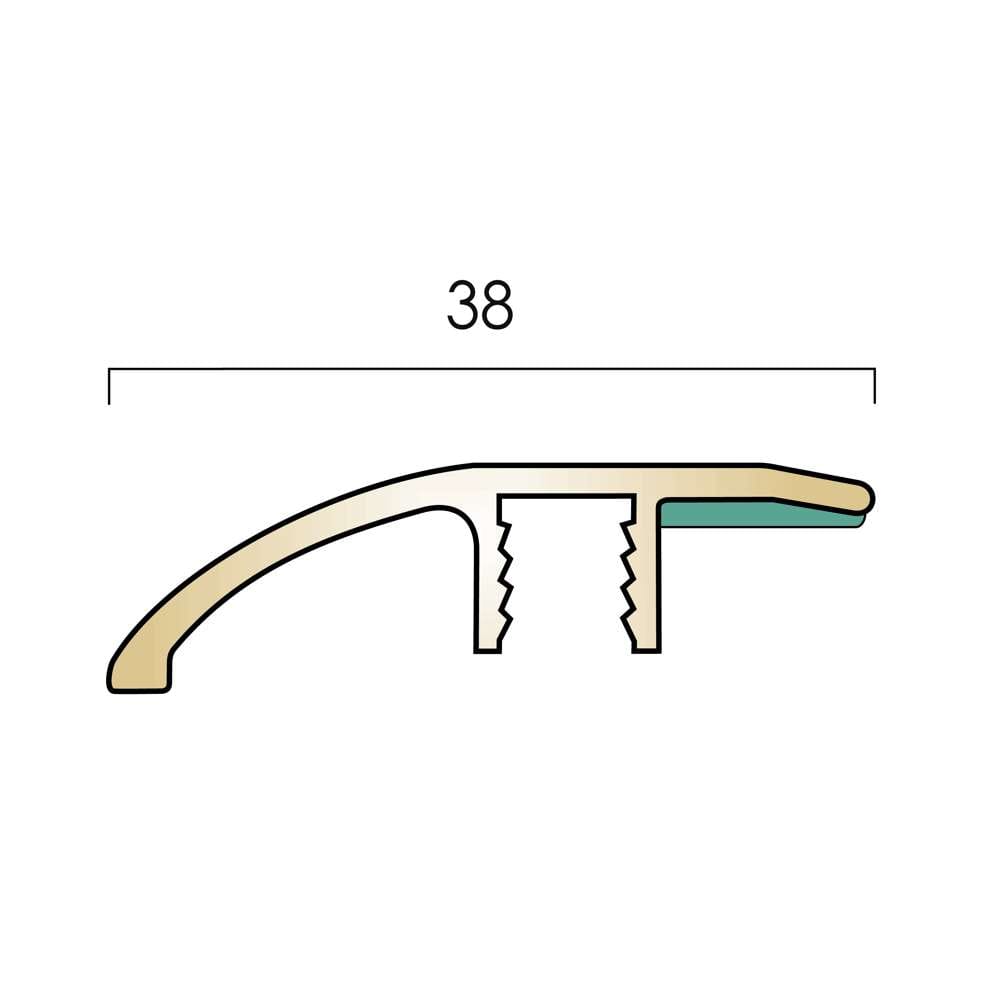

38 mm
Standard Supply
Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.
Light Reflective Value (Finish)
44.85 Find out more
Compatible Bases
KKSBP9.5, KKSBP12, KKSBP15, KKSBP20
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Application
Installed in combination with one of four compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.
Lengths Available
2715, 900 mm
Visible Surface When Installed
38 mm
Standard Supply
Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.
Light Reflective Value (Finish)
63.6 Find out more
Compatible Bases
KKSBP9.5, KKSBP12, KKSBP15, KKSBP20
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
Installed in combination with one of four compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.
Lengths Available
2715, 900 mm
Visible Surface When Installed
38 mm
Standard Supply
Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.
Light Reflective Value (Finish)
9.15 Find out more
Compatible Bases
KKSBP9.5, KKSBP12, KKSBP15, KKSBP20
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Application
Installed in combination with one of four compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.
Lengths Available
2715, 900 mm
Visible Surface When Installed
38 mm
Standard Supply
Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.
Light Reflective Value (Finish)
29.55 Find out more
Compatible Bases
KKSBP9.5, KKSBP12, KKSBP15, KKSBP20
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Application
Installed in combination with one of four compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.
Lengths Available
2715, 900 mm
Visible Surface When Installed
38 mm
Standard Supply
Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.
Light Reflective Value (Finish)
59.55 Find out more
Compatible Bases
KKSBP9.5, KKSBP12, KKSBP15, KKSBP20
Suitability
Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.
Application
Installed in combination with one of four compatible bases to protect the edges of the floor coverings. The chosen KSBP base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.
Lengths Available
2715, 900 mm
Visible Surface When Installed
38 mm
Standard Supply
Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.
Light Reflective Value (Finish)
71.45 Find out more
Compatible Bases
KKSBP9.5, KKSBP12, KKSBP15, KKSBP20
Finishes
Satin Chrome
Chrome
Antique Bronze
Antique Brass
Satin Brass
Polished Brass
