Kliks Ramp Top – Brass

Kliks brass ramp Top profiles are designed to adjoin two floors of differing heights. Available in CAT’s four signature brass finishes, including polished brass and antique bronze.

Kliks brass ramp Top profiles are installed using uPVC bases with interlocking barb design for height adjustment when tops are secured. Product references: KB1, KB2, KB3.

The selected base is fitted to the subfloor & floor coverings are then installed allowing for natural expansion. The top profile is then clipped over the base to the desired height, covering the expansion & protecting the raw edge of the flooring.

This profile can be fitted without a base when ordered with Stick Fix tape pre-applied to the underside of the horizontal surface.

Brass Kliks Ramp Top profiles are available in the following finishes:
Polished Brass – Code: KK3

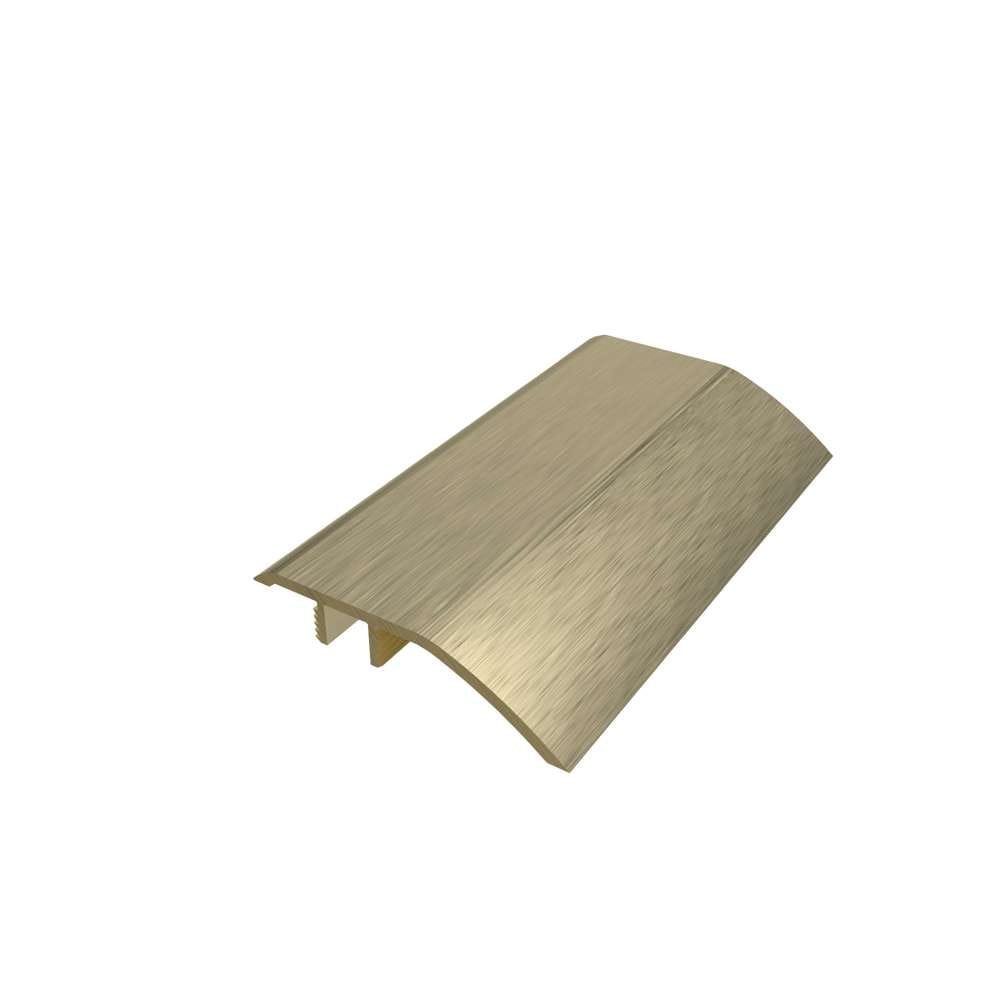

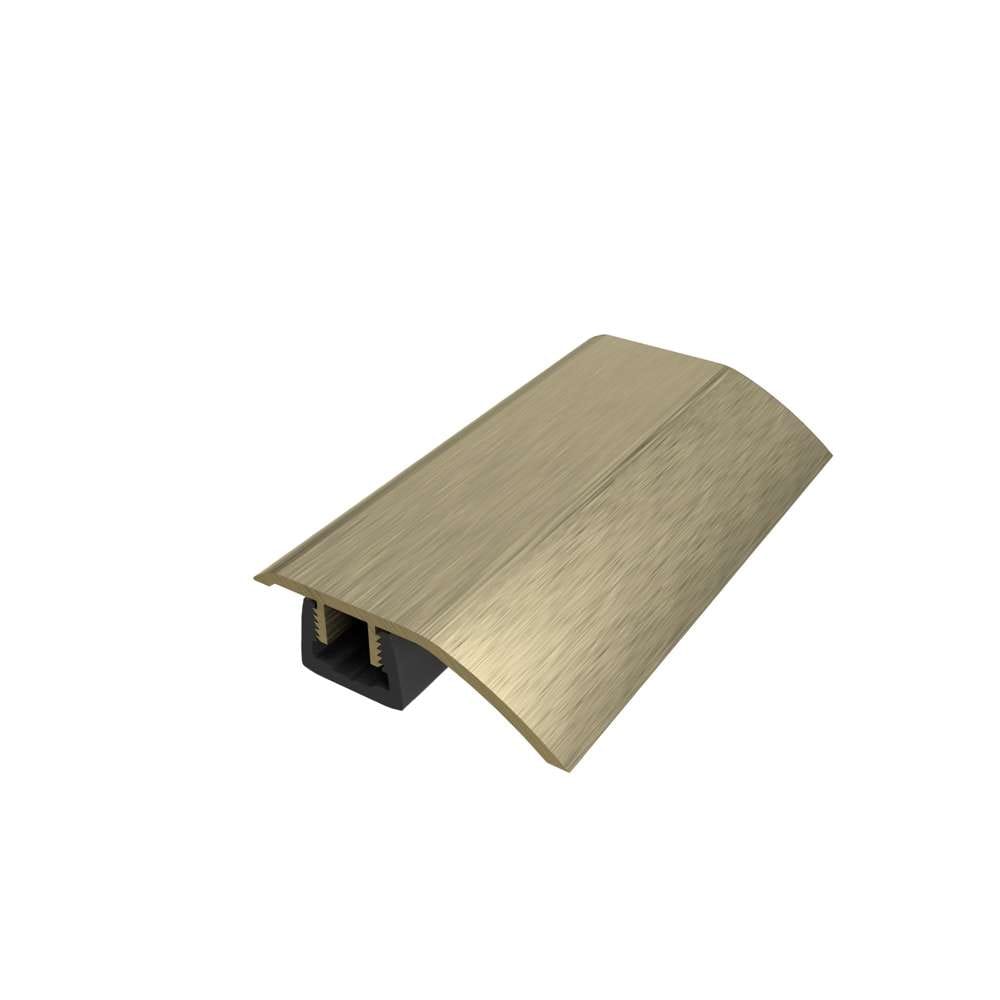

Satin Brass – Code: KK301

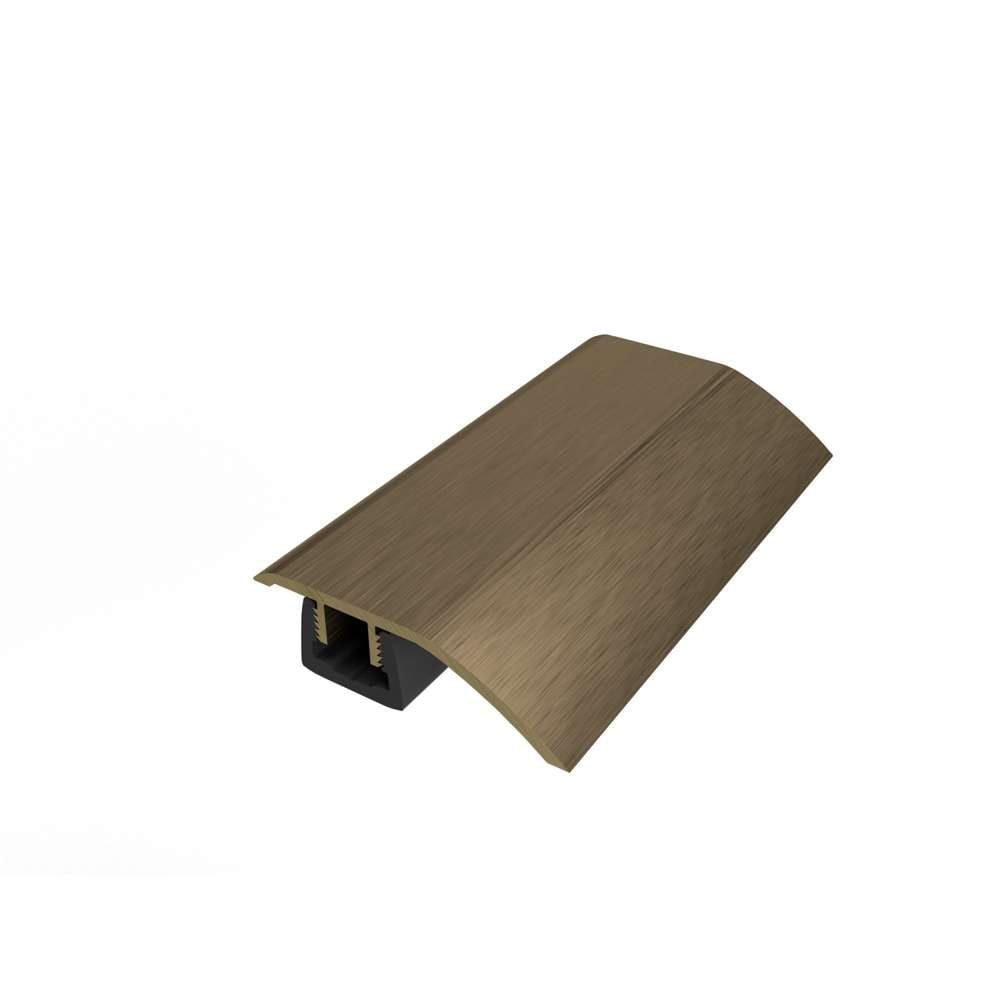

Antique Brass – Code: KK203

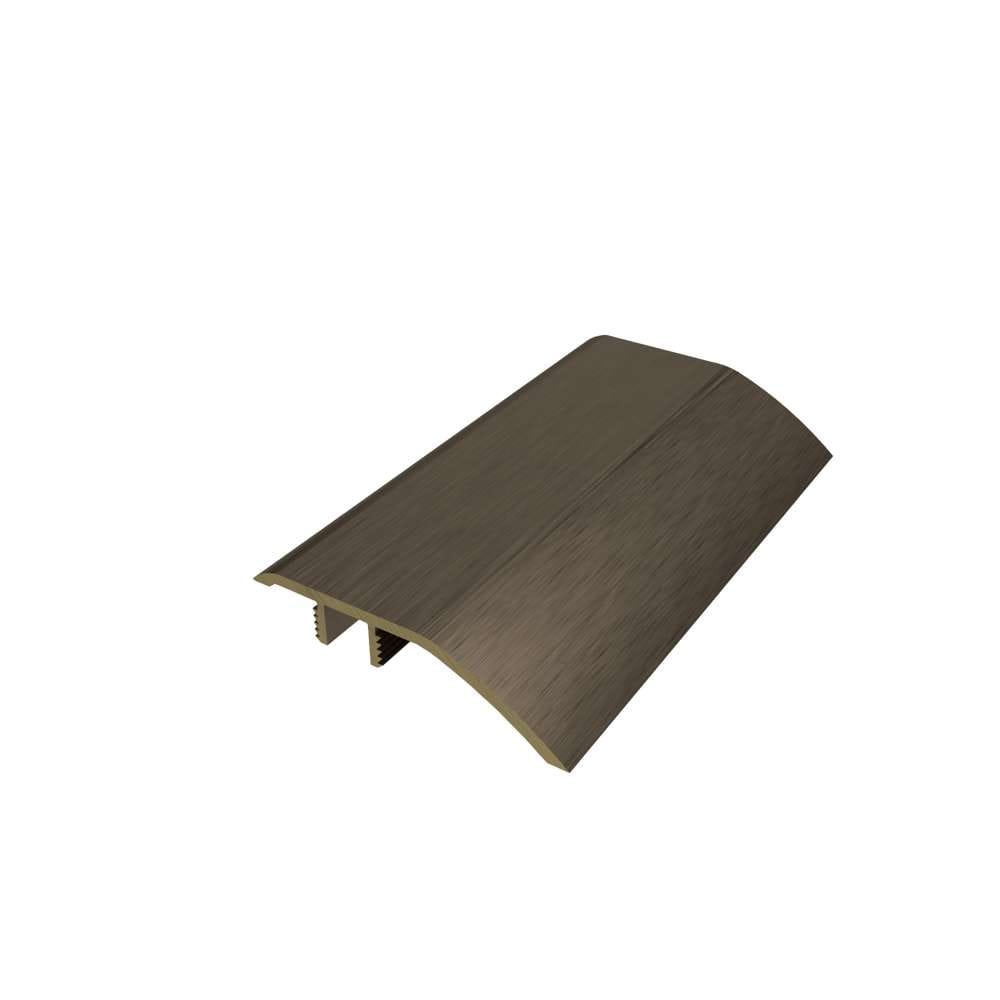

Antique Bronze – Code: KK213
Chrome – Code: KK223

Please Note: Kliks bases ‘KB’s are supplied separately.

Technical Specification

Chrome
Antique Bronze
Antique Brass
Satin Brass
Polished Brass
Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

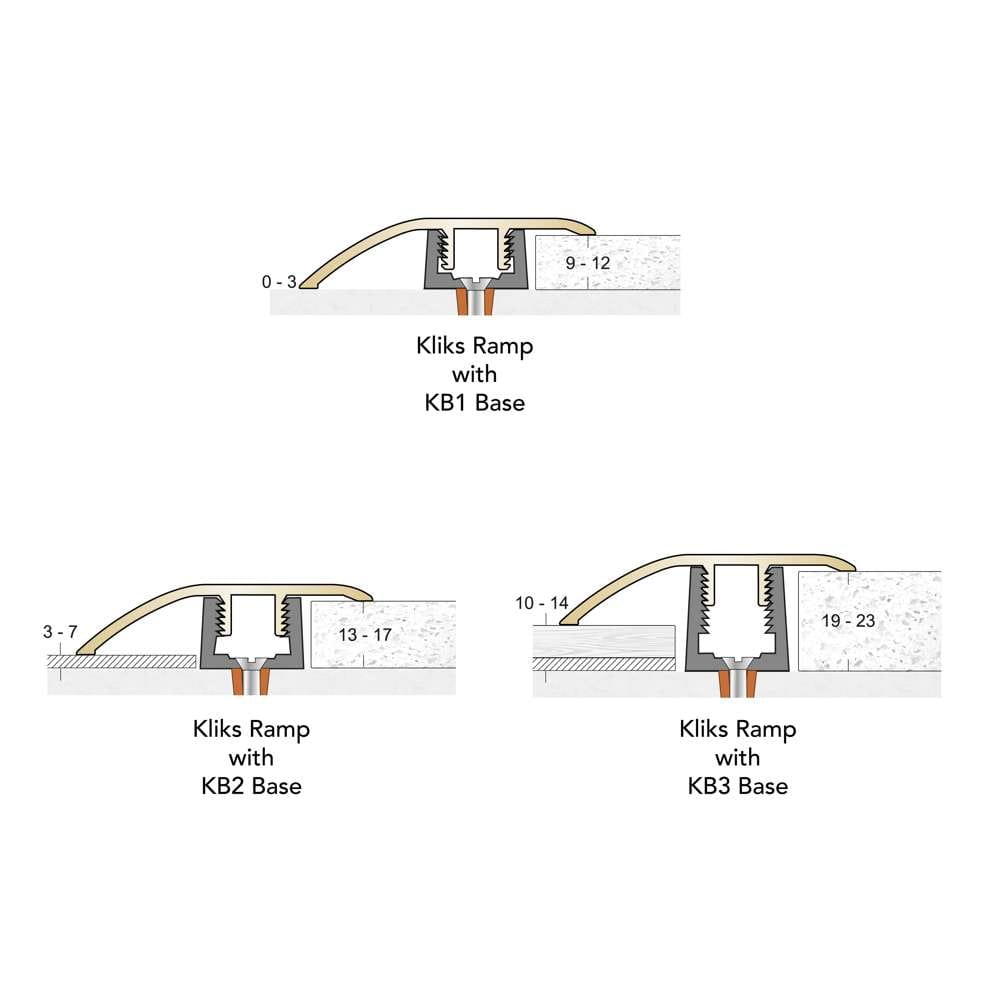

Installed in combination with one of three compatible bases to protect the edges of the floor coverings. The chosen KB base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.

Lengths Available

2715 mm

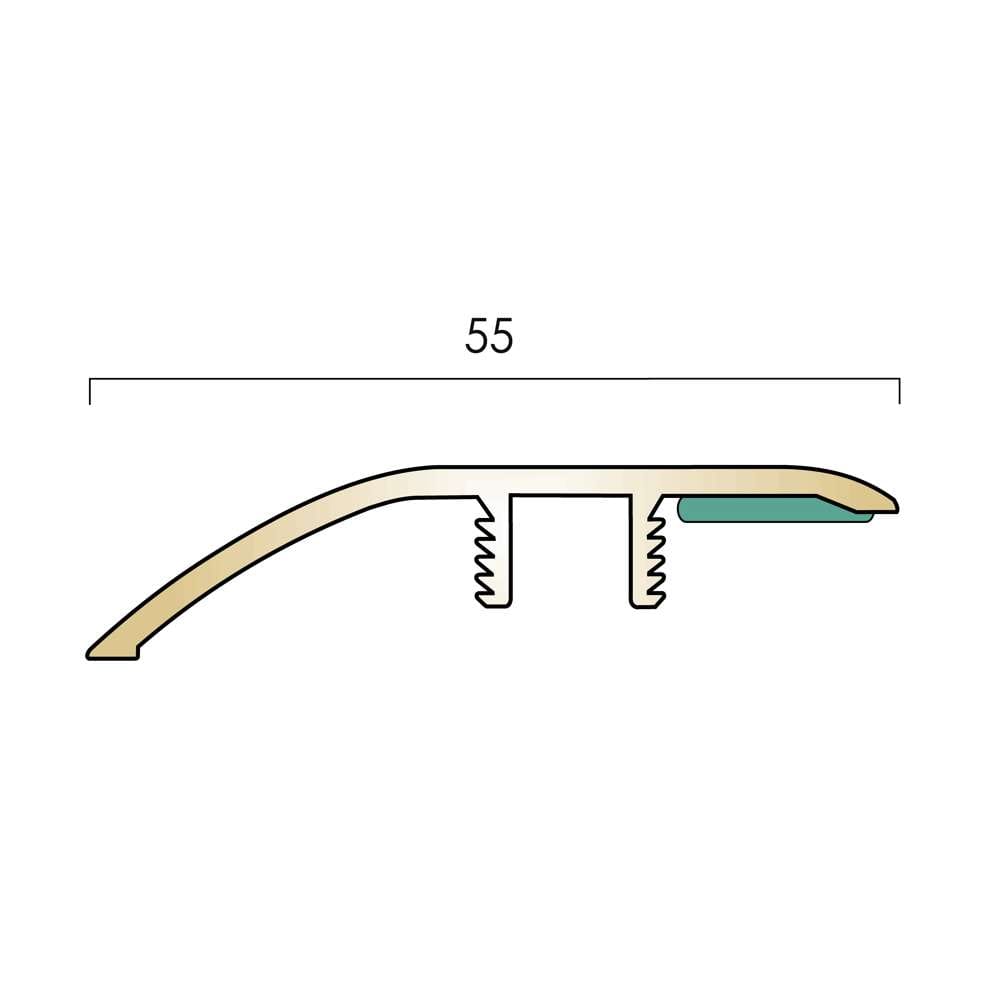

Visible Surface When Installed

55 mm

Standard Supply

Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.

Light Reflective Value (Finish)

63.6 Find out more

Compatible Bases

KB1, KB2, KB3

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

Installed in combination with one of three compatible bases to protect the edges of the floor coverings. The chosen KB base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.

Lengths Available

2715 mm

Visible Surface When Installed

55 mm

Standard Supply

Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.

Light Reflective Value (Finish)

9.15 Find out more

Compatible Bases

KB1, KB2, KB3

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.

Application

Installed in combination with one of three compatible bases to protect the edges of the floor coverings. The chosen KB base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.

Lengths Available

2715 mm

Visible Surface When Installed

55 mm

Standard Supply

Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.

Light Reflective Value (Finish)

29.55 Find out more

Compatible Bases

KB1, KB2, KB3

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

Installed in combination with one of three compatible bases to protect the edges of the floor coverings. The chosen KB base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.

Lengths Available

2715 mm

Visible Surface When Installed

55 mm

Standard Supply

Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.

Light Reflective Value (Finish)

59.55 Find out more

Compatible Bases

KB1, KB2, KB3

Suitability

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Application

Installed in combination with one of three compatible bases to protect the edges of the floor coverings. The chosen KB base is firmly affixed to the substrate floor then the top pressed down over it to engage interlock feature between the two profiles. Ideal for finishing timber, ceramic tiles, laminates and any other flooring that requires expansion. Can also be installed without a base if supplied with Stick-Fix double-sided adhesive tape pre-applied to the horizontal surface upon request.

Lengths Available

2715 mm

Visible Surface When Installed

55 mm

Standard Supply

Undrilled for use with a choice of uPVC clip-in base. Can be supplied with Stick-Fix double-sided adhesive tape pre-applied to the underside of the horizontal surface for fixing without a base.

Light Reflective Value (Finish)

71.45 Find out more

Compatible Bases

KB1, KB2, KB3

Finishes

Finish: Chrome

Chrome

Finish: Antique Bronze

Antique Bronze

Finish: Antique Brass

Antique Brass

Finish: Satin Brass

Satin Brass

Finish: Polished Brass

Polished Brass
