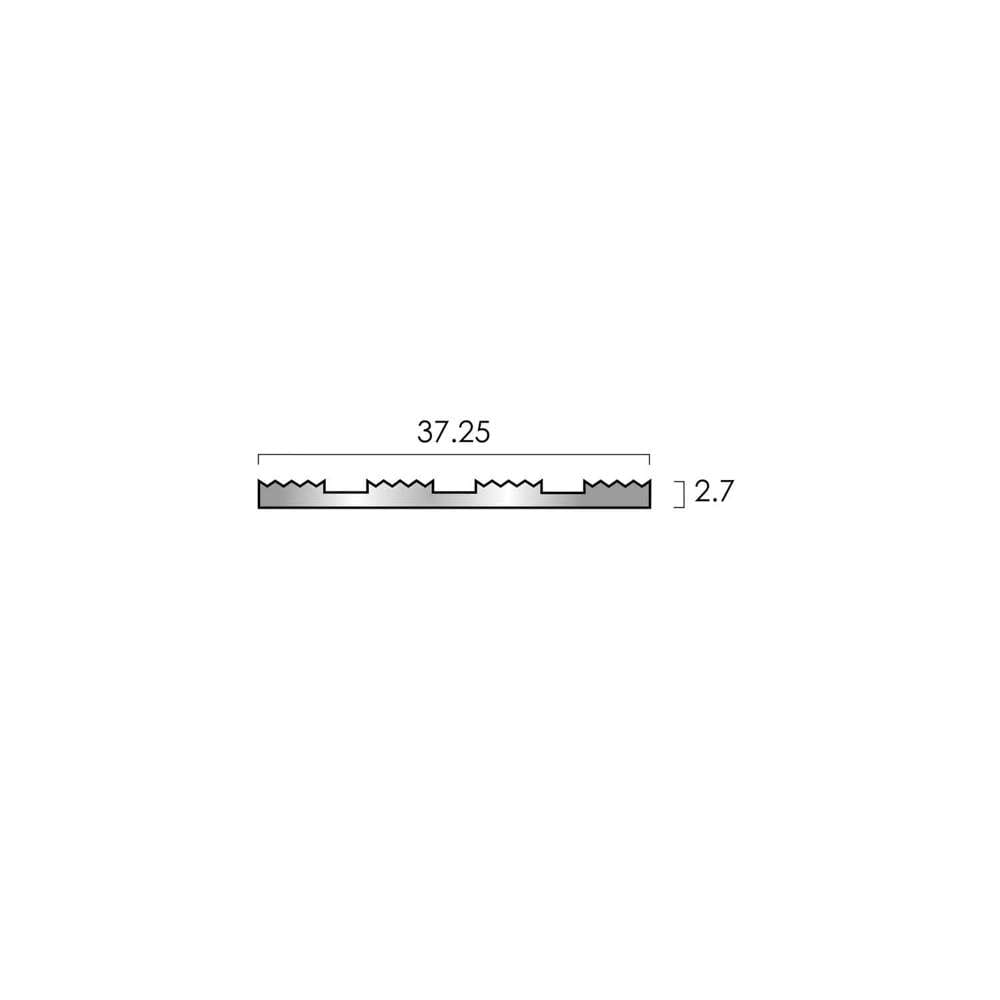

ATI37.25 – Aluminium
ATI37.25 Castellated Aluminium tread inserts are available in 3 finish options to suit all installations.
Typical Installation: To define and provide slip resistance to the edge of stair treads. Tolerance allowance should always be made when rebating to allow for any variation in size. Samples are available prior to rebate.
Technical Specification
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can also be supplied as a tread insert with CAT aluminium stair nosing profiles with equivalent infill pocket dimensions for an all- aluminium installation where concealed fixings are required. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
2750 mm
Fixing
Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.
Light Reflective Value (Finish)
75.55 Find out more
Slip Resistance Values
SRV Wet: 54, SRV Dry: 82 Find out more
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can also be supplied as a tread insert with CAT aluminium stair nosing profiles with equivalent infill pocket dimensions for an all- aluminium installation where concealed fixings are required. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
2750 mm
Fixing
Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.
Light Reflective Value (Finish)
65.4 Find out more
Slip Resistance Values
SRV Wet: 54, SRV Dry: 82 Find out more
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For rebating into stone and wooden steps or between ceramic tiles, to provide a visual aid and some slip resistance. Can also be supplied as a tread insert with CAT aluminium stair nosing profiles with equivalent infill pocket dimensions for an all- aluminium installation where concealed fixings are required. Installation guide available.
Supplied Cut to Size, up to a Maximum Length of
2750 mm
Fixing
Adhesive. We recommend Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.
Light Reflective Value (Finish)
71.65 Find out more
Slip Resistance Values
SRV Wet: 54, SRV Dry: 82 Find out more
