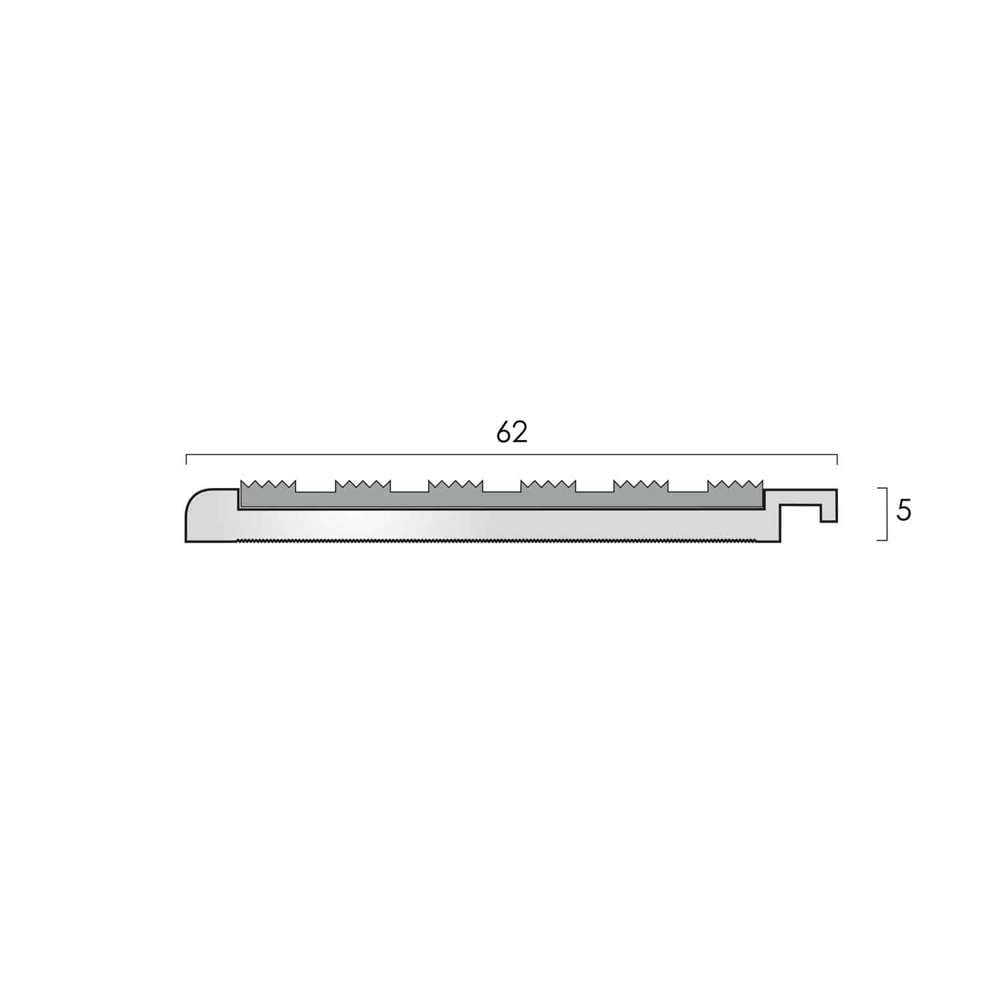

ATI62 – Aluminium
ATI62 Aluminium tread inserts are available with a range of infill options and colours to suit all installations.
Typical Installation: To define and provide slip resistance to the edge of stair treads. Tolerance allowance should always be made when rebating to allow for any variation in size. Samples available prior to rebate.
Technical Specification
Suitability
Medium to heavy foot traffic in interior situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.
Application
For rebating into stone and wooden steps or with ceramic tiles, to provide a visual aid and some slip resistance. Installation guide available.
Supplied in Stock Lengths
2750 mm
Light Reflective Value (Finish)
71.65 Find out more
Compatible Accessories
ANEXT, ANRE25, ANE
Slip Resistance Values
Castellated PVC Insert - SRV Dry: 85 - SRV Wet: 76
Smooth Textured PVC Insert - SRV Dry: 65 - SRV Wet: 56
ATI49.5 Aluminium Insert - SRV Dry: 82 - SRV Wet: 54
Olympic Grip Insert - SRV Dry: 102 - SRV Wet: 71
Find out more
Infill Options
Castellated PVC Insert
Black
Flint
Granite
Peat
Spruce
Claret
Regency
Rustic
Jade
Porth Stone
Light Grey
Mid Blue
Fawn
Yellow
Polar Grey
Nimbus
Ivory
Poppy
White
Gold
Olive
Smooth Textured PVC Insert
Black
Light Grey
Polar Grey
Porth Stone
ATI49.5 Aluminium Insert
Mill
Satin
Polished
Black Anodised
Bronze
Light Bronze
Olympic Grip Insert
Black
Please select the sample you'd like for this product
